16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Transmission Equipment

Dual-fiber CWDM Mux Demux is a passive device used to multiplex and demultiplex wavelengths to expand network capacity. This component must work in pairs to transmit bi-fiber in both directions. It supports up to 18 channels for sending and receiving 18 signals with wavelengths from 1270 nm to 1610 nm.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

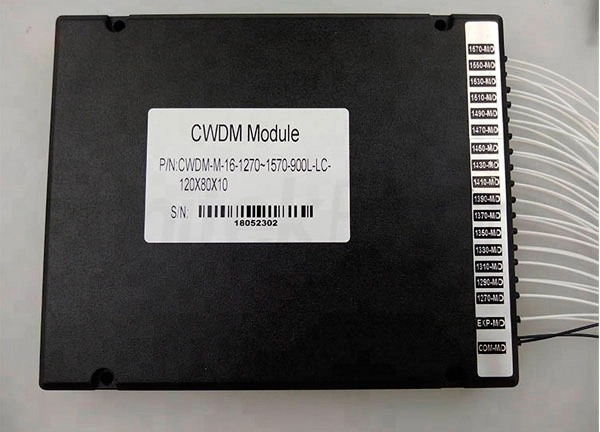

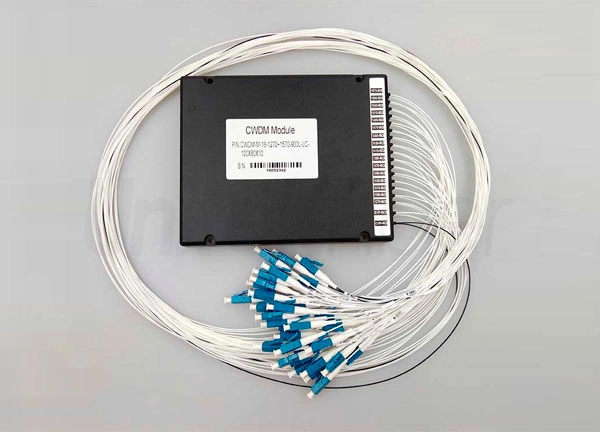

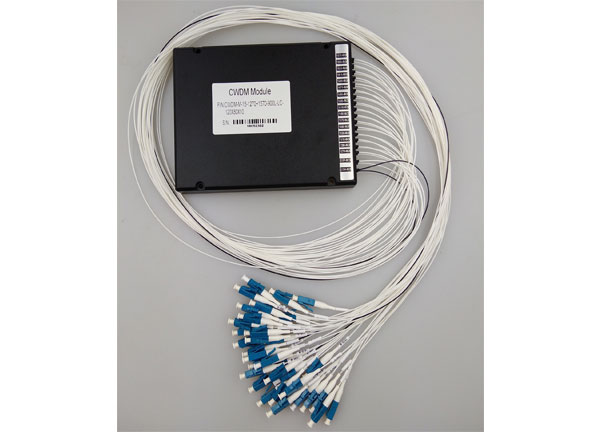

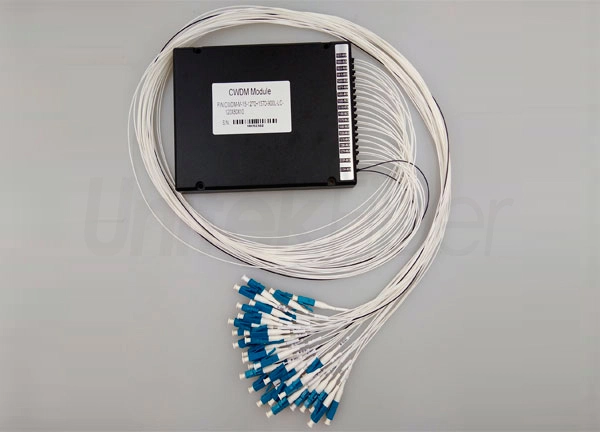

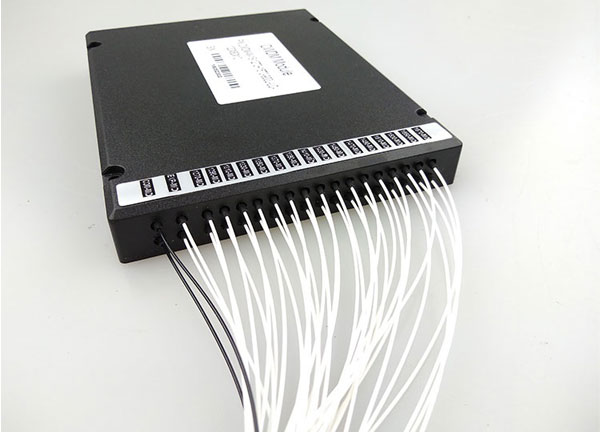

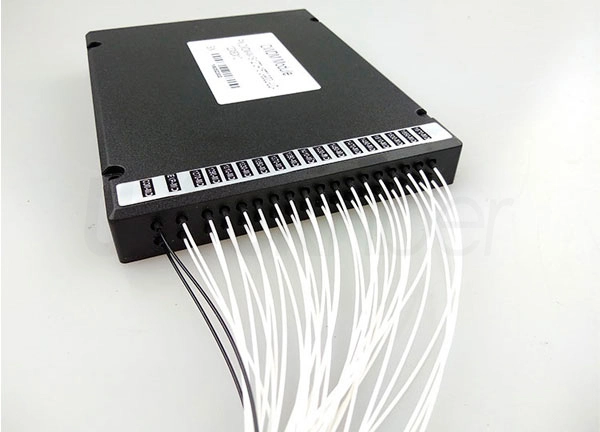

16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Transmission Equipment

Features


  • Low Insertion Loss

  • High Channel Isolation

  • Optical path epoxy free

  • Excellent thermal stability and reliability

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)

  • Wide Operating Temperature: -20 to +70℃

  • Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard


Application


  • CWDM Network

  • Add/Drop System

  • CATV Fiberoptic System

  • Metro/Access Network

  • Fiber Optical Amplifier

16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Transmission Equipment

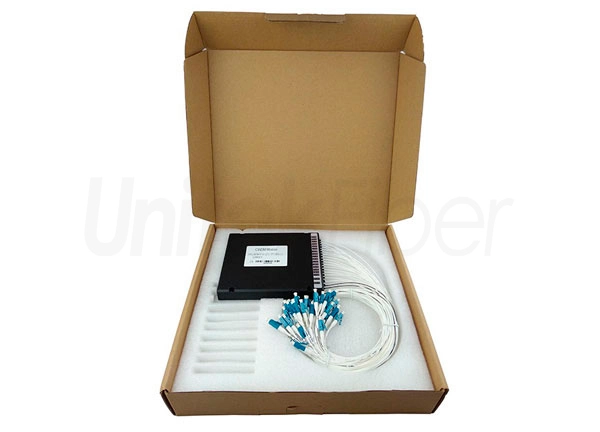

Packaging and Shipping


16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Transmission Equipment


Production


16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Transmission Equipment


16 Channel Dual Fiber CWDM Mux Demux Fiber Optic Transmission Equipment

Parameter

4 Channel

8 Channel

18 Channel

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength (nm)

1270~1610

Center wavelength Accuracy (nm)

±0.5

Channel Spacing (nm)

20

Channel Passband (@-0.5dB bandwidth (nm)

15

Insertion Loss (dB)

≤1.5

≤2.5

≤3.2

Channel Uniformity (dB)

≤0.5

≤1.0

≤1.5

Channel  Ripple (dB)

0.3

Isolation (dB)

Adjacent

>30

>30

>30

>30

>30

>30

Non-adjacent

>45

>45

>45

>45

>45

>45

Inertion Loss Temperature Sensitivity (dB/°C)

<0.005

Wavelength Temperature Shifting (nm/°C)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

500

Opterating Temperature (°C)

-5~+75

Storage Temperature (°C)

-40~85

Package dimension (mm)

L100 x W80 x H10 or L120xW80xH18
