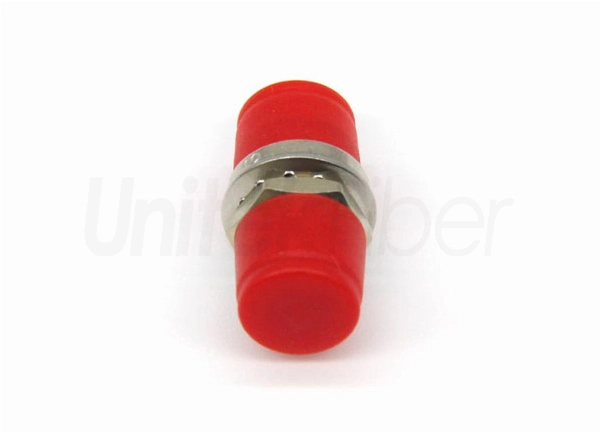

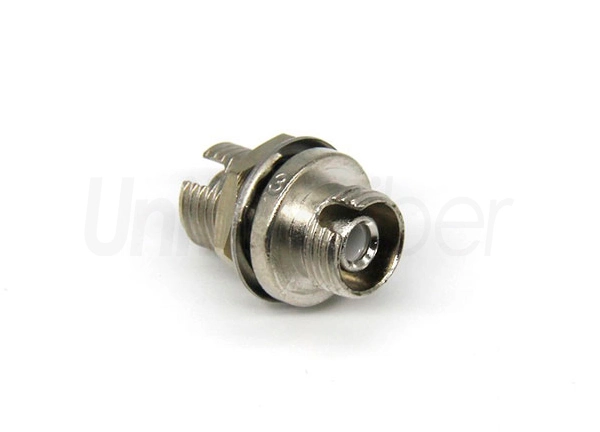

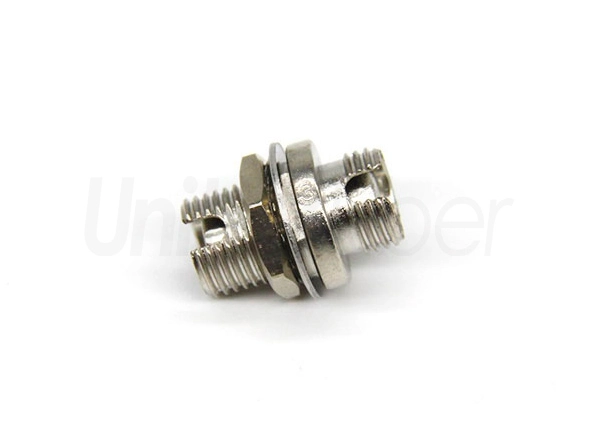

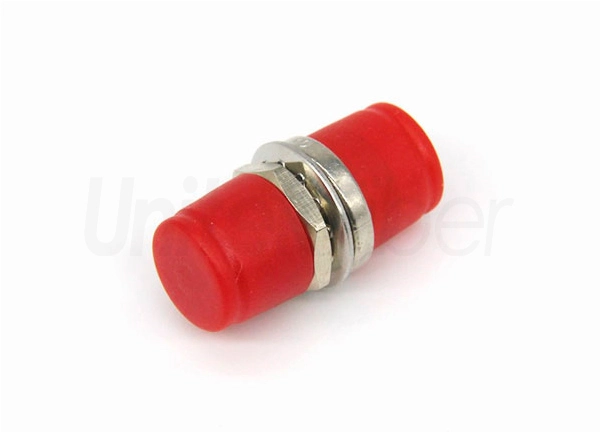

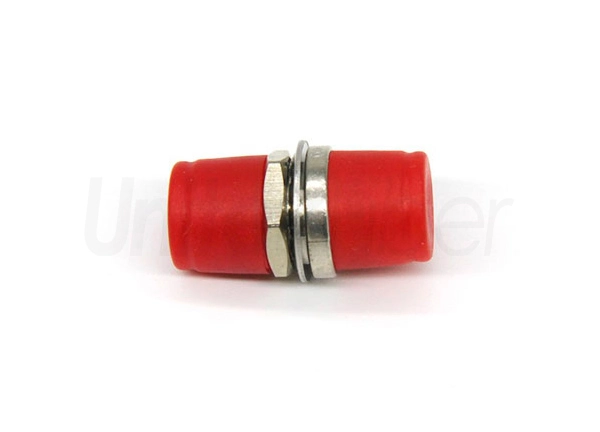

Small D type FC/UPC Fiber Optic Mid-couplers Simplex for ODF Box Installation

The FC mid coupler adopts a metal structure and is a high-precision connection device with screw connection. It adopts precision ceramic or copper sleeve to ensure long-term stable mechanical and optical performance. Square, D type, and rectangle FC adapters are available. The D-type FC fiber adapter is easy to install on the panel, and the screw connection ensures that the optical signal is stable and reliable.


Fiber Optic
Details
Parameter

Details of Small D type FC/UPC Fiber Optic Mid-couplers Simplex for ODF Box Installation

Features


  • Low insertional loss and back reflection loss

  • High prcision alignment

  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

  • Compact design

  • Plastic housing


Application


  • CATV

  • Telecommunication networks

  • Test equipment

  • Metro

  • Local Area Networks(LANs)

  • Data processing networks

  • Multimedia

  • Gigabit Ethernet

  • Active device/Transceiver


Components of Fiber Optic Adapter

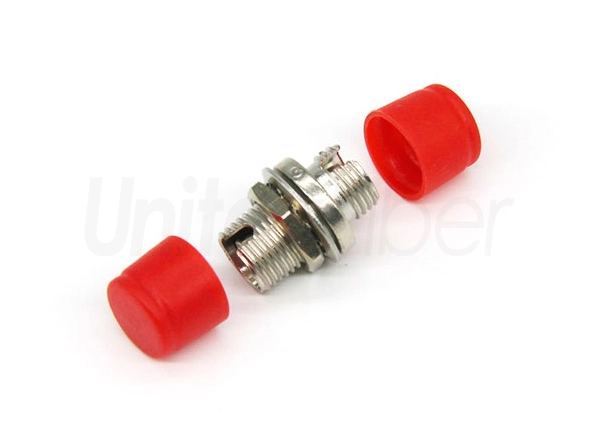

FC metal fiber optic adapter is consits of metal body, screw nut, ceramic sleeve and adapter caps.

Components of Fiber Optic Adapter


The Application of Fiber Optic Adapter in Fiber Network Cabling


The accessories of fiber optical adapters are so important in the fiber optical cable management. Most of fiber patchcords and fiber pigtails will connected by the adapters in the patch panel, ODF box, or cabinet shelf. Fiber optic adatper is as a bridge to make a connection for incoming fiber signal and output fiber signal. Thus, the fiber signals can be sucessfully transferred to the homes.

Fiber Optic Adapter in Fiber Network Cabling


Packaging and Shipping:


Packaging and Shipping


Production


Small D type FC/UPC Fiber Optic Mid-couplers Simplex for ODF Box Installation


Parameter of Small D type FC/UPC Fiber Optic Mid-couplers Simplex for ODF Box Installation

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85
