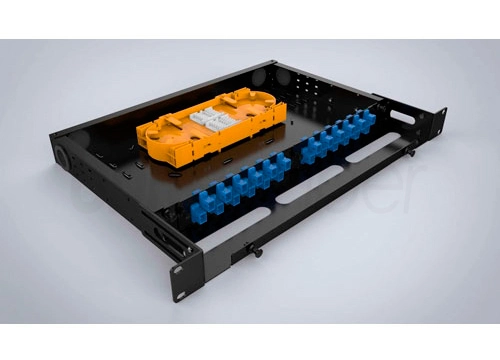

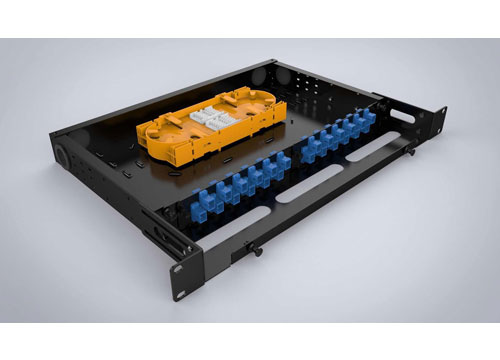

Fiber Optic Patch Panel UF-FR-CLD-1U Fixed Type Rack Mounted Optical Terminal Box

The front cover and rear cover of the UF-FR-CLD-1U fiber terminal box are 1.2mm aluminum plates, the bottom case is 1.5mm cold rolled plates, and the box holder is 2.0 cold rolled plates.

Fiber Optic
Details
Parameter

Details of Fiber Optic Patch Panel UF-FR-CLD-1U Fixed Type Rack Mounted Optical Terminal Box

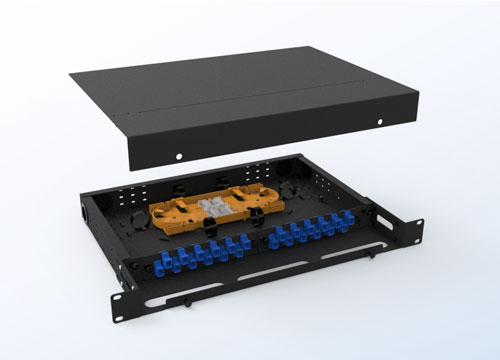

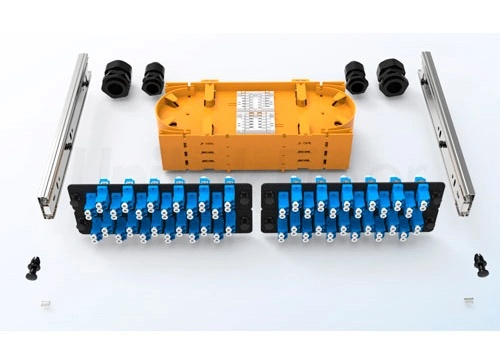

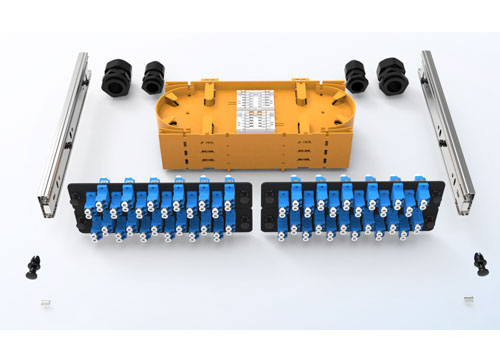

The rear cover and the bottom case are connected by two 8.2 locks at the bottom.The back cover of the rear cover is designed to be inserted into the tail of the bottom box. The front baffle is connected to the bottom box by two 8.2 locks, and the front cover has a rear step design that can be inserted into the front end of the rear cover. The panel bracket is fixed to the bottom box by two countersunk screws on the side and three countersunk screws on the bottom. The splice tray is fixed in the center of the bottom box by two countersunk screws. The capacity for UF-FR-CLD-1U fixed fiber terminal box is 48 cores LC adapters. It is suitable for LC, SC, ST and FC adapters.


Features:


  • Rack mounting 19” standard size, light weight

  • Suitable for ribbon and single fiber

  • Various panel plate to fit different adapter interface

  • 24C, 36C, 48C, 96C optional, with or without fiber optic pigtails and adapters

  • Easy for management and operation

  • Sprayed surface treatment process

  • Customizble color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging and Shipping


Fiber Optic Patch Panel UF-FR-CLD-1U Fixed Type Rack Mounted Optical Terminal Box


production


Fiber Optic Patch Panel UF-FR-CLD-1U Fixed Type Rack Mounted Optical Terminal Box



Parameter of Fiber Optic Patch Panel UF-FR-CLD-1U Fixed Type Rack Mounted Optical Terminal Box

Packing Information

Type

Max capacity

Per carton/Qty

Inner carton diameter(cm)

Outer carton diameter(cm)

Weight(kg)

UF-FR-CLD-1U

48/LC

5

49*37*5

51*29*39

16

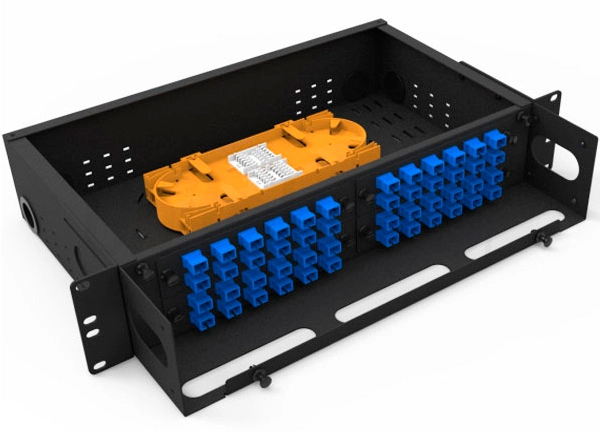

UF-FR-CLD-2U

96/LC

3

49*37*9.5

51*29*39

13.88
