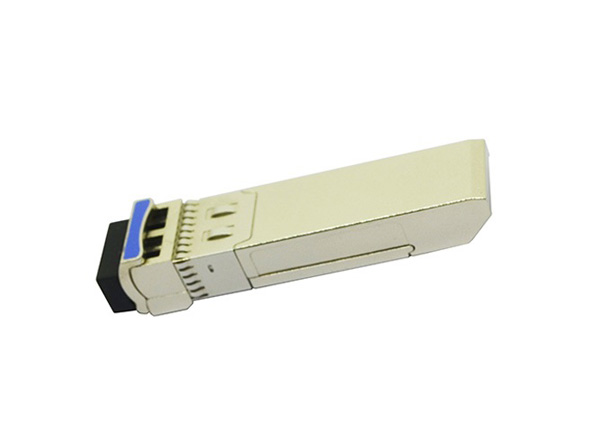

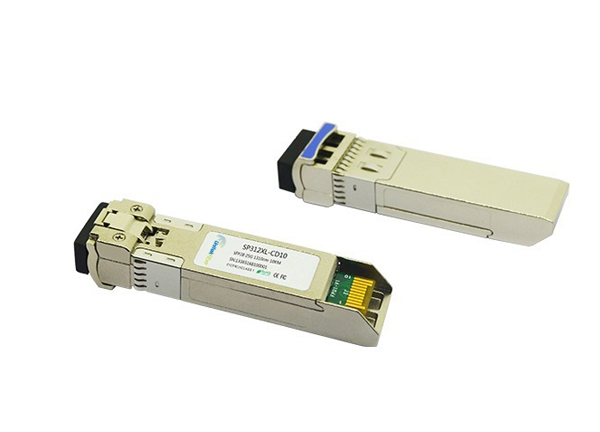

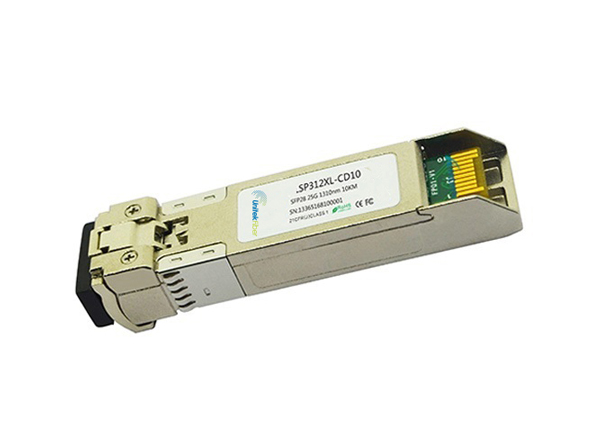

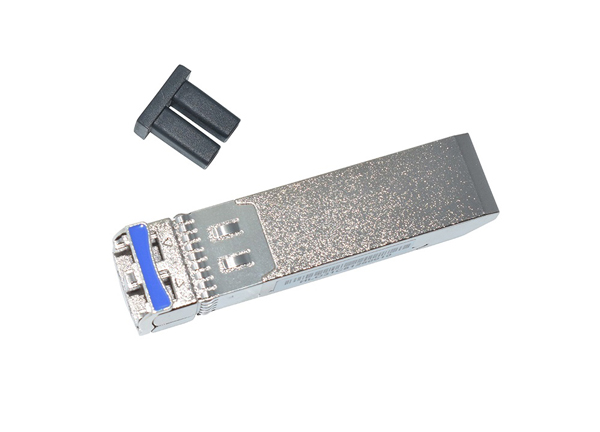

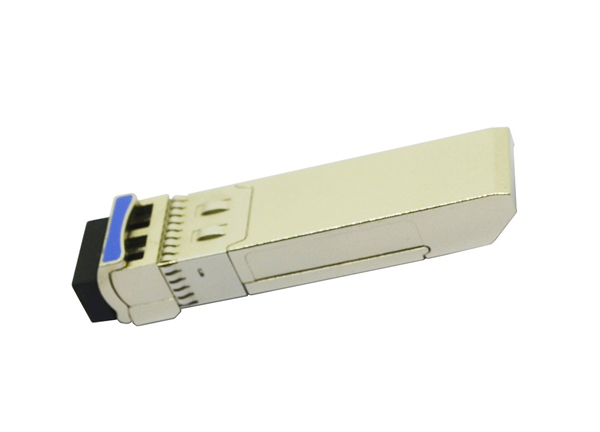

Fiber Optic Network Equipment 25G SFP28 Optical Transceiver Module Compatible 1330nm

UnitekFiber 25G SFP28 optical transceiver is mainly used for the interconnection of data center servers and switches. It is a new Ethernet standard with multiple advantages. 25G Ethernet technology brings the greatest advantages to data centers.The potential is to maximize bandwidth and port density, and it can also use 25Gb/s single-channel physical layer technology to achieve 100Gb data transmission.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Fiber Optic Network Equipment 25G SFP28 Optical Transceiver Module Compatible 1330nm

Fiber Optic Network Equipment 25G SFP28 Optical Transceiver Module Compatible 1330nm

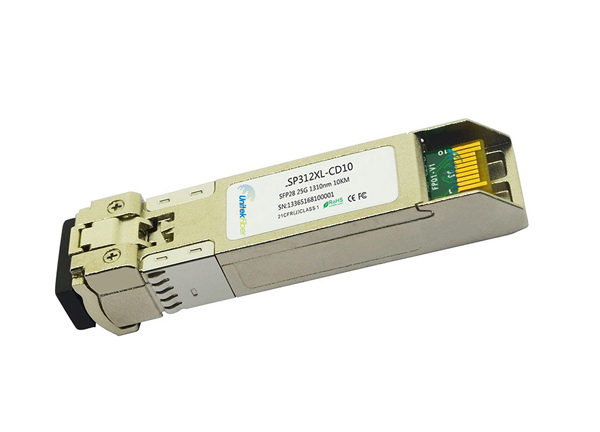

This SFP28 transceiver provides 25GBase-CWDM through put up to 10km over single mode fiber (SMF) using a wavelength of 1310nm via an LC duplex connector. It provides 25GBASE Ethernet connectivity option for 25G Ethernet, telecom and data center. It is fully compliant with the SFP28 MSA, CPRI and eCPRI standard.


Network Connectivity

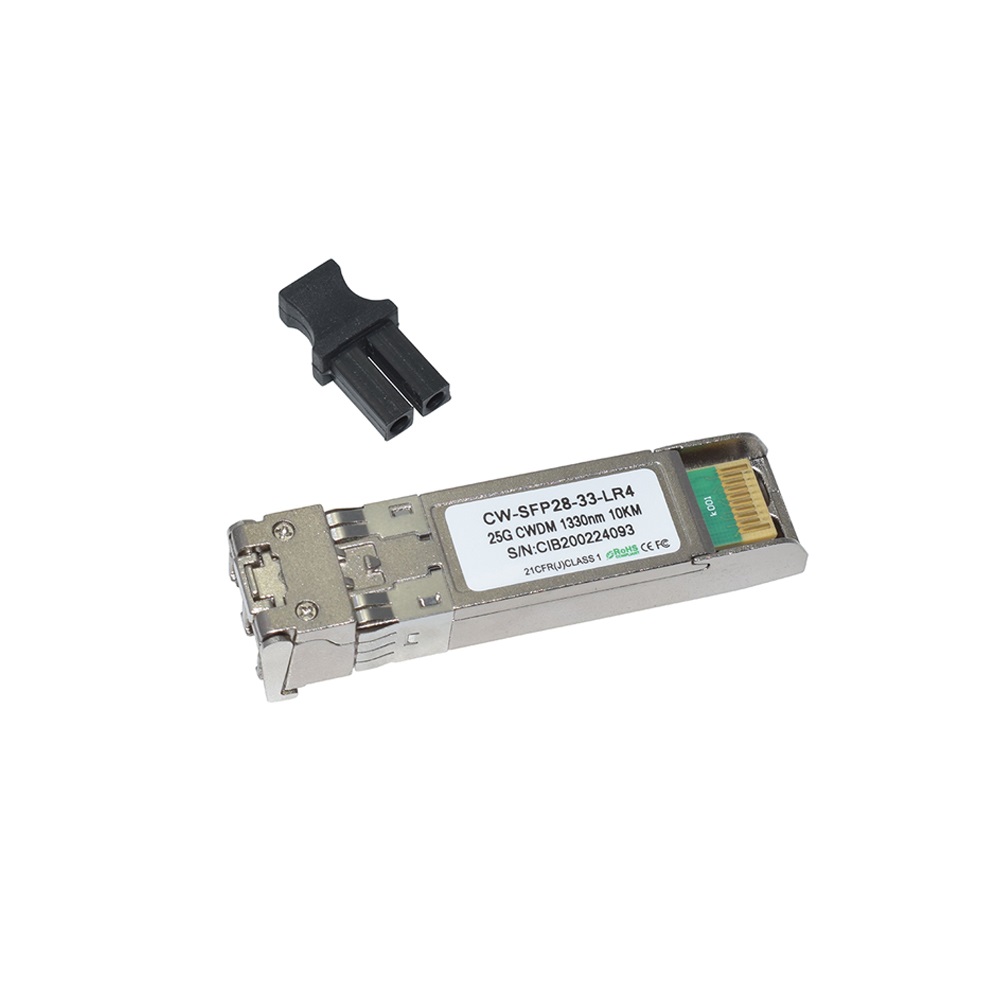

25G CWDM SFP+ Transceivers for CWDM Solution



Fiber Optic Network Equipment 25G SFP28 Optical Transceiver Module Compatible 1330nm


Product Highlights

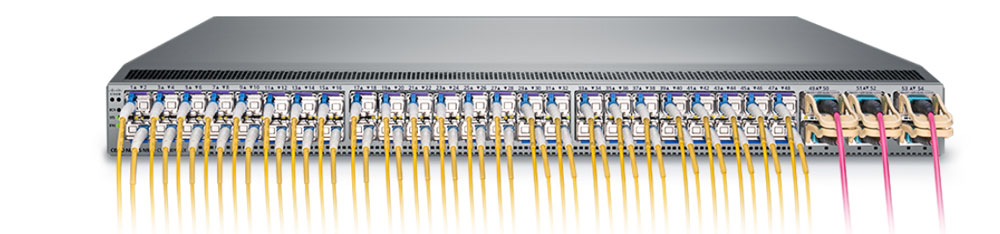

25G Connectivity for Data Center

With the continuous growth of data traffic, SFP28 transceivers have the characteristics of low power consumption, high density and high speed.


Fiber Optic Network Equipment 25G SFP28 Optical Transceiver Module Compatible 1330nm


After quality testing to ensure compatibility in the switch environment, SFP transceiver can be applied to 25G Ethernet switches and routers.


Fiber Optic Network Equipment 25G SFP28 Optical Transceiver Module Compatible 1330nm

Fiber Optic Network Equipment 25G SFP28 Optical Transceiver Module Compatible 1330nm

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UF-SFP28-25G-SR

SFP28

25G

850nm

VCSEL/PIN

100m

MMF

MPO

0℃~70℃

UF-SFP28-25G-LR

SFP28

25G

1310nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-ER

SFP28

25G

1310nm

EML/PIN

40km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-CWDM-LR

SFP28

25G

1271nm/1291nm/1311nm /1331nm

DML/PIN

10km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-CWDM-ER

SFP28

25G

1271NM/1291NM/1311NM

/1331NM/1351NM/ 1371NM

DML/PIN

40km

SMF

Duplex LC

0℃~70℃

UF-SFP28-25G-DWDM-LR/ER

SFP28

25G

C21-C60-40

DML/PIN

10KM/40KM

SMF

Duplex LC

0℃~70℃

UF-FP28-BIDI-25G-LR

SFP28

25G

1270/1330nm

DML/PIN

10KM

SMF

LC

0℃~70℃


What are the types of 25G optical modules?

25G optical modules are roughly divided into three types, 25G dual-fiber modules, 25G WDM modules, and 25G BIDI modules.

Is there any damage to the module if it is used for transmission over a short distance of 10m for an 25G optical module of 10km? Do I need to use attenuator?

We need to ensure that the receiving power of the module is not more than the receiver overload power to avoid the module being broken. So to get the 25G LR to work at 10m, you need to add about 3dB attenuation.

Are any of these modules compatible with Huawei Equipment?

Yes, Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

How much power does this 25G SFP transceiver draw?

The power consumption of this module <1w.

Can SFP28 ports be interconnected with QSFP28 ports?

100G SR4 multi-mode optical modules can be used for interconnection. Under the premise of equipment support, 100G QSFP28 ports can be configured as 4*25G mode, and then MPO-LC fiber jumpers are used to connect 100G SR4 optical modules and 25G SFP28 optical modules.

What is the maximum transmission distance of the 25G SFP28 optical module?

At present, 25G SFP28 optical modules can transmit up to 40 kilometers. There are 25G SFP28 ER, 25G SFP28 bidi, 25G SFP28 CWDM, and 25G SFP28 DWDM.

Cikey
Aug 08, 2022

Wonderful cables.

I have received the order, and your shipping time is out of expected. And the FTTH drop cable are functioning just as expected. we have always been satisfied with our equipment from you.

Verified Purchase
Helpful 1
