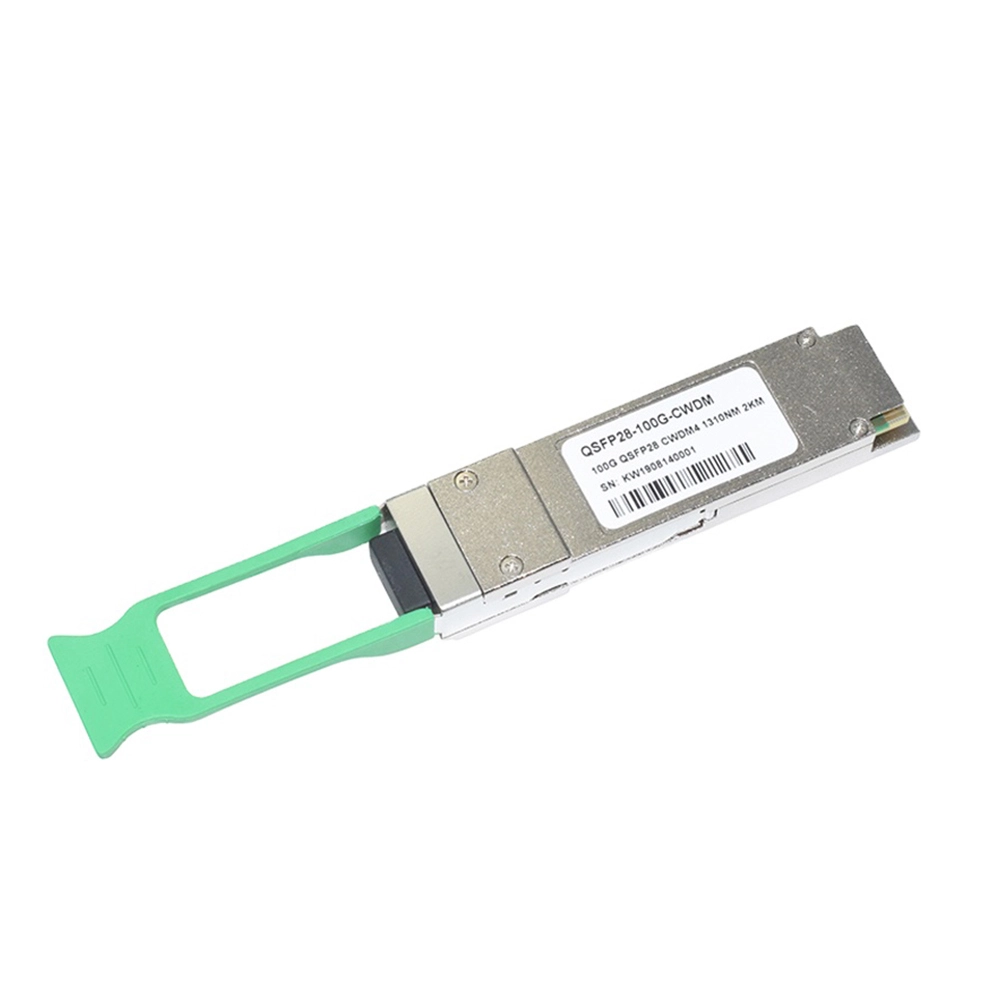

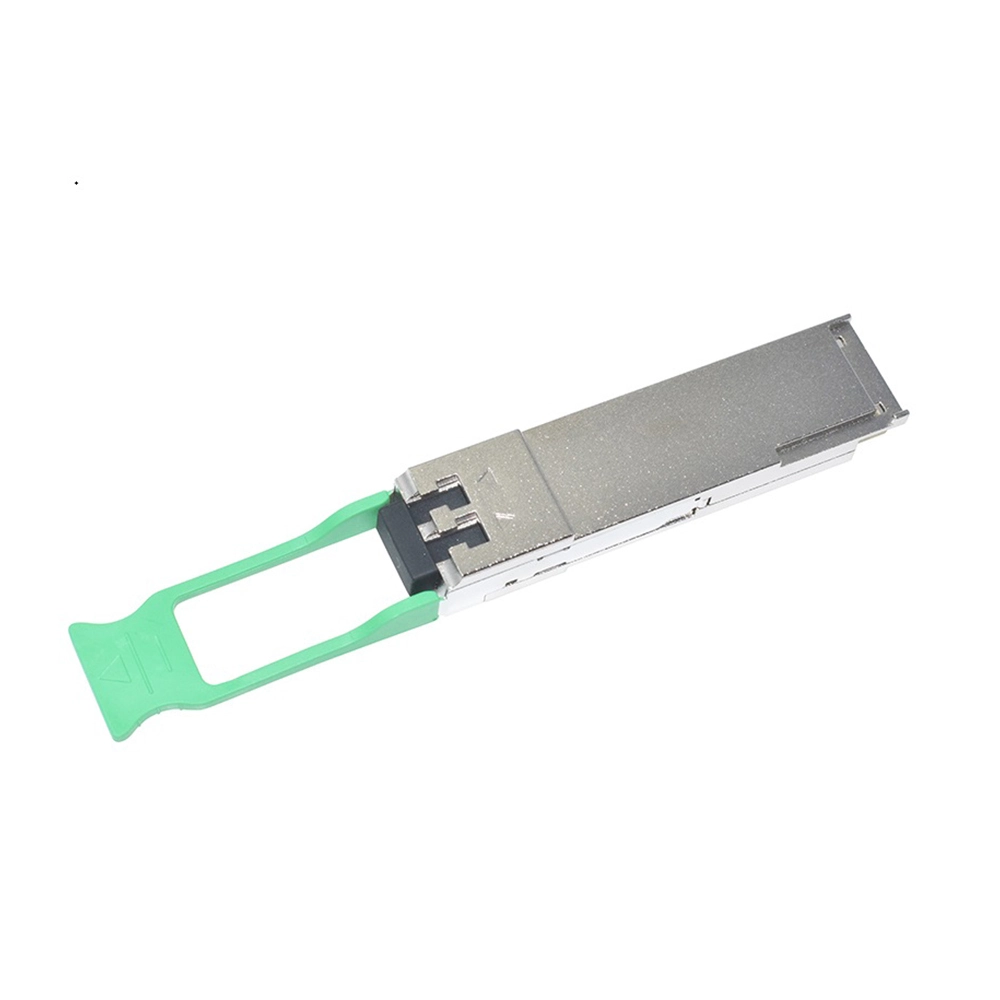

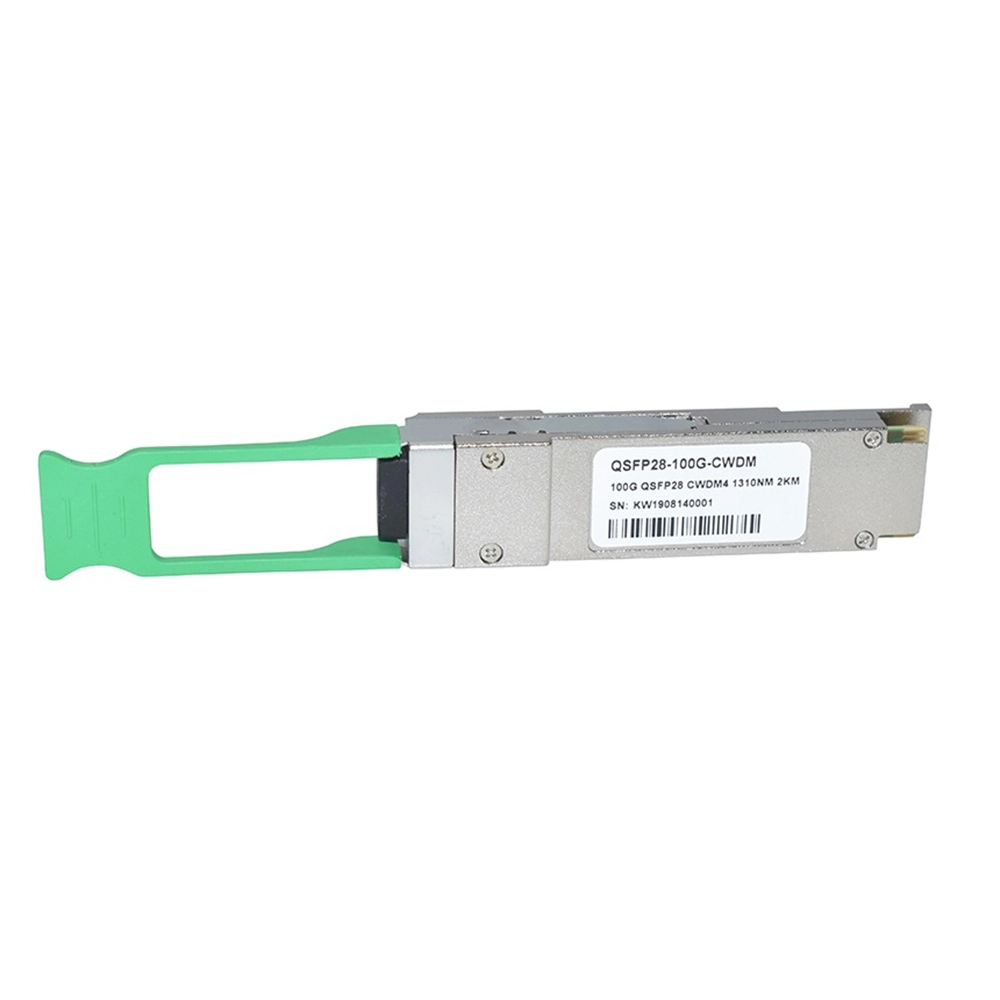

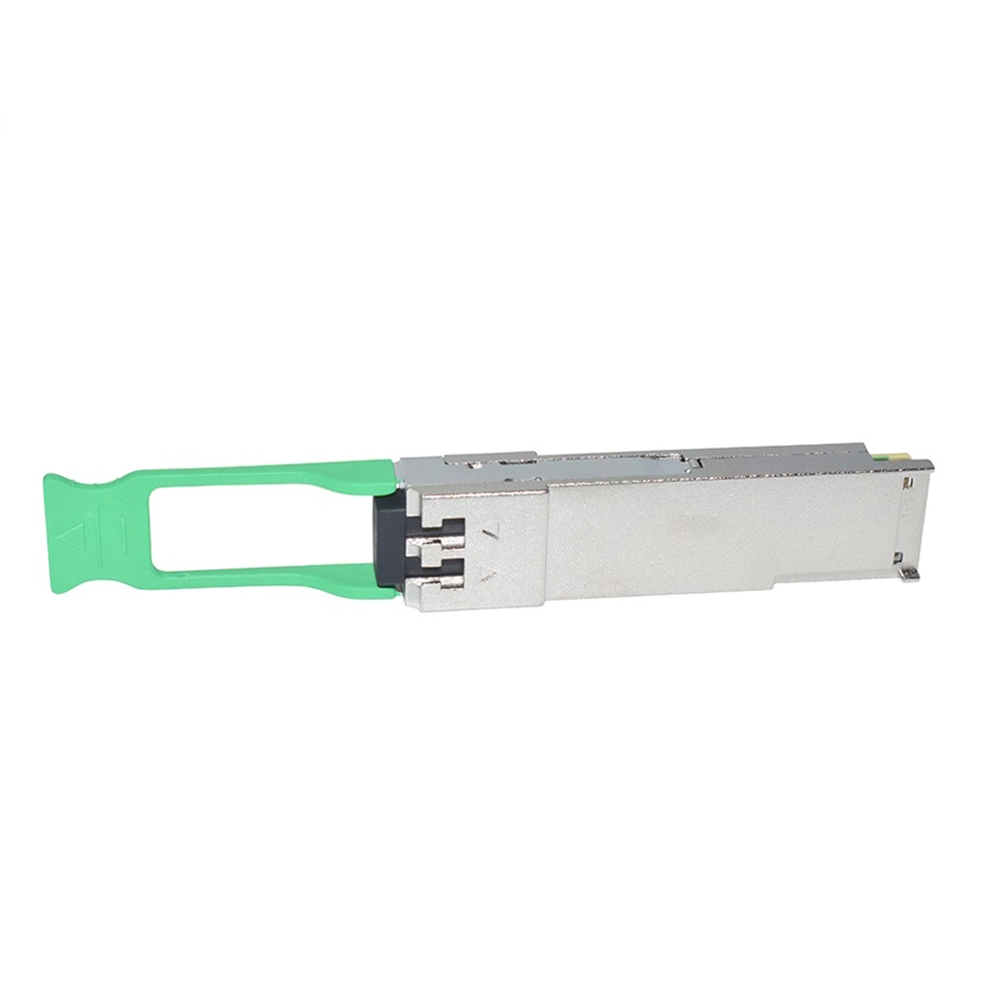

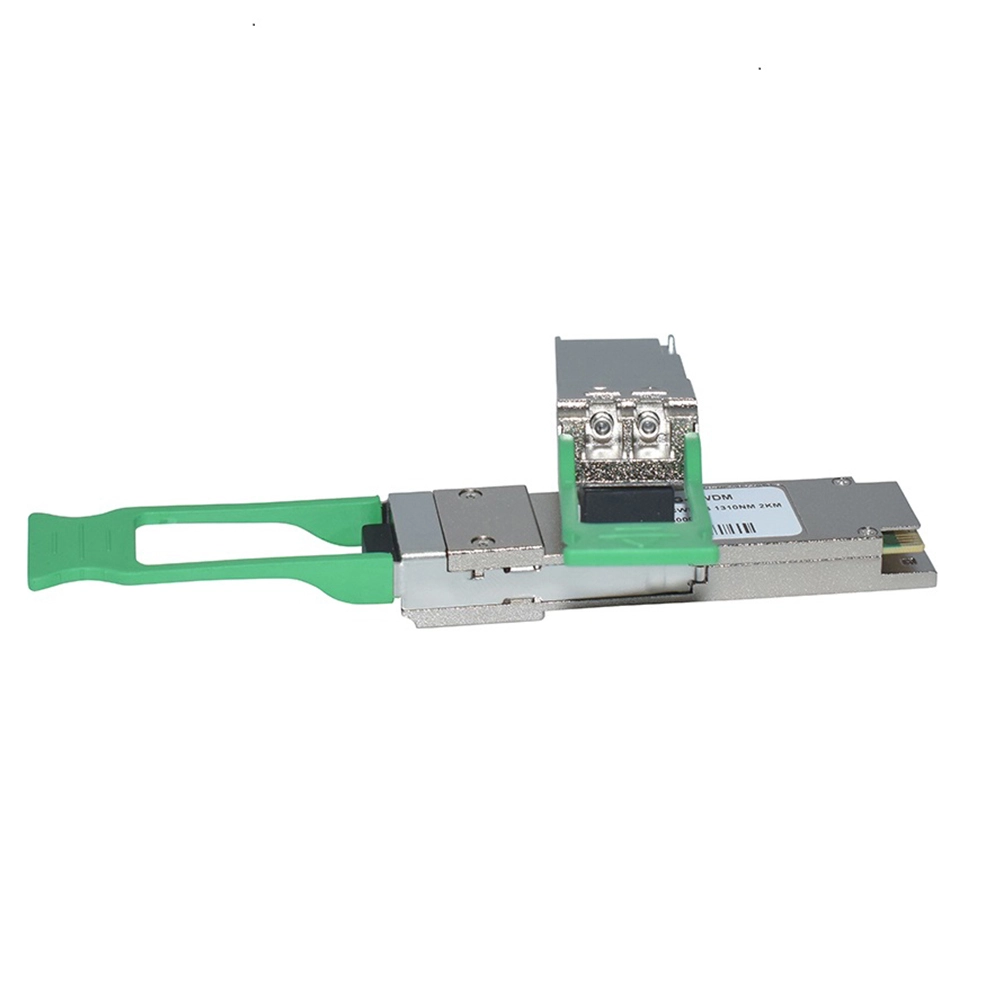

Optical Transceiver Module|QSFP28 100G Single Mode Fiber Transceiver 80km 1295/1310nm Wavelength LC

QSFP28 transceiver module was born to meet the requirements of 100G applications. It has 4 high-speed differential signal channels, and the transmission rate of each channel varies from 25Gbps to 40Gbps, which can meet the application requirements of 100G Ethernet (4×25Gbps) and EDR InfiniBand.


Products
Description
FAQ
Specification
Reviews
Video

Optical Transceiver Module|QSFP28 100G Single Mode Fiber Transceiver 80km 1295/1310nm Wavelength LC

The features of the 100G SFP transceiver module


lCompliant with 100GBASE-ZR4

lSupport line rates 100 Gb/s

lLAN WDM EML laser and PIN receiver with SOA

lUp to 80km reach for G.652 SMF

lHot pluggable 38 pin electrical interface

lQSFP28 MSA compliant

lDuplex LC optical receptacle

lRoHS-10 compliant

lSingle +3.3V power supply

lMaximum power consumption 6.5W

lCase operating temperature:0 ~ 70℃

unitek solutions

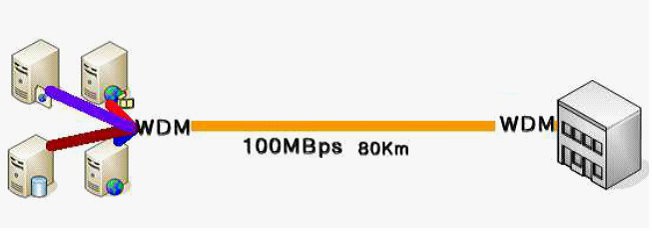

The application of the 100G QSFP28 transceiver module


The 100G QSFP28 transceiver module is a type of optical transceiver designed for high-speed data transmission over optical fiber. It is widely used in various applications that require high bandwidth, such as data centers, enterprise networks, service providers, and cloud computing.

12 port fiber termination box

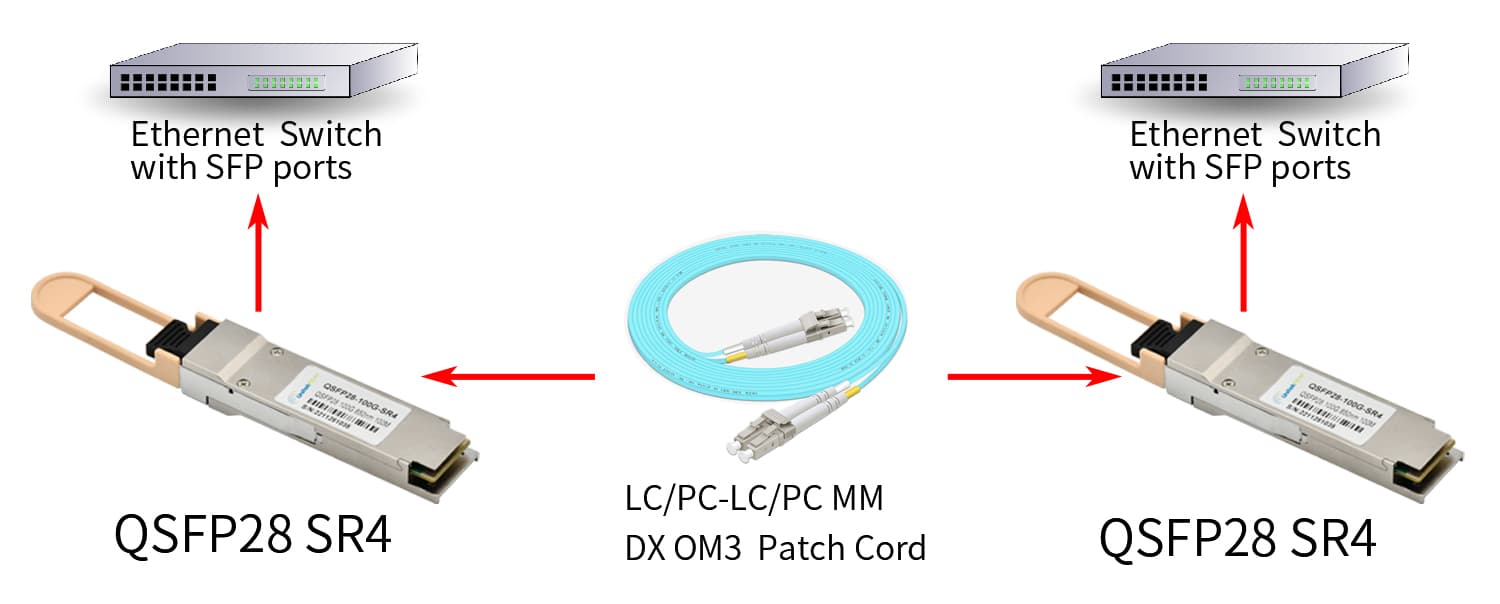

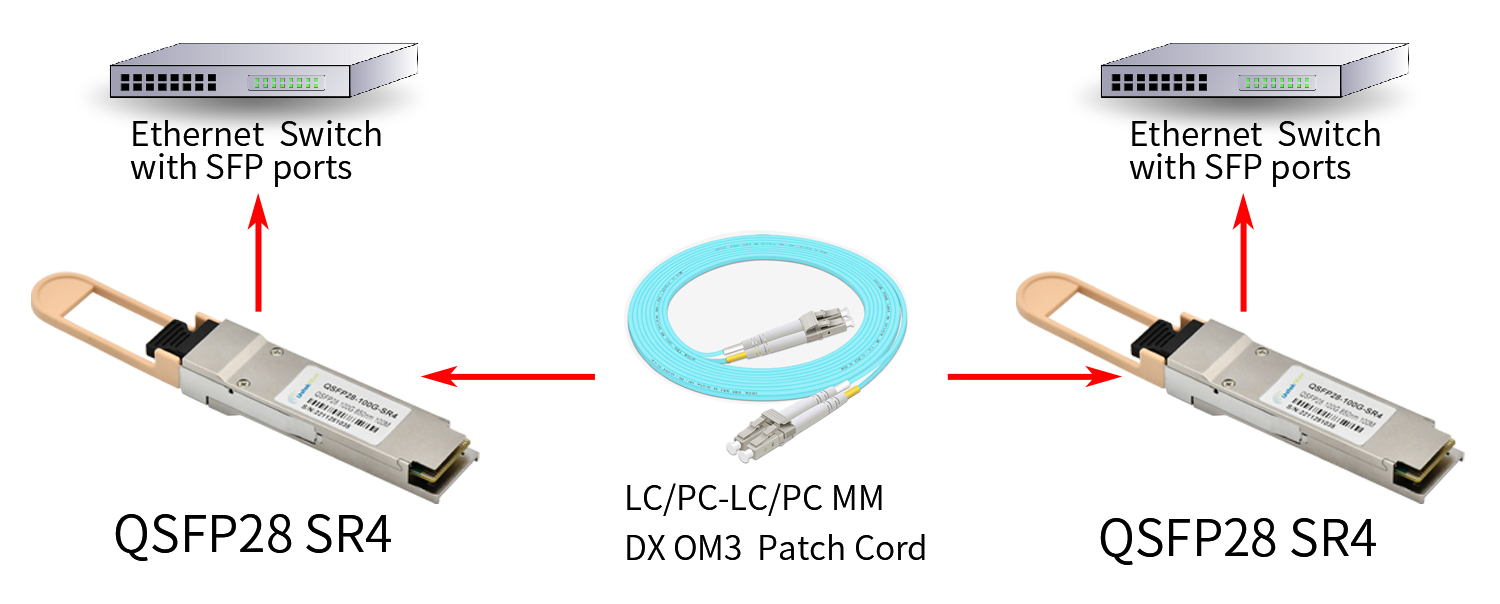

Network Connectivity

QSFP28 SR4 optical transceiver is packaged in QSFP28 optical transceiver module with small size and low power consumption, which can provide point-to-point solutions in data centers without deploying legacy CFP/CFP2 interfaces, and can run on point-to-point links up without optical amplification and dispersion compensation.

fiber optic plc

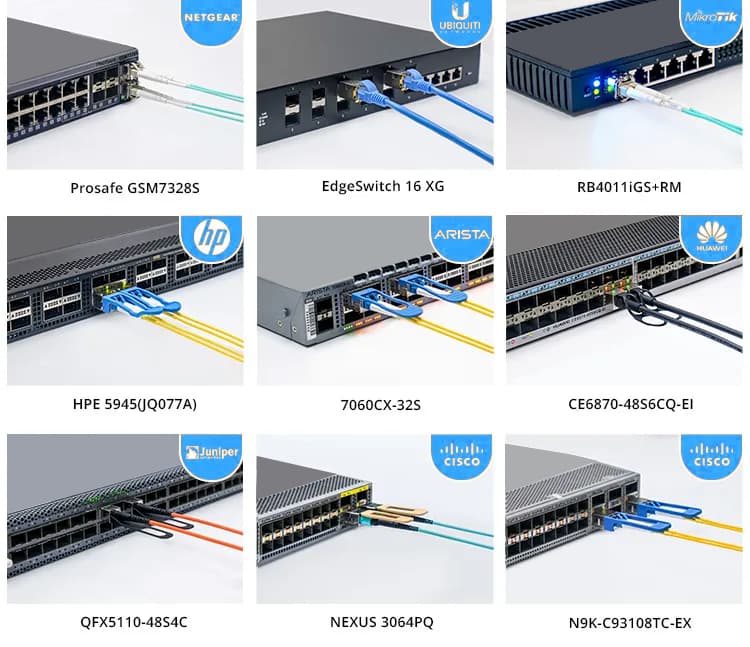

Competibale with all your Switch and 100% Tested in Host Devices

fiber optic terminal box

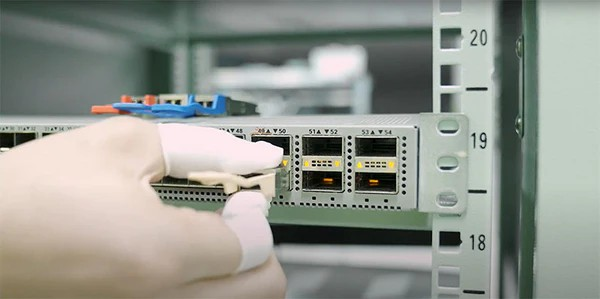

Tested in Host Devices for Proven Interoperability

In the face of the explosive growth of data services, the demand for big data transmission in the backbone network is rapidly rising, and the construction of 100G is started by mainstream operators around the world. The 100G data center solution is usually a 100G switch with a 100G QSFP28 optical transceiver module and MTP/MPO fiber jumper.


1 16 splitter

Can you accept OEM/ODM transceiver module order?

Yes, please send inquiry to us or email us sales@unitekfiber.com.


What is a QSFP28 Optic Transceiver Module?

QSFP28 is a hot-pluggable transceiver module designed for 100G data rate.


What are the main application scenarios of 100G optical modules?

100G connectivity for switches and routers in the data center.


What is the farthest transmission distance of a 100G optical module?

QSFP28-ZR4 100G optical transceiver module can transmit 80KM


What connection ports do 100G optical modules have?

Usually, QSFP28 100G optical modules have MPO port and LC port.
