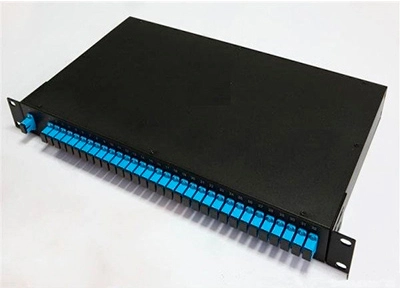

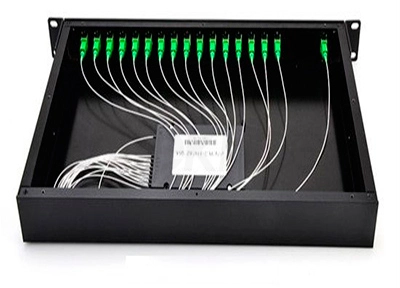

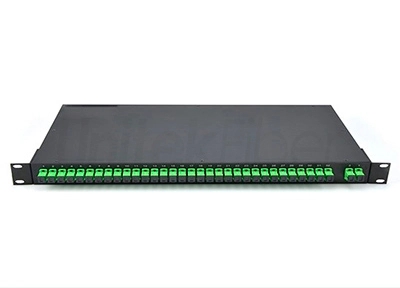

19 Inch Rack Chassis Optical PLC Splitter 1*32, 2*16

UnitekFiber produces rack chassis optical PLC spltters. The structure of rack chassis PLC splitter is to instal one or two micro type 1*N or 2*N PLC splitter into a rack mounted box. The box is in 19 inch standard. The Rack mounted PLC splitter is mainly used in optical cable distribution boxes, optical distribution frames, and so on. We provide whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.

Fiber Optic
Details
Parameter

Details of 19 Inch Rack Chassis Optical PLC Splitter 1*32, 2*16

Features:


  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:

  • From 1260nm to 1650nm

  • Wide Operating Temperature:

  • High Reliability and Stability


Applications:


  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution


Compliance


  • Telcordia GR-1209-CORE

  • Telcordia GR-1221-CORE


Packaging & Shipping


Packaging & Shipping

Production


19 Inch Rack Chassis Optical PLC Splitter 1*32, 2*16


Parameter of 19 Inch Rack Chassis Optical PLC Splitter 1*32, 2*16

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

50×4×4

50×4×4

50×7×4

60×12×4

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

50×7×4

50×7×4

60×7×4

60×7×4

60×12×4

60×12×4

80×20×6

N/A


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

50×4×4

50×4×4

50×7×4

60×7×4

60×12×4

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

N/A
