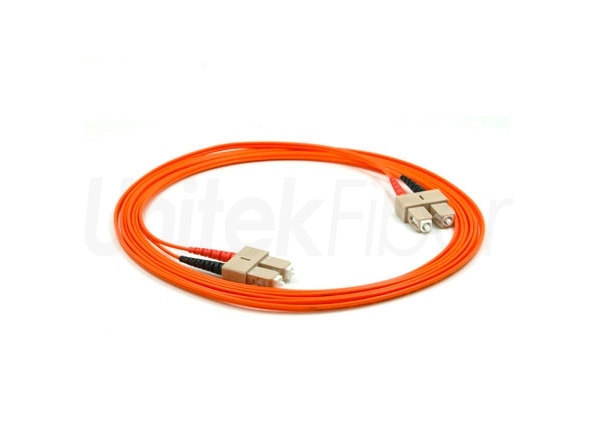

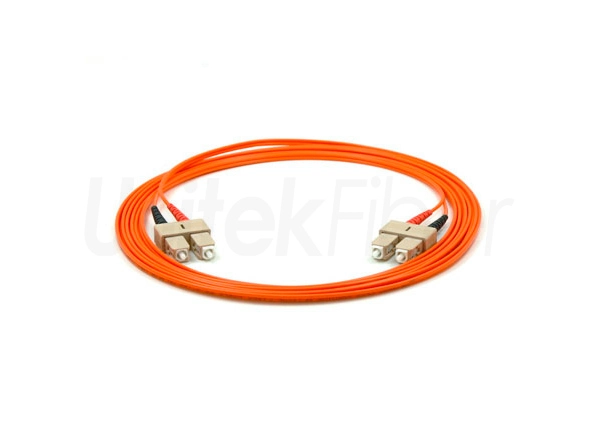

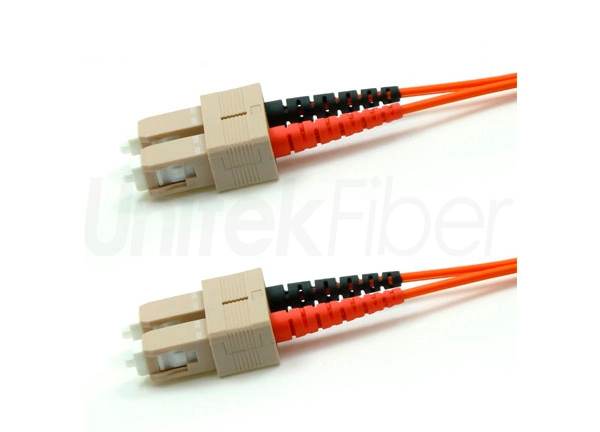

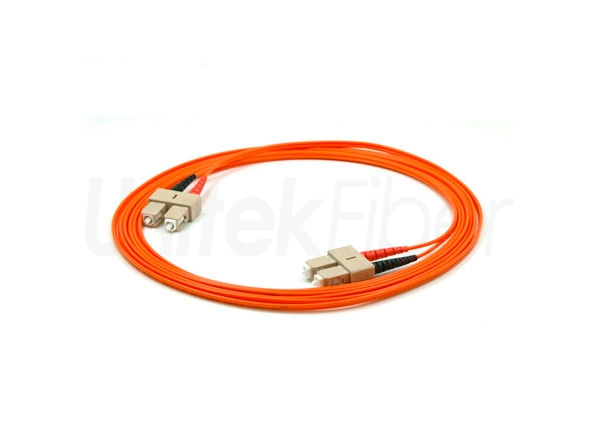

Optical fiber jumpers are used to connect from equipment to optical fiber wiring links. The fiber jumper is covered with a thick LSZH or PVC protective layer. It is generally used in the connection between the optical transceiver and the terminal box. UnitekFiber is producing defferent types of patchcords, such as SC, LC, FC, E2000 patchcords. The cable length can be customerised.
High reliability;
CE & RoHS compliant;
100% connectors tested;
Repeatability: >1000 times;
Deliery 100% passed products;
Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;
Return Loss: UPC>50dB, APC>60dB;
Telecommunications
Local Area Network (LAN)
Fiber to the home (FTTH)
Optical patch panels
Testing Instruments
CATV
Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
SM | MM | SM | MM | SM | MM | SM | |||||||
PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
Insertion loss(typical) | dB | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 |
Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.
Normally about 7 days after confirmation.
Normally 7-20 days depends on products and order quantities.
Yes, we provide customized service and can do artworks including printing, logo, etc. for you.
YES, OEM is welcomed.
Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
