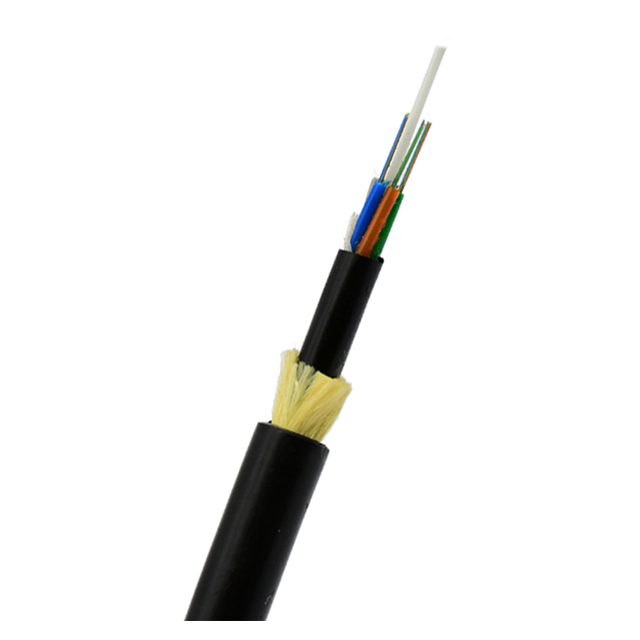

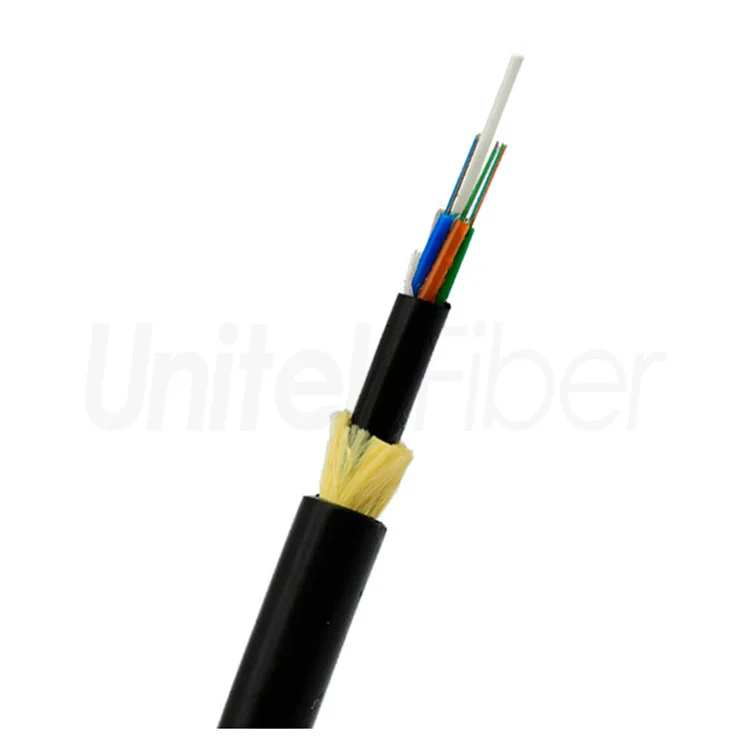

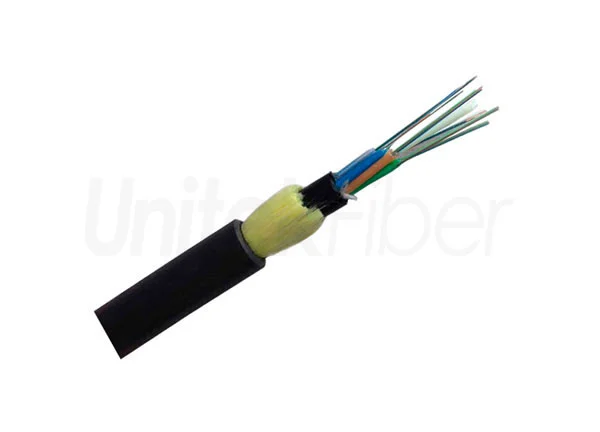

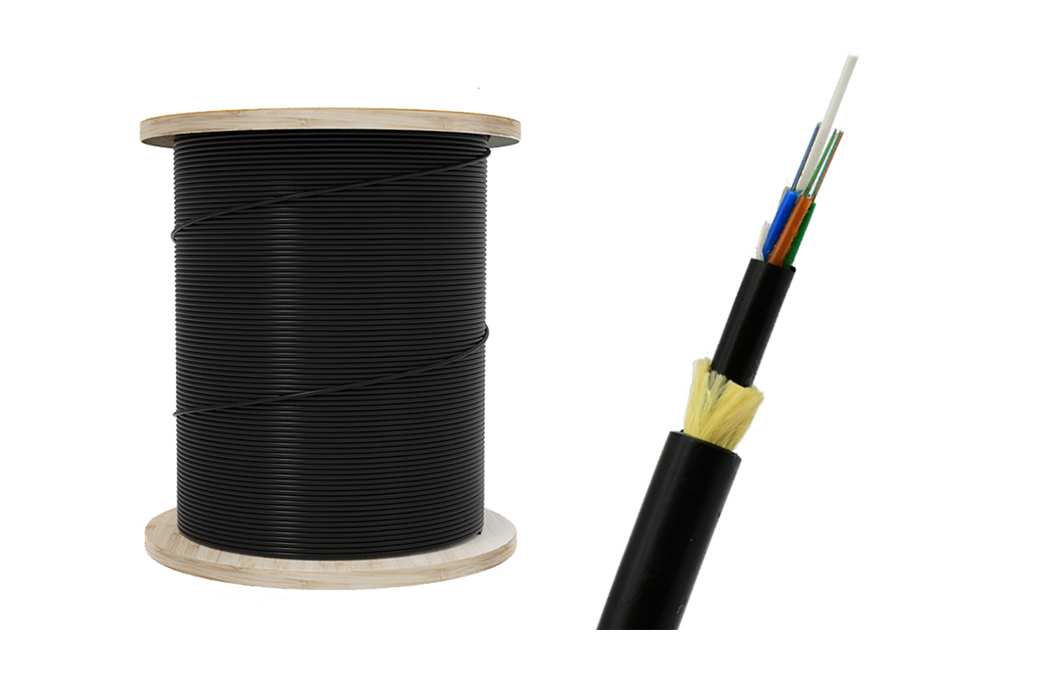

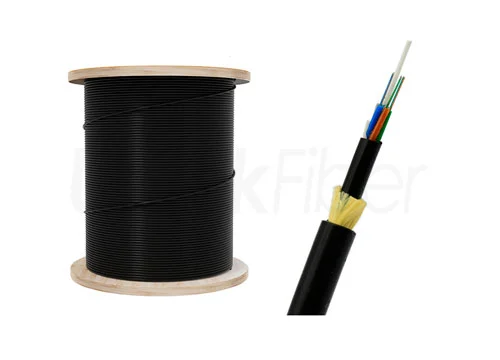

ADSS Fiber Optic Cable 12 Cores All-dielectric Self-supporting Stranded Double Jacket Single Mode

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. ADSS fiber cable is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

ADSS Fiber Optic Cable 12 Cores All-dielectric Self-supporting Stranded Double Jacket Single Mode

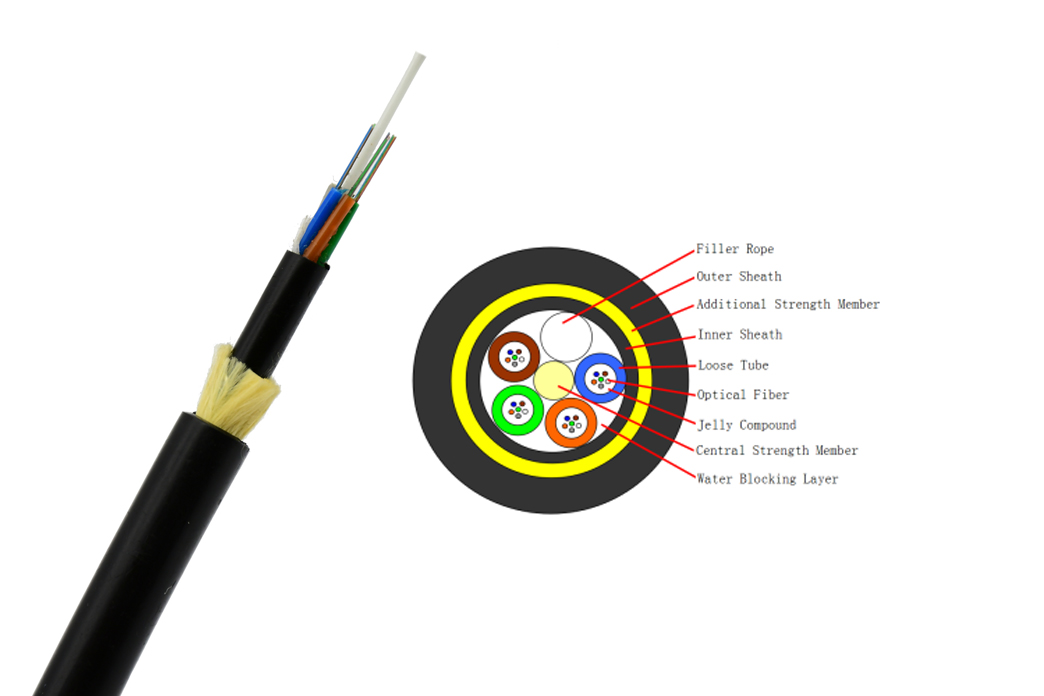

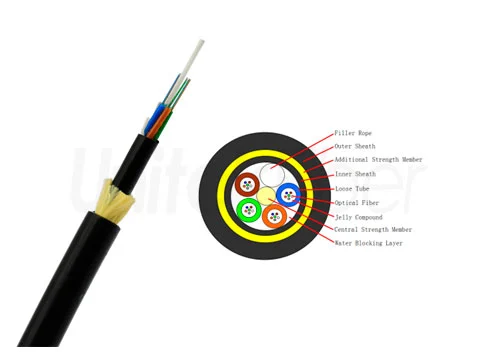

ADSS Fiber Optic Cable can be 5 loose tubes or 6 loosue tubes. The fiber optic loose tube is twisted on the central reinforcing member (usually FRP) for SZ type and then extruded into the inner sheath (it can be omitted in the case of small tension and small span), and then wrapped according to the required tensile strength of Aramid yarn, and then extruded into PE or AT sheath. The optical fiber of ADSS cable is filled with ointment. The layer-stranded structure of ADSS fiber cable is easy to obtain a safe fiber excess length, although the diameter and weight are relatively large, which is more advantageous in medium and large span applications.

No. of cable

/

6

12

24

48

72

96

144

288

Design

(StrengthMember+Tube&Filler)

/

1+5

1+5

1+5

1+5

1+6

1+8

1+12

1+9+15

Fiber type

/

G.652D

Central Strength Member

Material

mm

FRP

Diameter

(±0.05mm)

1.5

1.5

1.5

1.5

2.0

2.0

2.0

2.0

Loose Tube

Material

mm

PBT

Diameter

(±0.05mm)

1.8

1.8

1.8

2.0

2.0

2.0

2.0

2.0

Thickness

(±0.03mm)

0.32

0.32

0.32

0.35

0.35

0.35

0.35

0.35

MAX.NO./per

6

6

6

12

12

12

12

12

Filler Rope

Material

mm

LDPE

Diameter

(±0.05mm)

1.8

1.8

1.8

2.1

NO.

4

3

1

1

Water Blocking Layer

Material

/

Flooding Compound& Water Blocking tape

Additional Strength Member

Material

/

Aramid Yarn

Outer Sheath

Material

mm

PE

Thickness

1.8nominal

colour

black.

Cable Diameter(±0.2mm)

mm

9.6

9.6

9.6

10.2

10.8

12.1

13.8

16

Cable Wetght(±10.0kg/km)

kg/km

68

68

68

80

90

120

135

165

Attenuation coefficient

1310nm

dB/km

0.35

1550nm

≤0.21

Cable breaking strength(RTS)

kn

8.0

Working Tension (MAT)

kn

3.2

Wind velocity

m/s

30

Icing

mm

5

Crush Resistance

Short Term

N/100mm

2200

Long Term

1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.

Reviews

Annie
Jul 13, 2022

I am extremely impressed with your products, fiber optic cable. My father would have loved buying these products from your company.

Verified Purchase
Helpful 1
Video
Contact UnitekFiber
Contact UnitekFiber

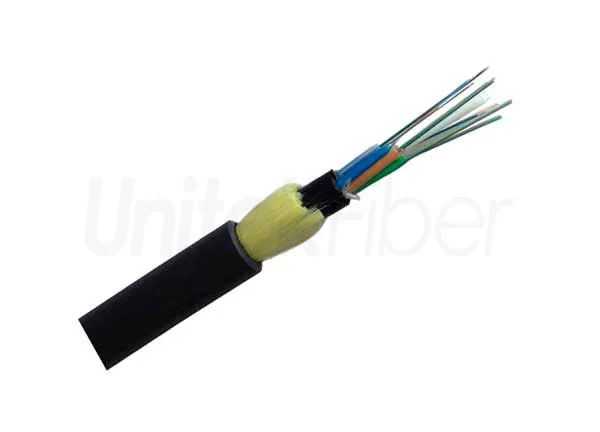

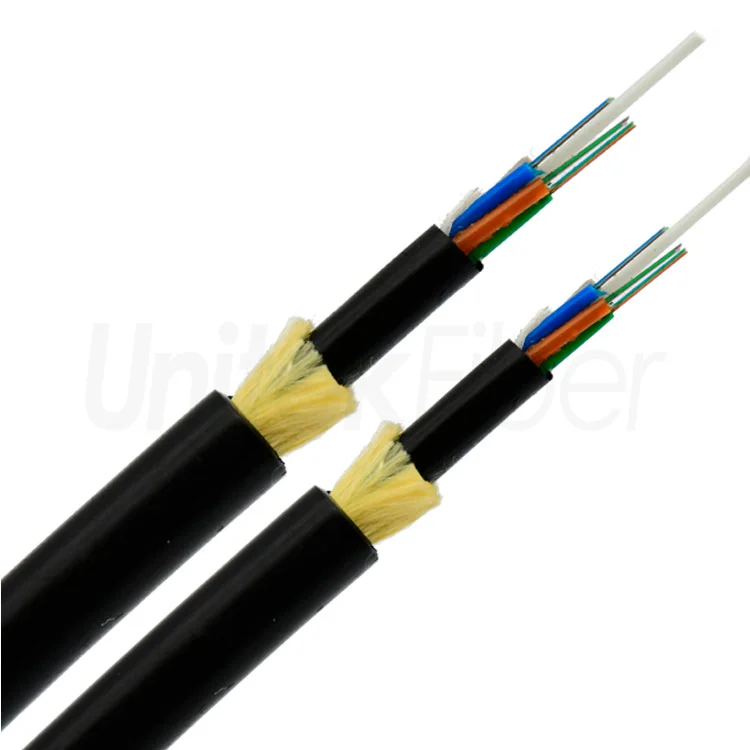

Other ADSS Fiber Optic Cable Products
