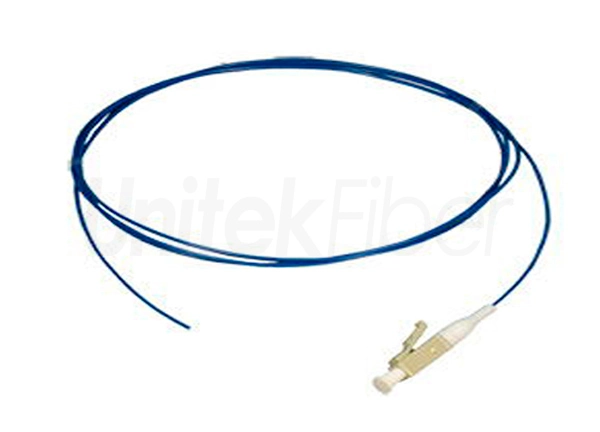

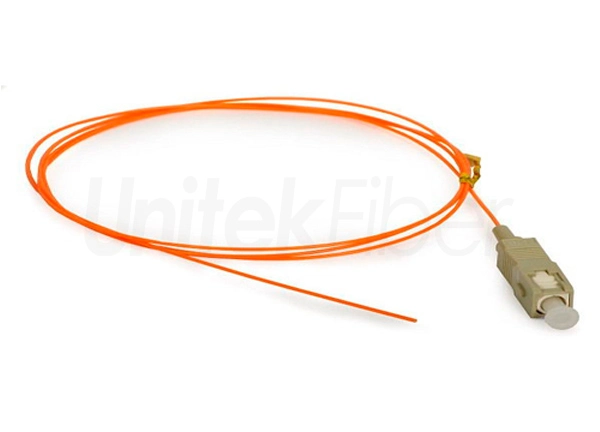

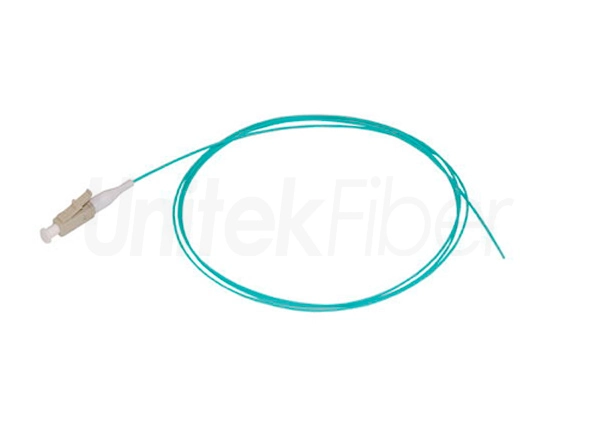

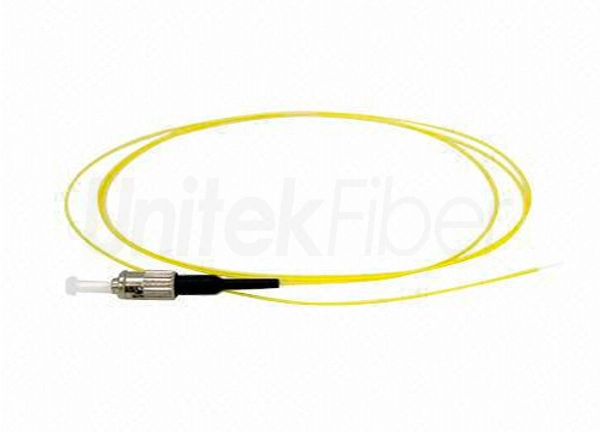

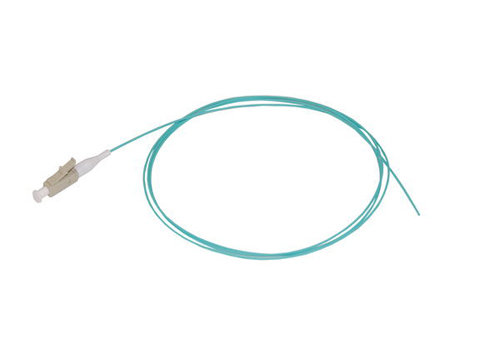

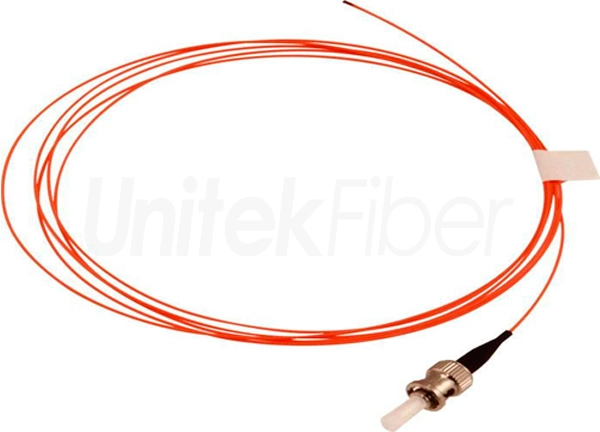

SC, LC, FC, ST Fiber Optic Pigtail SM MM 0.9mm Tight Buffered PVC LSZH

We produce SC, LC, FC, ST fiber pigtail in defferent kind of types. The SC pigtail is a connector at the one end of the fiber cable. The connector can be UPC, APC.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of SC, LC, FC, ST Fiber Optic Pigtail SM MM 0.9mm Tight Buffered PVC LSZH

The fiber cable can be 0.6mm or 0.9mm, in loose tube or tight buffered type. And the fiber pigtail can be single mode and multi mode, The multi mode pigtail in including OM1, OM2, OM3, OM4. We can offer 12cores for the pigtails according to the customers request.


Characteristics:


  • Low Insertion loss

  • High return loss

  • Good Repeatability

  • Good Interchange

  • Excellent Environmental Adaptability


Application:


  • Communication rooms

  • FTTH (Fiber to The Home)

  • LAN (Local Area Network)

  • FOS (fiber optic sensor)

  • Fiber Optic Communication System

  • Optical fiber connected and transmitted equipment

  • Defense combat readiness


Packaging & Shipping


SC, LC, FC, ST Fiber Optic Pigtail SM MM 0.9mm Tight Buffered PVC LSZH


Production


SC, LC, FC, ST Fiber Optic Pigtail SM MM 0.9mm Tight Buffered PVC LSZH




Parameter of SC, LC, FC, ST Fiber Optic Pigtail SM MM 0.9mm Tight Buffered PVC LSZH

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Allen
Jul 25, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
Helpful 0
