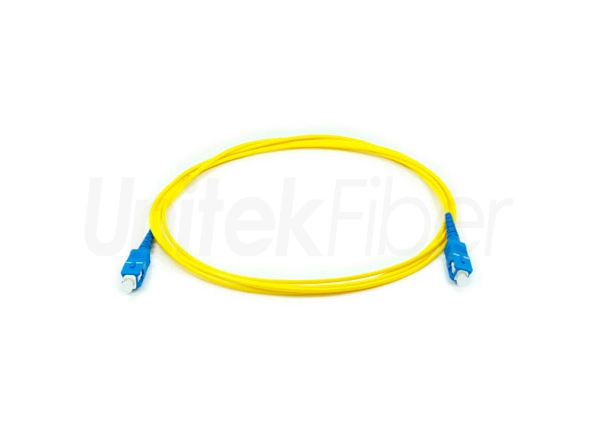

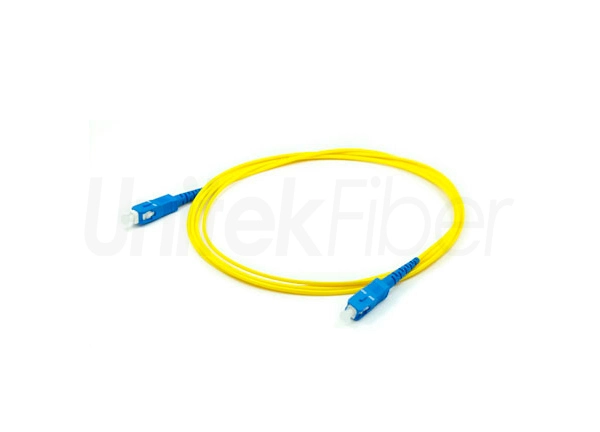

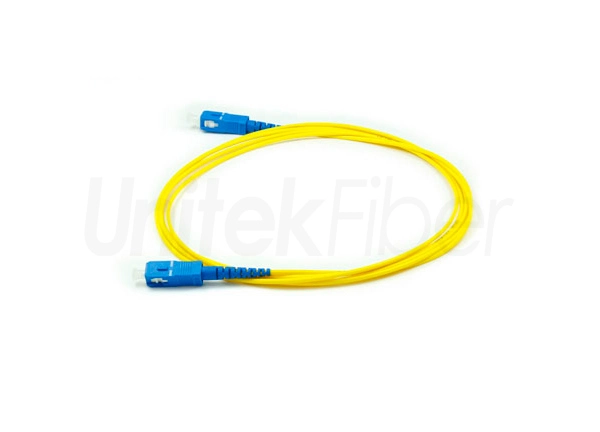

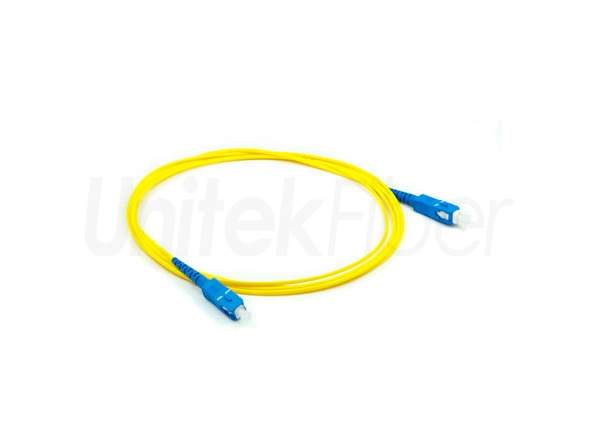

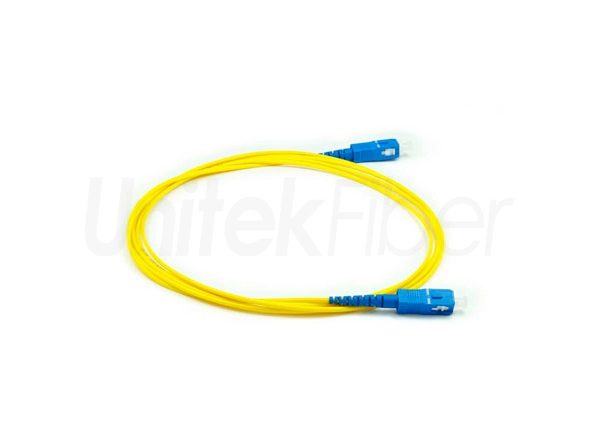

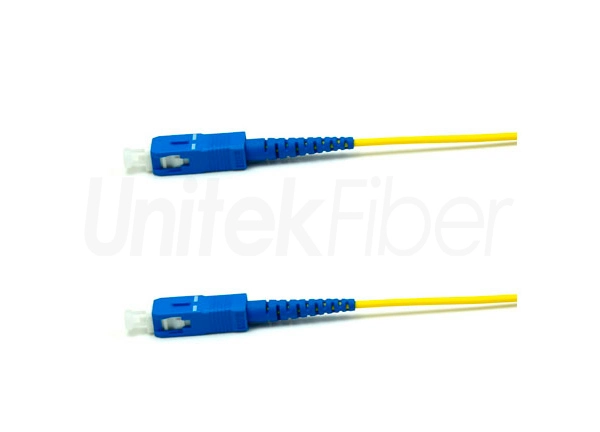

Patchcord SC/UPC-SC/UPC Fiber Optic Jumper Cables Simplex OS2 9/125um G657B Fiber 3.0mm

The core of the single-mode fiber jumper is very small. The single-wavelength light only passes through one optical path. Single mode is commonly used for remote network connections scattered in extended areas (longer than a few miles). For example, telecommunications companies use it for connections between switch offices. The single-mode cable features 9um glass core.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Patchcord SC/UPC-SC/UPC Fiber Optic Jumper Cables Simplex OS2 9/125um G657B Fiber 3.0

Characteristics


  • High reliability;

  • CE & RoHS compliant;

  • 100% connectors tested;

  • Repeatability: >1000 times;

  • Deliery 100% passed products;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;

  • Return Loss: UPC>50dB, APC>60dB;


Applications


  •  Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV


Packaging and Shipping


Patchcord SC/UPC-SC/UPC Fiber Optic Jumper Cables Simplex OS2 9/125um G657B Fiber 3.0mm


Production


Patchcord SC/UPC-SC/UPC Fiber Optic Jumper Cables Simplex OS2 9/125um G657B Fiber 3.0mm


Parameter of Patchcord SC/UPC-SC/UPC Fiber Optic Jumper Cables Simplex OS2 9/125um G657B Fiber 3.0mm

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bartley
Jul 25, 2022

Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.
