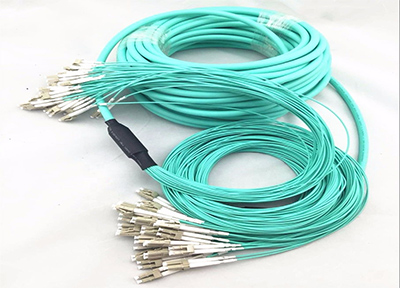

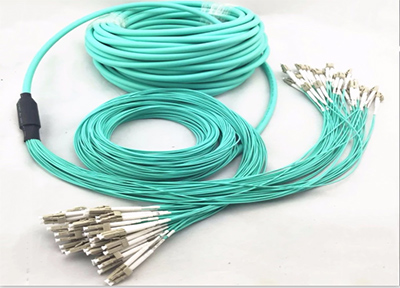

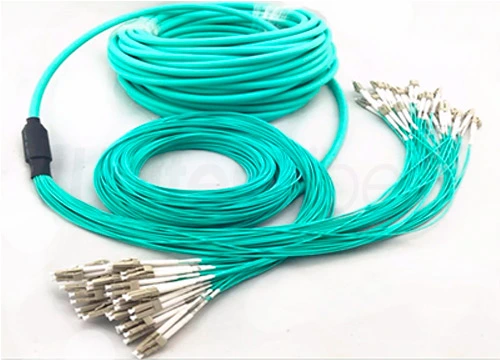

Unitekfiber provides high density 72 cores, 96cores, 144cores bundle fiber optical jumpers for data center cabling.The cable is more convenient and economic fiber optical assemble in network applications.
Telecommunications networks
CATV, LAN, MAN and WAN application
Data processing networks
Cable television
Fibre-To-The-Home (FTTH)
Premises distribution

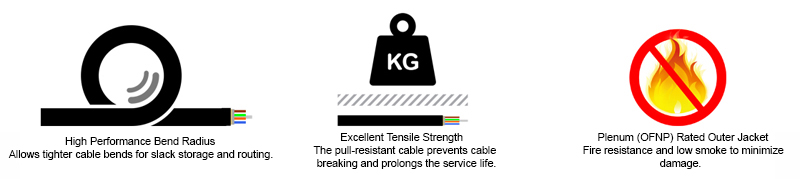

100% pre-terminated and tested in factory to ensure transfer performance
Rapid configuration and networking, reduce installation time
Supports 40G and 100G network applications
Jacket material: LSZH, OFNR, OFNP available

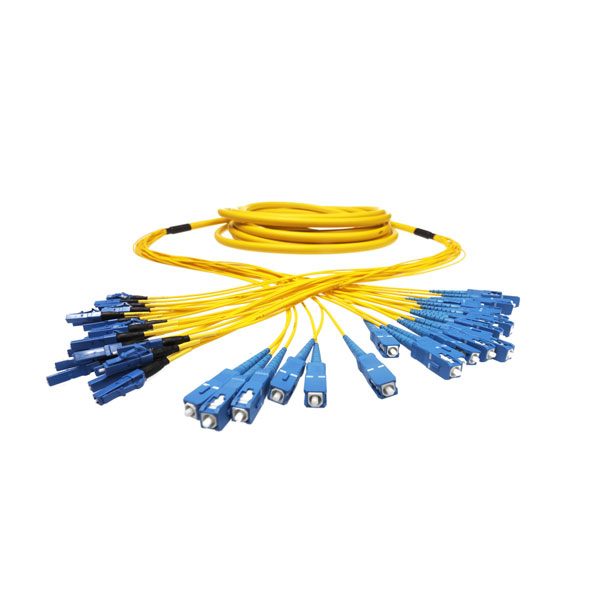

Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass
Supports up to 4F, 8F, 12F, 24F, 48F, 72F, 96F, 144F customized products are available
OEM service is avaibable

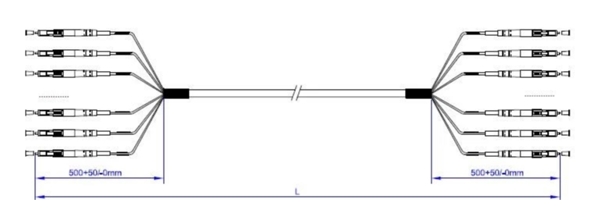

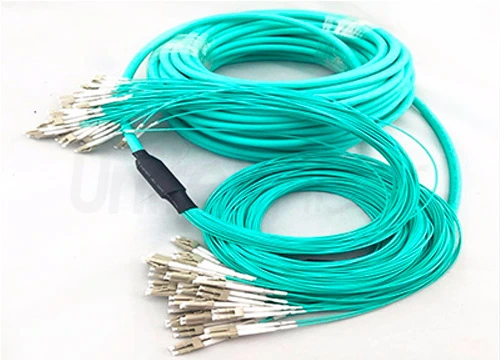

LC Pigtail Fanout drawing
Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,
<0.25db max for >97% of samples,Return Loss >55dB）
All products factoy tested
Geometrical Characteristics comply with IEC 61755-3-1
All materials comply with IEC and ROHS

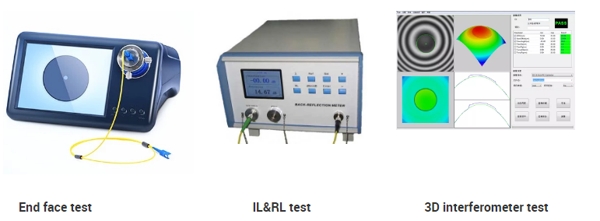

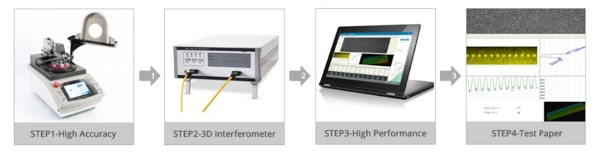

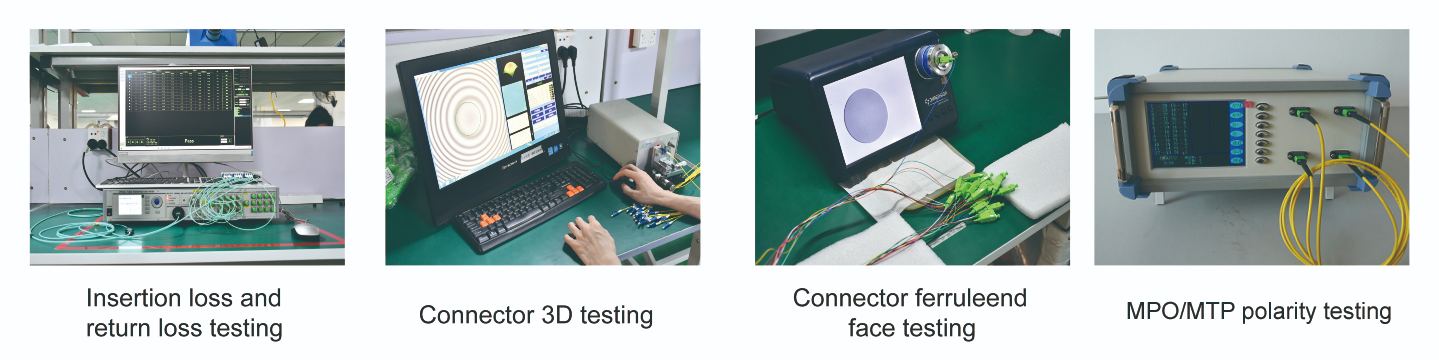

Our test program including: end face test,3D interferometer test, singlemode IL&RL test, multimode IL&RL test.
Optical Specification
Connector | SC,FC,LC,ST,MU,E2000 | ||
Polishing | SM/UPC | MM/PC | SM/APC |
Insertion Loss(max) | ≤0.30dB | ≤0.25dB | ≤0.30dB |
Return Loss(min) | ≥50 dB | ≥35 dB | ≥60 dB |
Tensile Strength | >300N | ||
Durability | <0.20 dB typical change, 1000 matings | ||
Repeatability | ≤0.1dB | ||
Storage , Operating Temperature [°C] | -40~+85 | ||
Geometric Specification (For special request)
PC End-face | APC End-face | ||
Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
LC/MU | 7~25 mm | 5~15 mm | |
Apex Offset | ≤50 um | ||
Fiber Spherical Height | +/- 50 nm | ||
Angular Offset | —— | 8°±0.2° | |
