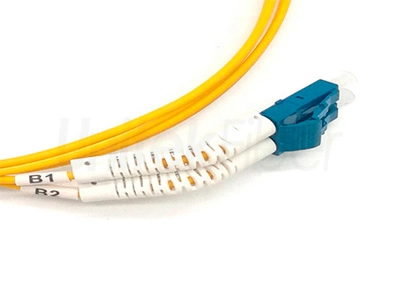

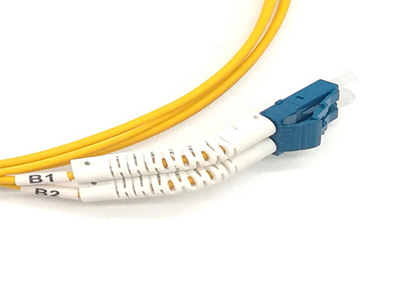

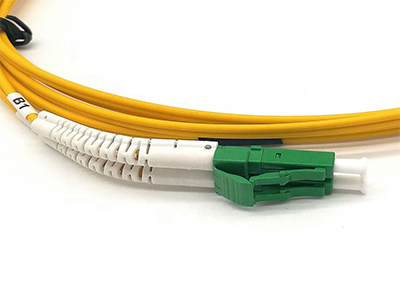

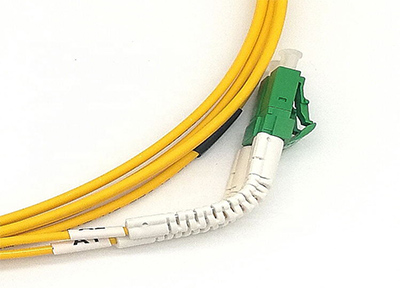

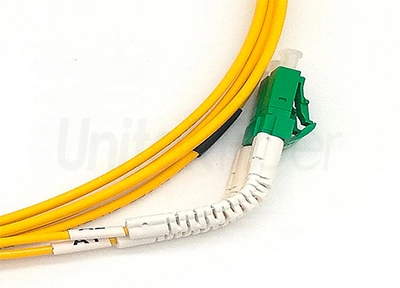

Flexible Boot 90 Degree LC Fiber Optic Connector APC UPC

UnitekFiber Flexible boot LC fiber optical connector is more convenient to connect on the equipment. We can provide APC and UPC type of Flexible boot LC connectors. The Boot can be bended in 90 degree.

Fiber Optic
Details
Parameter

Details of Flexible Boot 90 Degree LC Fiber Optic Connector APC UPC

Features:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule


Applications:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks



Packaging & Shipping


Flexible Boot 90 Degree LC Fiber Optic Connector APC UPC



Production


Flexible Boot 90 Degree LC Fiber Optic Connector APC UPC


Parameter of Flexible Boot 90 Degree LC Fiber Optic Connector APC UPC


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85


Contact UnitekFiber
Contact UnitekFiber

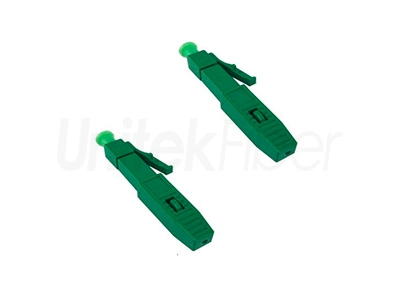

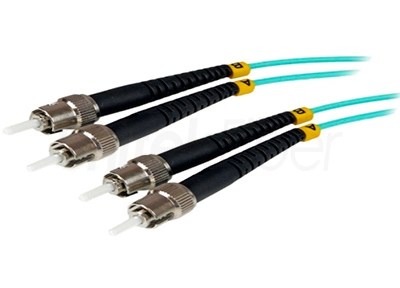

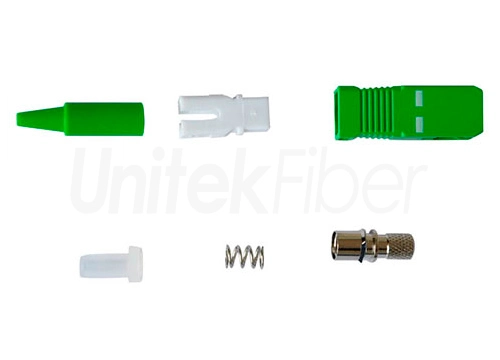

Other Fiber Optical Connector Products
