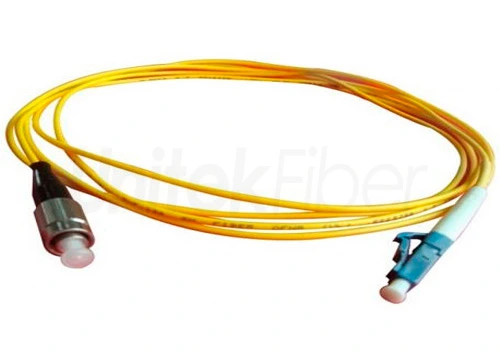

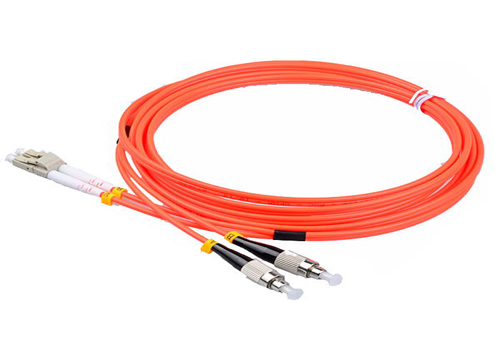

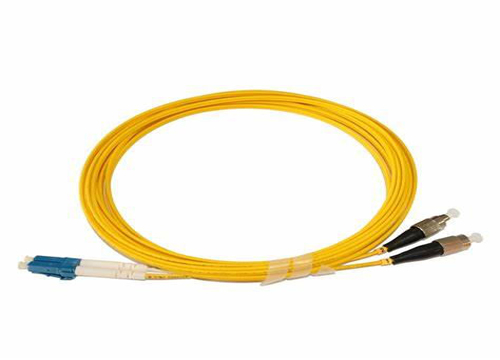

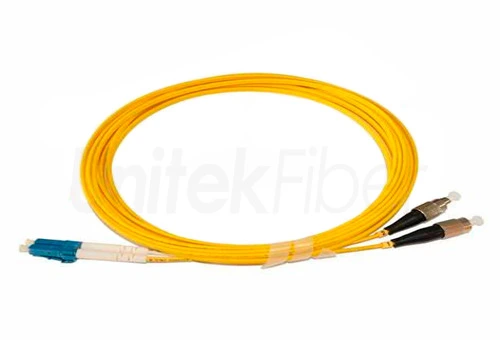

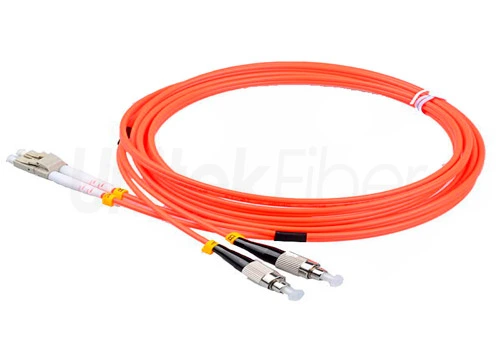

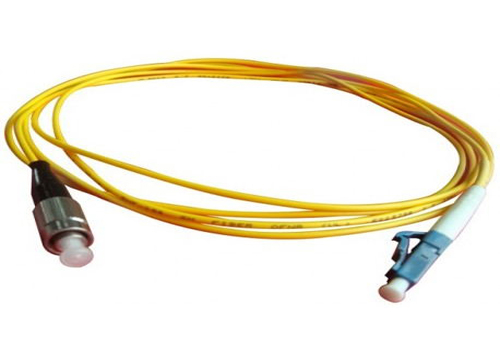

UnitekFiber Fiber Optic Patchcord LC-FC Multi Mode Duplex 3.0mm PVC Yellow

UnitekFiber provide patchcords. Pathchord means that the terminations are connect at both ends of the optical cable to realize the optical path active connection.

Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of UnitekFiber Fiber Optic Patchcord LC-FC Multi Mode Duplex 3.0mm PVC Yellow

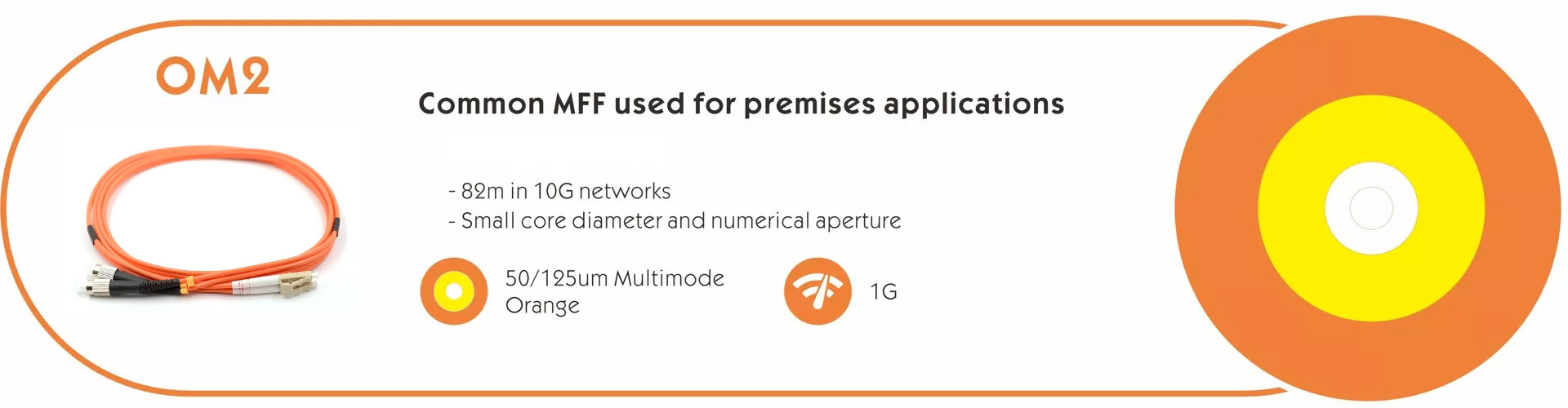

Optical Fiber Patchcord is similar to coaxial cable except that there is no mesh shield. The light-transmitting glass core is in the central. The fiber core has a diameter of 50/125μm to 65/125μm for multi mode fiber pathcords, which is roughly equivalent to the thickness of a human hair. The diameter for single mode fiber core is 8μm to 10μm. The fiber core is wrapped by a glass which is having a lower index of refraction than the core to maintain the fiber within the core.


Characteristics:


  • Using high precision ceramic ferrule

  • Low insertion loss and high return loss

  • Excellent stability and high repetition

  • 100% Optic test (Insertion Loss & Return Loss)

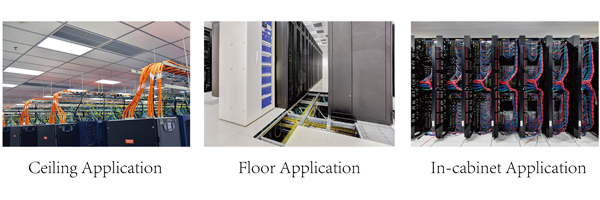

Application:


  • Telecommunication Network

  • Fiber Broad Band Network

  • CATV system

  • LAN and WAN system

  • FTTP


Packaging and Shipping


UnitekFiber Fiber Optic Patchcord LC-FC Multi Mode Duplex 3.0mm PVC Yellow


Production


UnitekFiber Fiber Optic Patchcord LC-FC Multi Mode Duplex 3.0mm PVC Yellow

Parameter of UnitekFiber Fiber Optic Patchcord LC-FC Multi Mode Duplex 3.0mm PVC Yellow

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Allen
Jul 25, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor. It's not stiff, went thru conduits nicely.

Verified Purchase
Helpful 1

Video
Contact UnitekFiber
Contact UnitekFiber

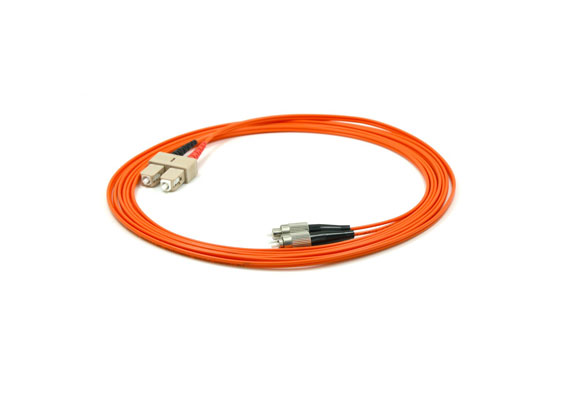

Other Fiber Optic Patch Cord Products
