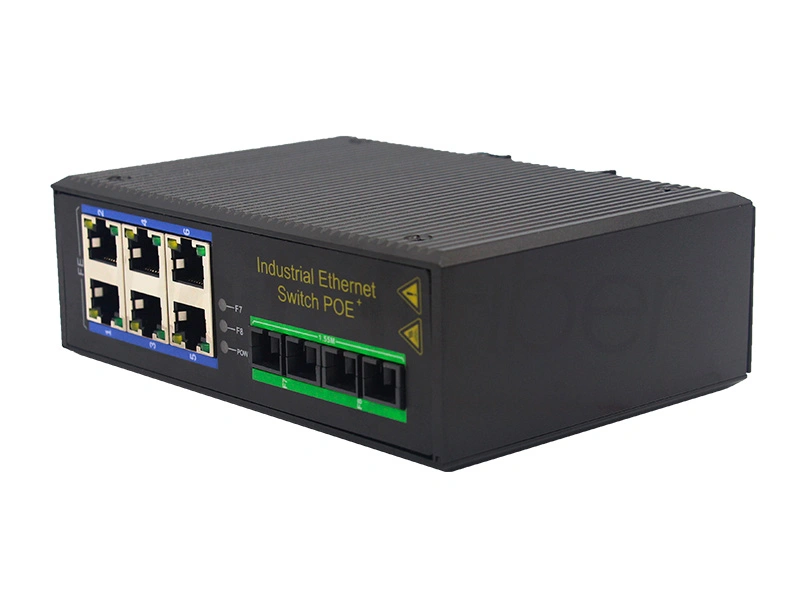

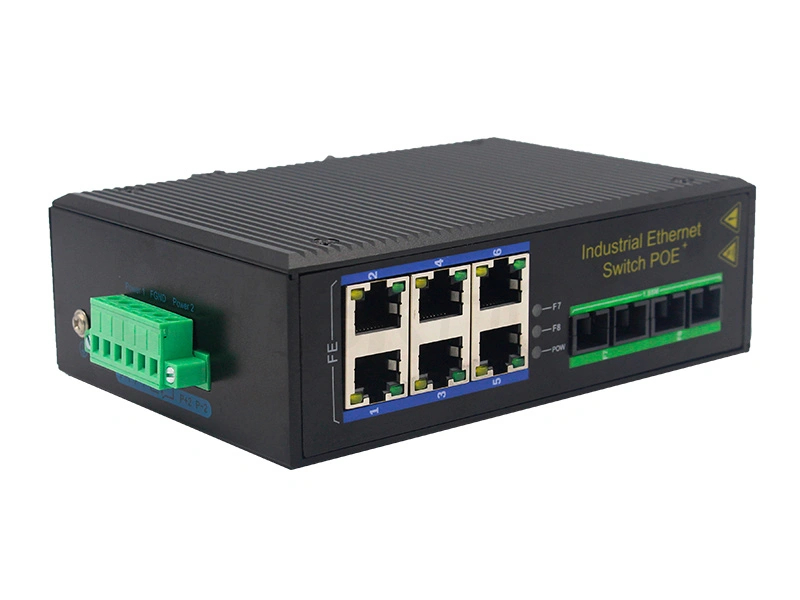

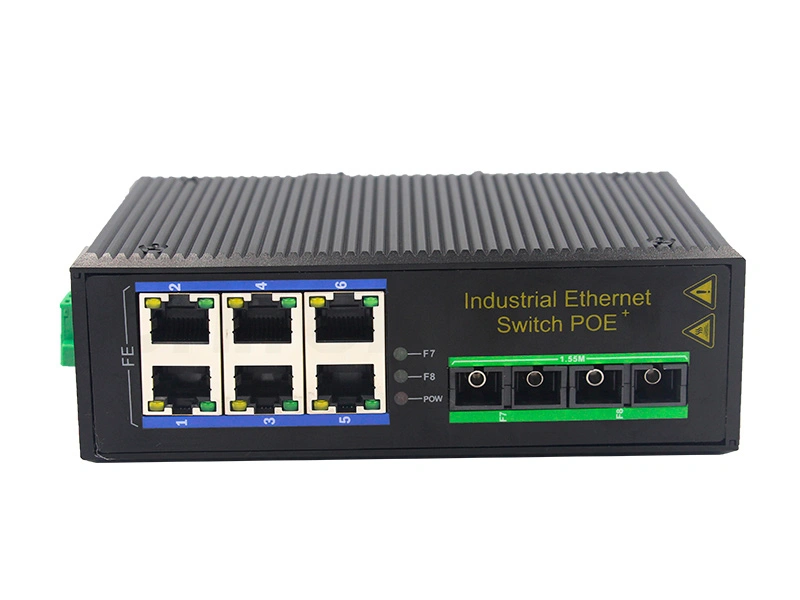

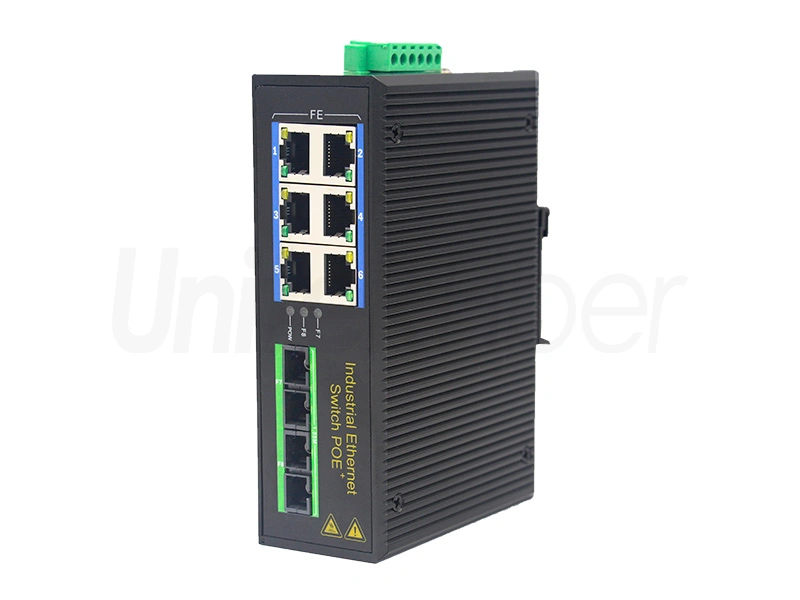

The 2 optical ports+ 6 electrical ports unmanaged industrial-grade 100M Industrial Ethernet switches, with 2 100M optical ports, 6 10/100Mbps adaptive Ethernet RJ45 ports, located at the network access layer, applied to various field environments. It can be widely used in industrial application scenarios such as industrial control automation, road traffic control automation, building automatic control system, mine automatic control system, oil field control automation, hydropower station control automation, power system control automation, computer room monitoring system, etc..
2 optical PoE ports, and 6 electrical ports, built-in power
IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant
Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
Up to 30W per port (total power budget: 120W) for powering PoE-enabled devices
All ports support wire speed switching, jumbo frame transmission
Support upstream ports lightning protection
Dynamic power control to ensure stable output power (Enhanced)
Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)
Power-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)
Reliable short-circuit protection to ensure safety (Enhanced)
Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)
Product Name | Manufacturer Unmanaged PoE Industrial-grade Ethernet Switch with 2 Optical Ports and 6 Electrical Ports |
Product Model | 100m 2optical ports+6RJ45 ports unmanaged industrial PoE switch |
Product Description | 6xRJ45 ports, 2x fiber optic ports |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X;IEE802.3x; |
POE Standards | Standard PoE: IEEE802.3af/ IEEE802.3at |
PoE port: 1-4 ports support PoE | |
Output Power: Maximum power 15.4W (IEEE 802.3af) Maximum power 30W (IEEE 802.3at) POE port automatically recognizes af/at | |
Output voltage: DC48~57V | |
Power supply mode: 1/2+;3/6- | |
RJ45 Interface | 10/100BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
Optic Fiber Interface | 100BaseFX port (SC/FC/ST optional) |
Copper Cable | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
|
Optic Fiber Cable | MM：850nm 0～550M SM：1310nm 0～2KM, 1310nm 0～40KM,1550nm 0～120KM |
Switch properties | Application level: Layer 2 Total backplane bandwidth: 3.648Gbps Whole machine packet forwarding rate: 1.8088Mpps MAC address table: 1K Packet buffer: 512K Exchange delay:<3us Exchange method: store-forward Power consumption:<3W |
Protection Level | IP40 |
LED indicator | Power indicator: PWR Interface indicator: electrical port, optical port (Link/ACT) |
Power Supply | Input voltage: DC12~52V (dual power supply redundant backup) Access terminal: Phoenix terminal Support dual power supply redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection |
Working Environment | Working temperature: -40~85℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
Industrial Standard | MI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz～150kHz), 10V(150kHz～80MHz) IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Mechanical properties | Shell: metal material Installation: DIN rail and wall-mounted installation Cooling method: natural cooling, without fan Weight: 0.85Kg Dimensions: 143 x 101 x 44mm (length x width x height) |
MTBF | 300,000 hours |
Warranty | 5 years |
