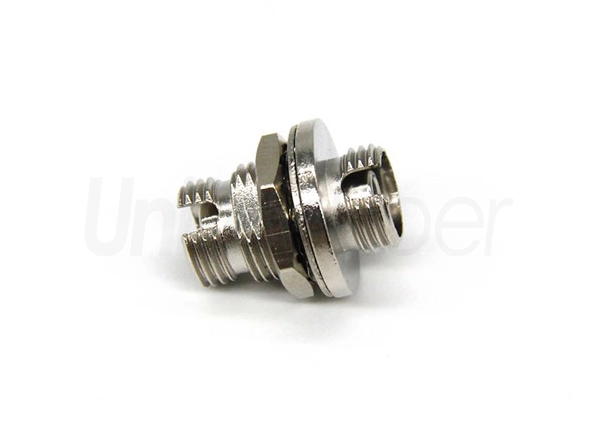

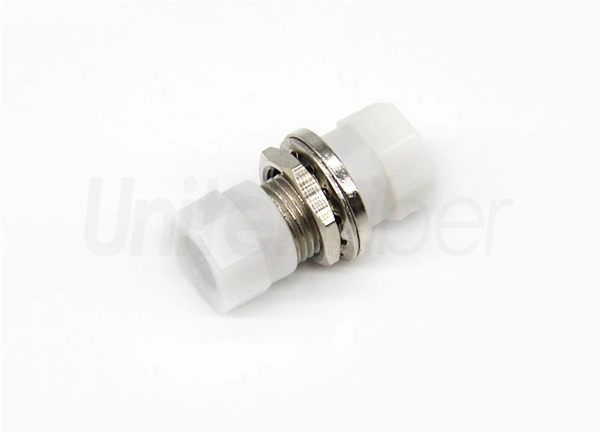

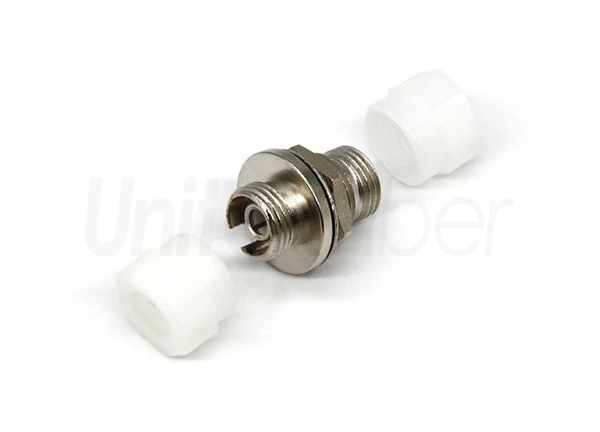

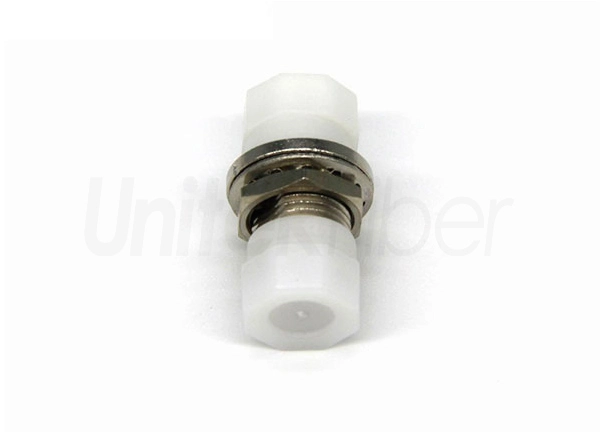

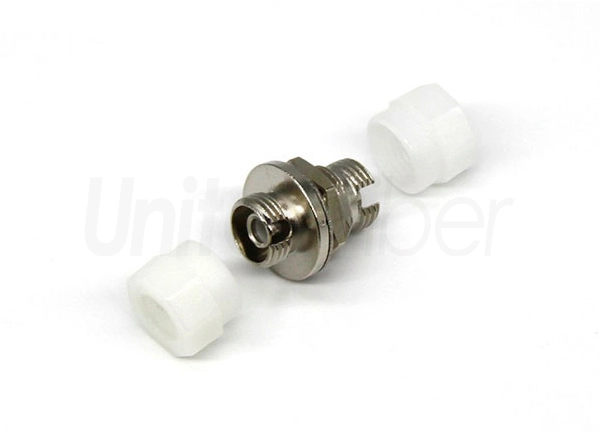

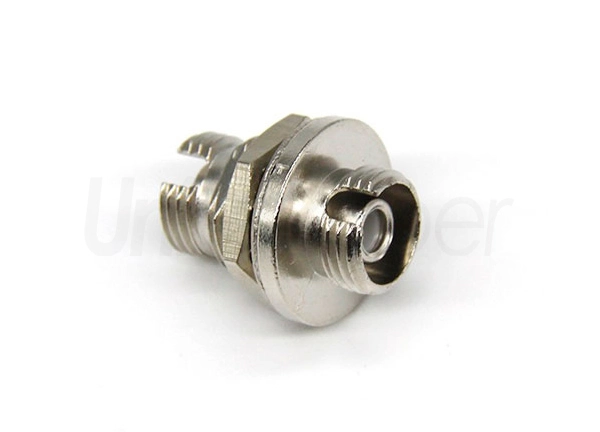

Metal FC-FC Fiber Optic Adapter Simplex D type 0.2dB

D type FC/UPS optical fiber adapter SX SM
UnitekFiber supplies simplex, duplex, quad fiber optic adaper. The simplex connection, double connection or multiple connection can increase the installation density. According to the different shape structure and docking end surface, fiber optic adapters can be roughly divided into the following types: SC/PC ,SC/UPC     SC/APC adapters; LC/PC, LC/UPC, LC/APC adapters; FC/PC, FC/UPC,FC/APC adapters and ST/PC, ST/UPC adapters.


Fiber Optic
Details
Parameter

Details of Metal FC-FC Fiber Optic Adapter Simplex D type 0.2dB

Features


  • Low insertional loss and back reflection loss

  • High prcision alignment

  • Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

  • Compact design

  • Plastic housing


Application


  • CATV

  • Telecommunication networks

  • Test equipment

  • Metro

  • Local Area Networks(LANs)

  • Data processing networks

  • Multimedia

  • Gigabit Ethernet

  • Active device/Transceiver

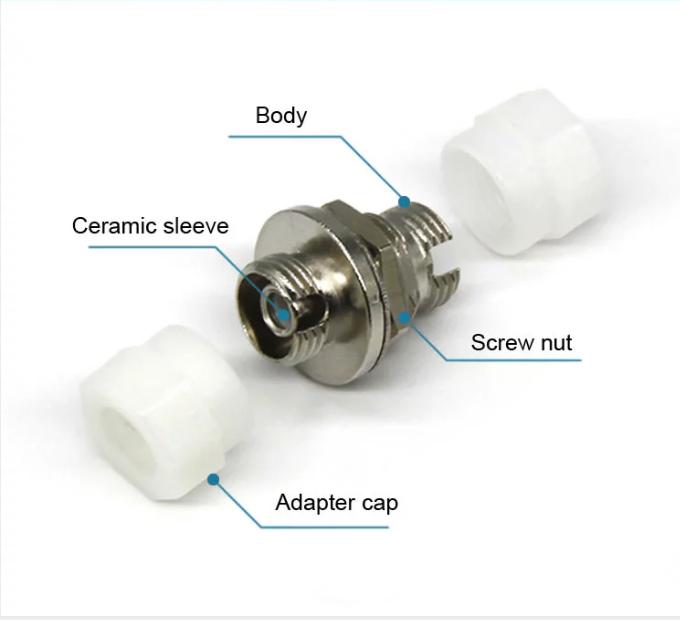

Components of Fiber Optic Adapter


FC metal fiber optic adapter is consits of metal body, screw nut, ceramic sleeve and adapter caps.


Components of Fiber Optic Adapter

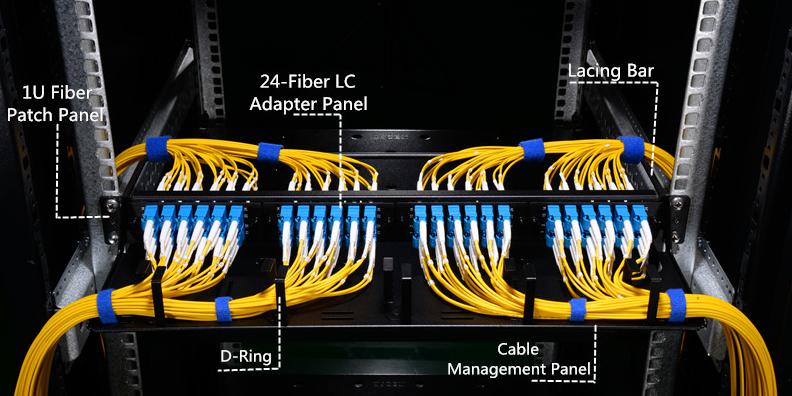

The Application of Fiber Optic Adapter in Fiber Network Cabling


The accessories of fiber optical adapters are so important in the fiber optical cable management. Most of fiber patchcords and fiber pigtails will connected by the adapters in the patch panel, ODF box, or cabinet shelf. Fiber optic adatper is as a bridge to make a connection for incoming fiber signal and output fiber signal. Thus, the fiber signals can be sucessfully transferred to the homes.

Fiber Optic Adapter in Fiber Network Cabling


Packaging and Shipping:


Metal FC-FC Fiber Optic Adapter Simplex D type 0.2dB


Production


Metal FC-FC Fiber Optic Adapter Simplex D type 0.2dB


Parameter of Metal FC-FC Fiber Optic Adapter Simplex D type 0.2dB

Specification


Data

Unit

Adapter Type

SC/LC/FC/ST


Insertion Lose

≤0.2

dB

Interchangeability

≤0.2

dB

Repeatability

≤0.1

dB

Temperature

-40~+85
