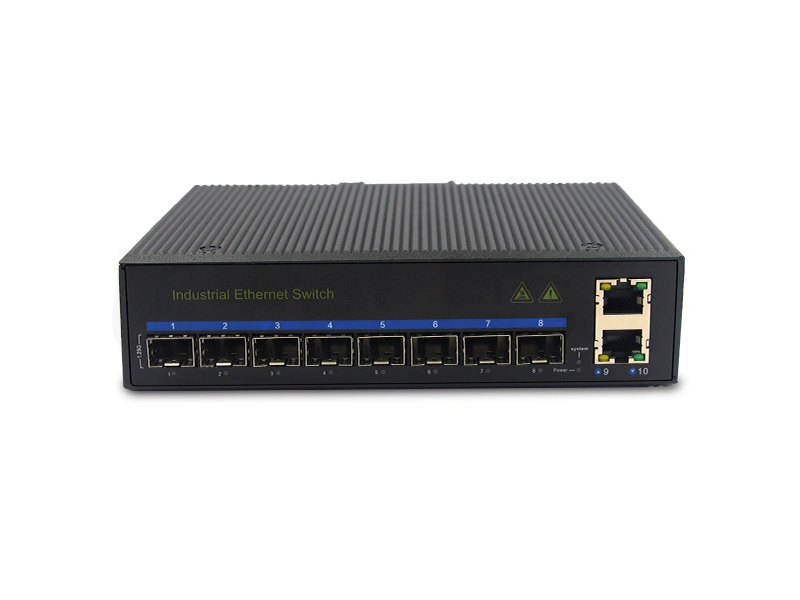

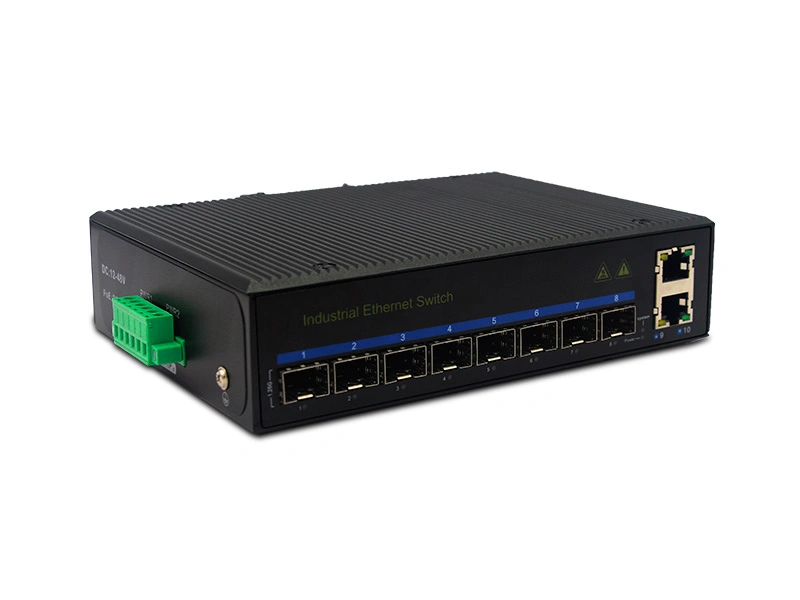

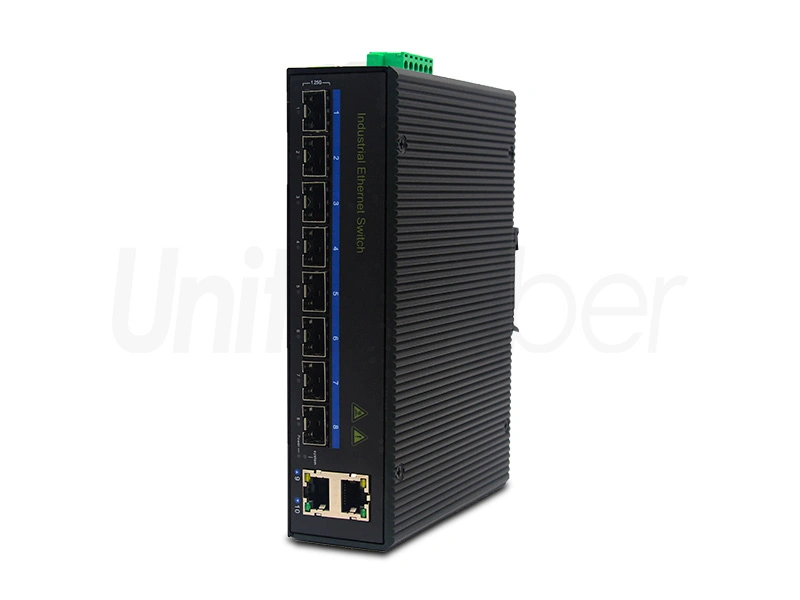

The full Gigabit 8 optical ports+2 electrical ports switch has 8 1000M standard SFP optical ports and 2 10/100/1000M RJ45 electrical ports. Its working principle is that the physical connection forms a ring structure. When working, the network signal becomes a chain structure. Once the optical cable is transmitted when a node is disconnected, the equipment automatically switches to the backup line for transmission in a very short time.
8 optical Gigabit ports, and 2 1000Mbps electrical ports, built-in power
IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant
Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
Up to 30W per port (total power budget: 120W) for powering PoE-enabled devices
All ports support wire speed switching, jumbo frame transmission
Support upstream ports lightning protection
Dynamic power control to ensure stable output power (Enhanced)
Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)
Reliable short-circuit protection to ensure safety (Enhanced)
Over-voltage and under-voltage protection (Some other manufacturers' products don't support this
The industrial ethernet switch is applied in Security system, video multiplexers, IP or CCTV Video Applications, Fiber Optic Solutions and so on.
Product Description | 1000M 2xRJ45 ports,1000M 8xSFP fiber optic ports unmanaged Industrial Ethernet Switch |
Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEE802.3z 100Base-X; IEEE802.3x; IEEE802.3af; IEEE802.3at; |
RJ45 Interface | 10/100/1000BaseT (X) automatic detection, full/half duplex MDI/MDI-X adaptive |
Optic Fiber Interface | 1000BaseFX port (SC/FC/ST/SFP optional) |
Capacity forwarding rate | Capacity per million packets per second (MPPS) (64-byte packets): 47.6 Gigabit per second (Gbps) switching capacity: 256 |
Spanning Tree Association (STP) | Standard spanning tree 802.1d Rapid Spanning Tree (RSTP) 802.1w |
Switch properties | Application level: Layer 2 Total backplane bandwidth: 149.76Gbps MAC address table: 16K Packet buffer: 8Mbits Exchange delay:<5us VLAN data: 1~4094 Exchange method: store-forward |
Protection Level | IP40 |
Power Supply | Input voltage: DC24V (dual power supply redundant backup) Access terminal: Phoenix terminal Support dual power supply redundancy Support built-in overcurrent 4.0A protection Support reverse connection protection |
Working Environment | Working temperature: -40~85℃ ; Storage temperature: -40~85℃ Relative Humidity: 5%~95 %( no condensation) |
Industrial Standard | MI: FCC Part 15 Subpart B Class A, EN 55022 Class A EMS: IEC(EN)61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC(EN)61000-4-3(RS): 10V/m(80~1000MHz) IEC(EN)61000-4-4(EFT): Power cable: ±4kV; Data cable: ±2kV IEC(EN)61000-4-5(Surge): Power cable: ±4kV CM/±2kV DM; Data cable: ±2kV IEC(EN)61000-4-6 (Radio Frequency Conduction): 3V(10kHz~150kHz), 10V(150kHz~80MHz) IEC(EN)61000-4-16 (common mode conduction): 30V cont. 300V, 1s IEC(EN)61000-4-8 Shock: IEC 60068-2-27 Freefall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Mechanical properties | Shell: metal material Installation: DIN rail type, wall-mounted installation Weight: 0.85Kg Size: 179×134×46mm |
MTBF | 300,000 hours |
Warranty | 5 years |
