6+1 Channel CWDM Mux and Demux ABS Box Fiber Optical Device Multiplexer

Features


  • Low Insertion Loss

  • High Channel Isolation

  • Optical path epoxy free

  • Excellent thermal stability and reliability

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)

  • Wide Operating Temperature: -20 to +70℃

  • Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard


Application


  • CWDM Network

  • Add/Drop System

  • CATV Fiberoptic System

  • Metro/Access Network

  • Fiber Optical Amplifier

6+1 Channel CWDM Mux and Demux ABS Box Fiber Optical Device Multiplexer

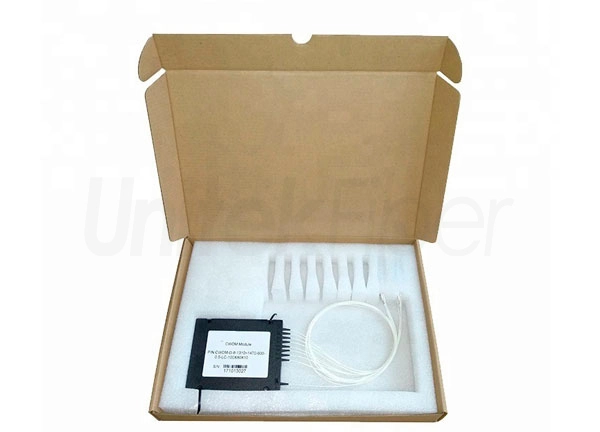

Packaging and Shipping


6+1 Channel CWDM Mux and Demux ABS Box Fiber Optical Device Multiplexer

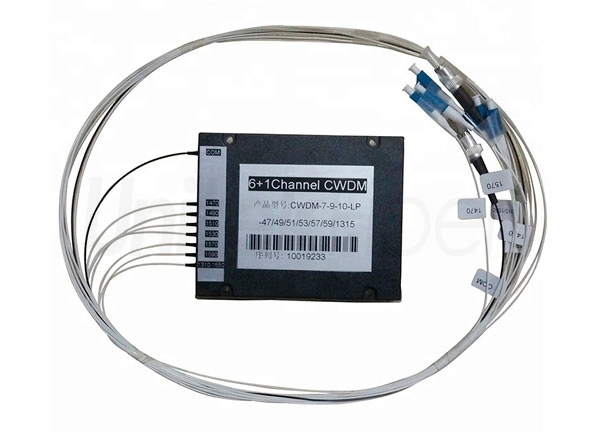

Production

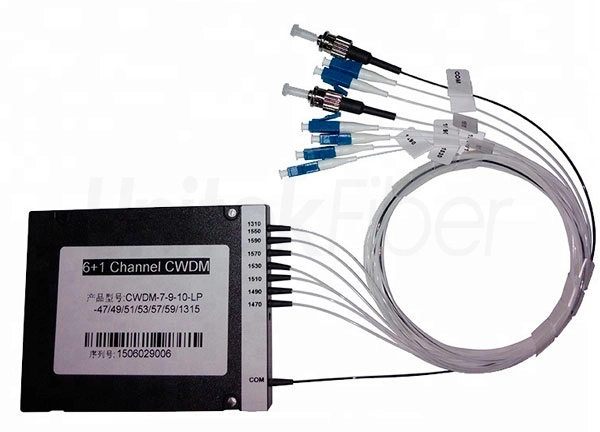

6+1 Channel CWDM Mux and Demux ABS Box Fiber Optical Device Multiplexer


6+1 Channel CWDM Mux and Demux ABS Box Fiber Optical Device Multiplexer

Parameter

4 Channel

8 Channel

18 Channel

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength (nm)

1270~1610

Center wavelength Accuracy (nm)

±0.5

Channel Spacing (nm)

20

Channel Passband (@-0.5dB bandwidth (nm)

15

Insertion Loss (dB)

≤1.5

≤2.5

≤3.2

Channel Uniformity (dB)

≤0.5

≤1.0

≤1.5

Channel  Ripple (dB)

0.3

Isolation (dB)

Adjacent

>30

>30

>30

>30

>30

>30

Non-adjacent

>45

>45

>45

>45

>45

>45

Inertion Loss Temperature Sensitivity (dB/°C)

<0.005

Wavelength Temperature Shifting (nm/°C)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

500

Opterating Temperature (°C)

-5~+75

Storage Temperature (°C)

-40~85

Package dimension (mm)

L100 x W80 x H10 or L120xW80xH18
