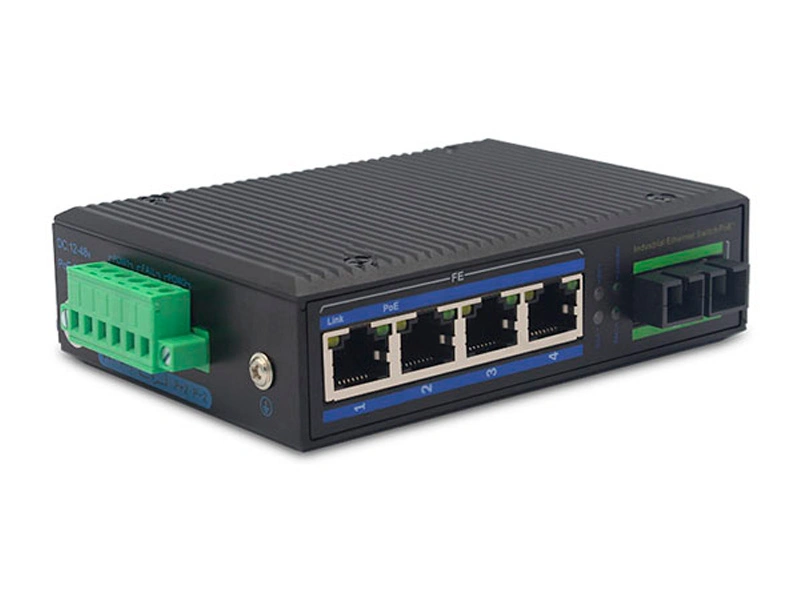

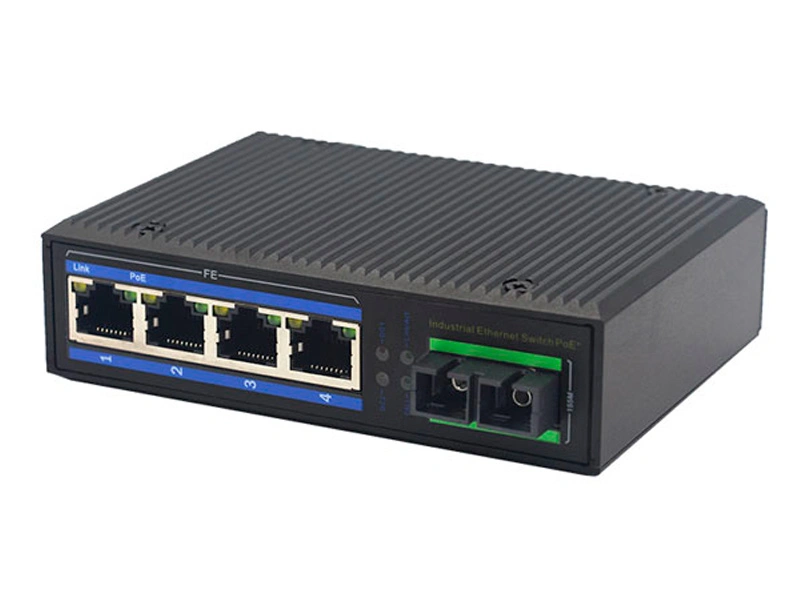

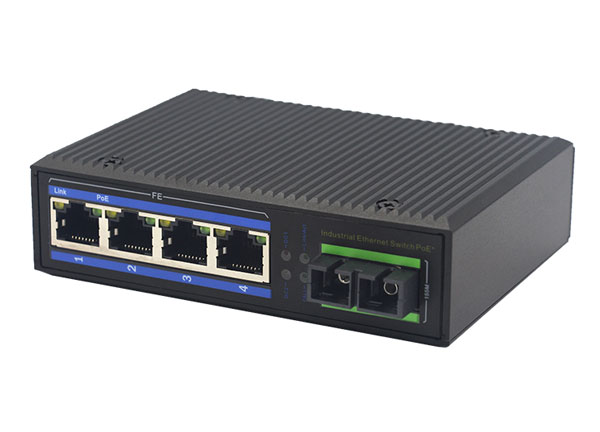

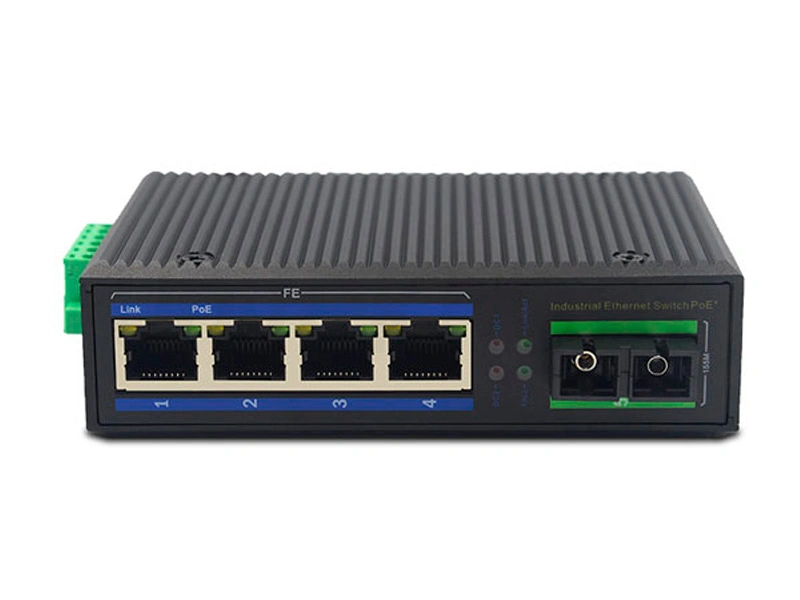

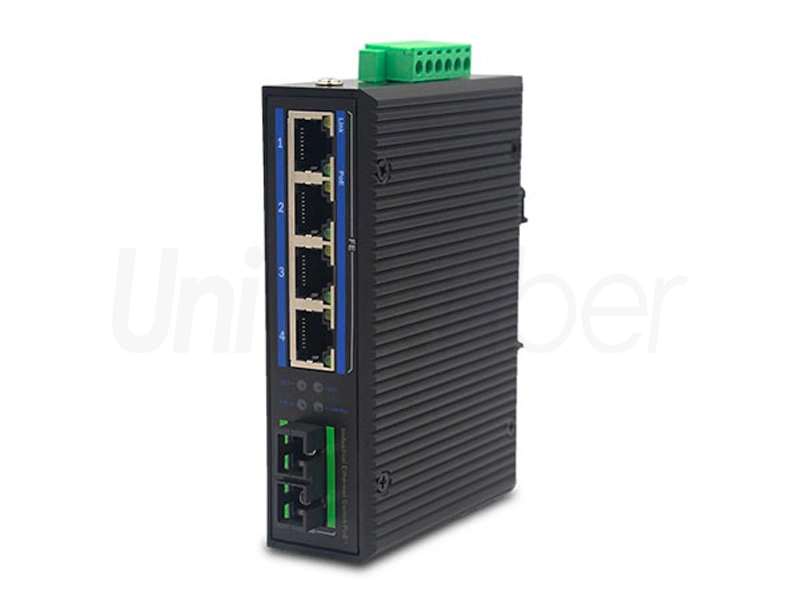

High Speed RJ45 4 Ports 1 Fiber Ports Industrial POE Switch IP40 Protection Industrial Networking Media Converter

We are providing Ethernet Fiber Switch. This Fiber Ethernet switch has 4 10/100/1000M UTP ports and 2 1000M fiber portS. It converts 10/100/1000BASE-TX Fast Ethernet twisted-pair signals to 1000BASE-FX Fast Ethernet fiber signals. This converter has the ability to transmit up to 2 kilometers for multi-mode fiber and up to 120 kilometers for long-haul single mode fiber between a LAN switch, file server and another networking device. In addition, LED indicator lights fully monitor the converter's operational status making observation and diagnoses easy.

Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Speed RJ45 4 Ports 1 Fiber Ports Industrial POE Switch IP40 Protection Industrial Networking Me

Features


l4 Port Gigabit Industrial Ethernet Switch/Industrial Media Converter/Industrial Switch POE/Industrial Fiber Switch/Industrial Switch/Inustrial POE Switch

l4-Port 10/100/1000Base POE ports + 1 (100/1000M) SFP Slots

lSupports both IEEE 802.3af and 802.3at, and every port PoE configuration function

lG.8032, support<50ms industrial quick ring protection

l52 VDC (10 ~58VDC), dual redundancy power input, 6-pin 5.08mm-gap plug-in terminal, ensure power working without stop. When one power shut down, the other keeps working.

lDIN-Rail mounting or Wall-mounted install


Packaging and Shipping


High Speed RJ45 4 Ports 1 Fiber Ports Industrial POE Switch IP40 Protection Industrial Networking Media Converter


Production


High Speed RJ45 4 Ports 1 Fiber Ports Industrial POE Switch IP40 Protection Industrial Networking Media Converter


High Speed RJ45 4 Ports 1 Fiber Ports Industrial POE Switch IP40 Protection Industrial Networking Me

Specification

Product Name

 4 Port 10/100/1000M Industrial PoE Switch

Interface

 4x 10/100/1000Base-T ports POE +Dual Fiber Ports

Network Protocols

 IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;

 IEEE802.3ab ; IEEE802.3z ; IEEE802.3x; IEEE802.3af,  IEEE802.3at

PoE Specification

 PoE Standard: IEEE802.3af/ IEEE802.3at

 PoE ports: 1-4 ports support PoE

 Each PoE Port: Max. 30 Watts

 Power Pin Assignment:1/2+;3/6-

 Output Voltage: DC52V

Fiber Media

Multi-mode: 2km; Single-mode: 20/40/60/80KM

Performance Specification

 Bandwidth: 10Gbps
 Packet Buffer Memory:1M
 Packet Forwarding Rate:1488000pps/port
 MAC Address Table: 8K

Forwarding Mode

 Store-and-Forward

Protection

 Lightening protection, IP40 protection

Power Supply

 Input Voltage: DC52V (48~57V) /Terminal block

Other Specifications

Working Environment

 Working temperature: -40~80℃ ;  Storage temperature: -45~85℃
 Relative Humidity: 5%~95 %( no condensation)

Shell

 IP40 protect grade, metal shell

Installation

 DIN-Rail or Wall mounts

Weight & Size

 Product Weight: 0.5 KG
 Product size (L×W×H): 127mm× 107m m× 33mm

Warranty

 6-years
