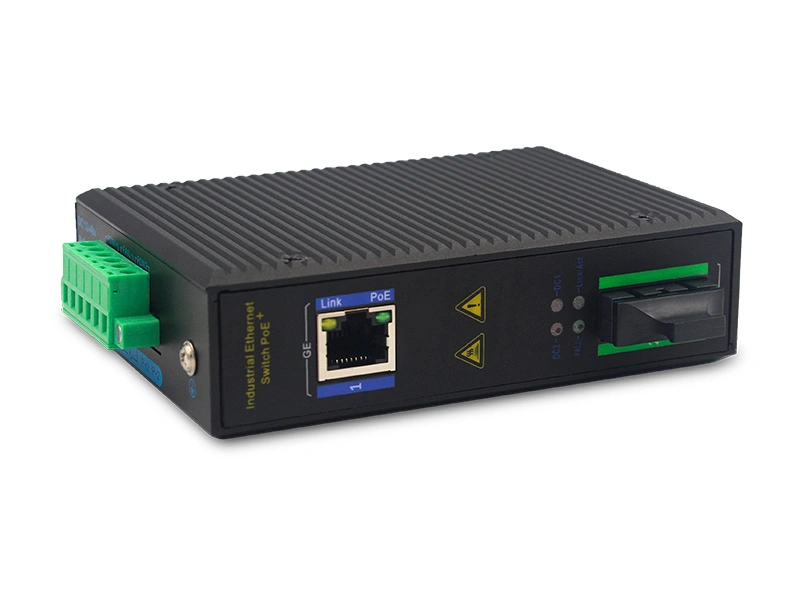

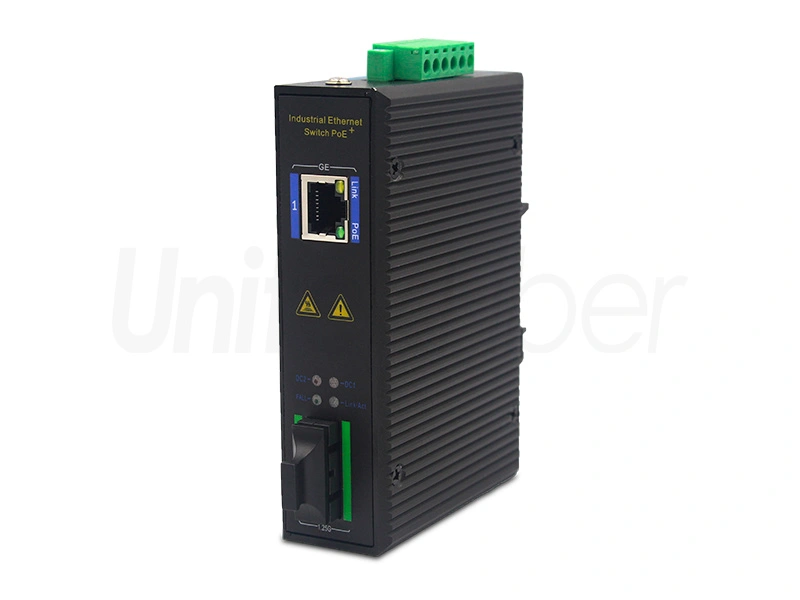

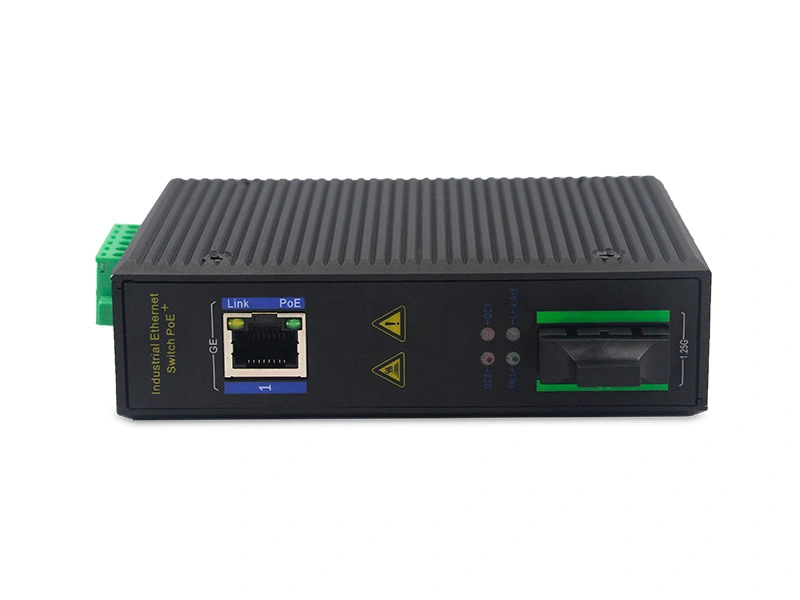

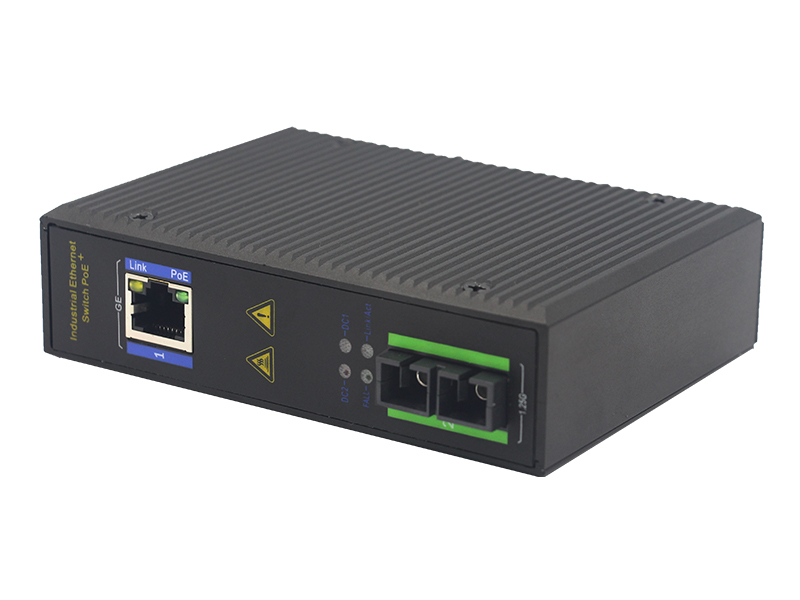

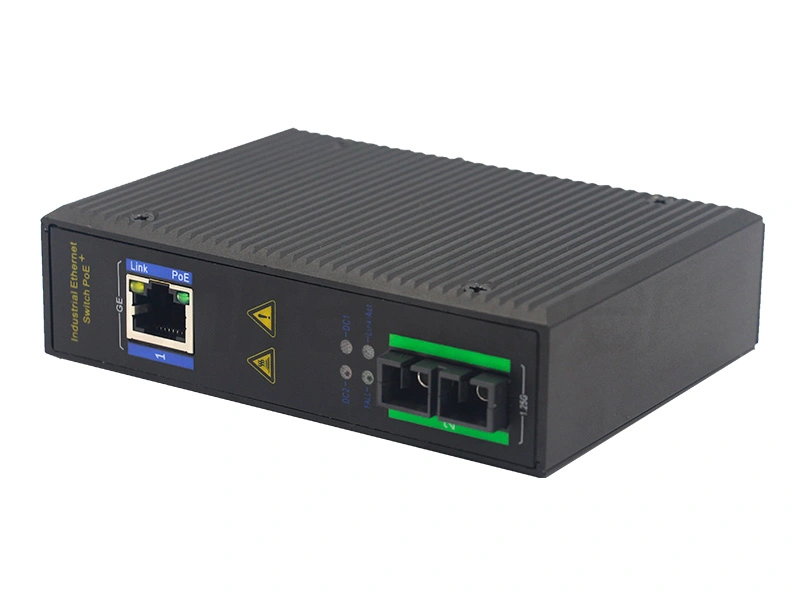

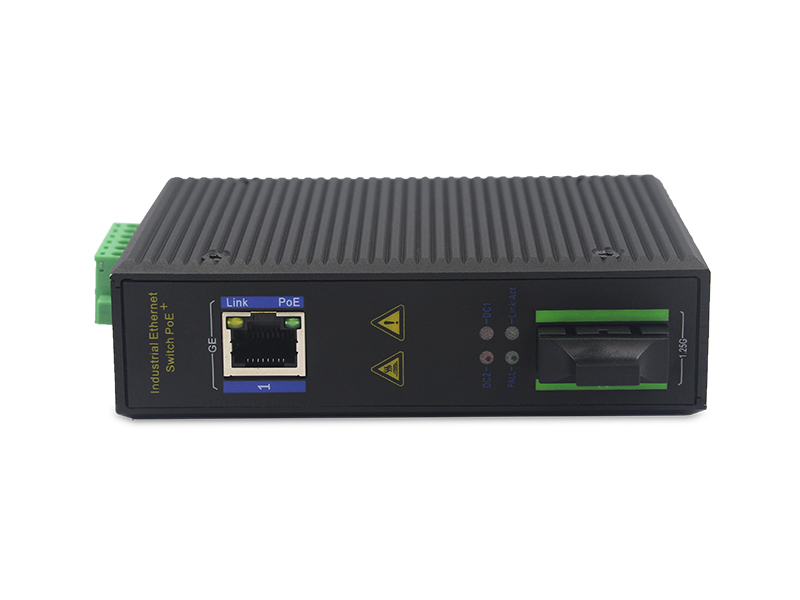

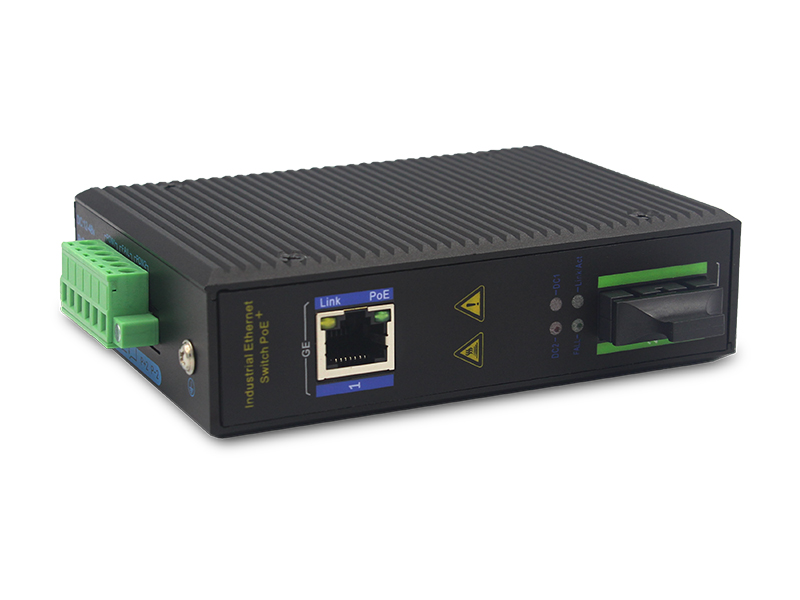

1 optical 1 electrical 1000M industrial Ethernet switch is equipped with 1 SC/LC/FC/ST (optional) Gigabit optical port and 1 10/100/1000M electrical port.
The characteristics of rail-type installation, wide-temperature operation, IP40 enclosure and LED indicator lights make it a plug-and-play industrial-grade device, providing a reliable and convenient solution for users' Ethernet device networking.
1 Gigabit optical ports, and 1 1000Mbps RJ45 ports, built-in power
IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant
Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
Up to 30W per port (total power budget: 120W) for powering PoE-enabled devices
All ports support wire speed switching, jumbo frame transmission
Support upstream ports lightning protection
Dynamic power control to ensure stable output power (Enhanced)
Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)
Power-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)
Reliable short-circuit protection to ensure safety (Enhanced)
Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)
Model | POE0820BNH-2 | POE0820B-2 | POE2420-2 | POE0410B-3 | POE0820BNH-3 | POE0820B-3 |
PoE Ports | 8*100Mbps | 8*100Mbps | 24*100Mbps | 4*1000Mbps | 8*1000Mbps | 8*1000Mbps |
Uplink Ports RJ45 Ports | 2*1000Mbps | 2*1000Mbps | 2*1000Mbps | 1*1000Mbps | 2*1000Mbps | 2*1000Mbps |
SFP Ports(1000Mbps) | × | × | × | × | × | × |
VLAN Isolation | √ | √ | √ | √ | × | × |
SUPM Mode(250m) | √ | √ | √ | × | × | × |
Max Transmission Distance | 250m | 250m | 250m | 150m | 150m | 150m |
Total Power Budget | 120W | 150W | 300W | 80W | 120W | 150W |
Switching Capacity | 16G | 16G | 16G | 10G | 20G | 20G |
MAC Address | 4K | 4K | 4K | 1K | 1K | 4K |
Product Dimension | 210*150*35 | 210*150*35 | 440*290*45 | 190*130*35 | 210*150*35 | 210*140*45 |
Weight(kgs) | 1.2 | 1.4 | 4.1 | 0.8 | 1.2 | 1.4 |
Qty/CTN | 25 | 25 | 5 | 25 | 25 | 25 |
CTN size(CM) | 49*43.5*57 | 49*43.5*57 | 53*41.5*50 | 49*43.5*57 | 49*43.5*57 | 49*43.5*57 |
Transmission Method | Store and forward | |||||
Power Input | 100~240V AC, 50-60 Hz | |||||
POE Standard | IEEE 802.3af, IEEE 802.3at | |||||
Power Output | Up to 30W per port | |||||
Pin Assignment | 1/2(+), 3/6(-) | |||||
PSE Type | End-Span | |||||
Temperature | Working: -20°~65°C Storage: -40°~70°C | |||||
Humidity | Working: 10~90% Storage: 5~95% | |||||
Network protocol | IEEE 802.3, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af/at, IEEE 802.1q | |||||
Certifications | CE, FCC, RoHS | |||||
Warranty | 3 years | |||||
