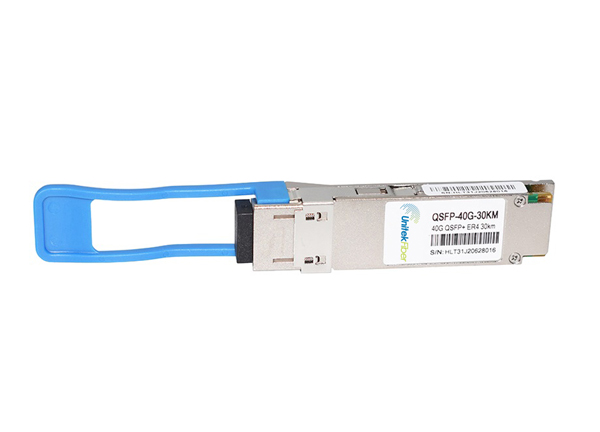

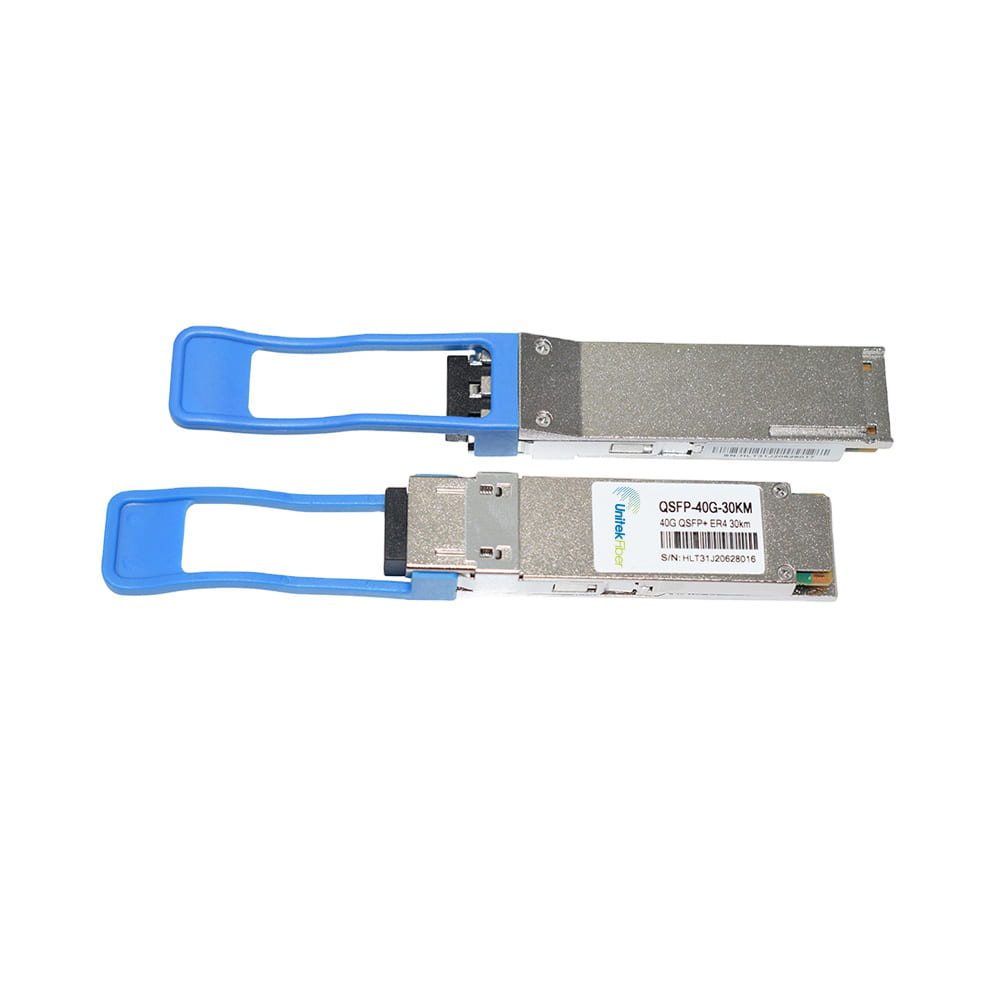

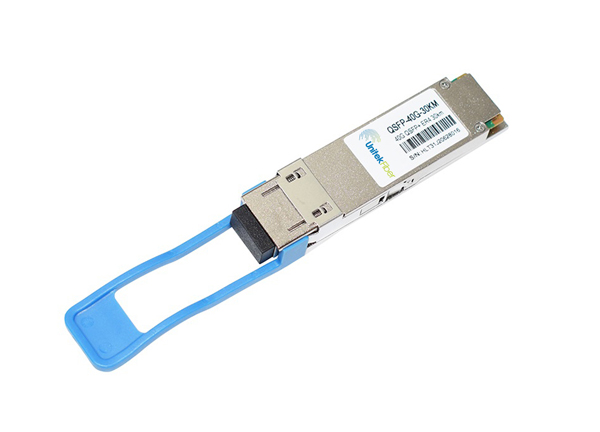

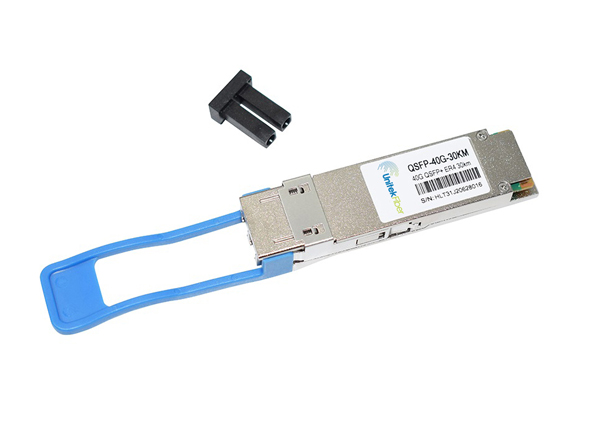

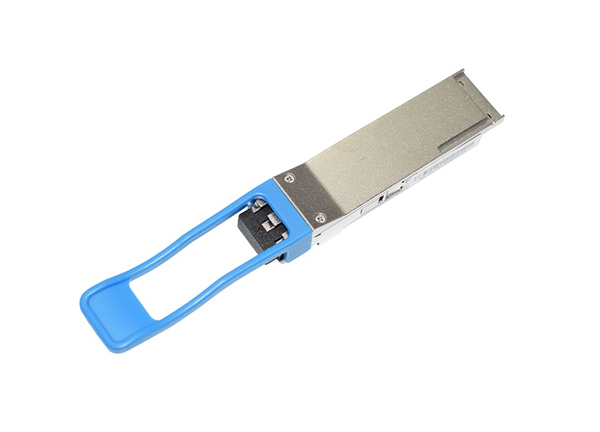

40G QSFP+ Fiber Optical Transceiver 1310nm 30km Compatible With Network Equipment

UnitekFiber supplies 40G QSFP+ optical transceivers which are in LC or MPO optical port. It has the characteristics of low power consumption, small size, and high speed, which is beneficial to increase the capacity of data centers, increase port density, and reduce power consumption. It is widely used in data centers, metropolitan area networks and other environments.



Distance
SFP Types
Products
Description
FAQ
Specification
Reviews
Video

40G QSFP+ Fiber Optical Transceiver 1310nm 30km Compatible With Network Equipment

40G QSFP+ Fiber Optical Transceiver 1310nm 30km Compatible With Network Equipment


The HW QSFP-40G-iSR4 Compatible QSFP+ Transceiver adopts 12 Fibers MTP/MPO Male connectors, reaching a link up to 150m over OM4 MMF (100m over OM3). This optical transceiver is compliant with QSFP+ MSA, IEEE 802.3ba 40GBASE-SR4 and breakout to 4x10GBASE-SR standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, campus and computing networks, interconnections within and between switches, routers, NICs and transport equipment.


Network Connectivity

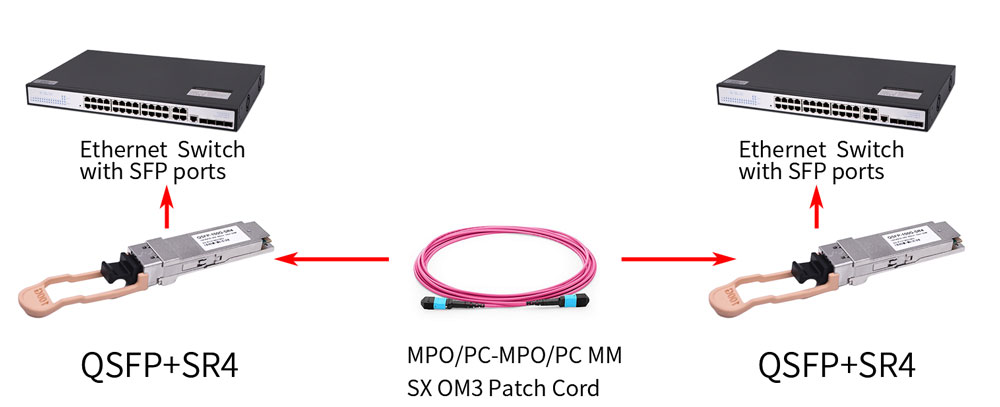

Direct Connection for 40GBASE-SR4 QSFP+ Transceivers


40G QSFP+ Fiber Optical Transceiver 1310nm 30km Compatible With Network Equipment

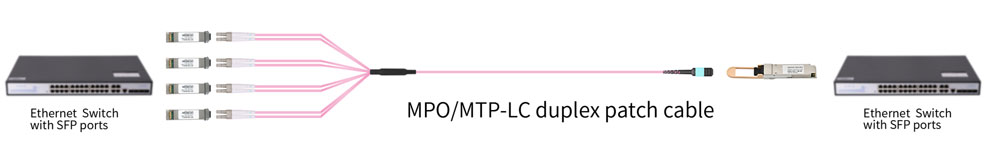

Direct Connection for 40GBASE-SR4 QSFP+ Optics to 4x 10G SFP+ Optics with MTP Harness Cable


40G QSFP+ Fiber Optical Transceiver 1310nm 30km Compatible With Network Equipment

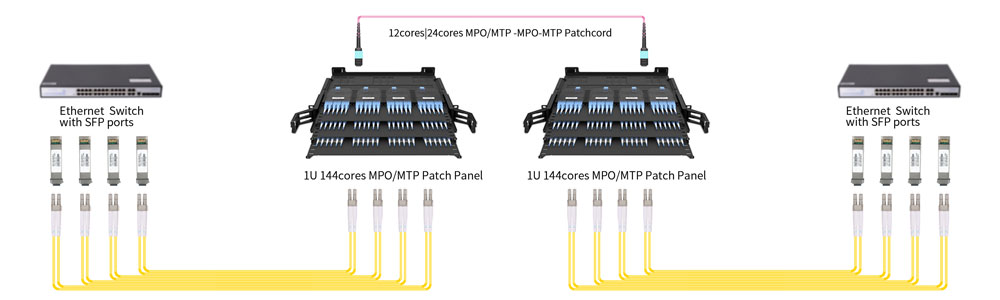

Connection for 40G QSFP+ SR4 Transceivers with FAPs and Fiber Enclosures


40G QSFP+ Fiber Optical Transceiver 1310nm 30km Compatible With Network Equipment


Product Highlights


40G Connectivity for Data Center

Commonly used in data centers to connect Ethernet switches with OM3/OM4 fiber optic cables. SFP+40G transceiver interface has better transmission performance, lower loss and higher pair size.


Tested in Host Devices for Proven Interoperability

QSFP+40G optical modules are mainly used to realize the connection between network devices in the data center, and are suitable for short-distance transmission.


40G QSFP+ Fiber Optical Transceiver 1310nm 30km Compatible With Network Equipment

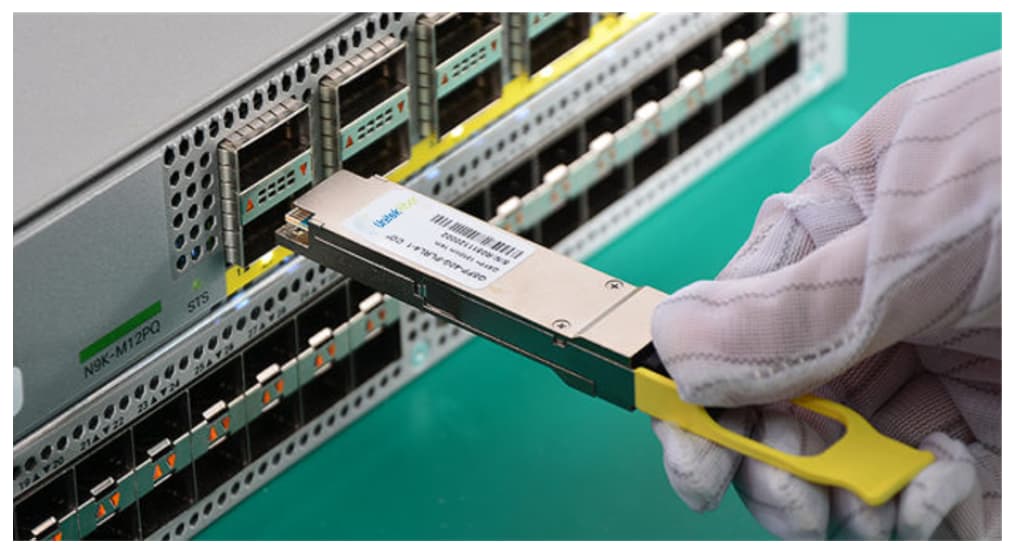

40G QSFP+ DOM optical transceiver module is individually tested to be used on a series of switches, routers, servers, network interface card etc. In data centers, high-performance computing networks, enterprise core layer and distribution layer application scenarios, 40G QSFP+ optical modules provide high-density and low-power 40G Ethernet connection transmission applications.

Why can I use both 12 fibers MTP trunk cables and 8 fibers MTP-LC cables with 40GBASE-SR4 transceivers? Shouldn't they be the same 12 fibers cables?

Actually, 40G-SR4 modules adopted MTP/MPO-12 Male connectors, but only 8 fiber strands are required, 4 fibers are idle in the connection, so you can use both 8 fibers and 12 fibers MTP cables.

Which fiber cable type is work with QSFP+ LR4 40G 10KM transceiver?

QSFP+ LR4 40G 10KM transceiver primarily enables high-bandwidth 40G optical links over duplex single mode fiber patch cable with LC connectors or MPO trunk cables.

What is the QSFP-ER4-40G transceiver max supported distances?

40km.

Once I place an order for my optic transceiver, how long will it take to receive them?

Unitekfiber supply a huge volume of optic transceiver modules, most of transceiver modules have a short lead time, 5-7days.

Can you confirm 40G QSFP+ Optical module is Cisco compatible?

Unitekfiber's optical modules are compatible with Fiberhome, Huawei, ZTE, Cisco, Ericsson, Nokia and other brands.

Annie
Aug 08, 2022

I am extremely impressed with your products, fiber optic cable. My father would have loved buying these products from your company.

Verified Purchase
Helpful 1
