Best Selling Armored Bulk Fiber Cable 6 Cores LC/UPC-LC/UPC Fiber Optic Jumper SM G652D LSZH Red

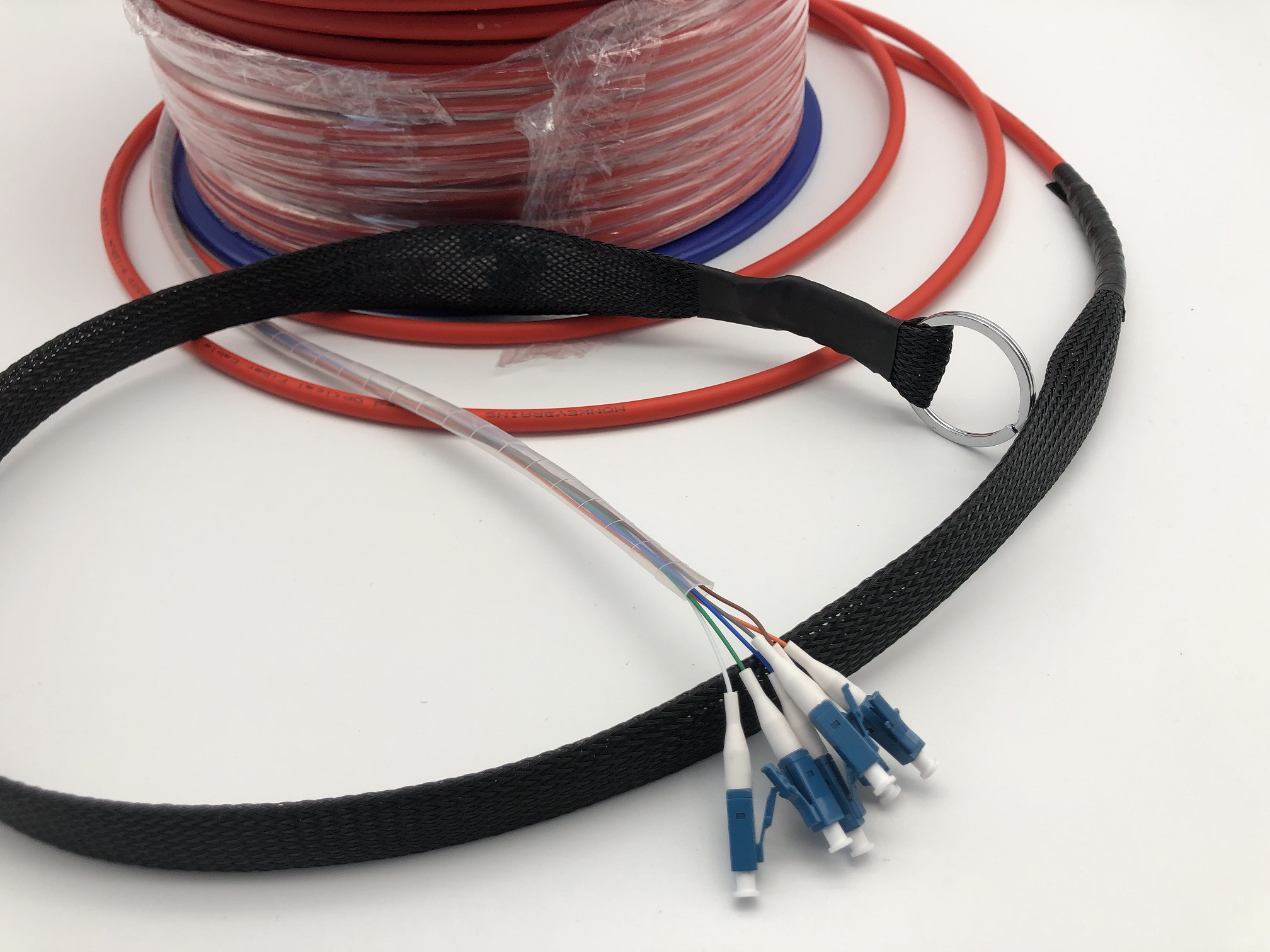

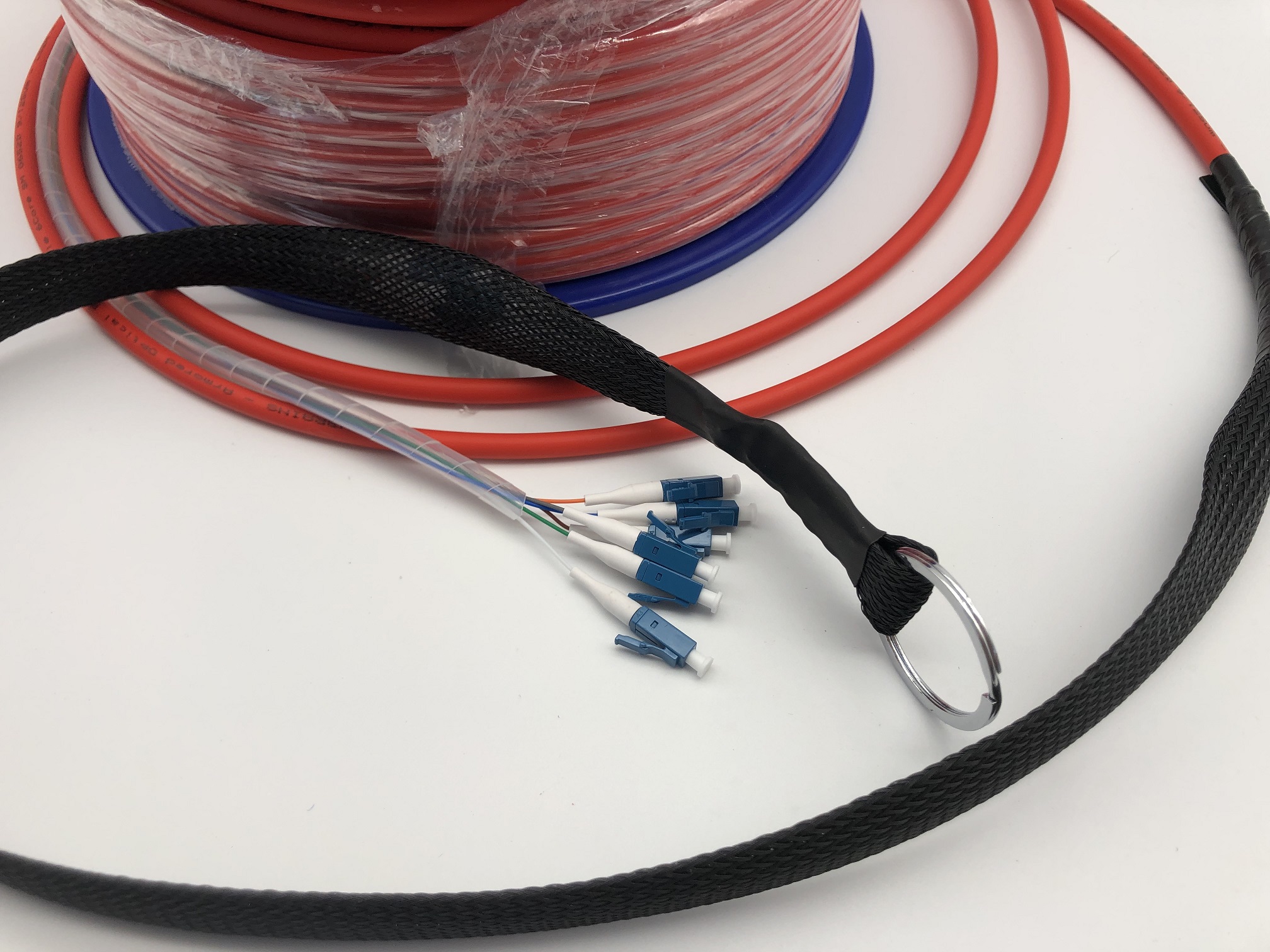

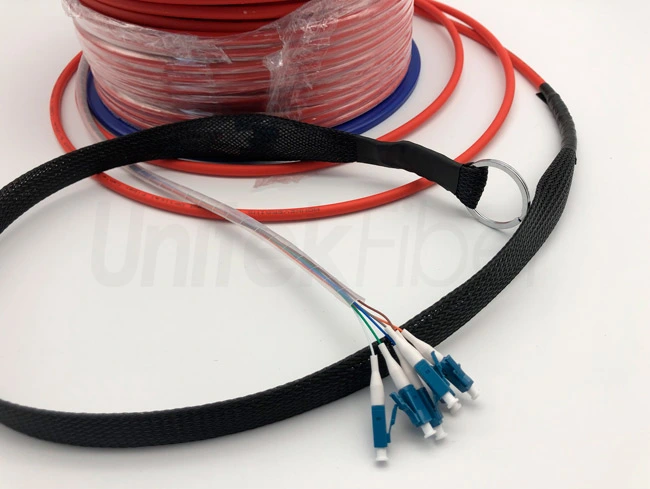

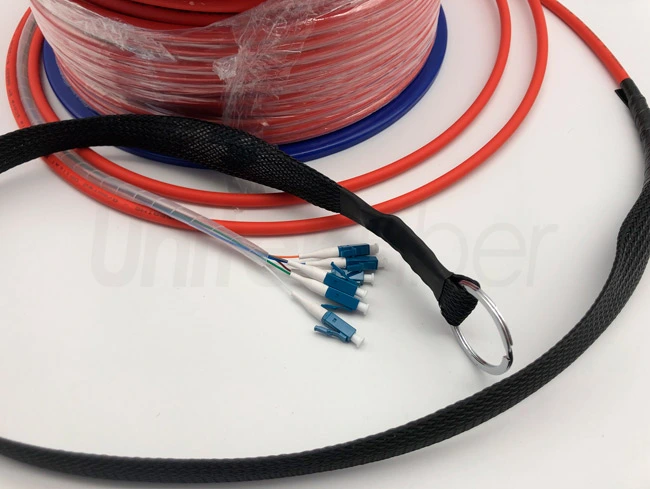

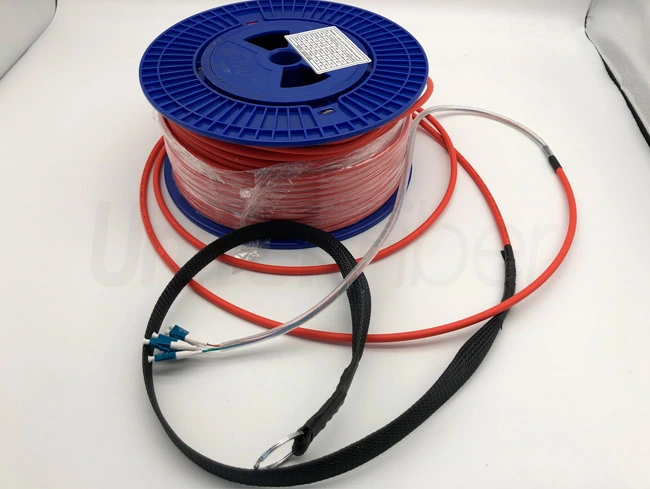

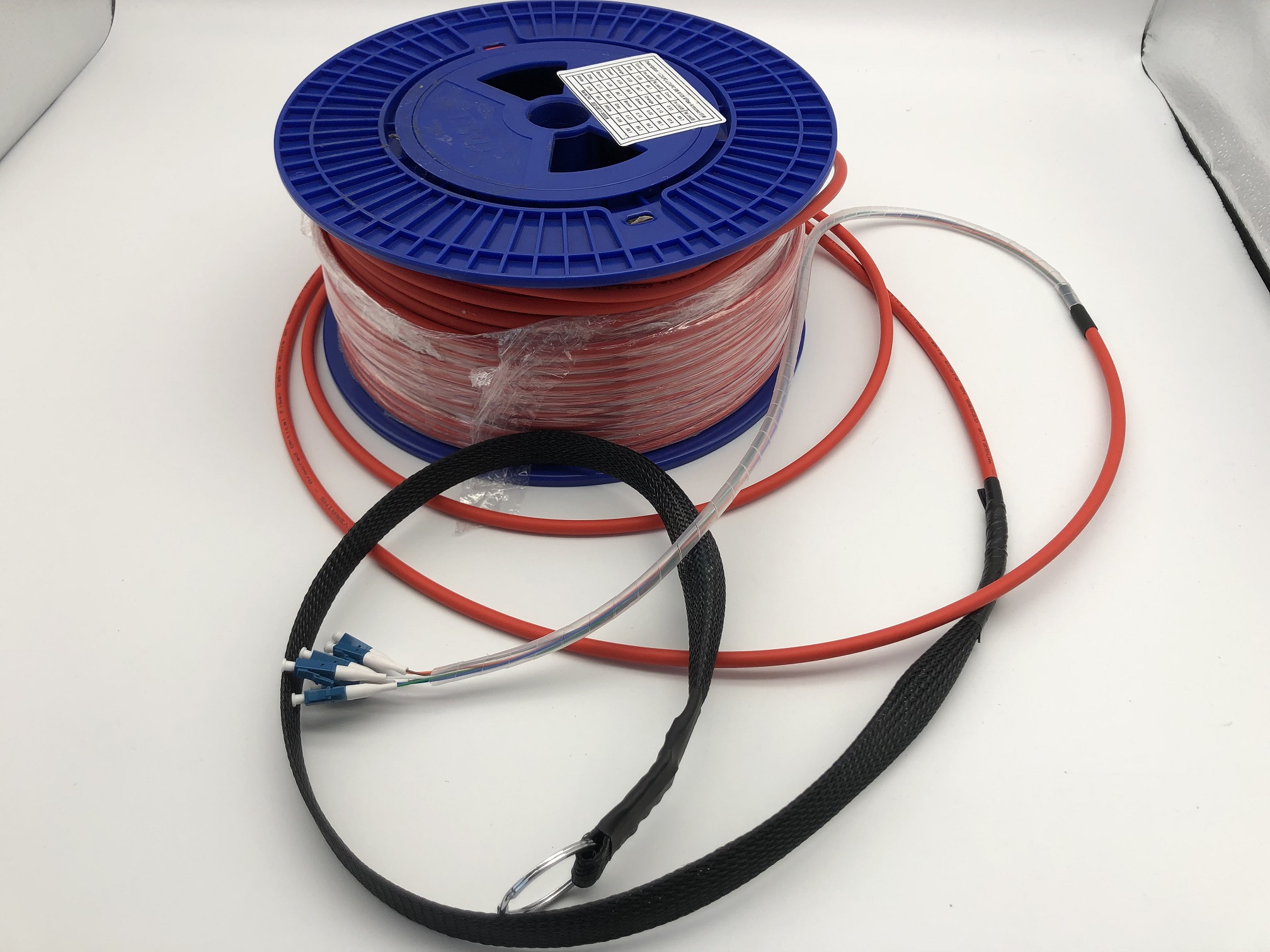

The Armored fiber optic jumper is made with Armored bulk fiber cable. The Armored bulk fiber optic cable is with 6 colors of 0.9mm subsidiary fiber cables, Kevlar yarn and steel tape is used as strength member to make bulk fiber cable more stronger. The outer jacket is flame-retardant LSZH. It is assembled with LC connectors at the both ends. And a pulling eye assembled at the one end  makes installation more convenient. All the cable are 100% tested according to IEC 61753 and IEC 61300-3-34.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Best Selling Armored Bulk Fiber Cable 6 cores LC/UPC-LC/UPC Fiber Optic Jumper SM G65

Applications:


  • Telecommunications networks

  • CATV, LAN, MAN and WAN application

  • Data processing networks

  • Cable television

  • Fibre-To-The-Home (FTTH)

  • Premises distribution


Features:


  • 100% pre-terminated and tested in factory to ensure transfer performance

  • Rapid configuration and networking, reduce installation time

  • Supports 40G and 100G network applications

  • Jacket material: LSZH, OFNR, OFNP available

  • Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass

  • Supports up to 4F, 8F, 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

  • OEM service is avaibable


Physical Information


LC Pigtail Fanout Drawing


LC Pigtail Fanout drawing


SC Pigtail Fanout Drawing


SC Pigtail Fanout drawing


ST Pigtail Fanout Drawing


ST Pigtail Fanout drawing


Quality Control


  • Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,

    <0.25db max for >97% of samples,Return Loss >55dB)

  • All products factoy tested

  • Geometrical Characteristics comply with IEC 61755-3-1

  • All materials comply with IEC and ROHS


Our test program including: end face test,3D interferometer test, singlemode IL&RL test, multimode IL&RL test.

Our Tests



High Quality MTP/MPO Cable Guarantee


High Quality MTP/MPO Cable Guarantee

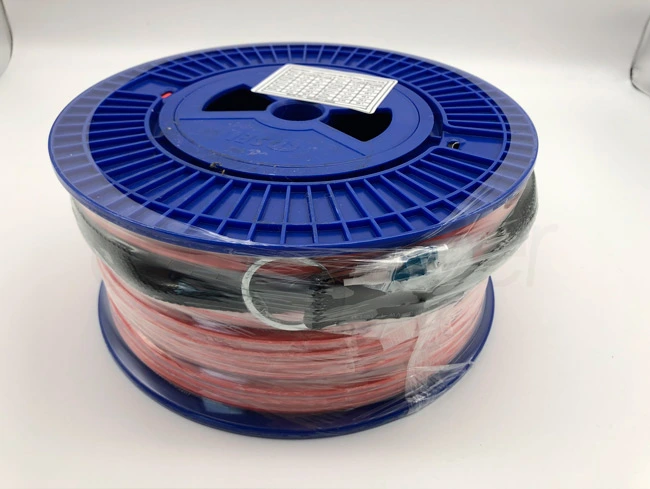

Packaging & Shipping


Best Selling Armored Bulk Fiber Cable 6 Cores LC/UPC-LC/UPC Fiber Optic Jumper SM G652D LSZH Red


Production


Best Selling Armored Bulk Fiber Cable 6 Cores LC/UPC-LC/UPC Fiber Optic Jumper SM G652D LSZH Red


Parameter of Best Selling Armored Bulk Fiber Cable 6 cores LC/UPC-LC/UPC Fiber Optic Jumper SM G652D

Optical Specification

Connector

SC,FC,LC,ST,MU,E2000

Polishing

SM/UPC

MM/PC

SM/APC

Insertion Loss(max)

≤0.30dB

≤0.25dB

≤0.30dB

Return Loss(min)

≥50 dB

≥35 dB

≥60 dB

Tensile Strength

>300N

Durability

<0.20 dB typical change, 1000 matings

Repeatability

≤0.1dB

Storage , Operating Temperature [°C]

-40~+85


Geometric Specification (For special request)



PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset


≤50 um

Fiber Spherical Height


+/- 50 nm

Angular Offset


     ——

8°±0.2°
