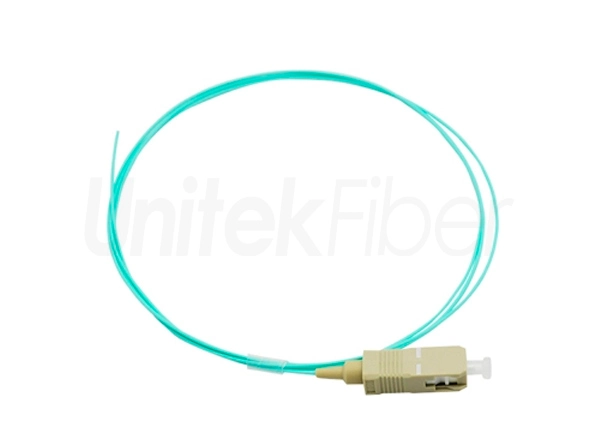

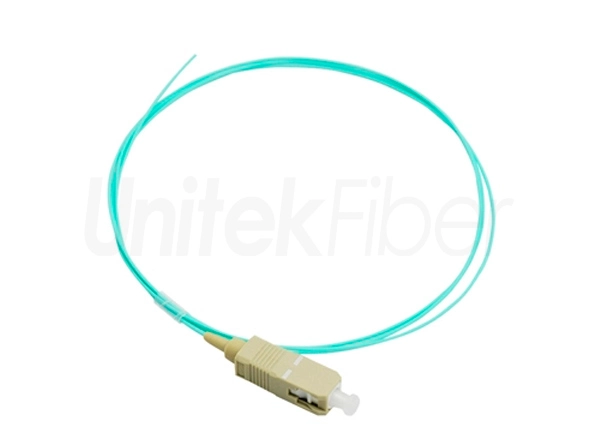

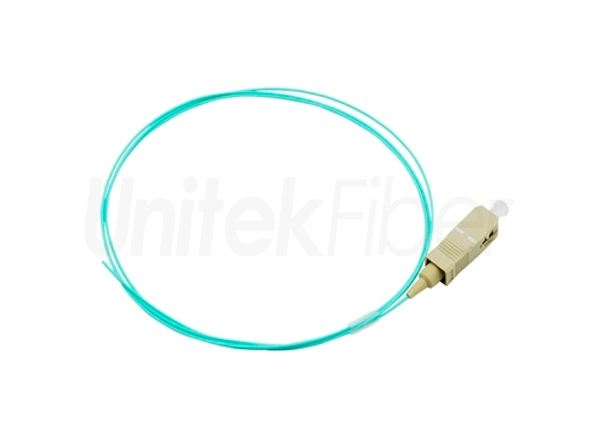

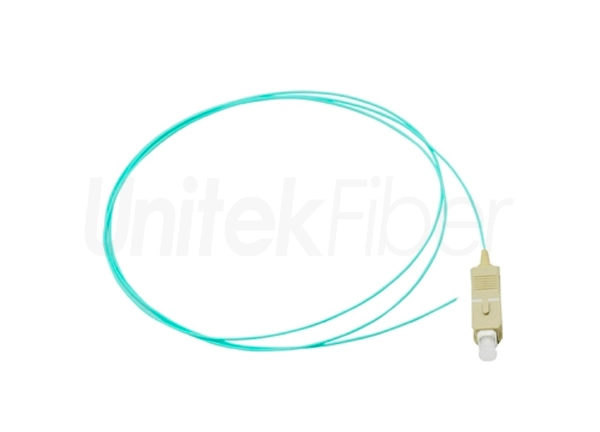

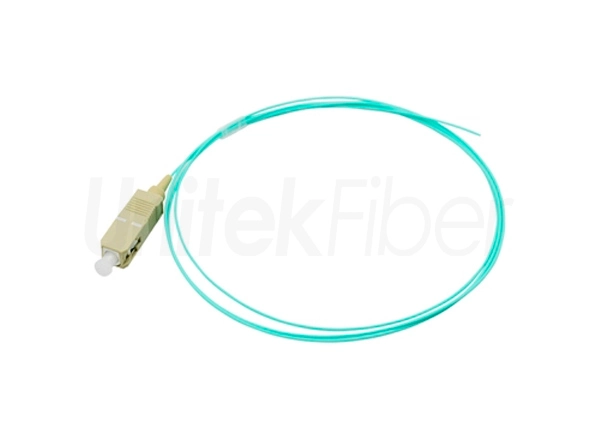

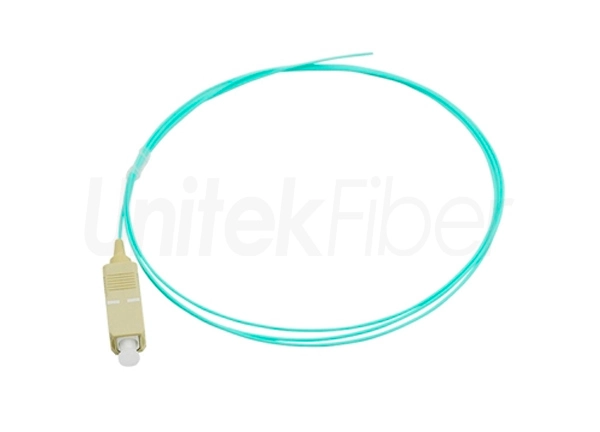

Manufacturer Provider Optical Pigtail SM MM 9/125um 0.9mm SC APC UPC LSZH

The fiber cable can be 0.6mm or 0.9mm, in loose tube or tight buffered type. And the fiber pigtail can be single mode and multi mode, The multi mode pigtail in including OM1, OM2, OM3, OM4. We can offer 12cores for the pigtails according to the customers request.

Length
Products
Description
FAQ
Specification
Reviews
Video

Manufacturer Provider Optical Pigtail SM MM 9/125um 0.9mm SC APC UPC LSZH

The fiber pigtails have an outer jacket that protects the tightly buffered cable from damage. The outer jacket can be easily stripped where space permits, so that the fiber pigtail has a tighter bend radius and takes up less space.


In addition, fiber pigtails are divided into single-mode fiber pigtails and multimode fiber pigtails, which can be distinguished by color, wavelength and transmission distance. The color of the outer sheath of the multimode fiber pigtail is orange OM1/OM2 and lake blue OM3, the wavelength of the multimode fiber pigtail is 850nm, the transmission distance is 500m, and it is used for short-distance connection; the color of the outer sheath of the single-mode fiber pigtail is yellow , the wavelength is 1310nm or 1550nm, and its transmission distance is longer, up to 10km or 40km.

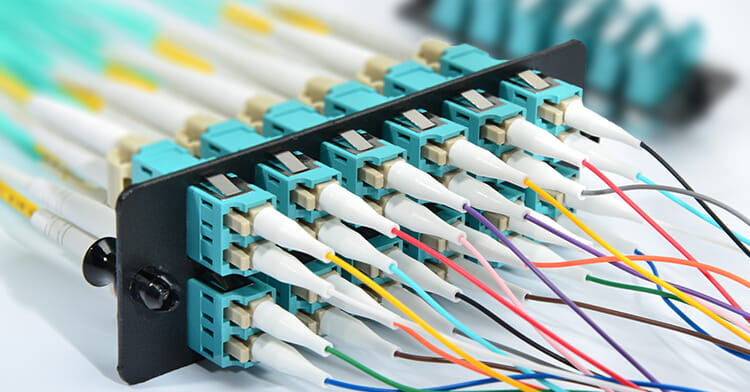

The application of fiber pigtails cable


One of the main functions of the fiber pigtail is to connect. Optical fiber cable and fiber pigtail connection, the ribbon fiber and fiber pigtail in the optical cable are fused together to form a whole, while the fiber pigtail has a separate optical fiber end, which connects the optical fiber and the twisted pair by connecting with the optical fiber transceiver. Connected to the information socket. In the process of optical fiber fusion, the following main tools are commonly used: optical terminal boxes, optical fiber transceivers, fiber pigtails, fiber optic adapter, special wire strippers, optical fiber cutters, etc.


Manufacturer Provider Optical Pigtail SM MM 9/125um 0.9mm SC APC UPC LSZH


Characteristics:


lUsing high precision ceramic ferrule

lLow insertion loss and high return loss

lExcellent stability and high repetition

l100% Optic test (Insertion Loss & Return Loss)


Application:


lTelecommunication Network

lFiber Broad Band Network

lCATV system

lLAN and WAN system

lFTTP

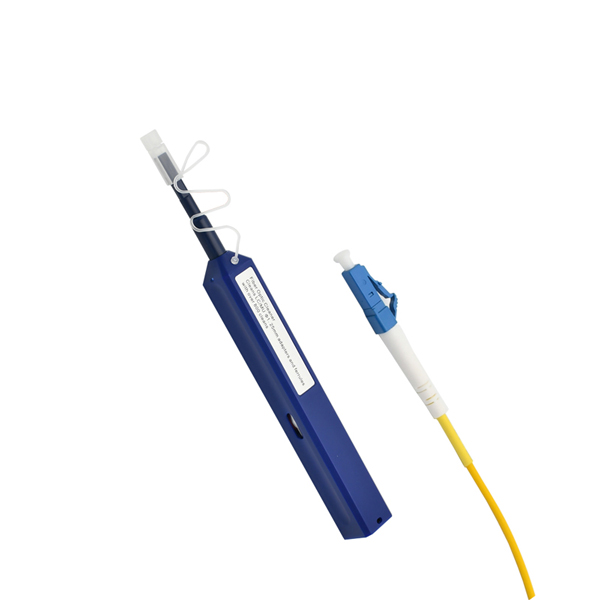

Cleaning Fiber Restores Fiber Performance


Optical fiber end face is an important medium for data transmission. Its surface is easily polluted by dust, shedding fibers and other pollutants. These pollutions will cause attenuation, reflection and scattering of optical signals, thus affecting the quality and stability of optical fiber communication. Therefore, keeping the fiber end face clean is very important to ensure the reliability of fiber optic communication.


Manufacturer Provider Optical Pigtail SM MM 9/125um 0.9mm SC APC UPC LSZH


Packing & Delivery



Manufacturer Provider Optical Pigtail SM MM 9/125um 0.9mm SC APC UPC LSZH


Can G652D replace G657A1? What's the difference between them?

Yes, the G657A1 has better bending performance than G652D.

Can you supply customized pigtail cable and logo?

Yes. We supply OEM service. You can send us your drawing.

What kind of tools is required if I want to shorten a fiber optic pigtail?

You need a fiber optic cleaver to shorten the pigtail.

Can I take off the connectors of the pigtails and fuse with fast connectors?

Yep, no problem, they can be cut off and you can take the ones you need.

Can we get a lower price? Any discount?

Yes, the price is not a problem, everything could be negotiated based on the quantity.We will give you the competitive price.

Jorren
May 06, 2023

This fiber pigtail cable is of great quality. I will turn back to you next time I have needs.

Verified Purchase
Helpful 0
Jenilca
May 06, 2023

They were sent to be with fast speed. Each cable is put in a separate bag. They look very nice.

Verified Purchase
Helpful 0
Kaiana
May 06, 2023

The cables ordered were of good quality and worked very well.

Verified Purchase
Helpful 0
Haivyn
May 06, 2023

The salesman helps me a lot to choose the right cable type for my switch. Well-done, thanks.

Verified Purchase
Helpful 0
Nanea
May 06, 2023

I got exactly what I wanted in better time than expected. I will definitely order again.

Verified Purchase
Helpful 0
