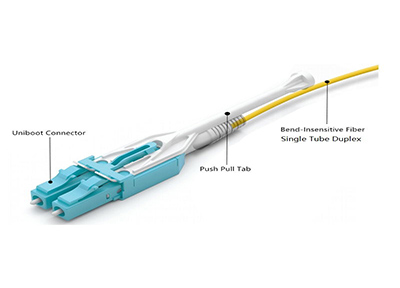

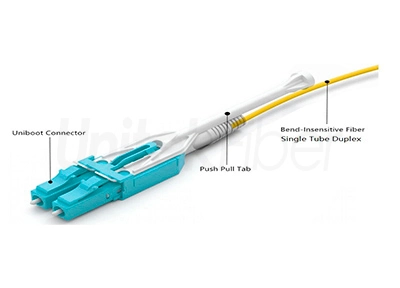

High Density LC Uniboot Connector Single Mode OM3 with Push Pull Tab

UnitekFiber high density LC Uniboot connectors are utilized to achieve more effective cable management in high-density networks. Uniboot connector is with more compact design which can reduce cable management space by 68% that compared with traditional duplex zipcord assemblies.

Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Density LC Uniboot Connector Single Mode OM3 with Push Pull Tab

Features:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule


Applications:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks


Packaging & Shipping


High Density LC Uniboot Connector Single Mode OM3 with Push Pull Tab


Production


High Density LC Uniboot Connector Single Mode OM3 with Push Pull Tab


High Density LC Uniboot Connector Single Mode OM3 with Push Pull Tab


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85
