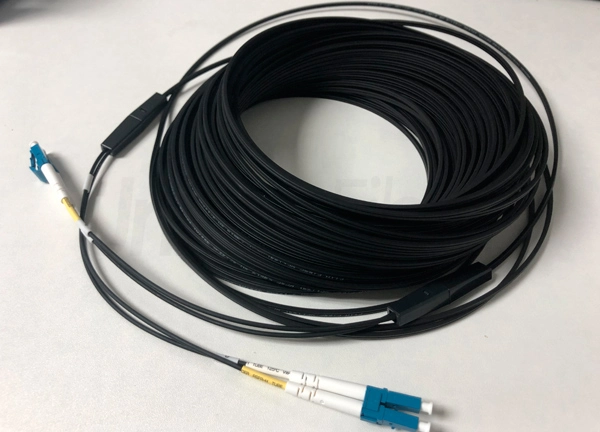

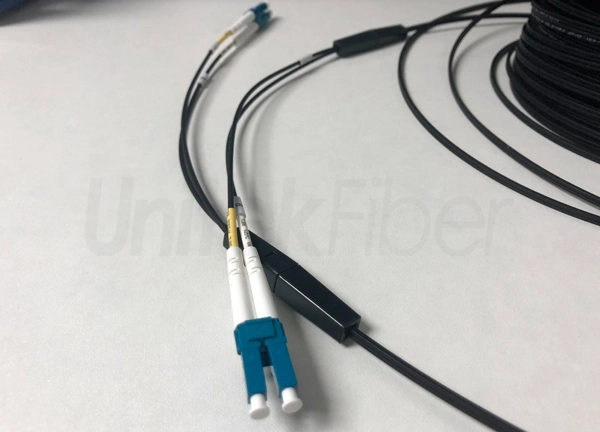

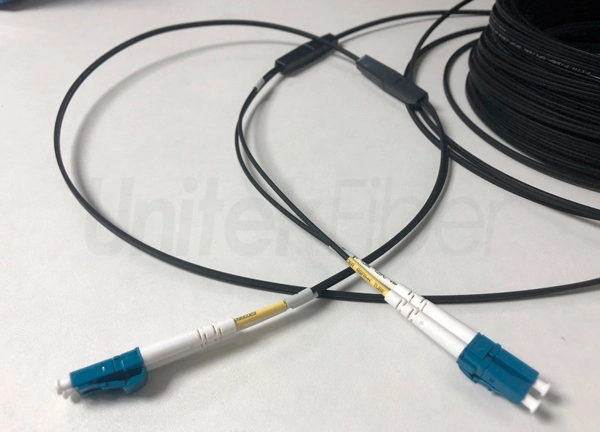

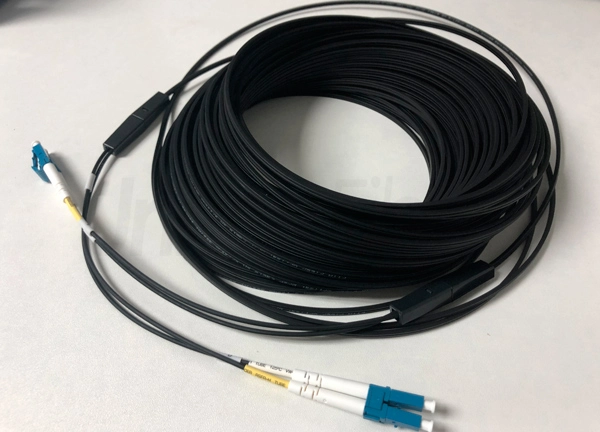

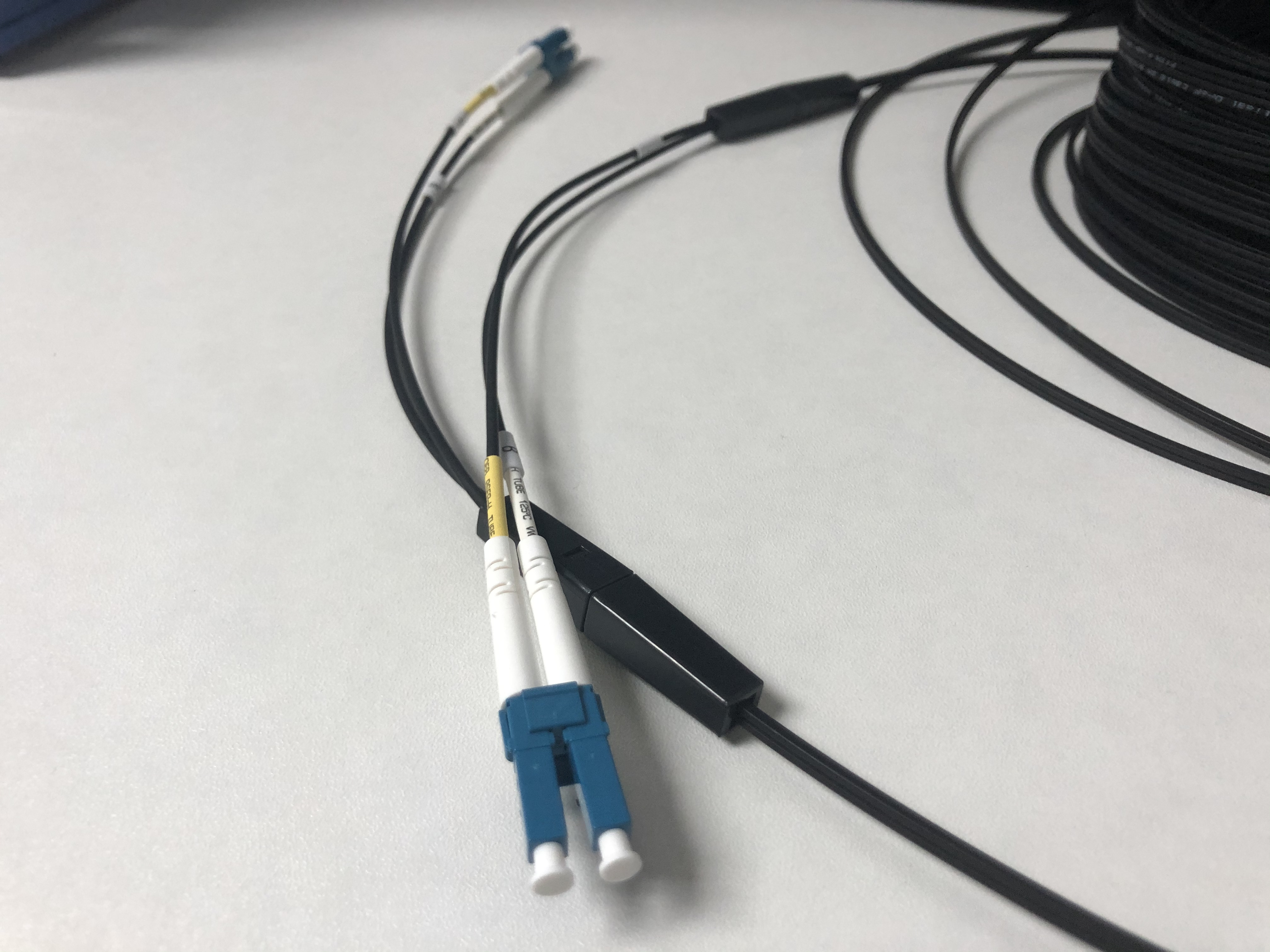

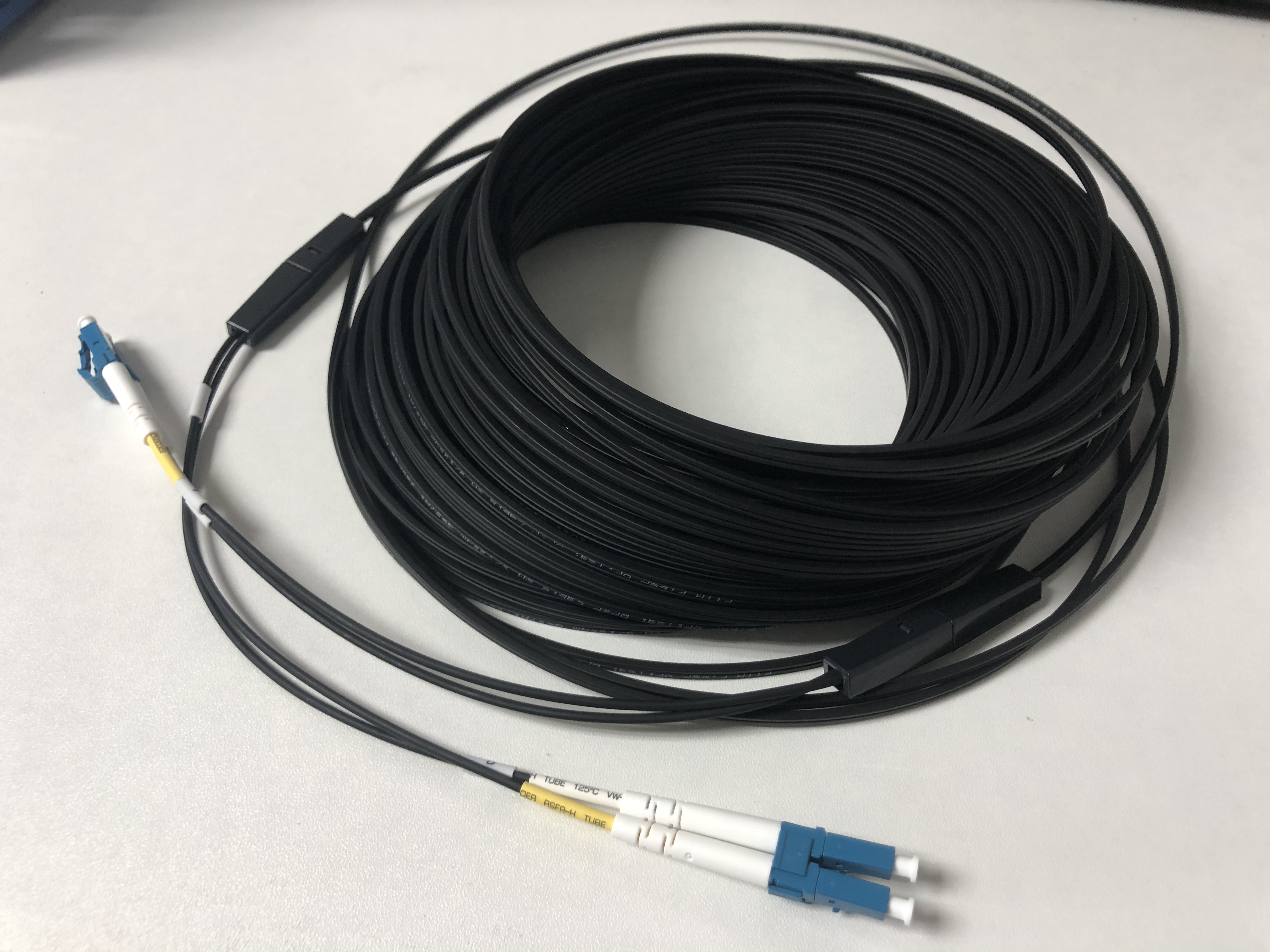

FTTH Drop Cable Pre-terminated Fiber Optic Patch Cord Duplex LC/UPC-LC/UPC LSZH 5m Black

The FTTH drop cable pre-terminated fiber optic patchcord is to terminate fiber connectors at both ends of the ready-made drop cable, which can have various interfaces such as LC and SC. At present, SC,LC interfaces are the majority in the market, and other FC and ST are also produced. Drop cable fiber jumpers are also known as FTTH butterfly pigtails and FTTH prefabricated drop cable jumpers.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of FTTH Drop Cable Pre-terminated Fiber Optic Patch Cord Duplex LC/UPC-LC/UPC LSZH 5m Bl

Characteristics:


Connector types include FC.SC.ST.LC, etc. There are PC.UPC.APC type of end contact methods. The connector use high-quality zirconia ceramic ferrule with low insertion loss and good interchangeability. The construction speed is fast, the use and maintenance are simple and convenient, and the cost is low.

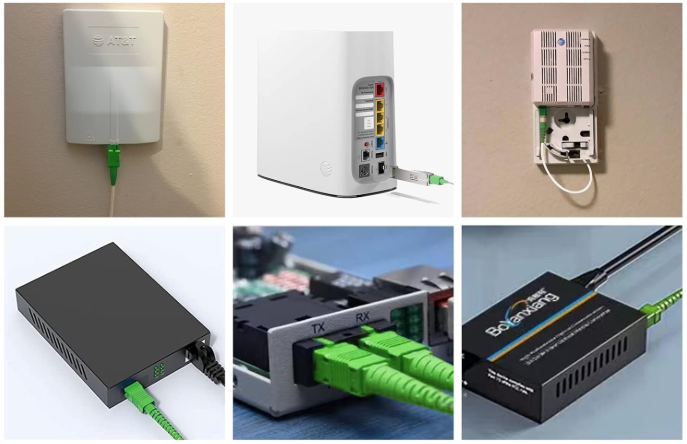

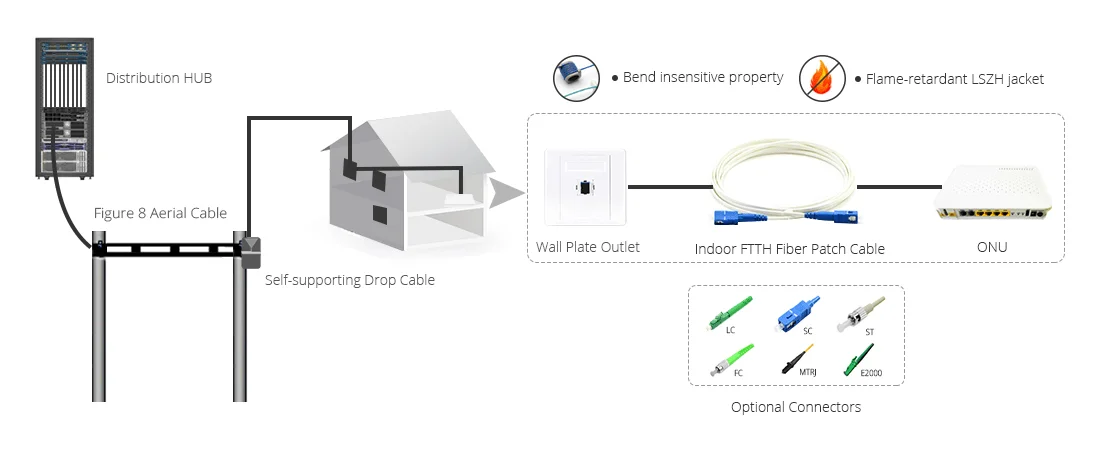

Application:


  • Telecommunication network,

  • Data transmission

  • Test equipment

  • Local area network (LAN)

  • Radio and television network (CATV)


Parameter of FTTH Drop Cable Pre-terminated Fiber Optic Patch Cord Duplex LC/UPC-LC/UPC LSZH 5m Blac

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃



Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.

Reviews

Bartley
Jul 25, 2022

Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.
