FTTH Indoor Fiber Optical Rosettes Termination Box 2 Ports

UnitekFiber supplies all various of FTTH termination box. Our fiber rossette box is in compact designed 4 ports for LC connector. It is used as a termination point for the drop cable to connect with patch cable  in  FTTH  indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.

Fiber Optic
Details
Parameter

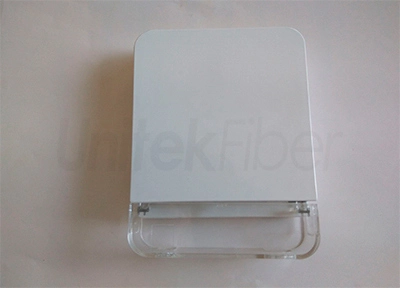

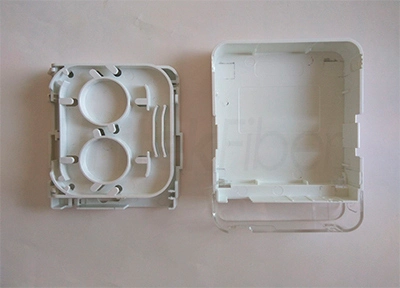

Details of FTTH Indoor Fiber Optical Rosettes Termination Box 2 Ports

Features


  • Dust-proof design with IP-45 Protection level.

  • Integrated with splice cassette and cable management rods.

  • Manage fibers in a reasonable fiber radius condition.

  • Easy to maintain and extend the capacity.

  • Suitable for the fusion splice or mechanical splice.

  • Embedded type surface, easy for installation and removal.

  • 1 ports cable entrance for patch cable.


Packaging & Shipping


FTTH Indoor Fiber Optical Rosettes Termination Box 2 Ports


Production


FTTH Indoor Fiber Optical Rosettes Termination Box 2 Ports

Parameter of FTTH Indoor Fiber Optical Rosettes Termination Box 2 Ports

Item

Parameters

Scope of application

3*2mm drop cable or indoor cable

Fiber cladding diameter

125um(G652 & G657)

Fiber diameter

250um & 900um

Fiber type

SM & MM

Tensile strength

>50N

Operating temperature

-40 ~ +85℃

Connect adapter

LC & SC

Insertion loss

<0.2dB

Return loss

>50dB(UPC),60dB(APC)


Configuration

Material

Size

Max Capacity

Mounting Way

Weight

Color

PC+ABS

115*85*23mm

SC 2 ports

LC 4 ports

Wall Mounting

0.1kg

White
