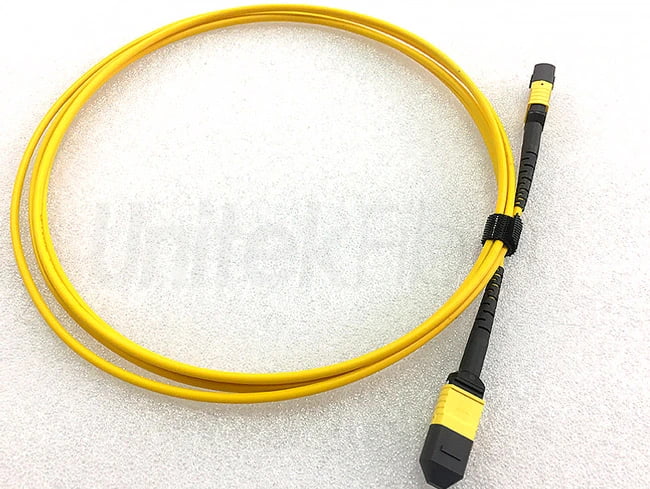

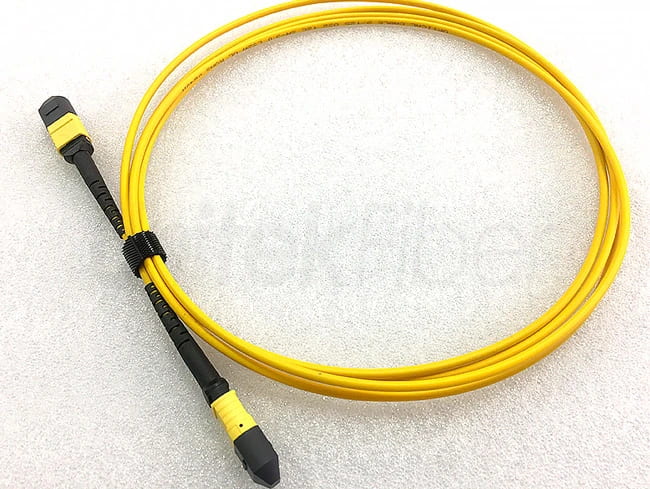

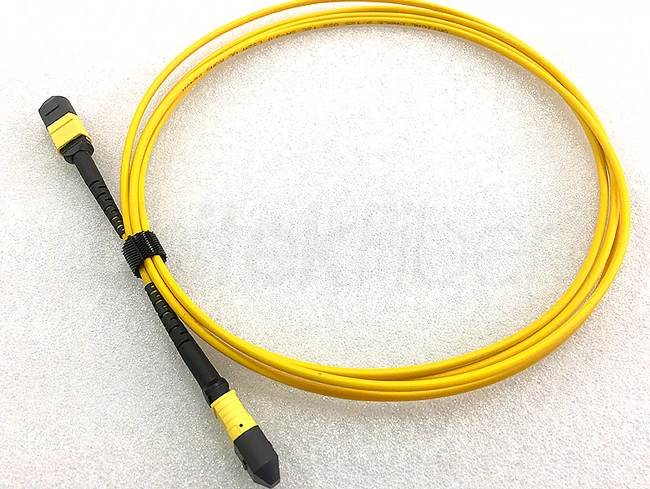

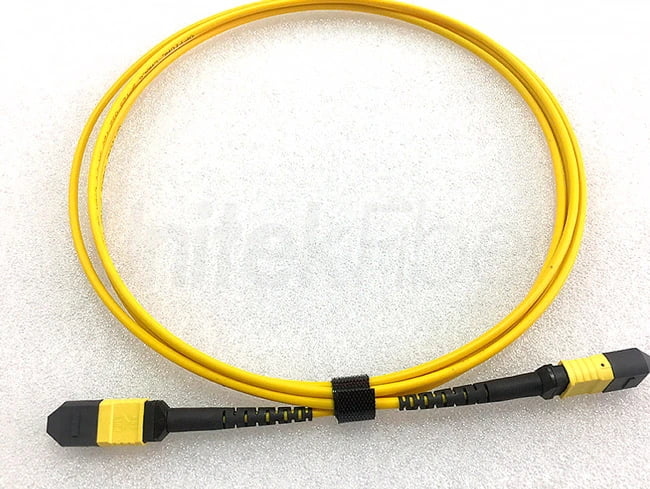

Indoor Data Center 24 Core MTP-MTP Fiber Optic Patch Cord SM Fire Redundant LSZH 1M

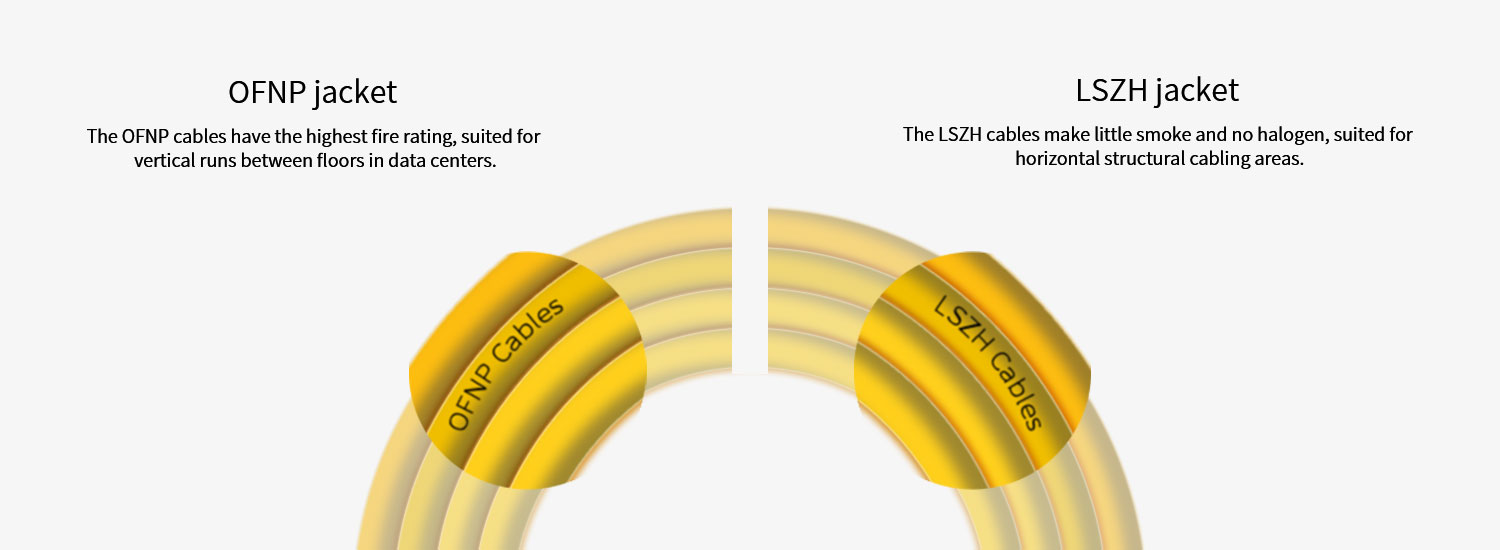

24 cores MTP-MTP fiber patch cord is basically constructed with LSZH sheath anti fire 0.9 mm diameter cable and high quality 2 MTP connectors on both side. The fiber cable length can be customized. These patch cords are widely used in telecom industry, LAN, FTTH, CATV, Testing instruments etc. The fiber cores with cable length can be customized as per customer request.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Details of Indoor Data Center 24 Core MTP-MTP Fiber Optic Patch Cord SM Fire Redundant LSZH 1M

MTP/MPO cable is specifically designed for fast ethernet, fiber channel, ATM and gigabit ethernet applications. Save time and money with MTP/MPO's increased ease of installation - simply pull one cable rather than twelve. Each MTP/MPO fiber assembly consists of twelve 9/125 single-mode fibers under one PVC (OFNR-rated) jacket.


Fiber Colo Crode

Network Connectivity


Indoor Data Center 24 Core MTP-MTP Fiber Optic Patch Cord SM Fire Redundant LSZH 1M

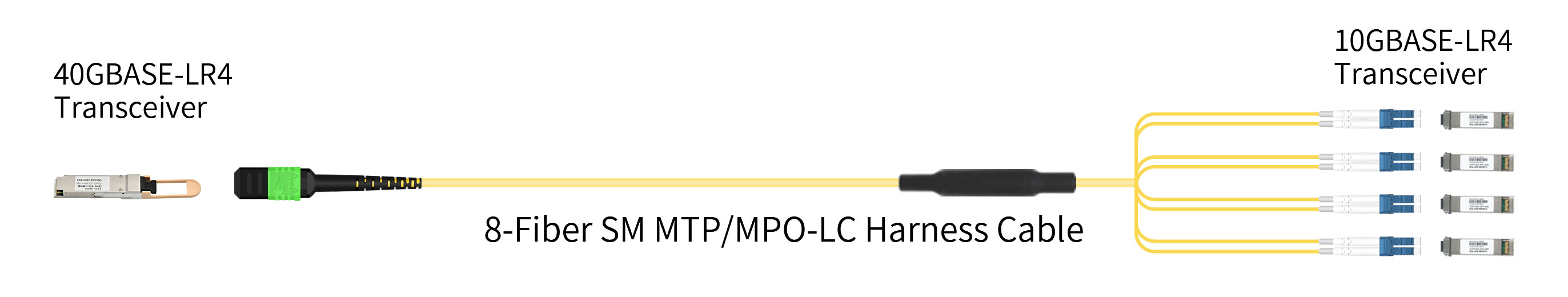

The easiest parallel fiber optic transmission link of Base-8 MTP/MPO cabling is to directly connect two QSFP+ transceivers like 40GBASE-LR4 with an 8-fiber MTP/MPO cable. This type of direct connectivity is only suggested for short distances within a given row of racks or cabinets.



Product Highlights

Superior Workmanship Guarantees Stable Transmission



Indoor Data Center 24 Core MTP-MTP Fiber Optic Patch Cord SM Fire Redundant LSZH 1M


MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance.



Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling






Indoor Data Center 24 Core MTP-MTP Fiber Optic Patch Cord SM Fire Redundant LSZH 1M



Parameter of Indoor Data Center 24 core MTP-MTP Fiber Optic Patch Cord SM Fire Redundant LSZH 1M

Model

SM

MM

Connector A:MPO/MTP

Connector Fiber Count

8,12,24,48 Core

Polish

PC,APC

PC

Insertion Loss

Standard

≤0.70dB

≤0.50dB

Elite Low Loss

≤0.35dB

≤0.30dB

Return Loss

PC≥50dB,APC≥60dB

≥30dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

Connector B:LC,LC Uniboot,SC,FC,ST

Polish

PC,APC

PC

Insertion Loss

≤0.2dB

≤0.2dB

Return Loss

PC≥50dB,APC≥60dB

≥35dB

Durability(500 Matings)

≤0.2dB

Test Wavelength

1310/1550nm

850/1300nm

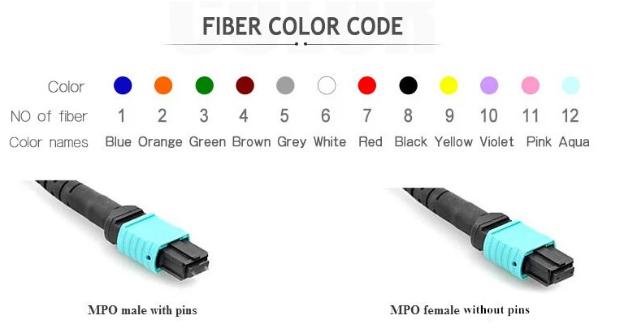

Fiber Color Code

Fiber Color Code


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
