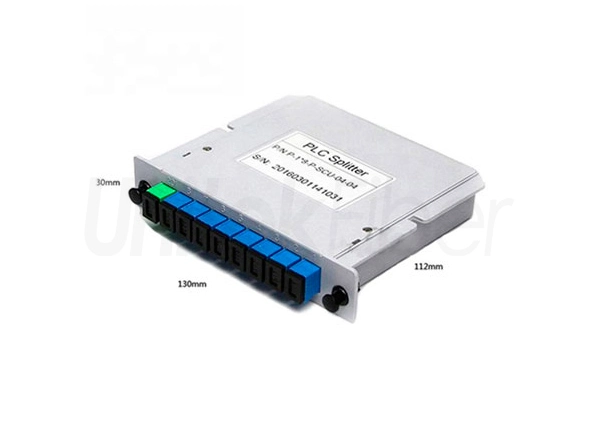

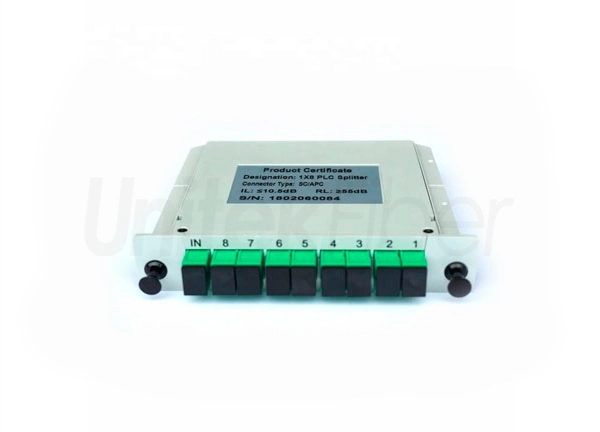

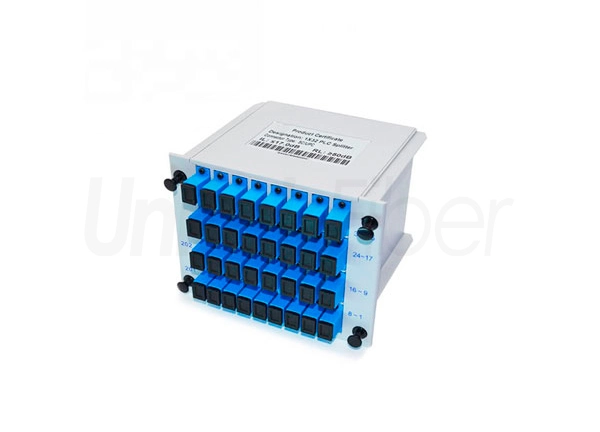

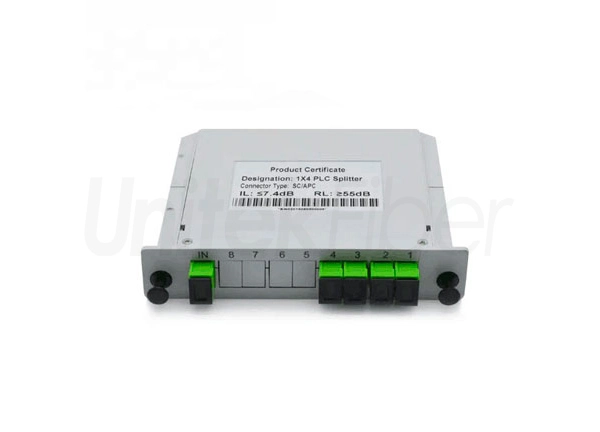

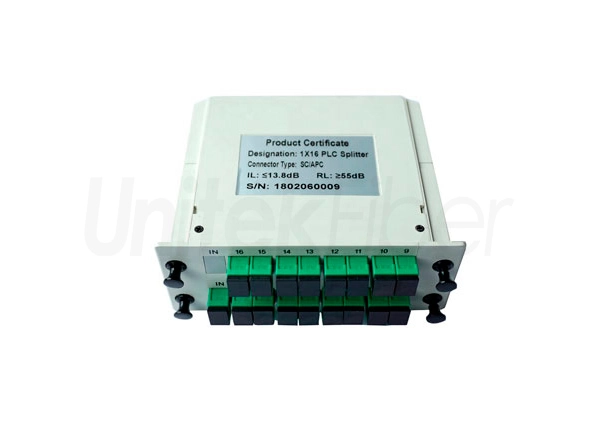

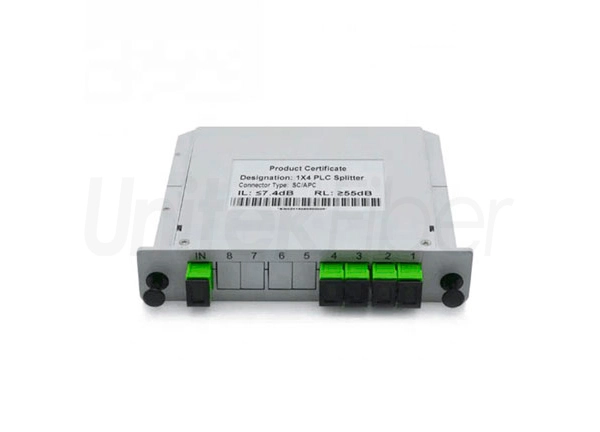

ABS LGX Box Type PLC Splitter 1x4 1x8 1x16 1x32 with SC Connection

UnitekFiber provides Standard LGX ABS and Metal box Fiber Optic Splitter Box. 1*4, 1*8, 1*16 and 1*32 Ways Optical PLC Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.


Fiber Optic
Details
Parameter

Details of ABS LGX Box type PLC Splitter 1x4 1x8 1x16 1x32 with SC Connection

Features:


  • Low Insertion loss

  • Low PDL

  • Compact Design

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength:

  • From 1260nm to 1650nm

  • Wide Operating Temperature:

  • High Reliability and Stability


Applications:


  • FTTX Systems

  • PON Networks

  • CATV Links

  • Optical Signal Distribution


Compliance:


  • Telcordia GR-1209-CORE

  • Telcordia GR-1221-CORE


LGX Box PLC Spltter

Packaging and Shipping:


ABS LGX Box Type PLC Splitter 1x4 1x8 1x16 1x32 with SC Connection


Production:


ABS LGX Box Type PLC Splitter 1x4 1x8 1x16 1x32 with SC Connection


Parameter of ABS LGX Box type PLC Splitter 1x4 1x8 1x16 1x32 with SC Connection

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

50×4×4

50×4×4

50×7×4

60×12×4

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

50×7×4

50×7×4

60×7×4

60×7×4

60×12×4

60×12×4

80×20×6

N/A


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

50×4×4

50×4×4

50×7×4

60×7×4

60×12×4

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

140×115×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

N/A
