Indoor Flat Ribbon Fiber Optic Cable GJDFJV 12 Colorful Fibers 4 8 Cores SM MM LSZH

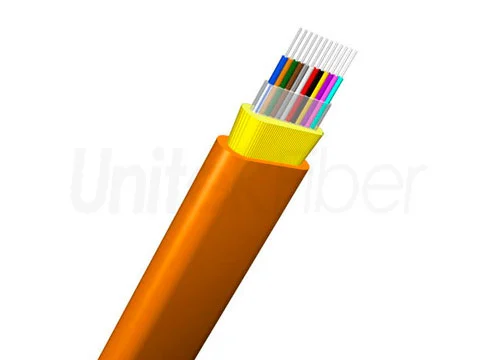

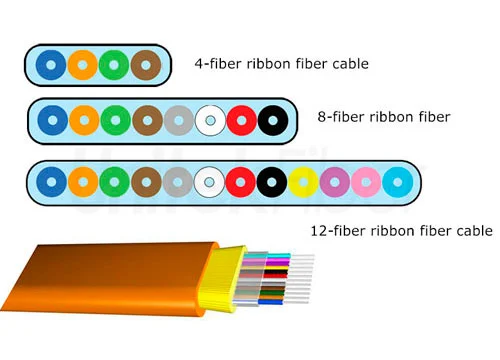

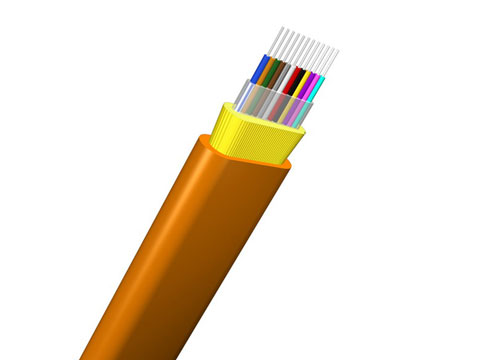

UnitekFiber supplies GJDFJV Flat Ribbon Fiber cables. The structure of ribbon fiber cable is a paralleled 12 colorful fibers(also can be 4 fiber or 8fibers) wrapped with Kevlar yarn for reinforcing support.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor Flat Ribbon Fiber Optic Cable GJDFJV 12 Colorful Fibers 4 8 Cores SM MM LSZH

And then extruded PVC or LSZH sheath around the Kevlar yarn to form a flat ribbon fiber cable.


Features:


  • Soft flame retardant sheath

  • Suitable for single mode fiber

  • Outer Jacket Material:LSZH

  • Color: Yellow

  • Diameter:2.5*5.0(±0.3)mm

  • Thickness: 0.5±0.1mm


Application:


  • Connection for Passive and Active Optical Component

  • Fiber Optical Patch cord and connectors

  • Transmission equipment,Voice data

  • Flat Ribbon Fiber Optical Patch Cord


Packaging & Shipping

Indoor Flat Ribbon Fiber Optic Cable GJDFJV 12 Colorful Fibers 4 8 Cores SM MM LSZH


Parameter of Indoor Flat Ribbon Fiber Optic Cable GJDFJV 12 Colorful Fibers 4 8 Cores SM MM LSZH

No. of Cable

24

Fiber Model

G657A1

Strength Member

Material

Aramid yarn

Outer Sheath

Material

LSZH V0

Thickness(±0.05)mm

0.5

Cable Diameter(±0.2)mm

2.7*5.3

Cable Weight(±2)kg/km

32

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

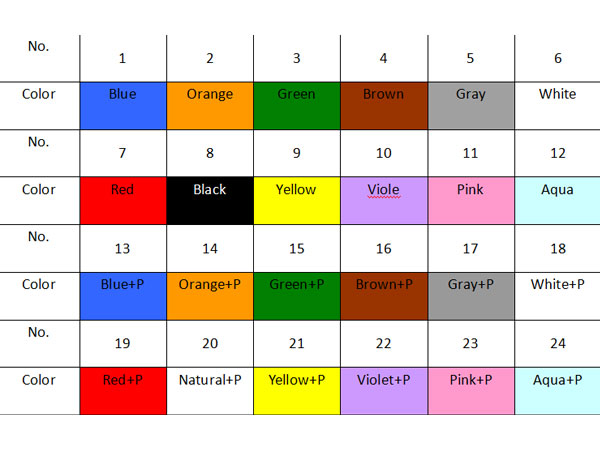

Fiber Color

Flat Ribbon Fiber Optic Cable GJDFJV
“P” means Point mark


Is indoor fiber optic cable 3.0mm?

If you are asking about the outer diameters, we have many types of cable diameter, such as 2.0mm and 3.0mm.

What is the fiber type of indoor fiber optic cable?

We have single mode and multi mode indoor fiber cables as per your requests.

What are the features of indoor fiber optic cable?

Good mechanical and environmental characteristics, soft, flexible, easy to lay and splice, and with big capacity data transmission.

What color is the outer sheath of the indoor optical cable?

Usually, single mode fiber optic cable is yellow, multi-mode is orange, pink. We can produce according to your design.

I want to ask how many fiber cores in the indoor fiber optic cable?

UnitekFiber provides 2-288 fiber cores for the indoor fiber optic cable.

Do you offer guarantee for the products?

Yes, we offer 25 years warranty to our formal products.
