10G CWDM DWDM Fiber Optical Transceiver Module 1270nm-1570nm 40KM

10G SFP+ CWDM optic transceiver is a coarse wavelength division multiplexing optical transceiver, usually used with single-mode optical fiber. This kind of optical transceiver saves fiber resources by adopting CWDM technology, which can obviously improve the flexibility, economy and reliability of networking, and the power consumption of this kind of optical transceiver is very small, which is 12.5% of 10G SFP+ DWDM optic transceiver.

Distance
SFP Types
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video


10G CWDM DWDM Fiber Optical Transceiver Module 1270nm-1570nm 40KM

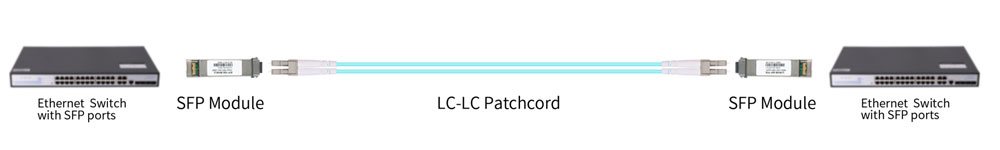

10G SFP series optical transceiver modules are widely used in Gigabit Ethernet and are compatible with 1.25G Fibre Channel and Synchronous Optical Networks (SONET OC-24 / SDH STM-8). The transmission distance can reach up to 550m to 120km. 10Gbps optical modules are used together with OM3 multi-mode optic patch cable and Ethernet Switch with SFP ports.


10G CWDM DWDM Fiber Optical Transceiver Module 1270nm-1570nm 40KM


Product Highlights




10G Connectivity for Data Center

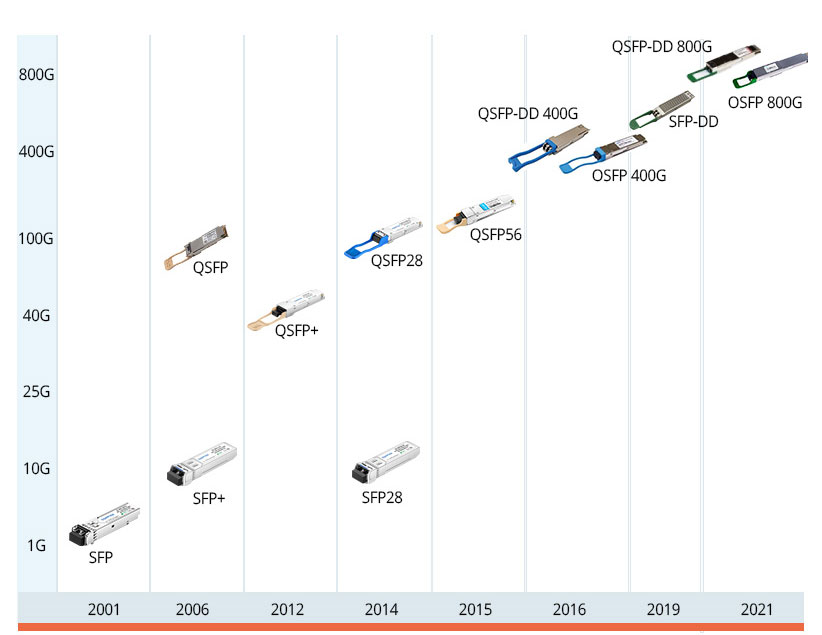

The diversity of data center interconnection scenarios has created the need for different types of optical modules. Traditional data centers generally use 1G/10G low-speed SFP modules, while cloud data centers mainly use 40G/100G high-speed optical modules.


10G CWDM DWDM Fiber Optical Transceiver Module 1270nm-1570nm 40KM


The growth demand of SFP optical modules mainly depends on the data communication market and the telecommunications market. In today's data era, optical modules are bound to attract new development opportunities. The arrival of the 5G era has brought a new round of growth to the optical module industry.


10G CWDM DWDM Fiber Optical Transceiver Module 1270nm-1570nm 40KM

Parameter of 10G CWDM DWDM Fiber Optical Transceiver Module 1270nm-1570nm 40KM

PART NUMBER

FORM FACTOR

DATA RATE

WAVELENGTH

LASER

DISTANCE

MEDIUM

CONNECTOR

TEMPERATURE

UFSPP-10G-B10-23

SFP+

9.95~11.3G

TX1270/RX1330nm

DFB/PIN

10km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B20-32

SFP+

9.95~11.3G

TX1330/RX1270nm

DFB/PIN

20km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B40-23

SFP+

9.95~11.3G

TX1270/RX1330nm

DFB/PIN

40km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B60-32

SFP+

9.95~11.3G

TX1330/RX1270nm

DFB/APD

60km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B80-45

SFP+

9.95~11.3G

TX1490/RX1550nm

EML/APD

80km

SMF

Simplex LC

0℃~70℃

UFSPP-10G-B80-54

SFP+

9.95~11.3G

TX1550/RX1490nm

EML/APD

80km

SMF

Simplex LC

0℃~70℃


What is the difference between SFP+ optical module and SFP optical module?

The volume of SFP and SFP+ optical modules is basically the same, and the main difference is the transmission rate. The maximum transmission rate of SFP optical modules is 2.5Gb/s, while that of SFP+ optical modules is 10Gb/s. Due to the different transmission rates, their applications and transmission distances will vary.

Can SFP+ optical modules be used in SFP ports?

Yes. 10G SFP+ optical modules can work when inserted in SFP ports, but the transmission rate is only 1Gbps; however, SFP optical modules cannot be used in SFP+ ports.

What is the longest transmission distance supported by SFP+ optical modules?

Depending on the type of fiber used, the transmission distance is also different. The transmission distance is 300 meters when used with OM1 multi-mode fiber, and the longest distance, when used with OS2 single-mode fiber, is currently 120 kilometers.

Can SFP+ optical modules be used with SFP+/QSFP high-speed cables?

Can't. The SFP+/QSFP high-speed cable can be directly inserted into the SFP+/QSFP port of the switch to connect the switches at both ends without using optical modules.

Will SFP+ optics automatically configure between 1GbE and 10GbE?

Auto configuration is not supported between 10GE and 1GE rates.
