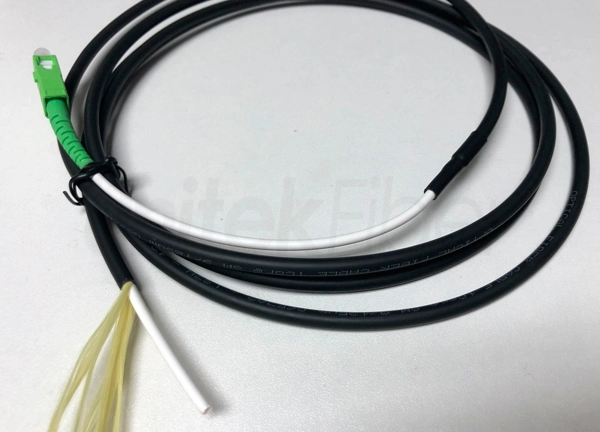

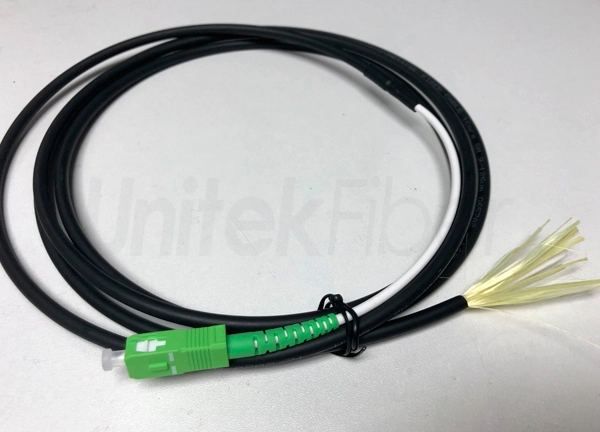

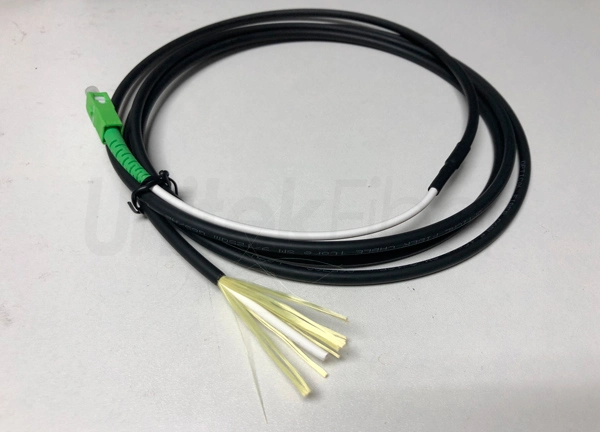

Indoor/Outdoor SC/APC Fiber Optic Pigtail 4.8mm Ruggedized Double Jacket G657A1 3 Meters

Unitekfiber supplies ruggedized double jacket fiber optic pigtail and patchcord. This fiber pigtail/patchcord can be assembled with SC, LC connectors. The fiber cable diameter is 4.8mm.This ruggedized fiber cable contains sufficient strength reinforced member of aramid yarn to ensure the maximum allowable fibre strain is not exceeded at the maximum tensile rating: 500N .


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor/Outdoor SC/APC Fiber Optic Pigtail 4.8mm Ruggedized Double Jacket G657A1 3 Met

Characteristic:


• Semi-tight buffered fibres 900 μm.

• LSZH (Low Smoke Halogen Free) inner sheathing.

• Aramid yarns as strength reinforced elements.

• Polyethylene, UV resistant outer sheathing with embedded rods.


Application:


This fiber optic pigtail can be used in harsh environments where chemicals, corrosive gases and liquids are commonplace. Due to the optic pigtail's excellent performance, it can also apply inside and outside industrial plant and equipment that interface with industrial Ethernet networks.

Parameter of Indoor/Outdoor SC/APC Fiber Optic Pigtail 4.8mm Ruggedized Double Jacket G657A1 3 Meter

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
