MTP|MPO connectors has a removable housing that allows users to rework and polish MT ferrules, perform performance testing with ease, and easily change their polarity after assembly or even at the scene. MTP|MPO cable can quickly and efficiently configure cables and change polarity on site, while also ensuring product performance.

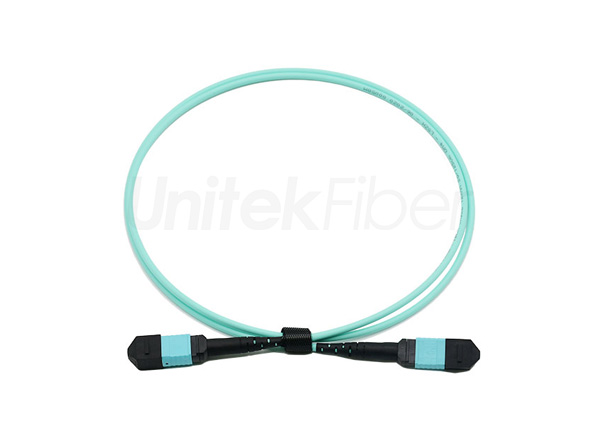

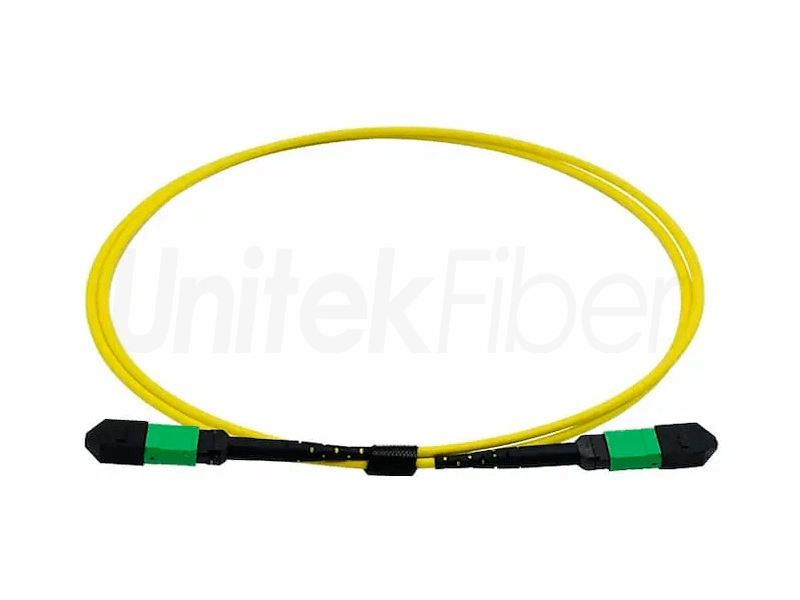

Both MTP|MPO fiber cables are bend-insensitive, well-polished and low-loss. They are very suitable for space-saving high-density wiring systems and cable management wiring. The main difference between MTP and MPO fiber optic patch cord is their connectors. MTP connector is USconec brand and MPO connectors are designed by many factories.

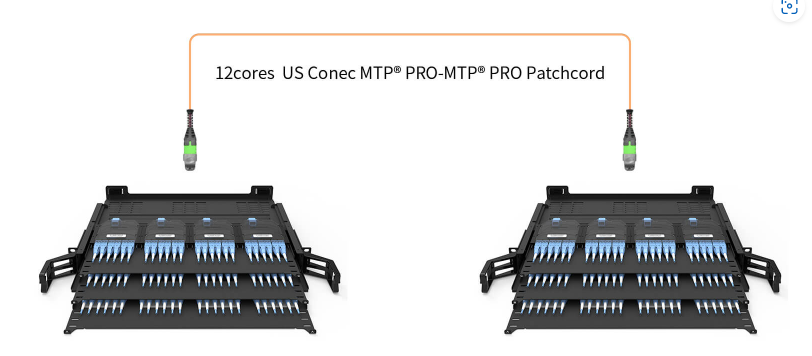

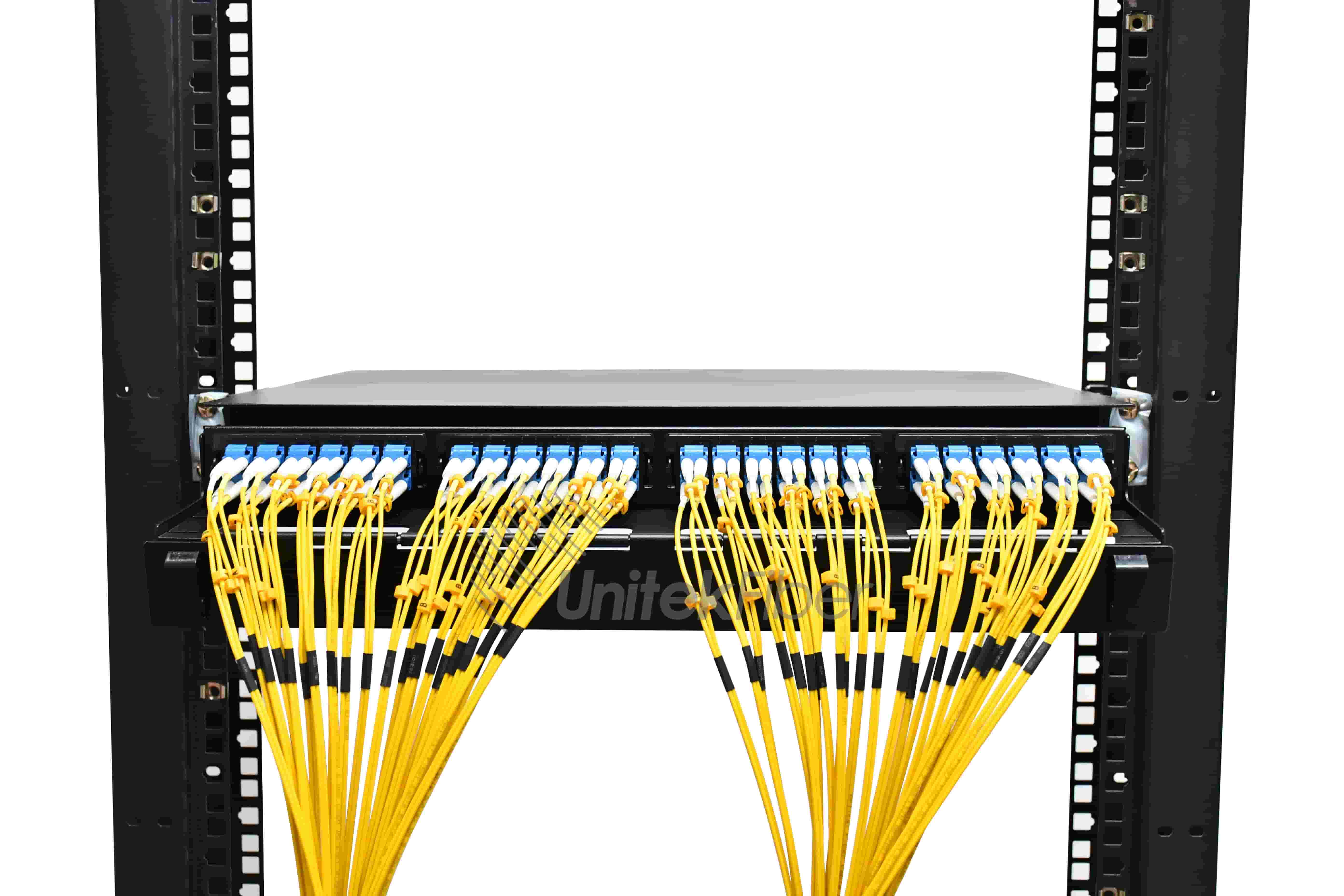

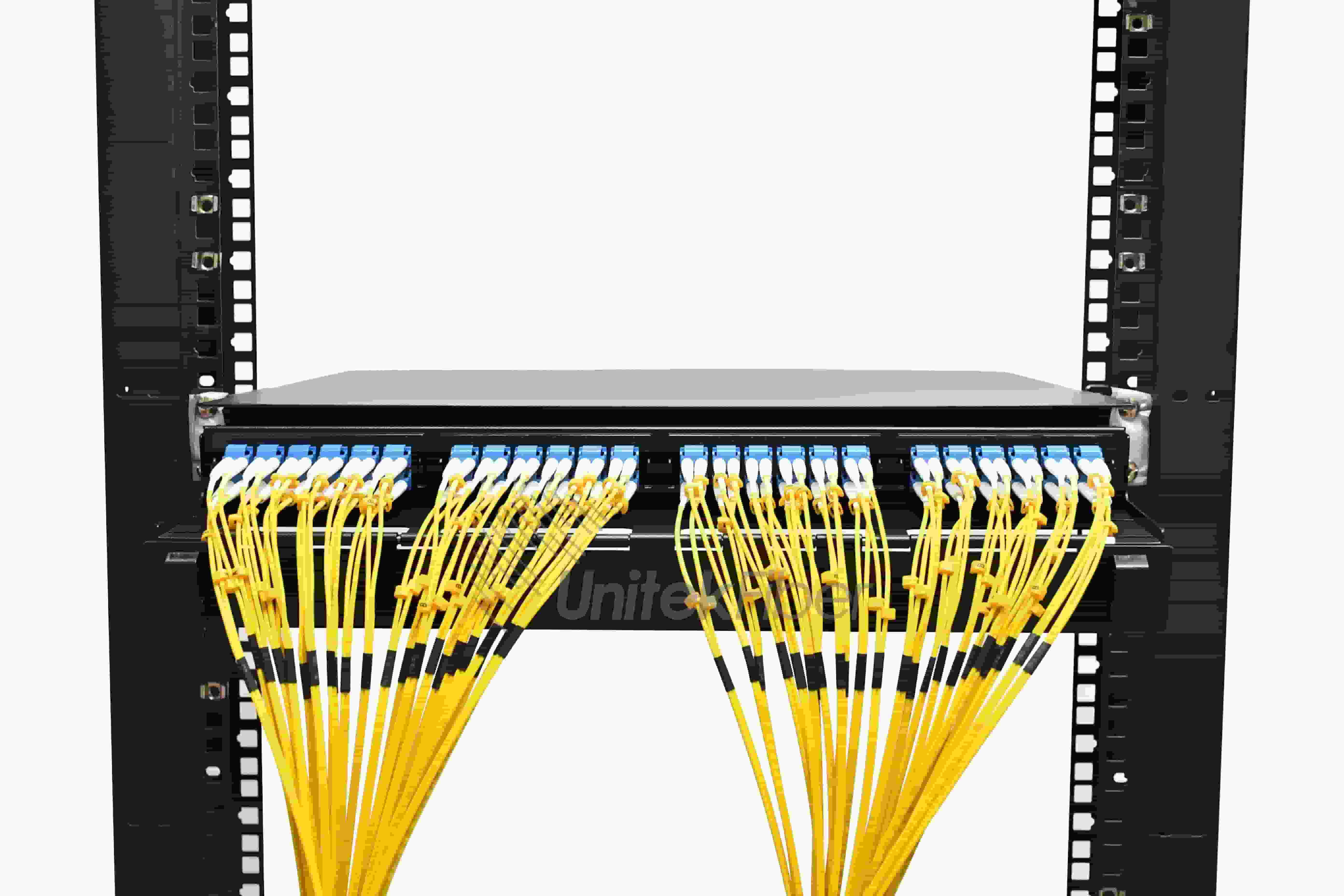

There are two main applications of MPO|MTP cable wiring: one is direct connection with optical transeiver. Such as connecting 40GBASE-SR4|PLR4, 100GBASE-SR4|SR10, 200GBASE-SR8 and 400GBASE-SR8, and the other is assembled with fiber optic patch panel to implement structured cabling, which facilitates rapid deployment of backbone networks in high-density environments.
MPO|MTP fiber cable solutions are all pre-terminated products. The entire assemble process only includes two parts: plug and unplug, which can greatly reduce the on-site assemble time, and greatly reduce the impact of on-site construction and installation on performance and the probability of performance uncertainty. MPO|MTP cable solutions can reduce deployment time by up to 75% compared to traditional LC fiber cabling.

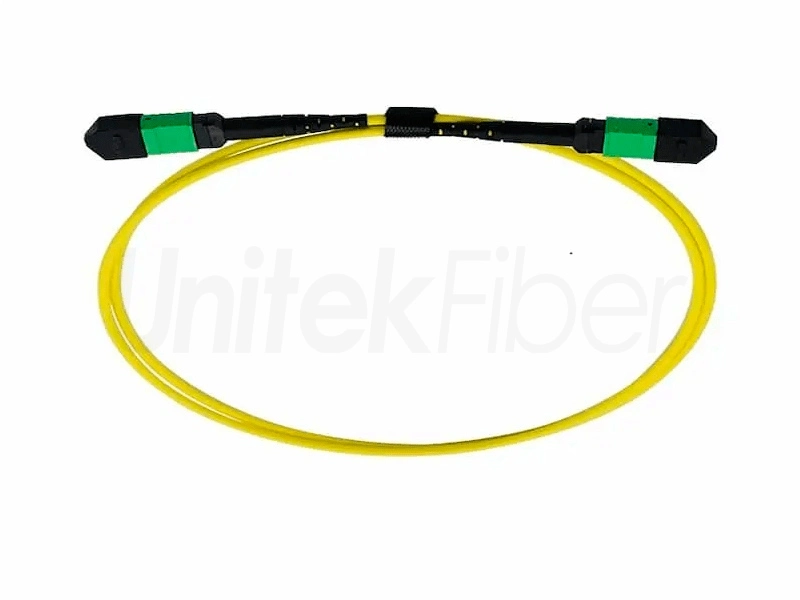

MPO|MTP connector are the same size as SC connector, but can accommodate 12|24 cores. This high-density design can meet the requirements of high-speed network applications in a small space, greatly saving the space of the data center
Our Fiber Optic Cables Supporting You Excellant Indoor Fiber Cable Installation
Model | SM | MM | ||
Connector A:MTP | ||||
Connector Fiber Count | 12 Cores | |||
Polish | MTP/APC | MTP/PC | ||
Insertion Loss | Standard | ≤0.70dB | ≤0.70dB | |
Elite Low Loss | ≤0.35dB | ≤0.35dB | ||
Return Loss | ≥60dB | ≥30dB | ||
Durability(500 Matings) | ≤0.2dB | ≤0.2dB | ||
Test Wavelength | 1310nm&1550nm | 850/1300nm | ||
Connector B:MTP | ||||
Polish | MTP/APC | MTP/PC | ||
Insertion Loss | Standard | ≤0.70dB | ≤0.70dB | |
Elite Low Loss | ≤0.35dB | ≤0.35dB | ||
Return Loss | ≤60dB | ≤30dB | ||
Durability(500 Matings) | ≤0.2dB | ≤0.2dB | ||
Test Wavelength | 1310nm&1550nm | 850/1300nm | ||
strict sampling inspection on products before shipment and intact product packaging ensured.

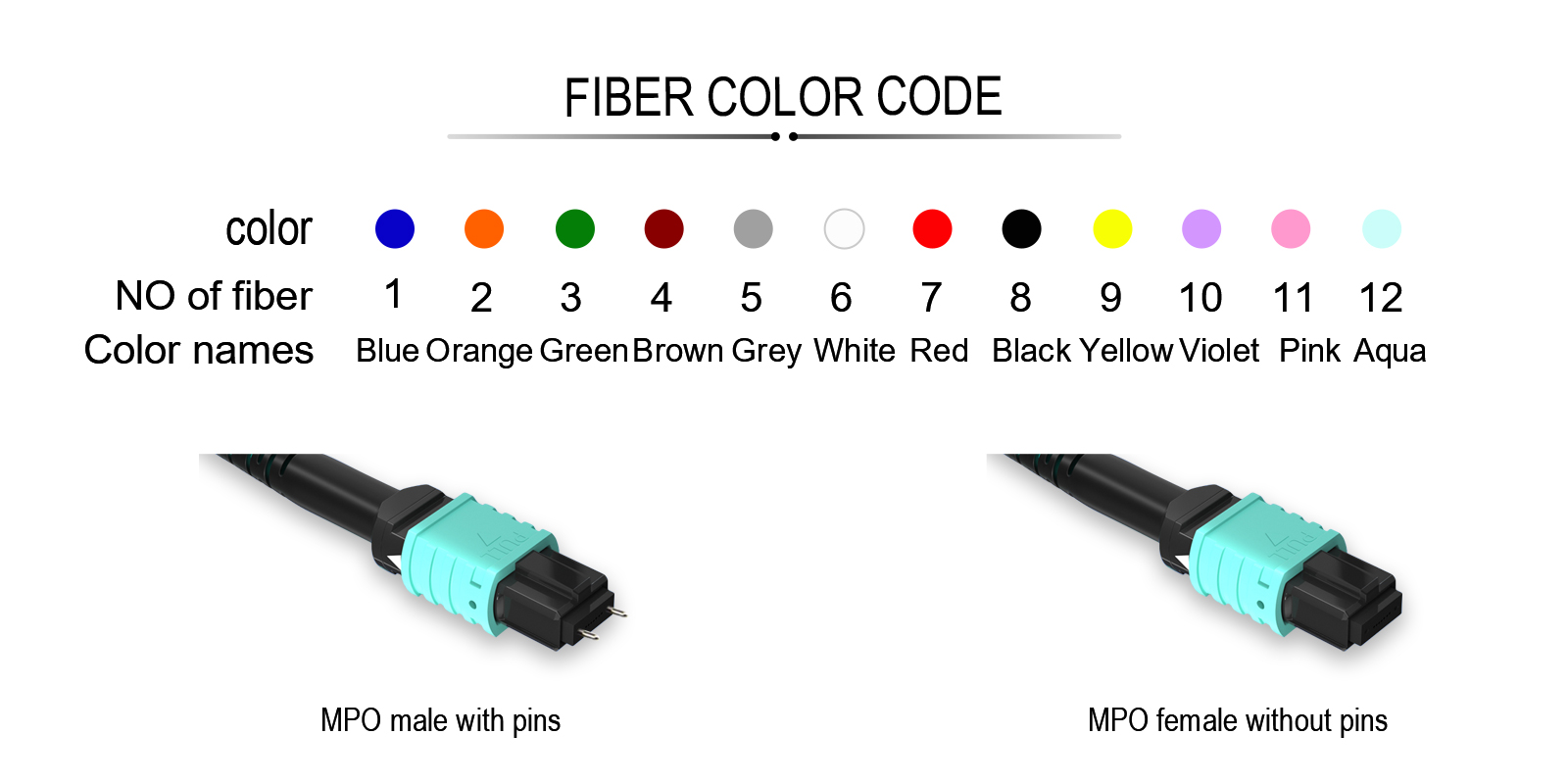

The polarity and pins of this cable can not be changed.

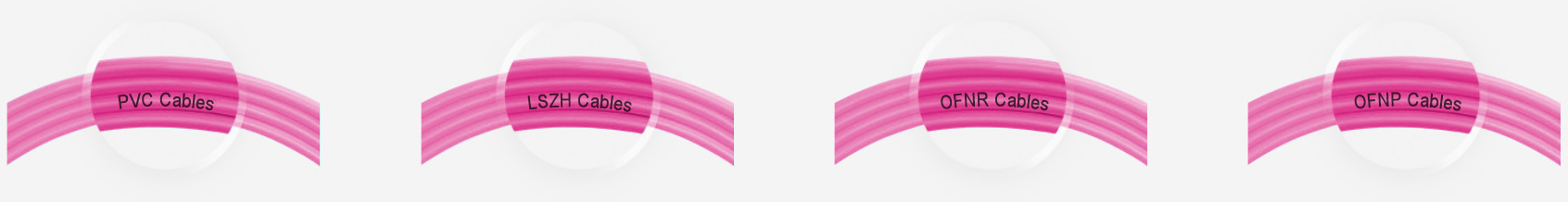

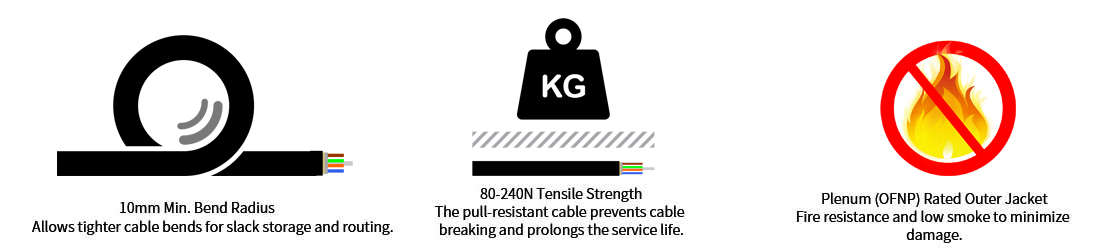

OFNP have the highest rated fire retardant where it emits little smoke during combustion, LSZH cable jacket is composed of thermoset compounds that emit limited smoke and no halogen when exposed to high sources of heat.
The MTP brand connector is manufactured by US Conec, and MPO is manufactured by Senko with advanced optical performance. What's more, the US Conec MTP connectors are fully compliant with the MPO standards.
Yes, we have the Interferometer in our factory. We usually do the test when customers request.
