Outdoor ADSS Fiber Optic Cable Manufacturer Non-armored ASU Aerial Fiber Cable 8core 150m Span PE

ASU fiber optic cable adopts all-dielectric self-supporting structure, which can avoid potential safety hazards caused by power lines or lightning. The circular cross-section structure of ASU fiber optic cable is also more suitable for icy scenes. Ingenious cable structure and design make ASU fiber optic cable cost lower.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

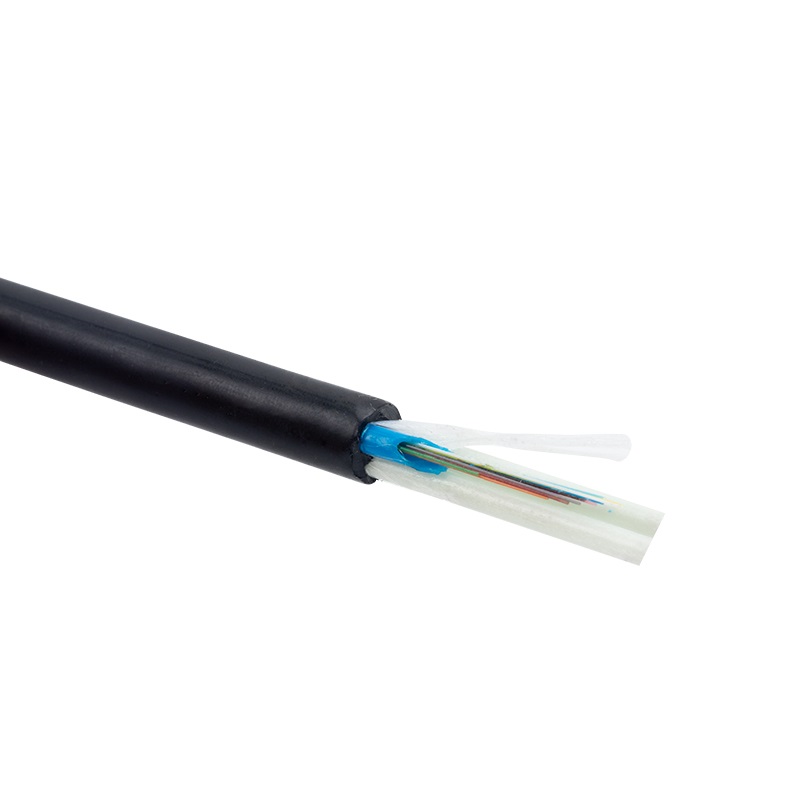

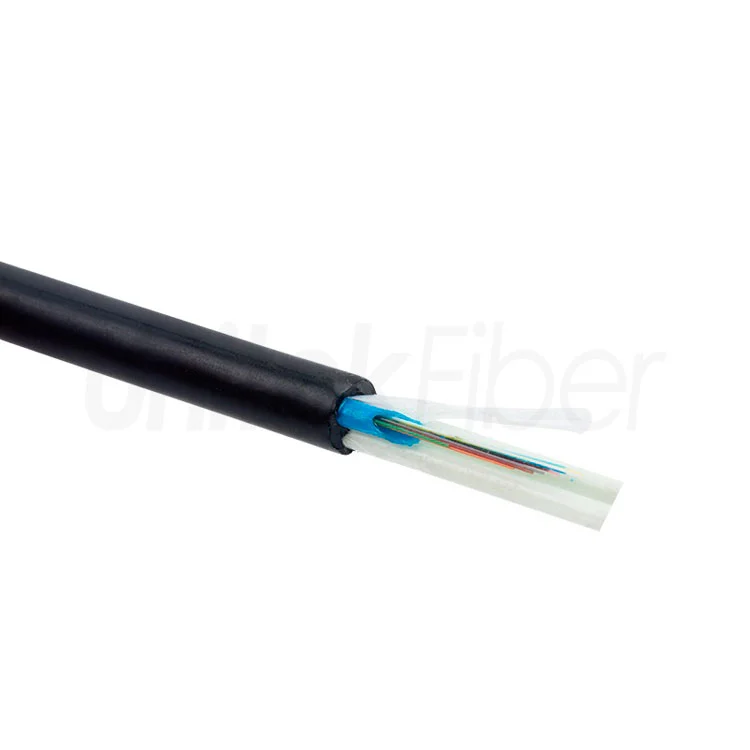

Description of Outdoor ADSS Fiber Optic Cable Manufacturer Non-armored ASU Aerial Fiber Cable 8core

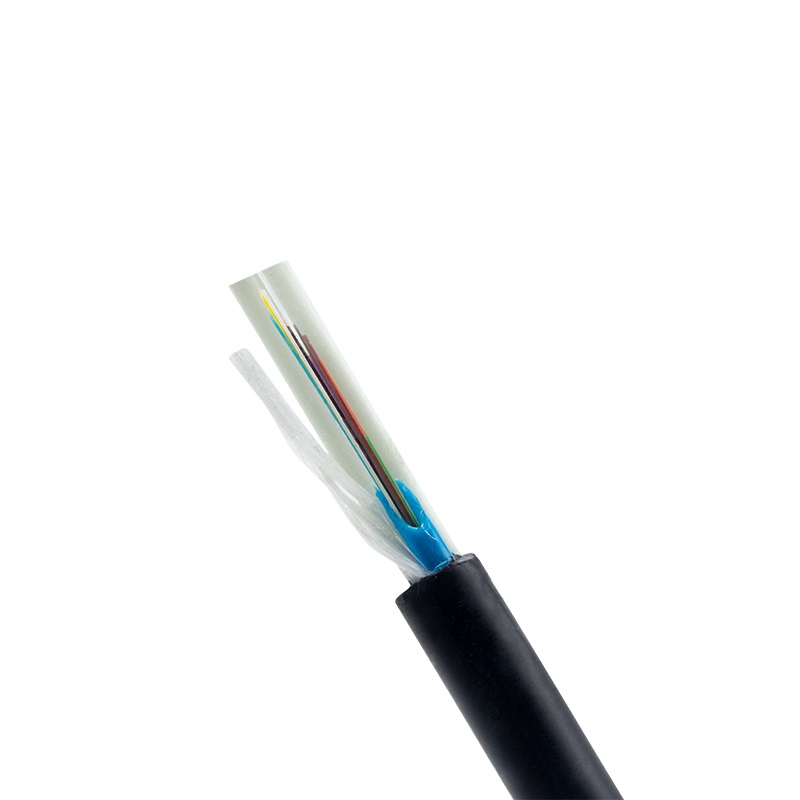

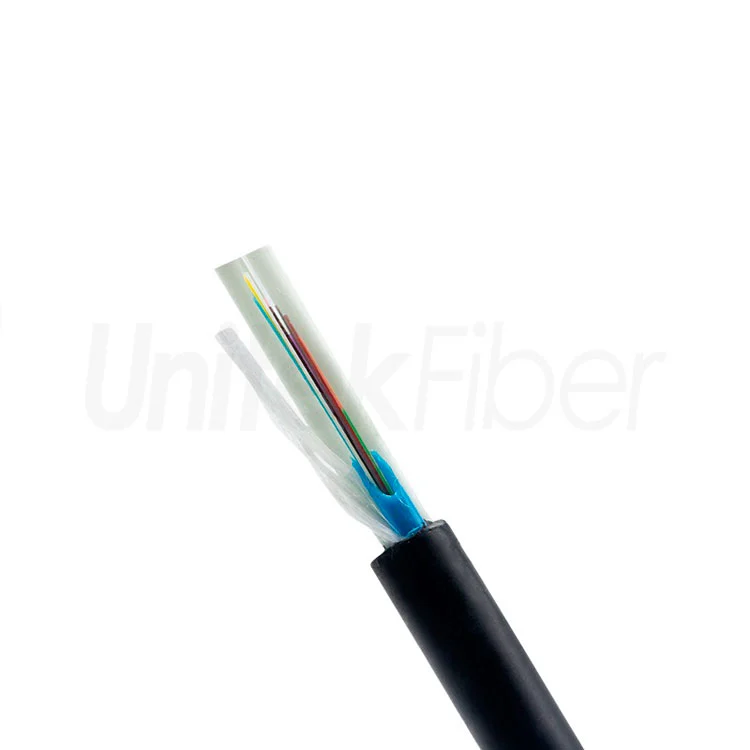

Optical Cable for Sale

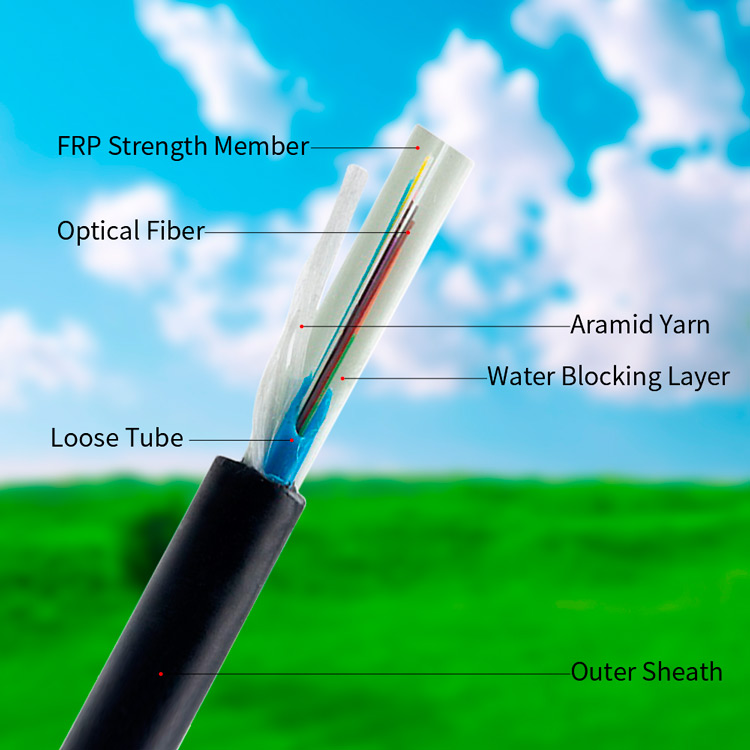

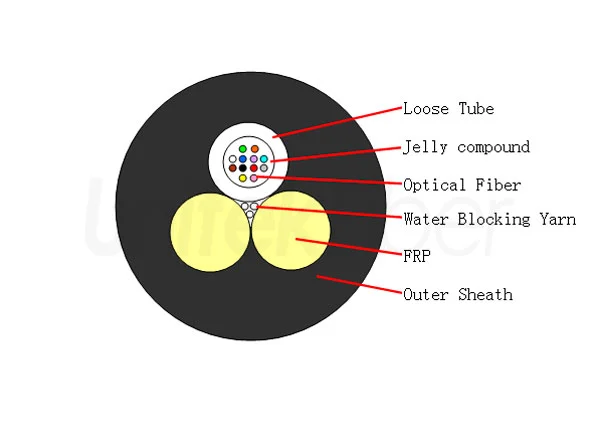

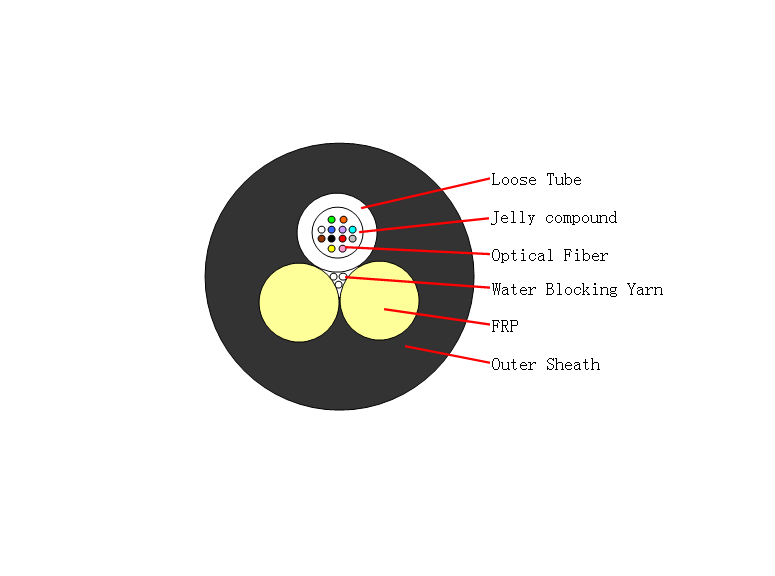

Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The ASU fiber optic cable is covered with a single PE outer sheath. Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertight.

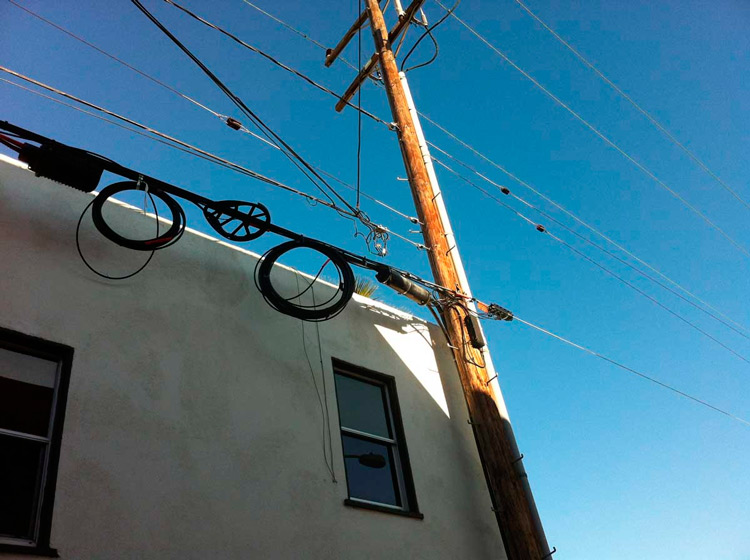

Optical Cable Price


The fiber cores of ASU Fiber Cable is from 2 cores to 24 cores. The main idea of the aerial fiber optic cable  design is to use two rigid FRP and a single loose tube to mix and twist, and the three-in-one steady-state twisting unit includes both tensile elements and optical units. Due to the existence of a certain pitch when twisting, the bendability of the aerial cable is ensured.


Features of ASU Fiber optic Cable


Optical Cable Wire



ASU Fiber optic cable has 80 & 120 Meter spans,1-12 fiber count available in 80M span, and up to 24 Fibers in 120M span. ASU fiber optic cable adopt proven all-dielectric loose tube construction. Dual integrated FRP strength elements. This fiber optic cable adopt round cable profiles minimize wind and ice loading. ASU Aerial Cable with small span is an important part of the distribution line, among which the main force of self-supporting aerial optical cable is ADSS and ASU fiber optical cable.


Applications of ASU Fiber optic Cable


The ASU Fiber optic cable is stable and compact in structure, and also has excellent performance in other performances such as crushing, impact, and torsion, and conforms to the existing technical standards for outdoor overhead optical cables. All Dielectric Self Supporting cable adopts all-dielectric structure design, which can avoid potential safety hazards caused by power lines or lightning.


Optical Fibre Price

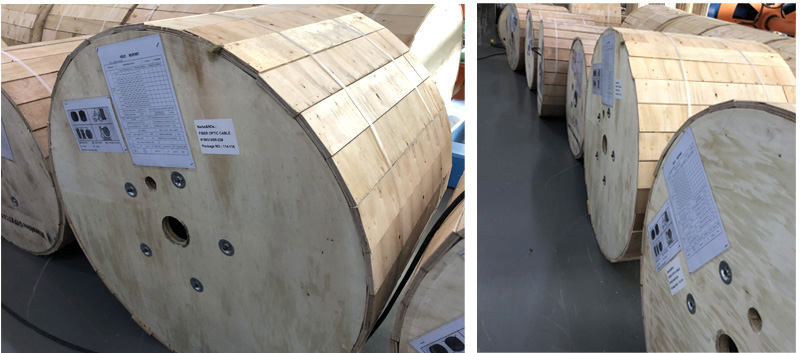

Packaging & Shipping


Air Blown Fiber Optic Cable

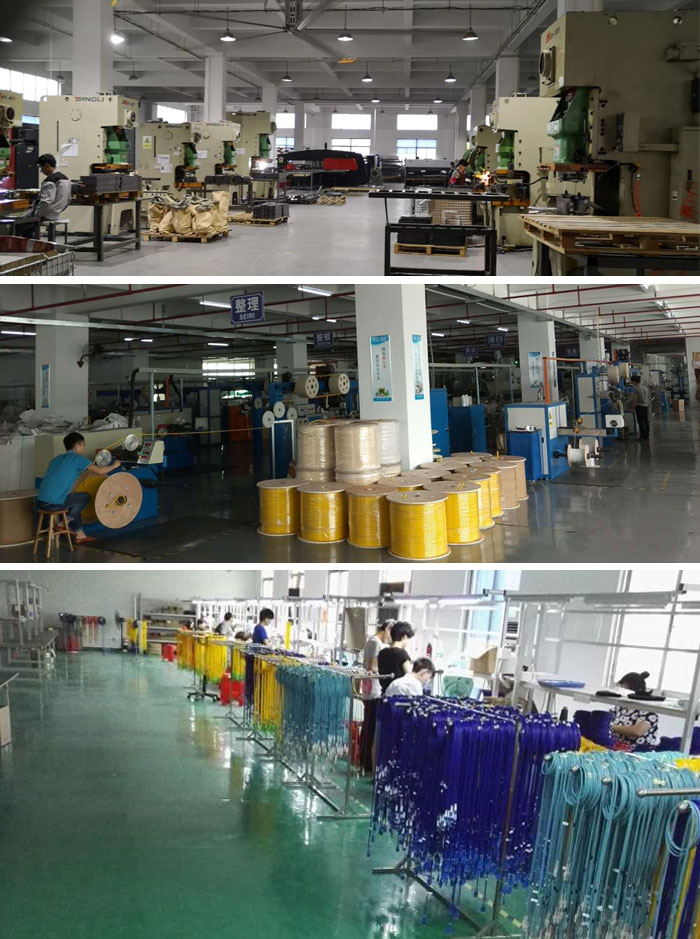

Production


Blown Fibre

Parameter of Outdoor ADSS Fiber Optic Cable Manufacturer Non-armored ASU Aerial Fiber Cable 8core 15

No. of cable

1-12

Fiber Model

G.652D

Strength Member

Material

FRP


Diameter(±0.05)mm

1.8

Loose Tube

Material

PBT


Diameter(±0.06)mm

1.8


Thickness(±0.03)mm

0.35


The Max.Core NO./Tube

12

Outer Sheath

Material

PE

Cable Diameter(±0.2)mm

6.7

Cable Weight(±5)kg/km

38

Min. bending radius

Without Tension

10.0×Cable-φ


Under Maximum Tension

20.0×Cable-φ

Temperature range
(℃)

Installation

-20~+60


Transport&Storage

-40~+70


Operation

-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.
