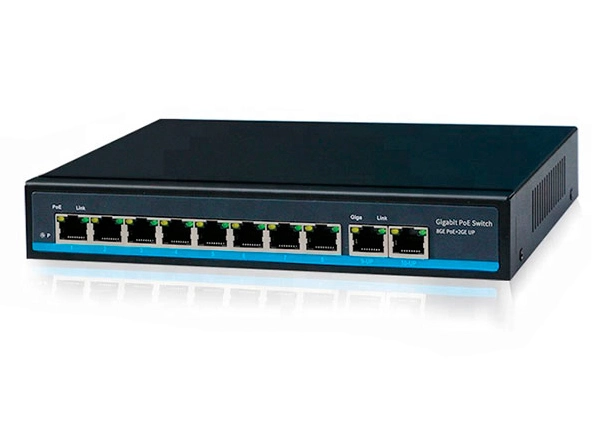

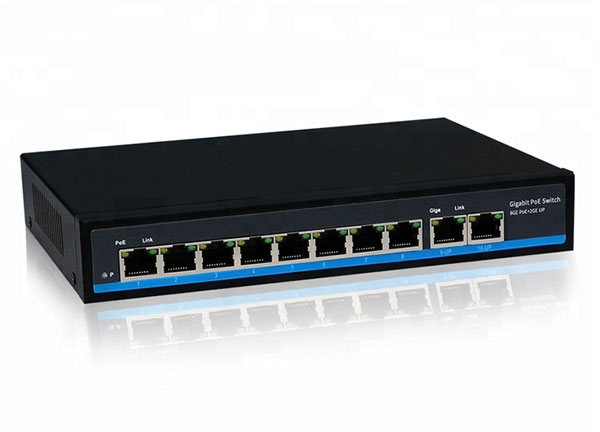

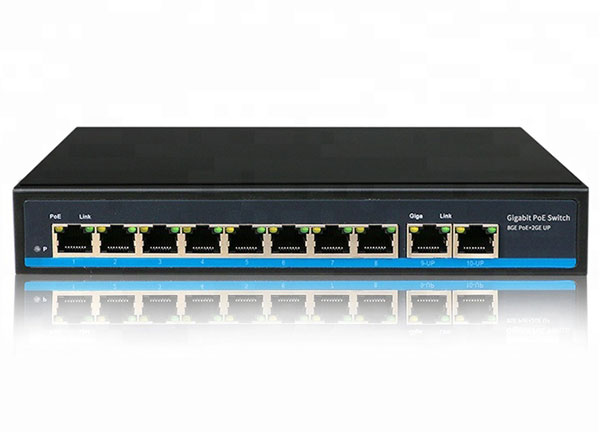

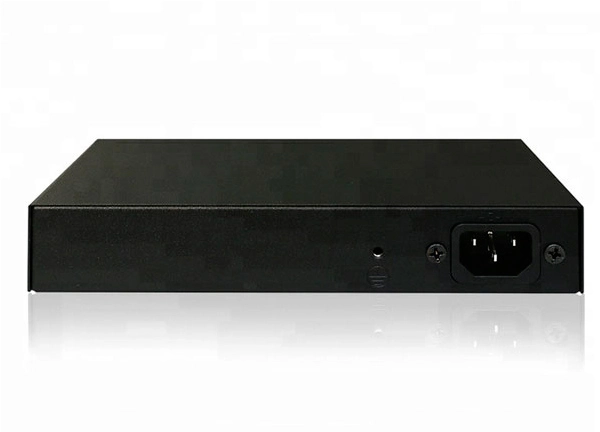

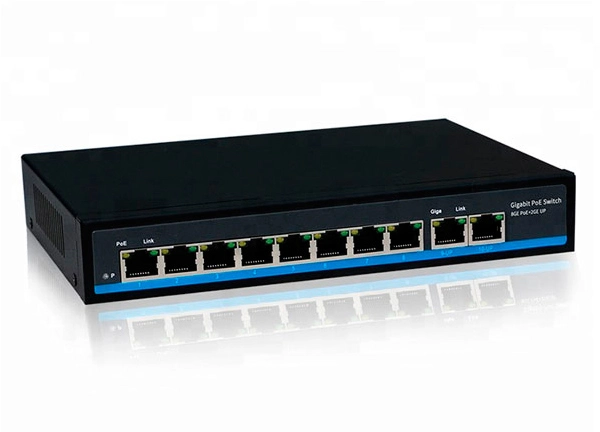

High Quality 8 Ports Gigabit CCTV Network Ethernet PoE Switch 48V 10M100M 1000M

8+2 Ports 10/100/1000Mbps CCTV Gigabit PoE Network Ethernet Switch for IP Camera. The 8 Ports PoE Ethernet Switch is an unmanaged Ethernet switch designed for Ethernet access and PoE applications. It provides 8 Gigabit PoE ports, and 2 Gigabit RJ-45 Uplink slots. The 8 PoE ports support 802.3af/at standard and feature Max 30W PoE power output of each single port, Max 120W of whole machine. It can be widely used in security surveillance, hotels, schools, and SMB engineering and other occasions.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Quality 8 Ports Gigabit CCTV Network Ethernet PoE Switch 48V 10M100M 1000M

Features


l8 Gigabit PoE ports, and 2 1000Mbps Uplink ports, built-in power

lIEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant

lSupport PoE IP cameras, PoE WIFI AP, and PoE IP phones

lFluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure

lUp to 30W per port (total power budget: 120W) for powering PoE-enabled devices

lAll ports support wire speed switching, jumbo frame transmission

lSupport upstream ports lightning protection

lDynamic power control to ensure stable output power (Enhanced)

lImproved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)

lPower-on in order of the PoE port, effectively reduce current strike, and reduce the transient voltage surge to PoE switch and other connected devices at the startup (Unique)

lReliable short-circuit protection to ensure safety (Enhanced)

lOver-voltage and under-voltage protection (Some other manufacturers' products don't support this)


Packaging and Shipping


High Quality Fiber Optic Cable


Production


Bulk Single Mode Fiber Optic Cable


High Quality 8 Ports Gigabit CCTV Network Ethernet PoE Switch 48V 10M100M 1000M

Model

POE0820BNH-2

POE0820B-2

POE2420-2

POE0410B-3

POE0820BNH-3

POE0820B-3

PoE Ports

8*100Mbps

8*100Mbps

24*100Mbps

4*1000Mbps

8*1000Mbps

8*1000Mbps

Uplink Ports RJ45 Ports

2*1000Mbps

2*1000Mbps

2*1000Mbps

1*1000Mbps

2*1000Mbps

2*1000Mbps

SFP Ports(1000Mbps)

×

×

×

×

×

×

VLAN Isolation

×

×

SUPM Mode(250m)

×

×

×

Max Transmission Distance

250m

250m

250m

150m

150m

150m

Total Power Budget

120W

150W

300W

80W

120W

150W

Switching Capacity

16G

16G

16G

10G

20G

20G

MAC Address

4K

4K

4K

1K

1K

4K

Product Dimension
(L*W*H/mm)

210*150*35

210*150*35

440*290*45

190*130*35

210*150*35

210*140*45

Weight(kgs)

1.2

1.4

4.1

0.8

1.2

1.4

Qty/CTN

25

25

5

25

25

25

CTN size(CM)

49*43.5*57

49*43.5*57

53*41.5*50

49*43.5*57

49*43.5*57

49*43.5*57

Transmission Method

Store and forward

Power Input

100~240V AC, 50-60 Hz

POE Standard

IEEE 802.3af, IEEE 802.3at

Power Output

Up to 30W per port

Pin Assignment

1/2(+), 3/6(-)

PSE Type

End-Span

Temperature

Working: -20°~65°C           Storage: -40°~70°C

Humidity
(Non-condensing)

Working: 10~90%             Storage: 5~95%

Network protocol

IEEE 802.3, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af/at, IEEE 802.1q

Certifications

 CE, FCC, RoHS

Warranty

3 years
