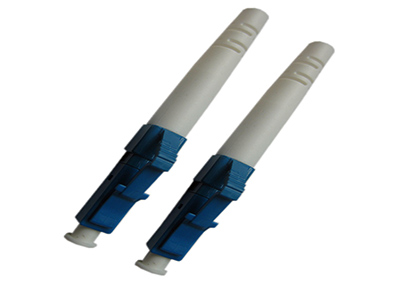

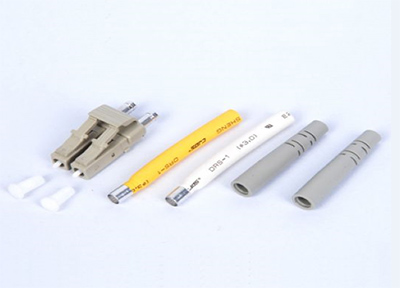

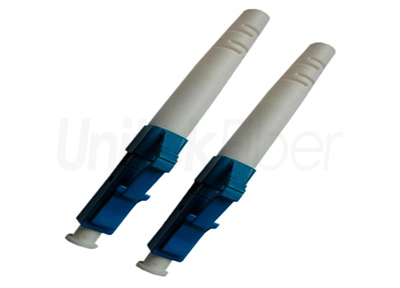

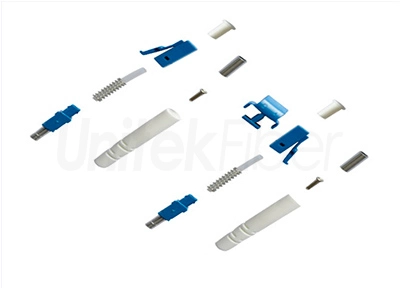

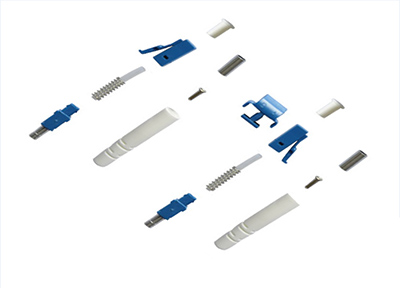

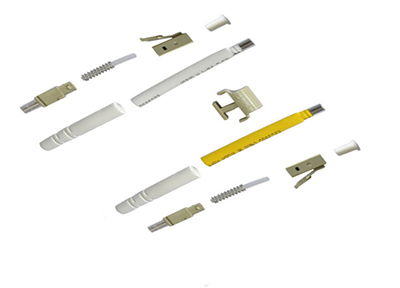

LC Fiber Optical Connector UPC Simplex Duplex 2.0mm 3.0mm Blue

UnitekFiber supplies 2.0mm 3.0mm LC Fiber Optical Connector in UPC/APC interface and Simplex Duplex.

Fiber Optic
Details
Parameter

Details of LC Fiber Optical Connector UPC Simplex Duplex 2.0mm 3.0mm Blue

Features:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule


Applications:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks


Packaging & Shipping


LC Fiber Optical Connector UPC Simplex Duplex 2.0mm 3.0mm Blue


Production


LC Fiber Optical Connector UPC Simplex Duplex 2.0mm 3.0mm Blue


Parameter of LC Fiber Optical Connector UPC Simplex Duplex 2.0mm 3.0mm Blue


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85
