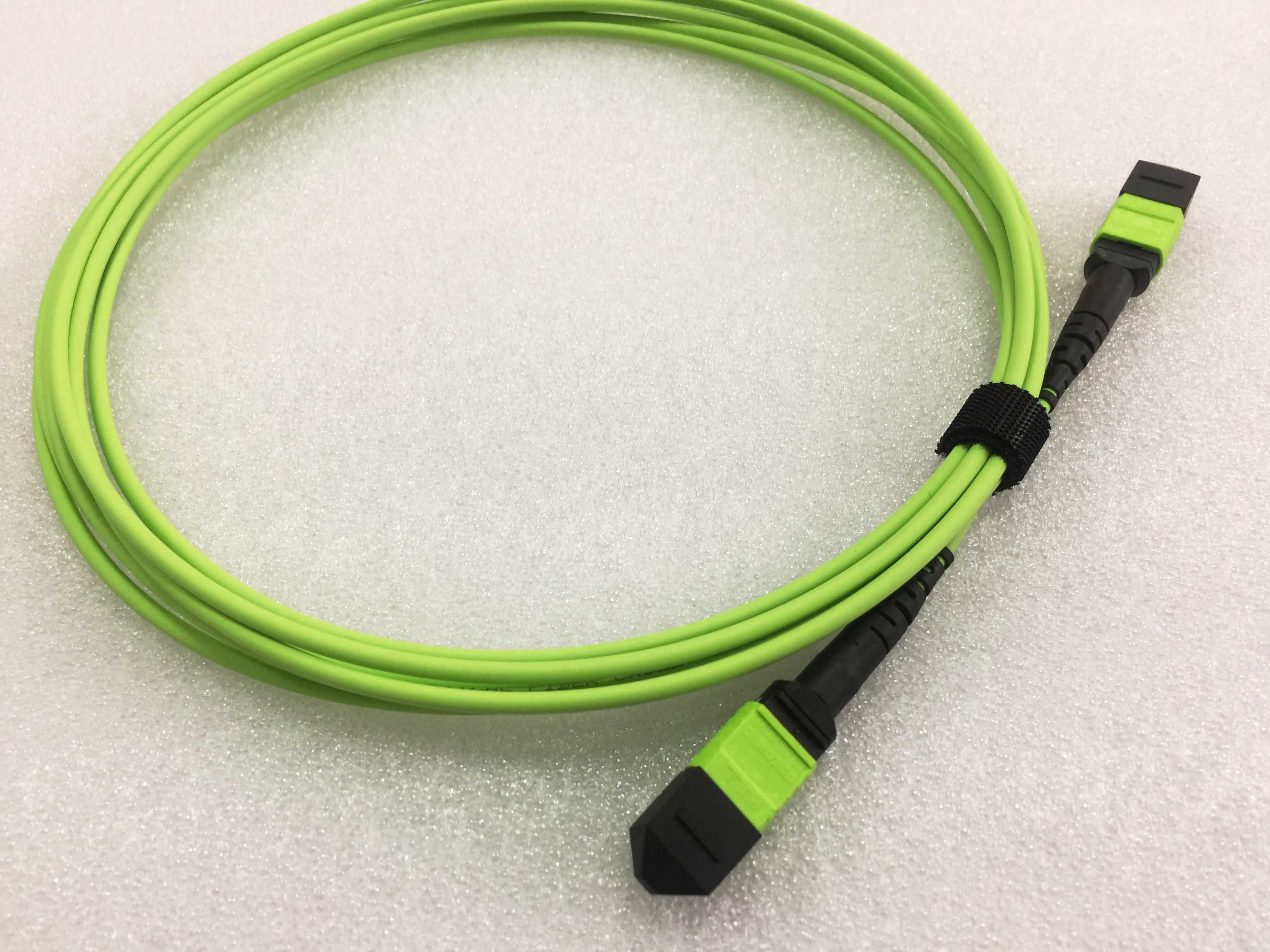

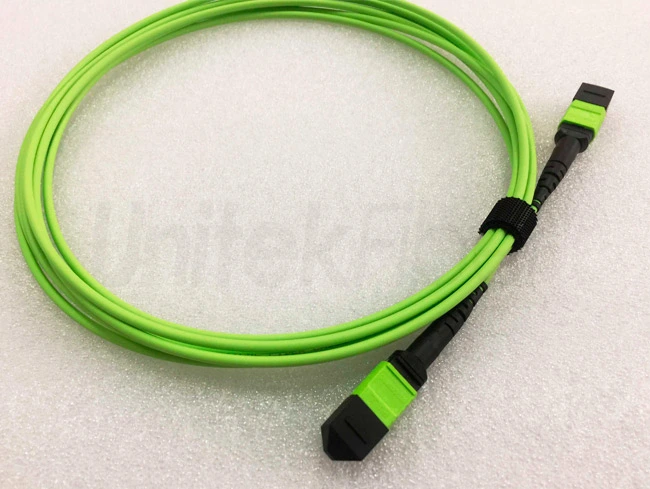

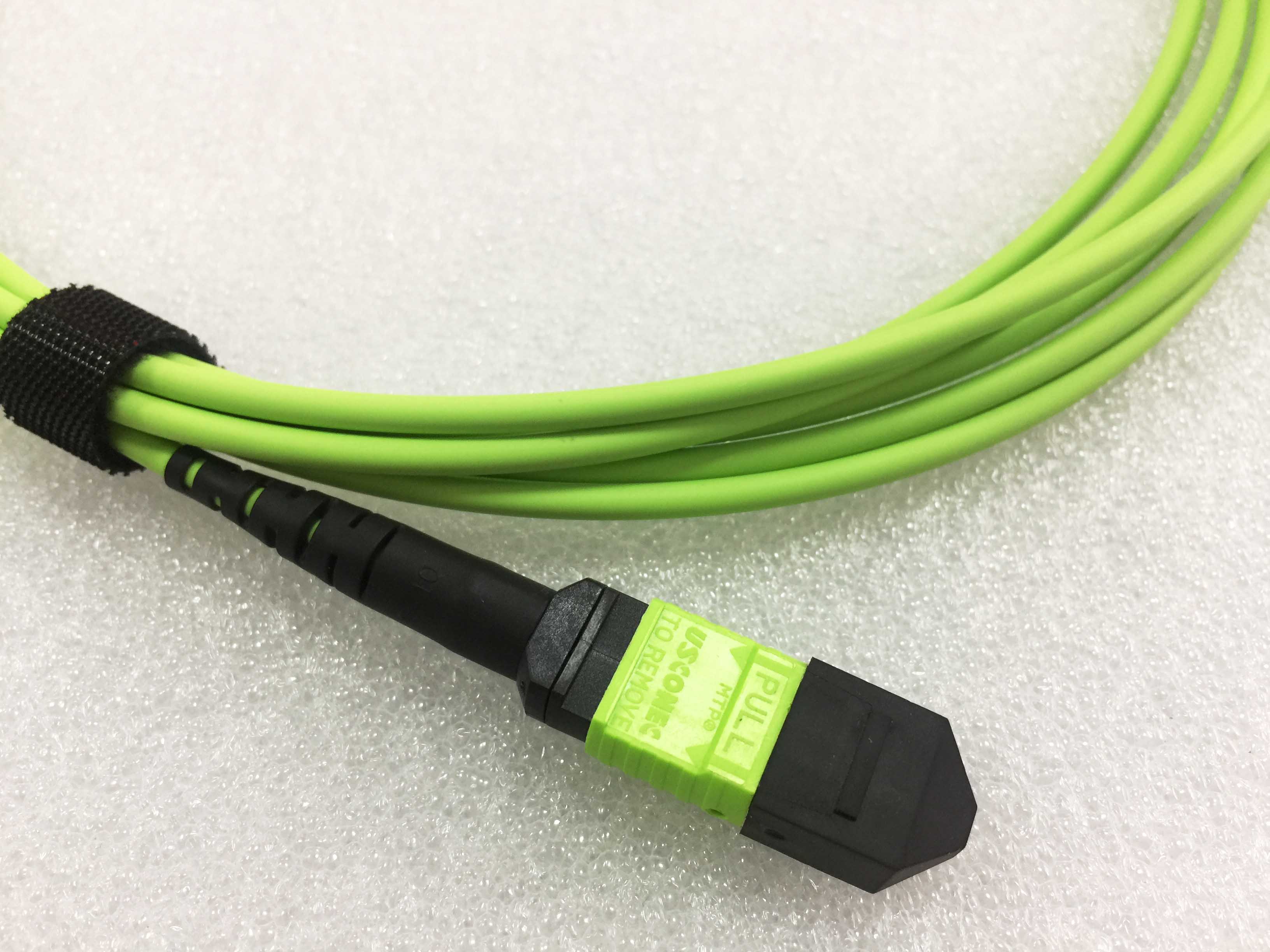

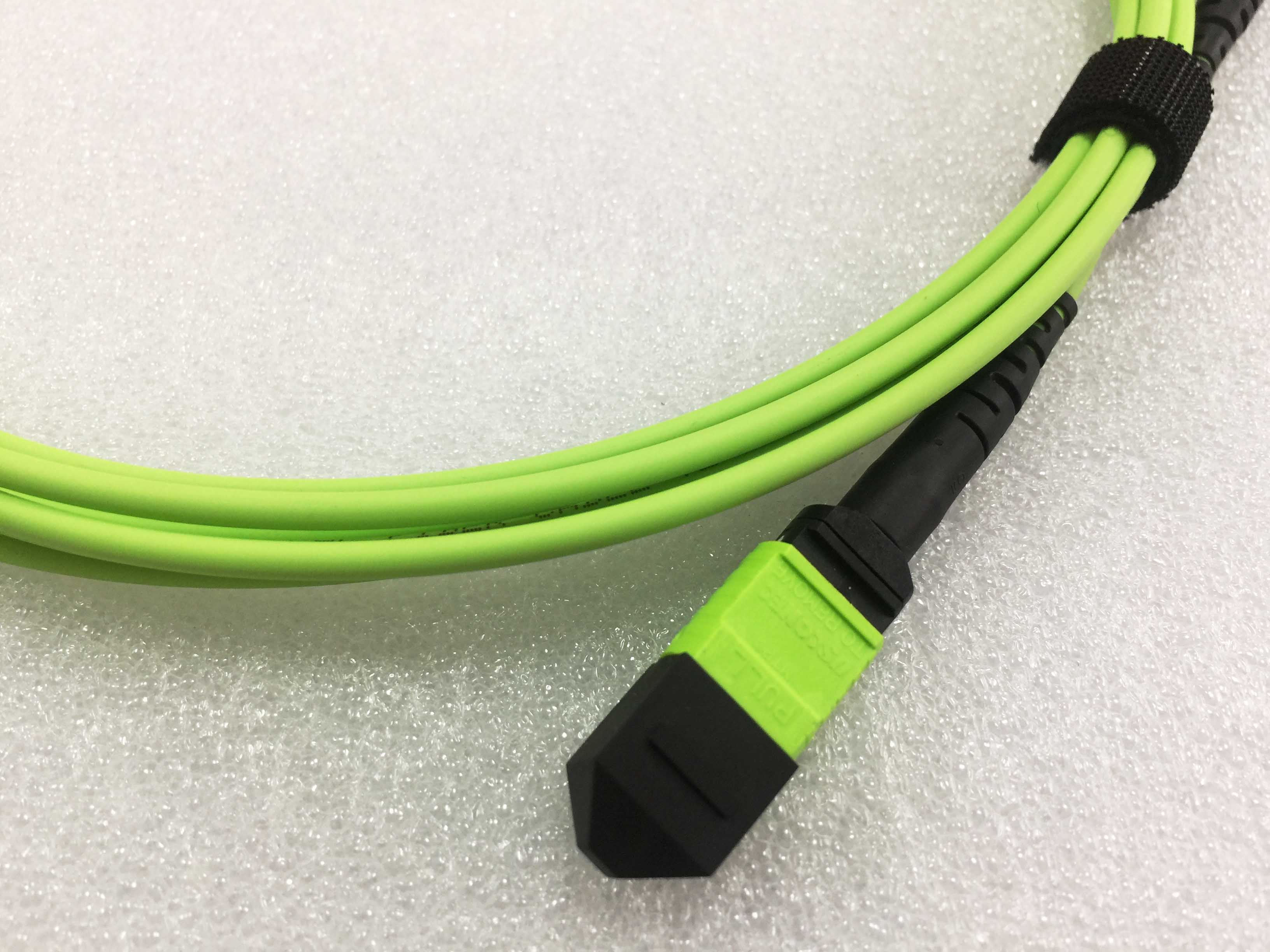

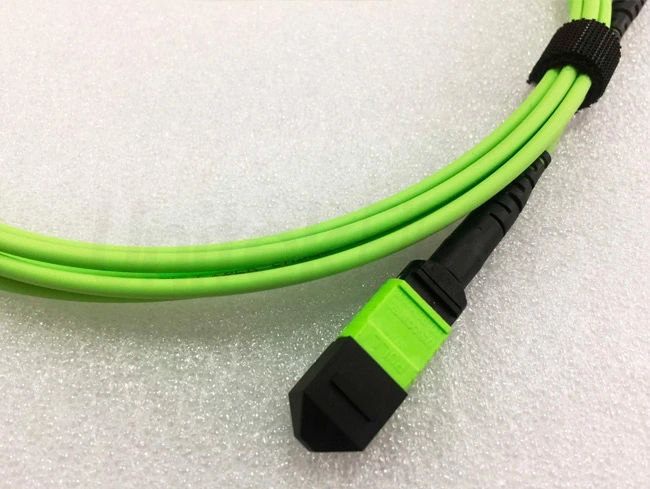

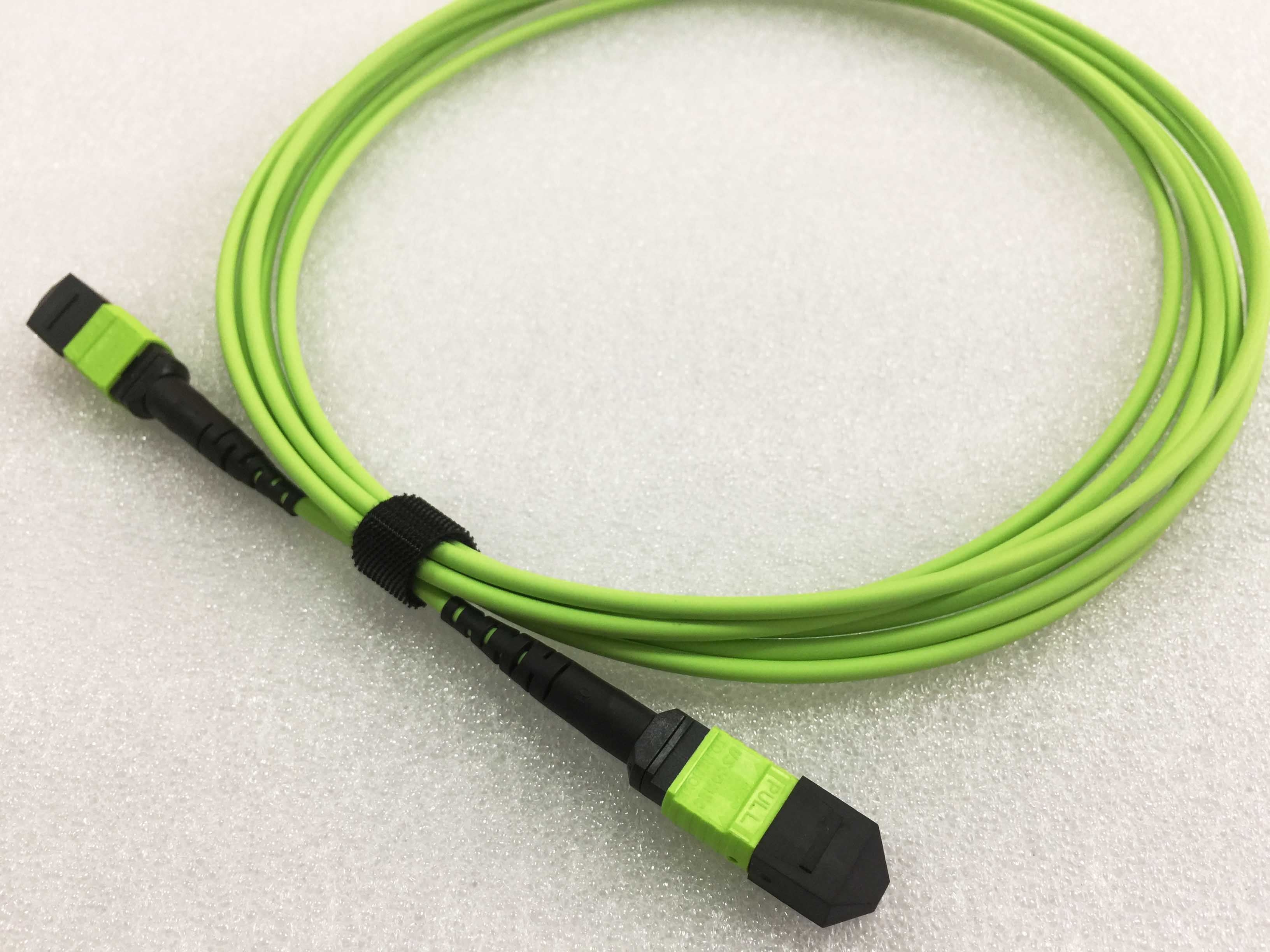

Data Center MTP MPO Fiber Cable|12 Cores MPO- MPO Fiber Optic Jumper OM5 Green 1M LSZH

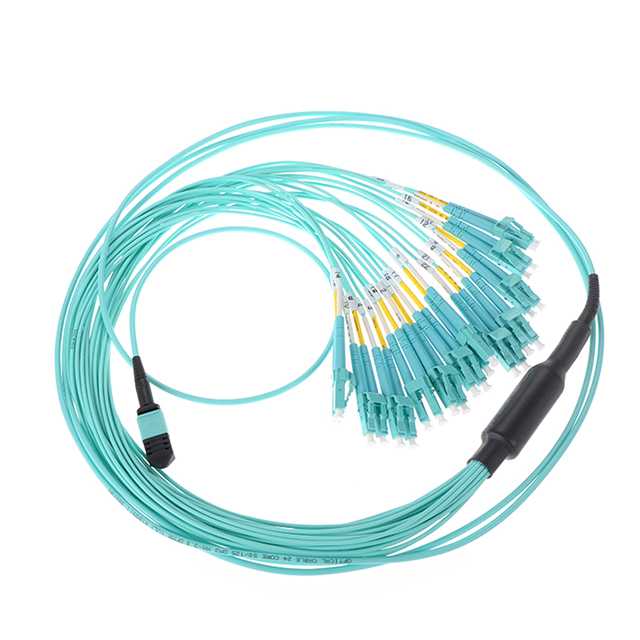

The MPO-LC fiber jumper is equipped with an MPO connector at one end of the optical cable and an LC connector at the other end of the optical cable. MPO jumpers can be designed with 2 to 12 cores, up to 24 cores. At present, the most commonly used MPO connector is 12 cores. The compact design of the MPO connector makes the MPO jumper more cores and small in size.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Review
Video

Details of Data Center MTP MPO Fiber Cable|12 cores MPO- MPO Fiber Optic Jumper OM5 Green 1M LSZH

Unitekfiber now offers 24F ferrule MTP/MPO assemblies (24 fibers in a single MTP ferrule). These super high density trunk cable assemblies come in 24-288 strand varieties. We offer 4, 8, 12 and 24 fiber MTP's in a single ferrule (one connector). All MTP's are made using the finest materials and components.


Mtp Optical Connector


Network Connectivity


Base-8 MTP/MPO Cabling for 40G-40G Connection


Mtp Trunk Cable


Product Highlights


Perfect High-performance Fiber

Excellent bending and compression resistance make it an ideal choice for high density cabling


Mpo Fiber Optic Cable

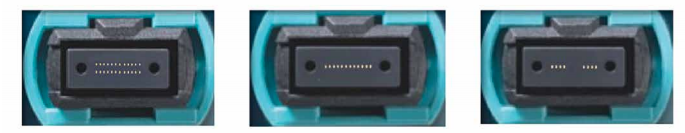

Mpo Fiber Optic Cable Assemblies


MPO connectors are the proven and trusted MPO style format,MTP/MPO cable offering state-of-the-art multi-fiber and mechanical performance


Mpo Patch Cable



Parameter of Data Center MTP MPO Fiber Cable|12 cores MPO- MPO Fiber Optic Jumper OM5 Green 1M LSZH

Parameter

Unit

Mode Type

PC

UPC

APC

Insertion Loss

dB

SM

≤0.3

≤0.3

≤0.3

MM

≤0.3

≤0.3

-----

Return Loss

dB

SM

≥50

≥50

≥60

MM

≥35

≥35

-----

Fiber cable

Diamete

PVC, LSZH

Material

PVC, LSZH

Connector type


SC, LC. ST. FC

Repeatability

dB

Additional loss<0.1db,return loss< 5 dB

Interchangeability

dB

Additional loss<0.1db,return loss< 5 dB

Connection times

times

>1000

Operating Temperature

-40℃- +75℃

Storage Temperature

-40℃- +85℃


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
