Indoor/Outdoor Central Tube Distribution Fiber Drop Cable GYJFXTY 2-24 Cores G.657A2 Aramid Yarn PBT

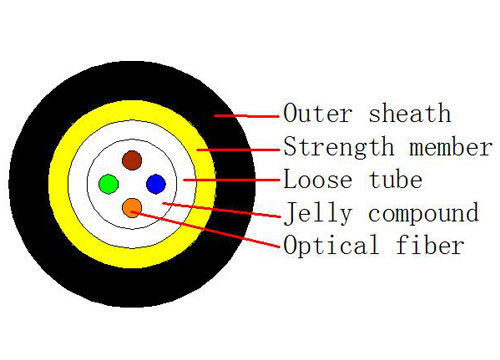

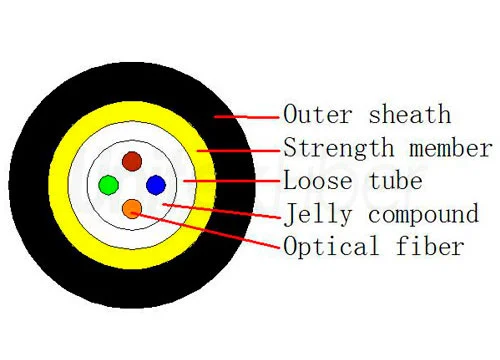

GYJFXTY cable can be applied for indoor/outdoor telecommunications. The structure for central tube drop cable is a PBT loose tube located in the central of the cable.the fiber glass can be 2-24cores.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Indoor/Outdoor Central Tube Distribution Fiber Drop Cable GYJFXTY 2-24 cores G.657A2

And a layer of Kevlar yarn is wrapped around loose tube. The cable outer sheath can be LSZH or PE material.


Features:

  • Designed for use with inexpensive attachment hardware

  • Compatible with standard splice closures

  • Self-supporting - no messenger needed

  • Small cross-section for maximum density in closures and conduit


Packaging & Shipping


Indoor/Outdoor Central Tube Distribution Fiber Drop Cable GYJFXTY 2-24 Cores G.657A2 Aramid Yarn PBT


Parameter of Indoor/Outdoor Central Tube Distribution Fiber Drop Cable GYJFXTY 2-24 cores G.657A2 Ar

No. of Cable

2/4

Fiber Model

G.657A2

Strength Member

Material

Aramid yarn

Loose Tube

Material

PBT

Diameter(±0.06)mm

1.6

Thickness(±0.03)mm

0.3

Outer Sheath

Material

PE

Thickness(±0.03)mm

0.3

Cable Diameter(±0.2)mm

2.5

Cable Weight(±2)kg/km

6

Min. bending radius

Without Tension

15×Cable-φ

Under Maximum Tension

30×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-30~+70

Operation

-20~+60

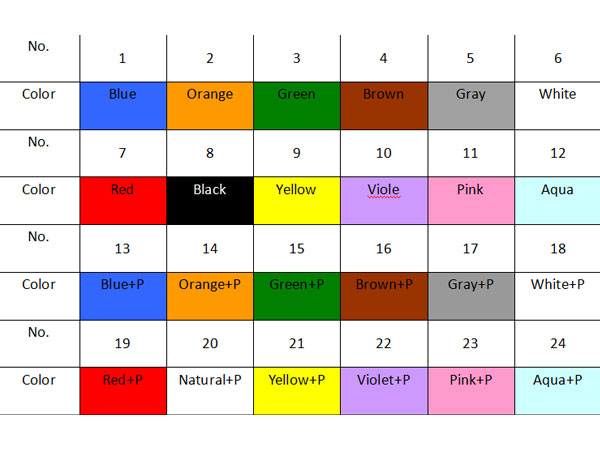

Fiber Colors

Indoor/Outdoor Central Tube Distribution Fiber Drop Cable GYJFXTY


How many cores are in the breakout indoor fiber optic cable?

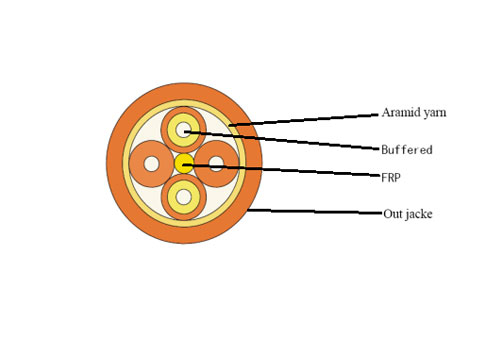

Breakout fiber optic cable consist of two or more simplex cables bundled with a strength member and central member covered with an outer jacket.

What material is the outer sheath of breakout indoor fiber optic cable?

The sheath material of breakout indoor fiber optic cable is LSZH, PVC, and OFNP.

Can you tell me the advantage of indoor breakout fiber optic cable?

It has the features of corrosion resistance, waterproof, ultraviolet protection, flame retardant, environmental protection.

Why does breakout indoor fiber cable need aramid yarn?

The indoor optical cable uses aramid yarn as a reinforcing member to protect the optical fiber.

How many fiber cores for breakout indoor fiber optic cable?

2-288cores.
