Rack Mount Mini Optical Compact CWDM Module 18 Channel CCWDM With LC Pigtail

Mini Compact CWDM (CCWDM) modules is designed in small ABS box which is usually used into 1U Rack Mount. CWDM moduls or compact CWDM moduls is work with two parts. One is transmission part we usually called CWDM Mux and on is receiving part called CWDM Demux.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Rack Mount Mini Optical Compact CWDM Module 18 Channel CCWDM With LC Pigtail

Features


  • Low Insertion Loss

  • High Channel Isolation

  • Optical path epoxy free

  • Excellent thermal stability and reliability

  • Good channel-to-channel uniformity

  • Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)

  • Wide Operating Temperature: -20 to +70℃

  • Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard


Application


  • CWDM Network

  • Add/Drop System

  • CATV Fiberoptic System

  • Metro/Access Network

  • Fiber Optical Amplifier

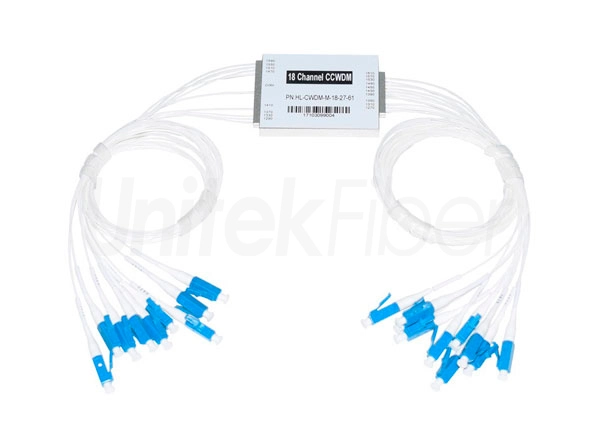

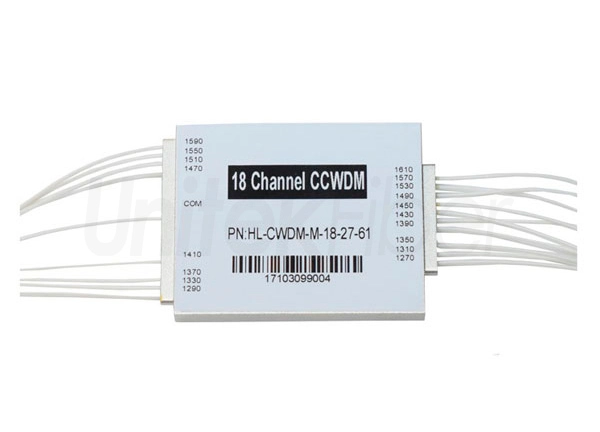

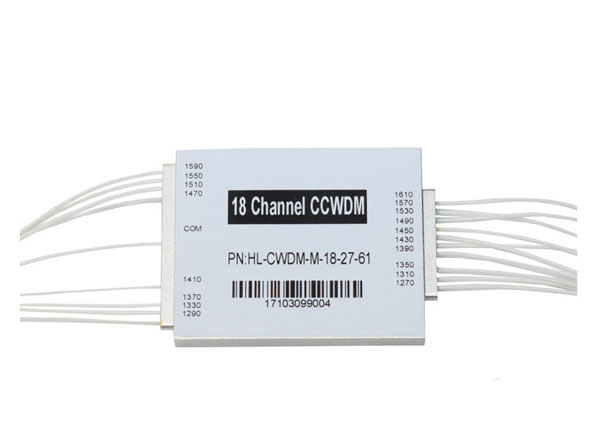

Rack Mount Mini Optical Compact CWDM Module 18 Channel CCWDM With LC Pigtail

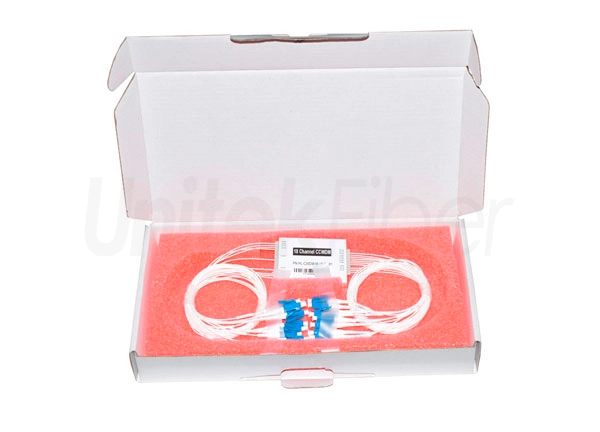

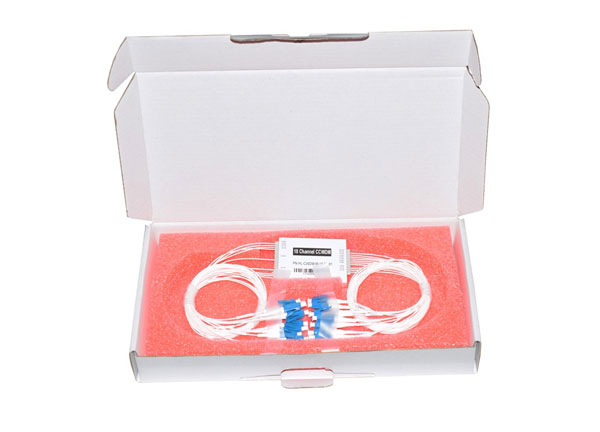

Packaging and Shipping


Rack Mount Mini Optical Compact CWDM Module 18 Channel CCWDM With LC Pigtail

Production



Rack Mount Mini Optical Compact CWDM Module 18 Channel CCWDM With LC Pigtail


Rack Mount Mini Optical Compact CWDM Module 18 Channel CCWDM With LC Pigtail

Parameter

4 Channel

8 Channel

18 Channel

Mux

Demux

Mux

Demux

Mux

Demux

Channel Wavelength (nm)

1270~1610

Center wavelength Accuracy (nm)

±0.5

Channel Spacing (nm)

20

Channel Passband (@-0.5dB bandwidth (nm)

15

Insertion Loss (dB)

≤1.5

≤2.5

≤3.2

Channel Uniformity (dB)

≤0.5

≤1.0

≤1.5

Channel  Ripple (dB)

0.3

Isolation (dB)

Adjacent

>30

>30

>30

>30

>30

>30

Non-adjacent

>45

>45

>45

>45

>45

>45

Inertion Loss Temperature Sensitivity (dB/°C)

<0.005

Wavelength Temperature Shifting (nm/°C)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

>50

Return Loss (dB)

>45

Maximum Power Handling (mW)

500

Opterating Temperature (°C)

-5~+75

Storage Temperature (°C)

-40~85

Package dimension (mm)

L100 x W80 x H10 or L120xW80xH18


Contact UnitekFiber
Contact UnitekFiber

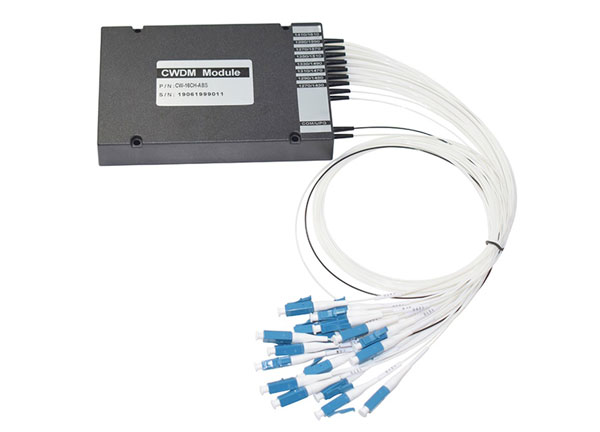

Other CWDM Multiplexer Mux Demux Products
