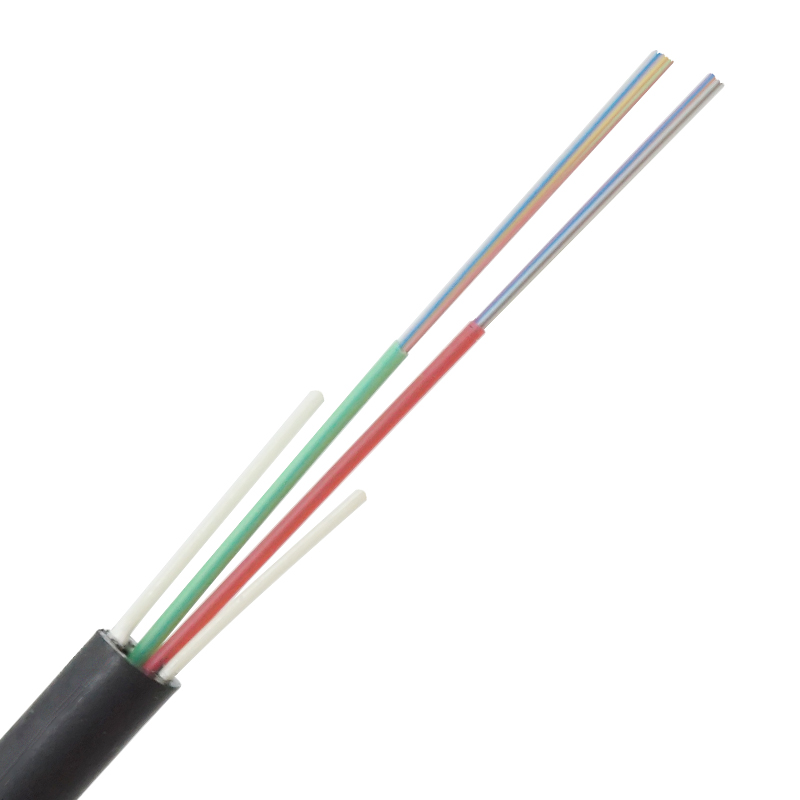

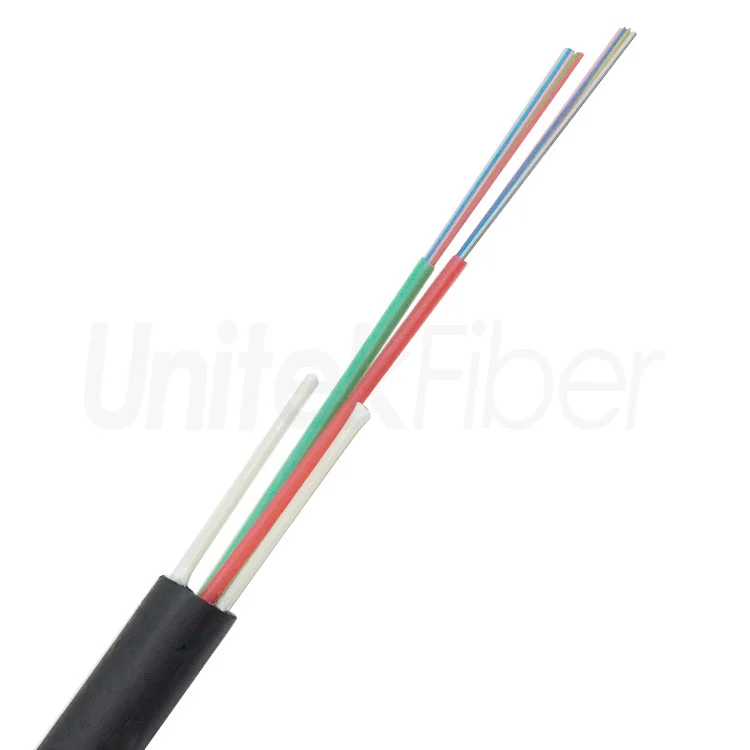

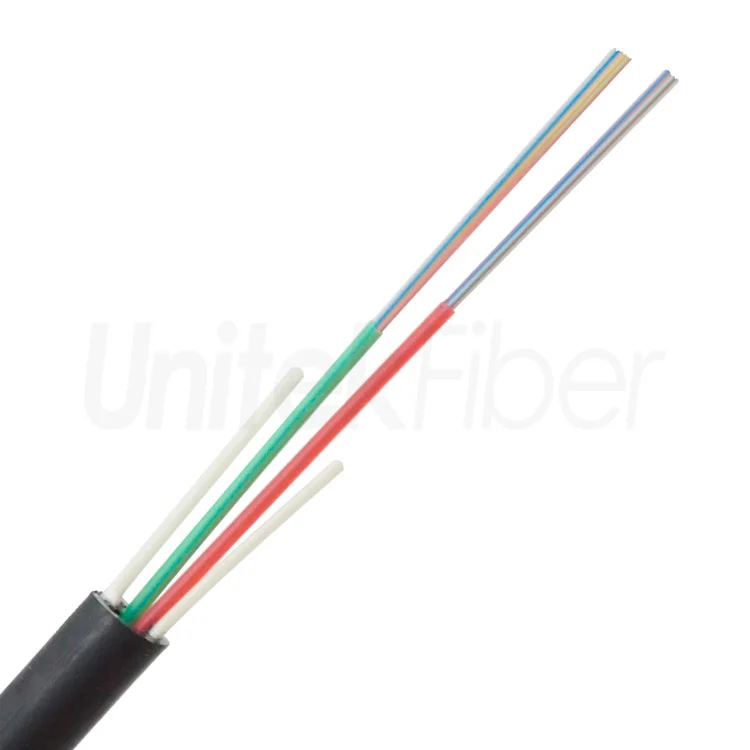

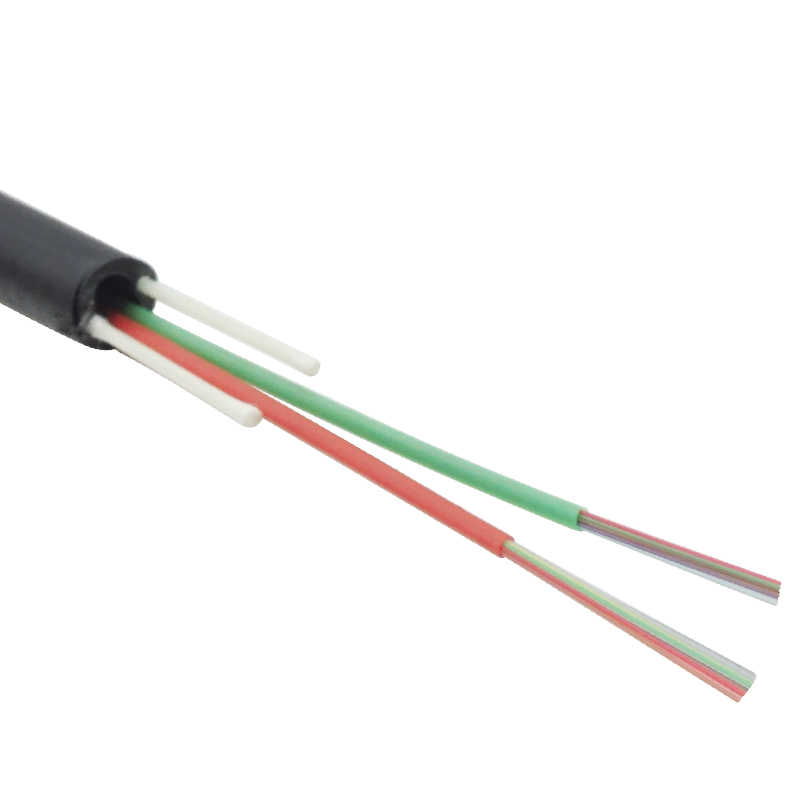

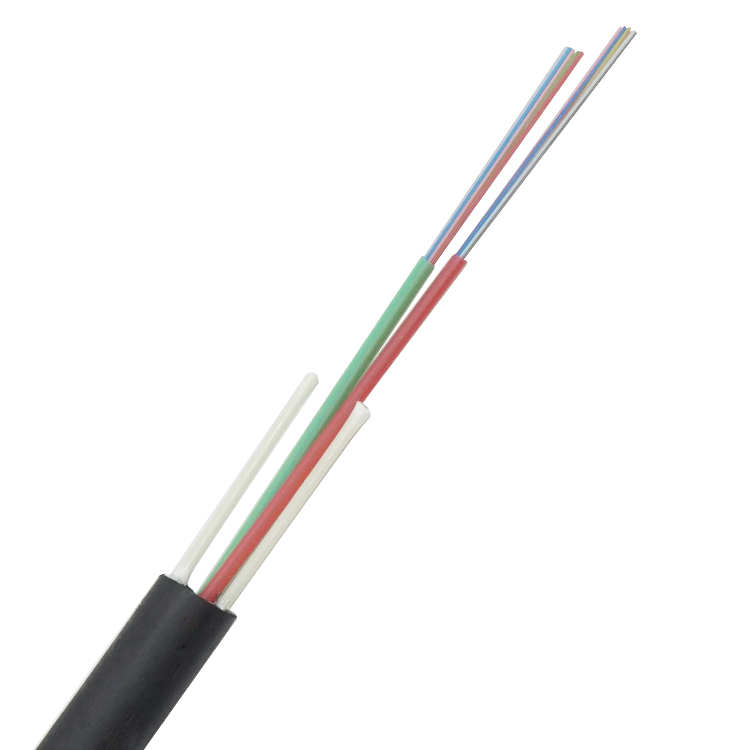

GJXZY fiber optic cable is made of low-smoke, halogen-free, flame-retardant materials. It can not only meet the flame-retardant requirements of indoor use, but also adapt to the needs of rigorous environments of outdoors.
Using the same type of fiber optic cable in indoors and outdoors application can eliminate a large number of interconnecting welding. It not only saves a lot of wlding workload and simplifies line maintenance, but also greatly eliminates the discontinuity of weldings, thereby improving system reliability.
Fiber type: G657A fiber, G657B fiber
Up to 24 fibers.

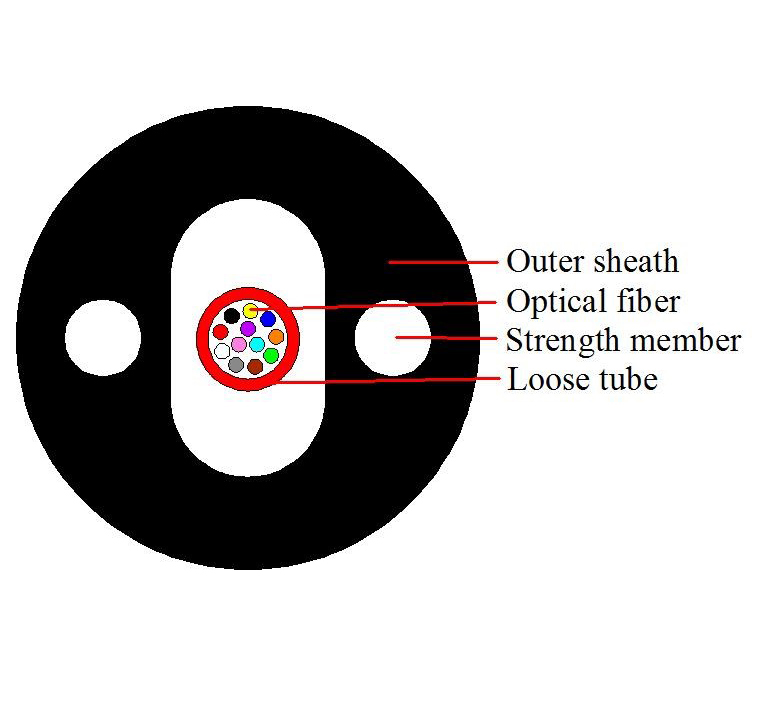

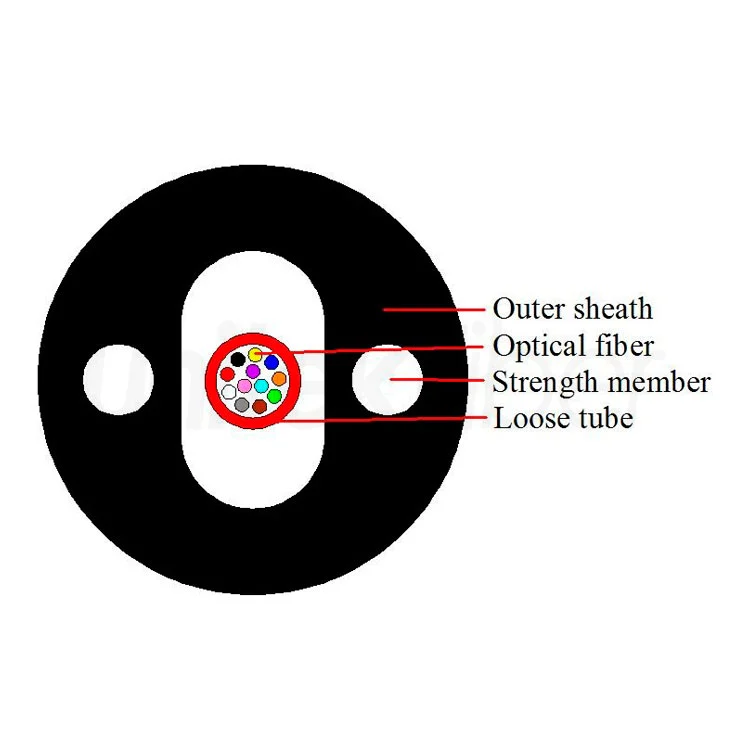

Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire to enhance tensile resistant and protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware.
Self-supported no messenger needed.
Flame-retardent LSZH jacket
Small size, Low cost.
This fiber cable is applied in Duct, Aerial FTTx, Access installations.
Used in access network or as access cable from outdoor to indoor in customer premises network.
Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.
No. of cable | 12-24 | |
Fiber Model | G.657A1 | |
Strength Member | Material | FRP |
Diameter（±0.05）mm | 1.0 | |
Loose Tube | Material | LSZH |
Diameter（±0.05）mm | 1.4 | |
Thickness（±0.03）mm | 0.15 | |
The Max.Core NO./Tube | 12 | |
Outer Sheath | Material | LSZH |
Thickness（±0.1）mm | 2.0 | |
Cable Diameter（±0.2）mm | 7.0 | |
Cable Weight（±3kg） | 36 | |
Min. bending radius | Without Tension | 10.0×Cable-φ |
Under Maximum Tension | 20.0×Cable-φ | |
Temperature range | Installation | -20~+60 |
Transport&Storage | -40~+70 | |
Operation | -40~+70 | |
NO. | Item | Requirement | |
1 | Allowable Tensile Strength | Short Term | 600 N |
Long Term | 200 N | ||
2 | Allowable Crush Resistance | Short Term | 1000 (N/100mm) |
Long Term | 300 (N/100mm) | ||
Fibre Colours
No. | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
No. | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
Color | Red | Blue | Green | Yellow | Violet | White | Orange | Gray | Brown | Light Green | aqua | pink |
This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.
Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.
Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.
The main application for FTTH drop cable is Fiber to The Home project.
Yes, it is suitable for outdoor application with 70meters pole span.
The strength member for FTTH drop cable can be FRP or steel wire.
FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.
