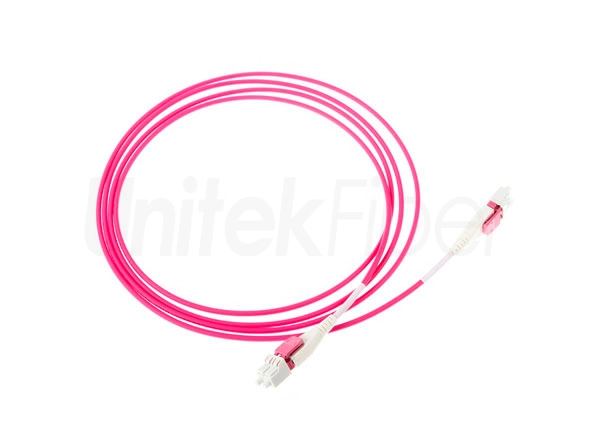

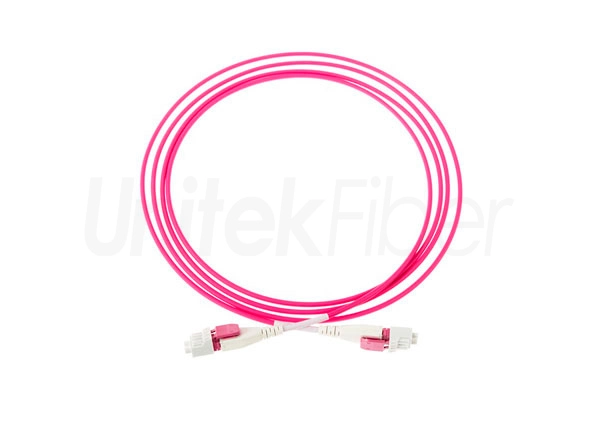

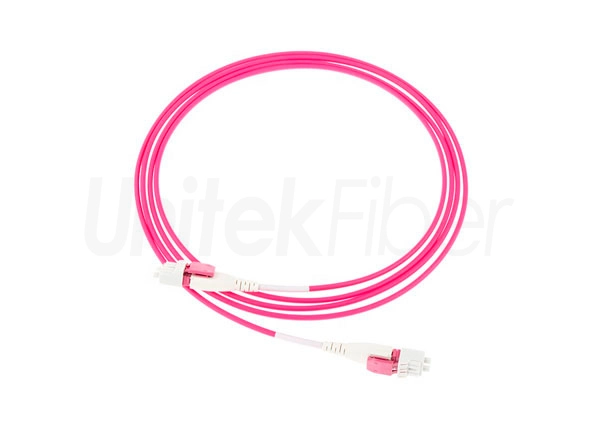

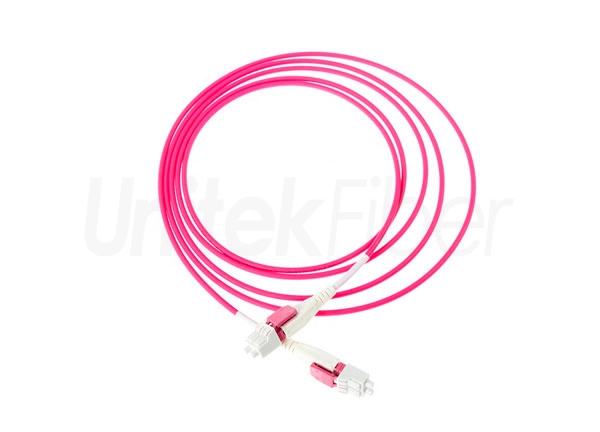

Uni-boot Patch Cord LC/UPC-LC/UPC Dual-core Jumper Cables Duplex OM4 Multimode Pink 2mm

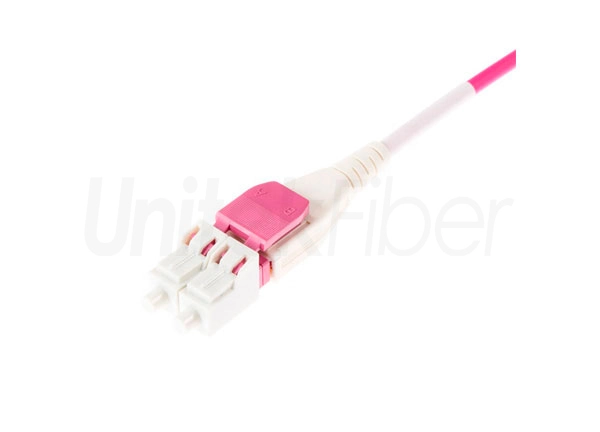

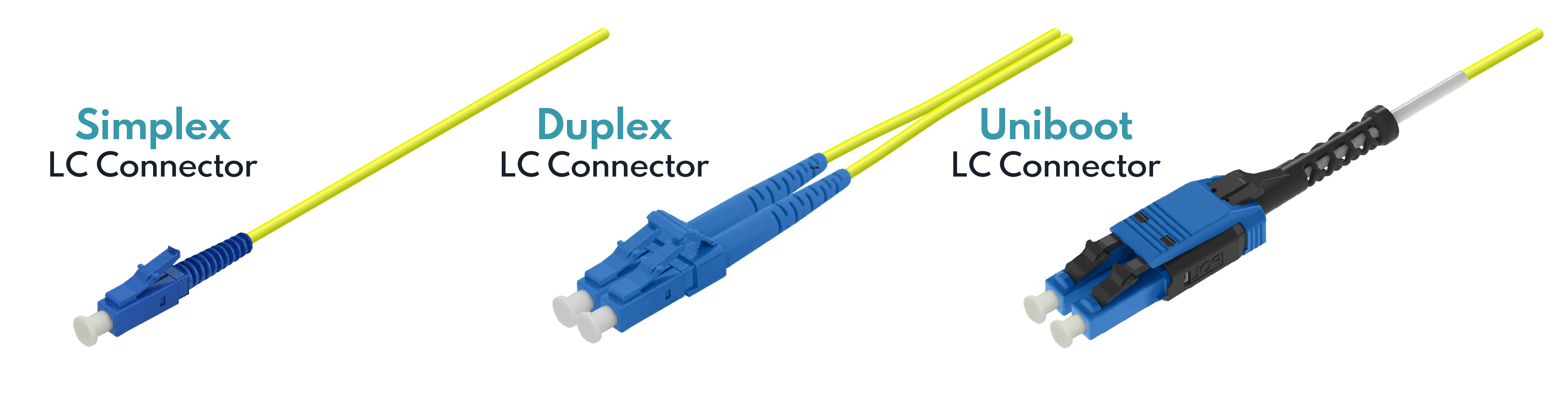

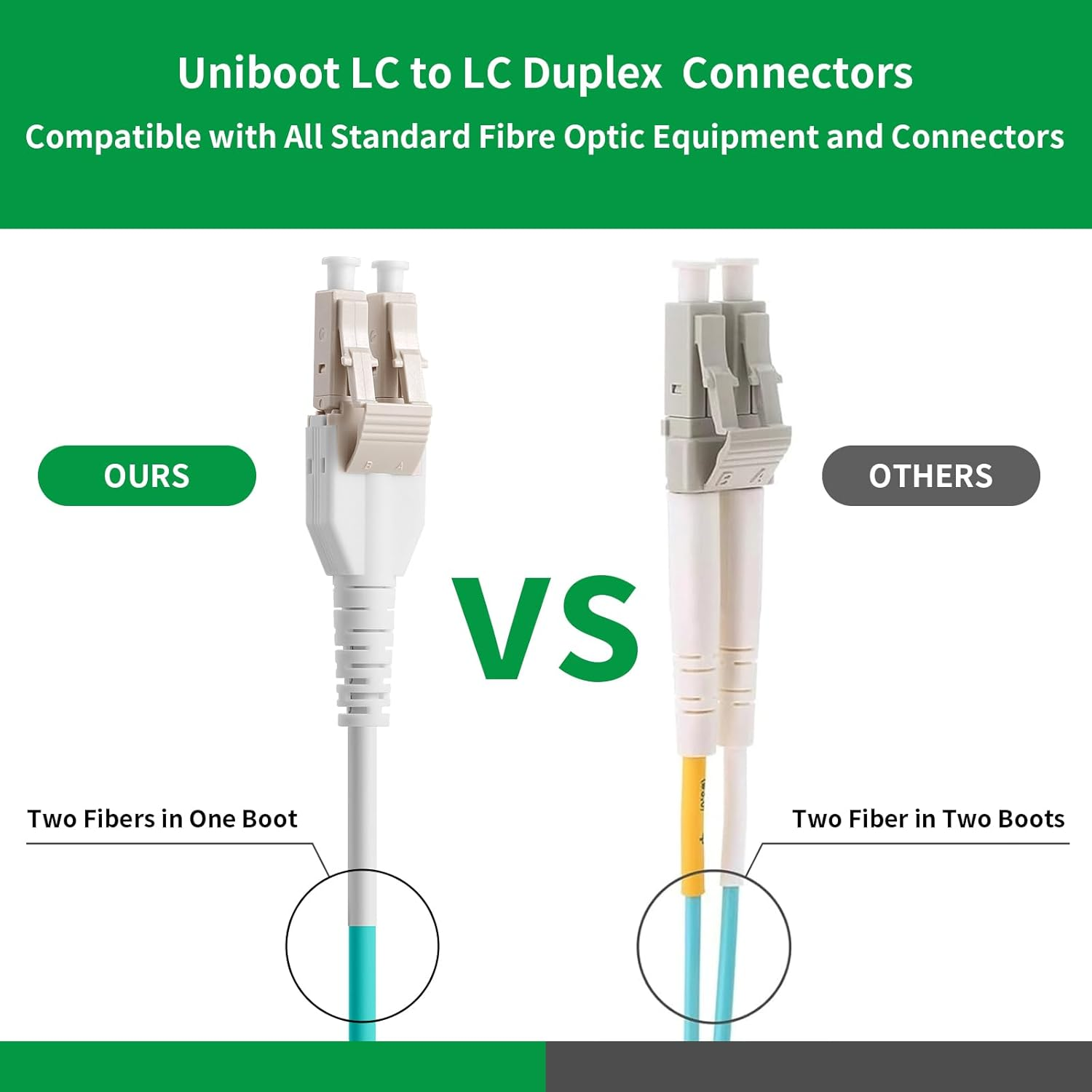

Uni-boot LC-LC dual-core fiber optical patchcord is already an upgraded version of the conventional patchcord. It adopts the design of double fiber single tube and integrated tail sleeve, which is more compact and space-saving than the ordinary LC duplex fiber patchcords, which is conducive to the cooling of the wiring system. It is convenient for users to insert and remove patchcord.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Uni-boot Patch cord LC/UPC-LC/UPC Dual-core Jumper Cables Duplex OM4 Multimode Pink 2mm

Characteristics


lHigh reliability ;

lCE & RoHS compliant ;

l100% connectors tested ;

lRepeatability: >1000 times ;

lDeliery 100% passed products ;

lInsertion Loss(SM): Typical<0.2dB, Max<0.3dB ;

lReturn Loss: UPC>50dB, APC>60dB ;


Applications


lTelecommunications

lLocal Area Network (LAN)

lFiber to the home (FTTH)

lOptical patch panels

lTesting Instruments

lCATV


Packaging and Shipping


Uni-boot Patch cord LC/UPC-LC/UPC Dual-core Jumper Cables Duplex OM4 Multimode Pink 2mm

Production


Uni-boot Patch cord LC/UPC-LC/UPC Dual-core Jumper Cables Duplex OM4 Multimode Pink 2mm


Uni-boot Patch cord LC/UPC-LC/UPC Dual-core Jumper Cables Duplex OM4 Multimode Pink 2mm

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
