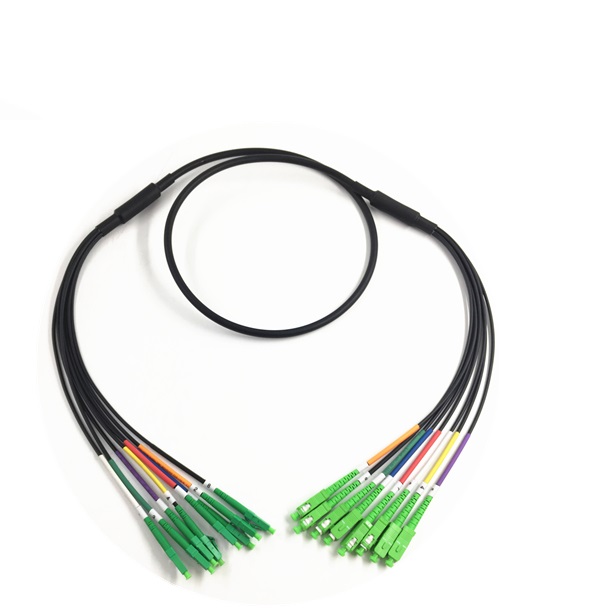

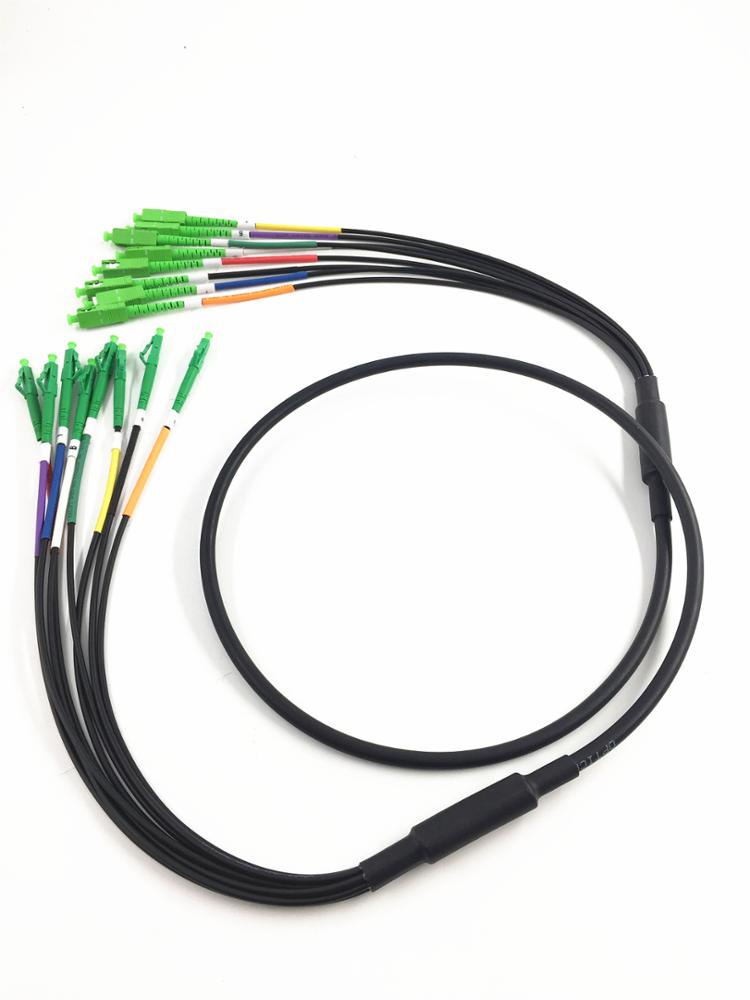

UnitekFiber provides breakout fiber optical cable, which is make by a small, compact size of micro fiber cable. The fanout fiber patch cord assembly can be 4 to 144 cores with different terminations, such as LC, SC, FC, ST, MU or etc.The standard diameter of the tails part can be 0.9mm or 2.0mm. 2.0mm fanout tail parts are ruggedized to secure the optical fiber in the non-protected environment outside of the patch panel or optical distribution frame(ODF). The breakout fiber optical fanout cables are commonly used in FTTC, FTTB, FTTH, FTTA, data center, industrial, robotic, health-care fields, etc.in a quick, simple and cost effective operation.

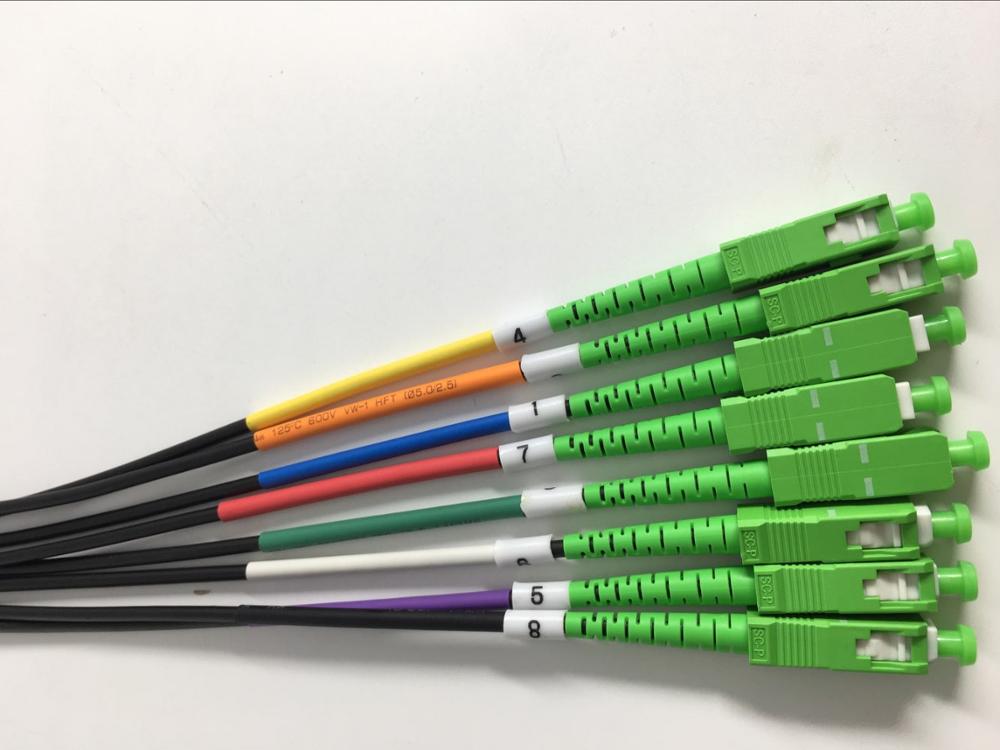

Breakout fiber patch cord by UnitekFiber are contained with a 0.88mm thick and 4.5mm diameter splitter buffer, completing with Kevlar for additional protection. Each fiber jumpe comes pre-terminated with LC, SC, ST, FC or MU fiber optic connectors. Core and cladding combinations range from 62.5/125µm, 50/125µm, and 9/125µm for OM1/OM2/OM3/OM4, and OS2 fiber specifications. Fiber optic patch lead comes in lengths of 1, 2, or 3 meters with additional longer with available upon special request.
LC/SC/ST/FC Bulk Fiber Patch Cord Fanout Drawing
SC patch cord fiber is available with different jacket materials, and UnitekFiber provides PVC, LSZH, OFNR, OFNP, and more. The jackets of breakout fiber optic patch cord can have different fire ratings, ensuring compliance with safety standards. LSZH (Low Smoke Zero Halogen) has the characteristics of low smoke, low toxicity, low corrosion, and high flame retardant. As a safe and environmentally friendly material, LSZH is an ideal choice for indoor/outdoor installation. Riser's flame retardant (OFNR) performance is weaker than that of Plenum materials, and it is free of toxic and corrosive gases. Therefore, OFNR grade optical fiber patch cord with riser materials are usually used in building trunk lines and horizontal cables. Plenum (OFNP) is highly flame retardant and does not generate toxic or corrosive gases at extremely high temperatures. Fiber optical patch cord with Plenum material are the first choice for wiring in ventilation ducts or air return pressurization systems used in air handling equipment.
Breakout fiber optic patch cord is widely used in FTTH access networks, telecommunication networks, local area networks, fiber-optic CATVs, and many test equipment vendors. Bulk fiber patch cord enable data center management at the physical layer by providing manageability, flexibility, and scalability. Ideal for cabling in high-density data centers but also terminated into rack mount and wall mount enclosures.
Hi, the max tension of short-term is 600N, for long-term, it's 300N. Thanks.
Yes, this optical cable adopts a single-mode design and is suitable for long-distance transmission. Therefore, when connecting servers on different floors, the performance is stable and reliable and the transmission loss is small.
This cable is made of high-quality materials and is highly durable. It has been rigorously tested and can operate stably for a long time.
This cable uses a compact outer sheath and high-quality insulation material, which can help reduce signal interference and ensure stable signal transmission.
Hi Dear, thanks for your question. We can provide customized patch cords in different colors, such as black, magenta, light green, pink, etc.
I am extremely impressed with your products, fiber optic cable. My father would have loved buying these products from your company.
Using the breakout fiber patch cord in fiber optic patch panel - this is fantastic patch cable. Flexible doesn't hold shape. Very nice to crimp as well.
Items shipped as described, very good quality and very fast delivery period. My account manager was always communicating at every stage of the purchase process. I will certainly purchase again and recommend this product to anyone.
I need to extend fiber across a room (about 10m). I would like to have a 1U patch panel on each side with LC connectors. Finally adopted their suggestion to use the adapter panel with 24F pre-terminated patch cable: LC adapter panel -- pre-terminated fiber -- LC adapter panel. Stay within the current budget.
Many details of the solution were worked out with their technical team and the response was very timely.
