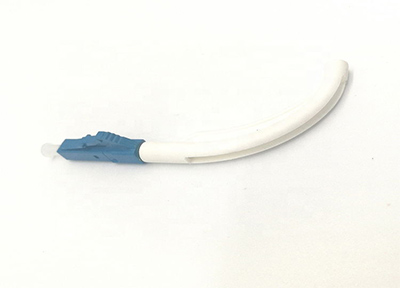

LC Connector Fiber Optic with 90 Degree Boot Single Mode Blue

UnitekFiber provide LC connectors with 90 degree bending boots. Our connectors is with high-efficienct assemling craft design, high standard quality, environment-friendly metal hardwares and plastic parts and fire resistant material.

Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

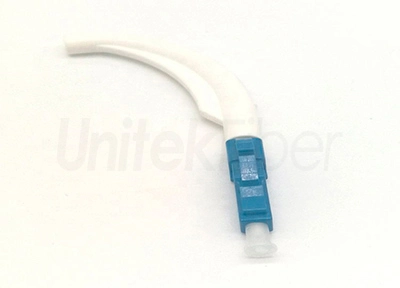

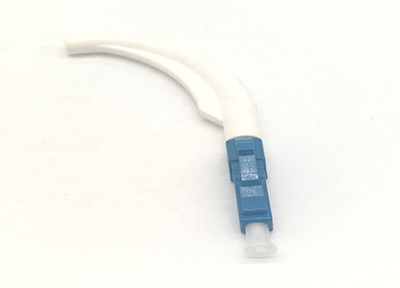

LC Connector Fiber Optic with 90 Degree Boot Single Mode Blue

Features of 90 Degree LC Fiber Connector:


  • Low insertion loss and back reflection loss

  • Ferrule end surface pre-domed

  • Precision anti-rotation key and corrosion resistant body

  • Telcordia style boots

  • Free-floating ceramic ferrule

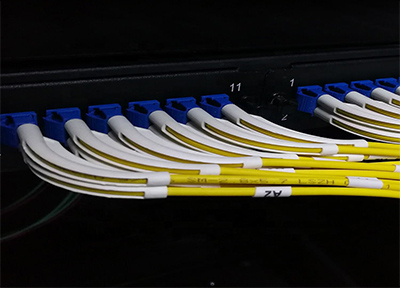

Applications of 90 Degree LC Fiber Connector:


  • Fiber Optic Telecommunications

  • FTTH (Fiber To The Home)

  • CATV & CCTV

  • Data Processing Networks

  • Telecom Equipment

  • Local Area Networks


Packaging & Shipping of 90 Degree LC Fiber Connector


LC Connector Fiber Optic with 90 Degree Boot Single Mode Blue

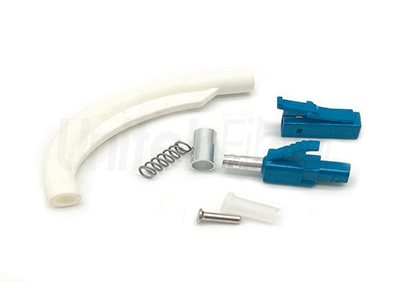

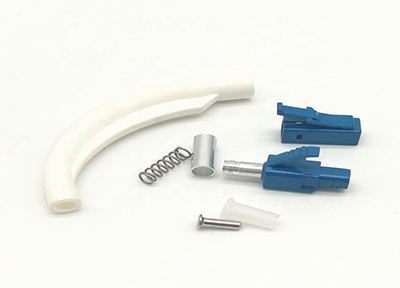

90 Degree LC Fiber Connector Production


LC Connector Fiber Optic with 90 Degree Boot Single Mode Blue


LC Connector Fiber Optic with 90 Degree Boot Single Mode Blue


Insertion loss

SM

≤0.30 dB

MM

≤0.3dB



Return loss

MM

≥35dB

PC/UPC

≥50 dB

APC

≥60dB

Durability

<0.20 dB typical change, 1000 mating




Ferrule hole sizes

SM: 125.0+1/-0um

concentricity:≤1.0um

125.5+1/-0um

≤1.0um

126.0+1/-0um

≤1.0um

MM:125 um

Concentricity :1≤3 um

127 um

≤3 um

128 um

≤3 um

Operating temperature

-40~85


Contact UnitekFiber
Contact UnitekFiber

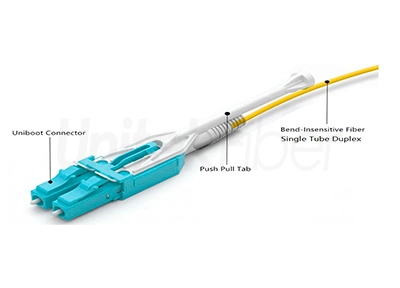

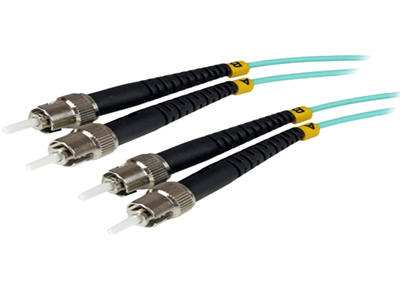

Other Fiber Optical Connector Products
