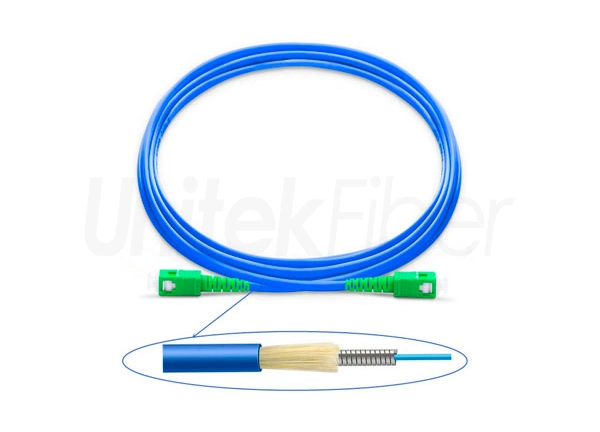

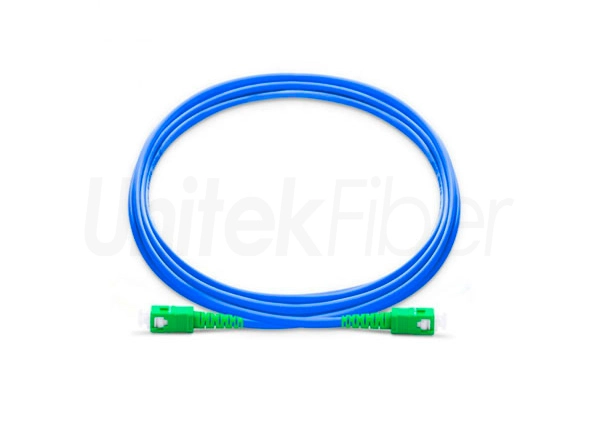

Patchcord SC/APC Armored Fiber Optic Jumper Single mode Simplex Corning G657A2 LSZH 3M

SC/APC to SC/APC Armored Fiber Optic Jumper SM SX Corning G657A2 LSZH 3M

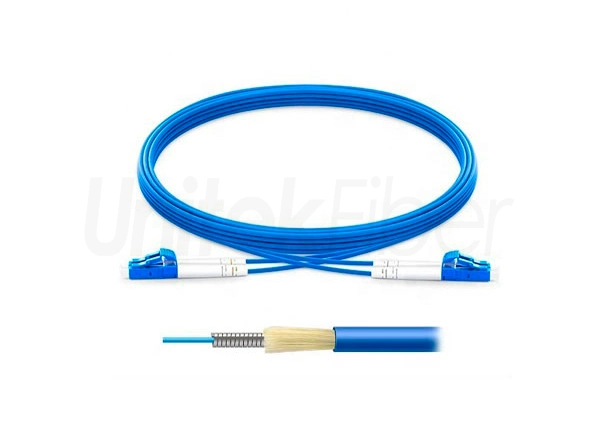

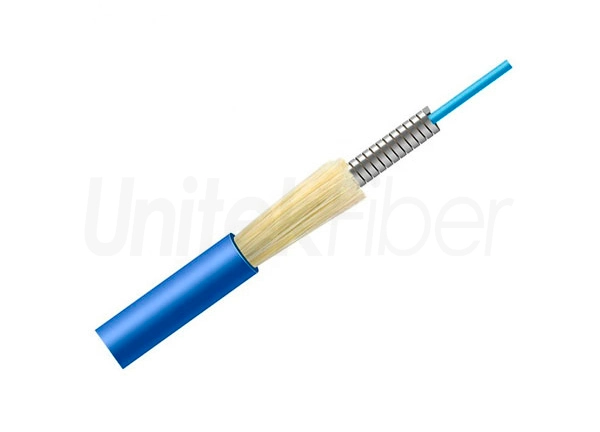

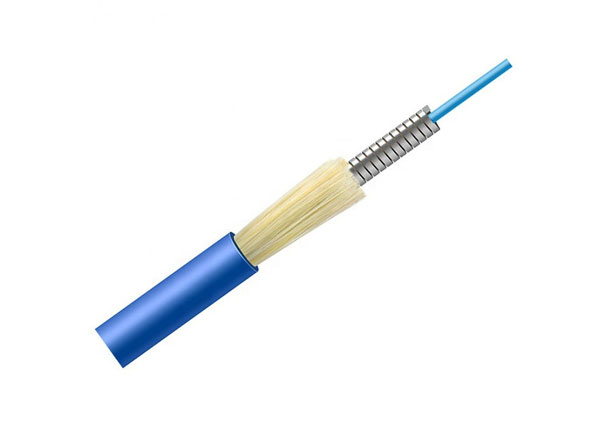

The armored optical fiber patchcord(jumper) is a new type of fiber optic jumper. It is specially designed with a layer of stainless steel sleeve to protect the optical fiber. It has the advantages and functions of standard fiber optic jumper and has the durability of armor.


Length
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Patchcord SC/APC Armored Fiber Optic Jumper Single mode Simplex Corning G657A2 LSZH 3

Characteristics


  • High reliability;

  • CE & RoHS compliant;

  • 100% connectors tested;

  • Repeatability: >1000 times;

  • Deliery 100% passed products;

  • Insertion Loss(SM): Typical<0.2dB, Max<0.3dB;

  • Return Loss: UPC>50dB, APC>60dB;


Applications


  •  Telecommunications

  •  Local Area Network (LAN)

  •  Fiber to the home (FTTH)

  •  Optical patch panels

  •  Testing Instruments

  •  CATV

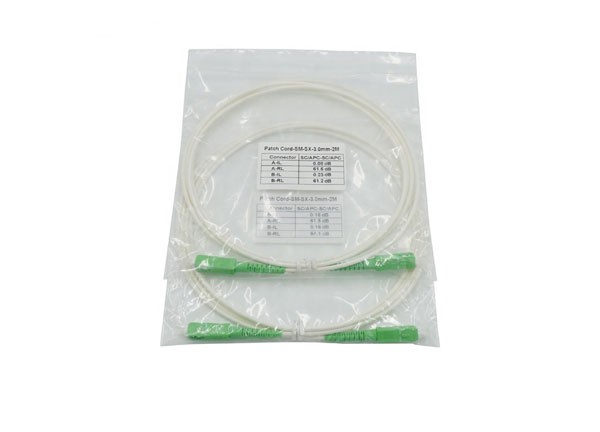

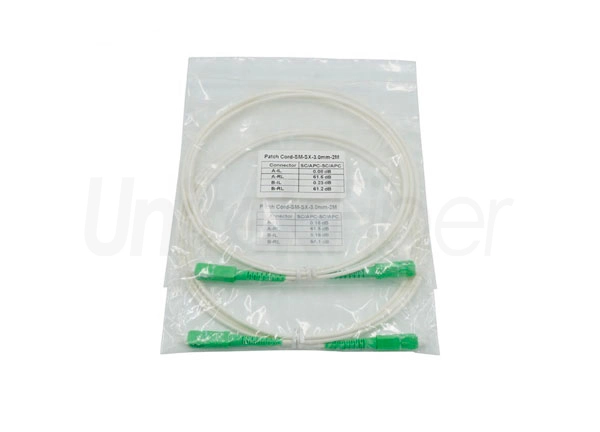

Packaging and Shipping


Patchcord SC/APC Armored Fiber Optic Jumper Single mode Simplex Corning G657A2 LSZH 3M


Production


Patchcord SC/APC Armored Fiber Optic Jumper Single mode Simplex Corning G657A2 LSZH 3M


Parameter of Patchcord SC/APC Armored Fiber Optic Jumper Single mode Simplex Corning G657A2 LSZH 3M

Item

Unit

FC,SC,LC

ST,MU

MT-RJ, MPO

E2000

SM

MM

SM

MM

SM

MM

SM

PC

UPC

APC

PC

UPC

PC

PC

PC

UPC

PC

PC

UPC

Insertion loss(typical)

dB

≤0.3

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

≤0.5

≤0.3

≤0.3

Return loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥30

≥45

≥50

≥35

≥55

≥75

Operating wavelength

nm

1310,1510

1310,1510

1310,1510

1310,1510

Exchengeability

dB

≤0.2

≤0.2

≤0.2

≤0.2

Vibration

dB

≤0.2

≤0.2

≤0.2

≤0.2

Operating temperature

°C

-40~75

-40~75

-40~75

-40~75

Storage temperature

°C

-45~85

-45~85

-45~85

-45~85

Cable Diameter

mm

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9

φ3.0,φ2.0,φ0.9


Could you offer samples?

Yes, samples are accepted. You need place sample order to us, and we will reduce from bulk order.

What's the delivery time for sample order?

Normally about 7 days after confirmation.

What's the delivery time for bulk order?

Normally 7-20 days depends on products and order quantities.

Could you do design for us?

Yes, we provide customized service and can do artworks including printing, logo, etc. for you.

Can I use my own LOGO and design on products?

YES, OEM is welcomed.

How to send the goods?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
