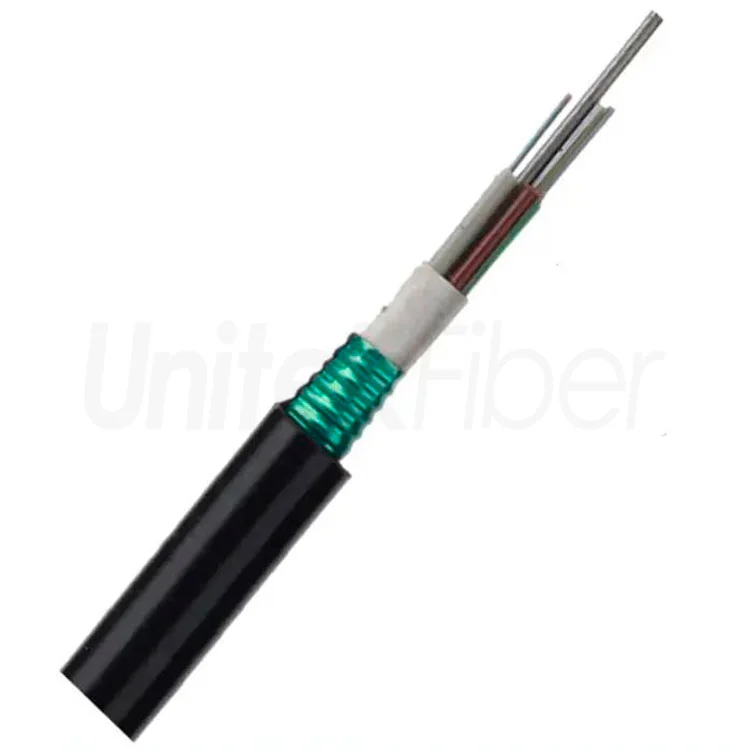

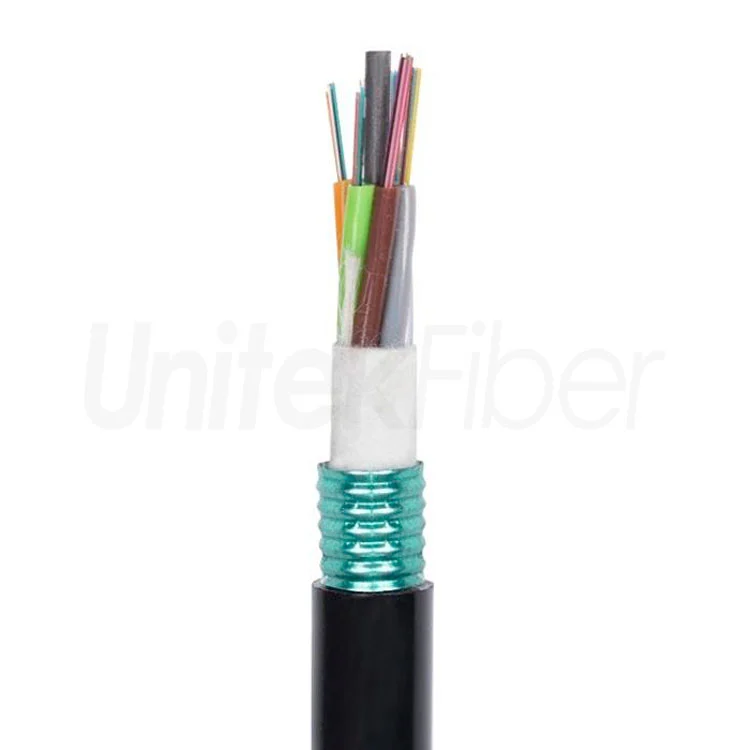

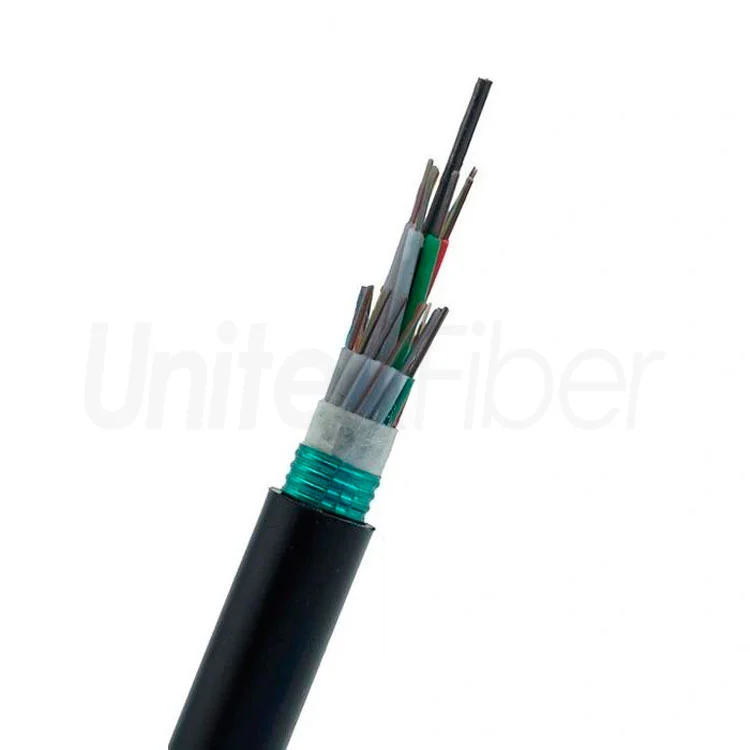

Outdoor Fiber Optical Cable GYTS Aerial Armored Stranded Loose Tube 96 144 288 Core SM G652D PE

GYTS fiber optic cable is a type of outdoor cable designed for long distance communication networks. It is made up of central loose tube that houses the optical fibers, which are surrounded by water-blocking materials and strength members for protection. The cable is covered with an outer jacket made of polyethylene to provide additional protection against moisture, rodents, and other environmental factors.

Products
Description
FAQ
Specification
Reviews
Video

Outdoor Fiber Optical Cable GYTS Aerial Armored Stranded Loose Tube 96 144 288 Core SM G652D PE

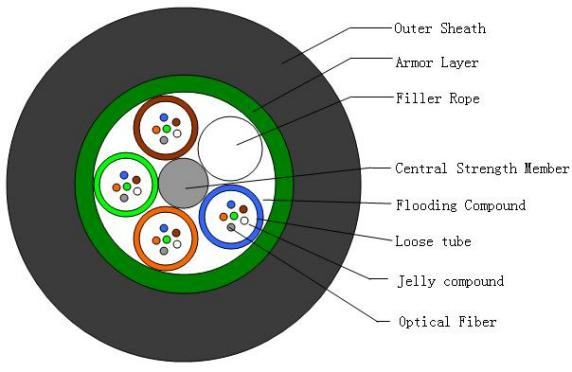

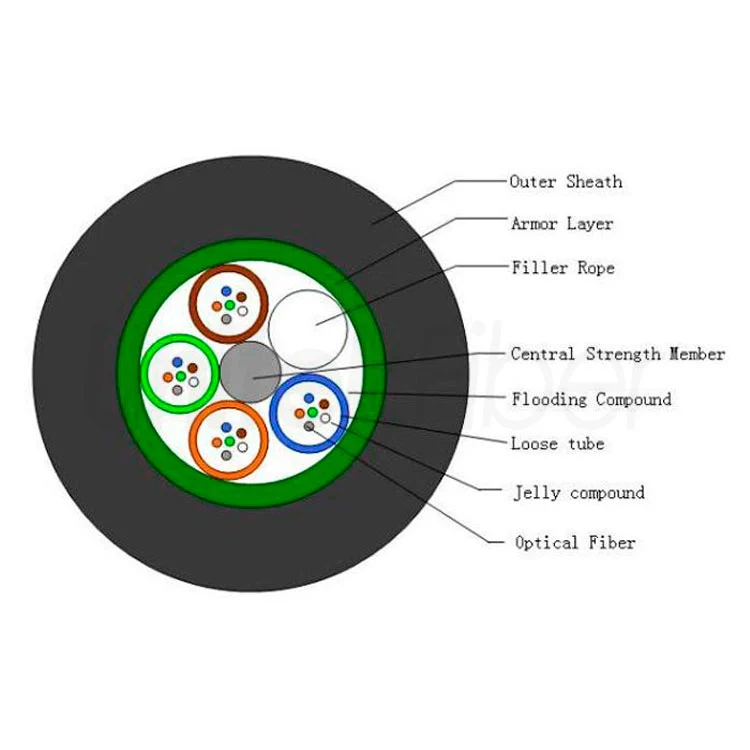

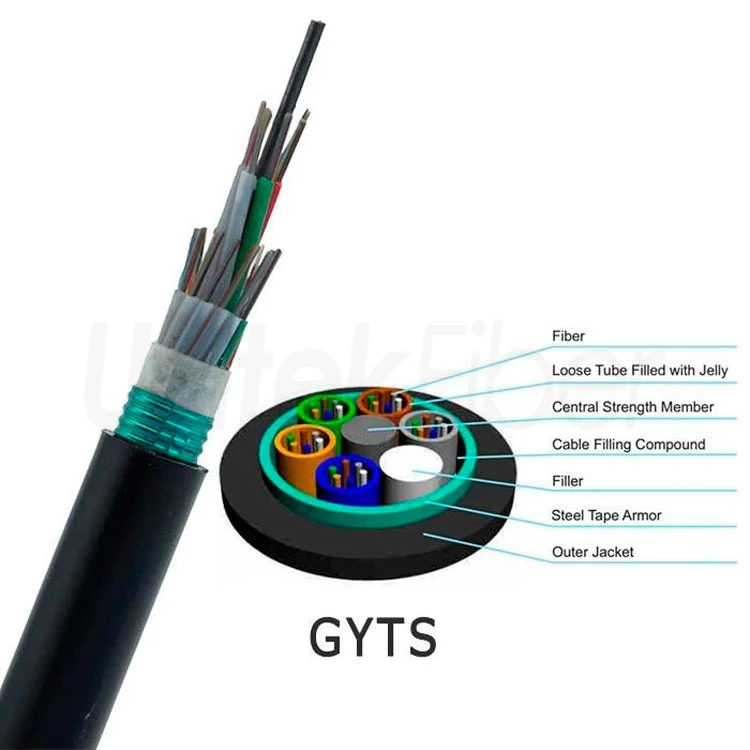

Basic structure of GYTS fiber optical cable


The structure of the aerial fiber optic cable is to sheath single mode or multimode fiber optic into the inner filling made of high modulus plastic waterproof compound in loose tube.

The center of the fiber optic cable core is a metal reinforced core.

For some fiber optic cable type, the metal reinforced core is also extruded with a layer of polyethylene (PE).

The loose tube (and filling rope) is twisted around the central reinforcing core to form a compact and circular fiber optic cable core, and the gaps in the fiber optic cable core are filled with water blocking compounds.

The steel tape is longitudinally wrapped and then extruded with a polyethylene sheath.



Outdoor Fiber Optical Cable GYTS Aerial Armored Stranded Loose Tube 96 144 288 Core SM G652D PE


Advantages of GYTS fiber optical cable


1. Long-distance transmission: GYTS fiber optical cable is designed for long distance communication networks and can transmit data over great distances with minimal loss.

2. High bandwidth: The fiber optical cable supports high data transfer rates, making it suitable for use in high-speed data applications.

3. Durability: The fiber optical cable is made of high-quality materials that are resistant to moisture, chemicals, and extreme temperatures, ensuring a long lifespan and minimal maintenance requirements.

4. Security: The fiber optical cable are difficult to tap or intercept, providing enhanced security for sensitive data transmissions.

5. Immunity to electromagnetic interference: GYTS fiber optical cable is immune to electromagnetic interference which makes it ideal for use in areas with high levels of electromagnetic interference, such as near power lines or in manufacturing plants.

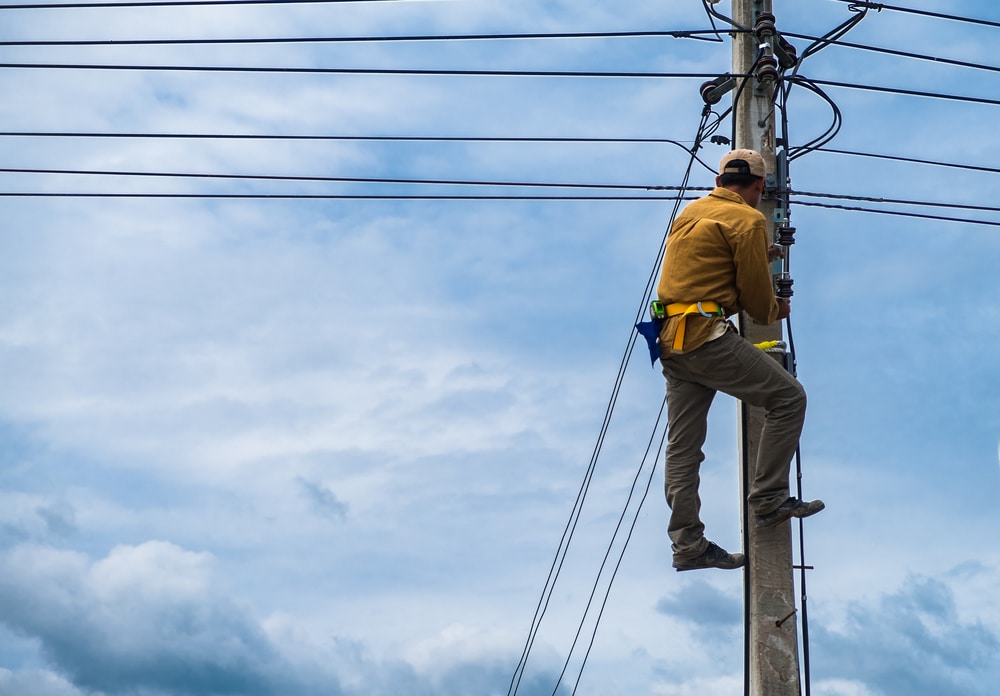

Application range of GYTS fiber optical cable


GYTS aerial fiber optic cable commonly used in telecommunications, CATV networks, data centers, oil and gas industry, utility and transportation networks, and other applications. The optical cable's durability, high bandwidth, and resistance to electromagnetic interference make it a reliable choice for transmitting voice, data, and video signals over long distances. In addition, its rugged construction allows it to withstand harsh environmental conditions, making it ideal for use in offshore oil rigs, pipeline monitoring, traffic control systems, railway signaling, and other challenging environments.



Outdoor Fiber Optical Cable GYTS Aerial Armored Stranded Loose Tube 96 144 288 Core SM G652D PE

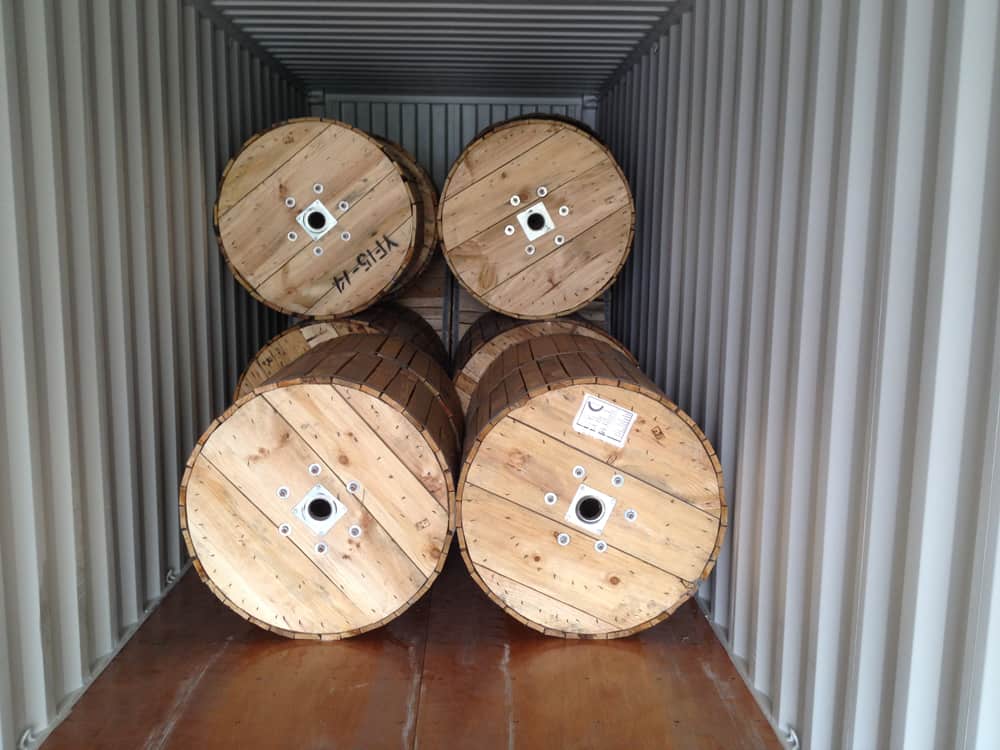

Packing & Delivery of GYTS fiber optical cable


During the transportation of fiber optic cables, the packaging and transportation conditions need to be strictly controlled to ensure the integrity and safety of the pipeline. Optical cable usually use wooden boxes and cardboard boxes as outer packaging materials. These materials should have the characteristics of moisture-proof, shock-proof, and protection, and can protect the internal structure and core of the optical cable.


Outdoor Fiber Optical Cable GYTS Aerial Armored Stranded Loose Tube 96 144 288 Core SM G652D PE


Where is the aerial fiber optic cable used?

Mostly used in Local Area Network (LANs), high density data center, FTTH Telecommunication.

Can you supply customized products and logo?

Yes,we supply OEM&ODM service.

How many fibers are available in GYTS fiber optic cable?

It can range from 2 fibers up to 288 of fibers.

Can GYTS fiber optic cable be used for outdoor applications?

Yes, GYTS fiber optic cable is designed for outdoor applications and can withstand harsh environmental conditions, including extreme temperatures, UV radiation, and moisture.

What is the expected lifespan of GYTS fiber optic cable?

With proper installation and maintenance, it can last for up to 25 years or more.
