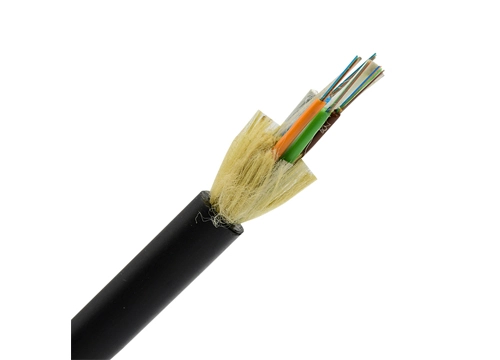

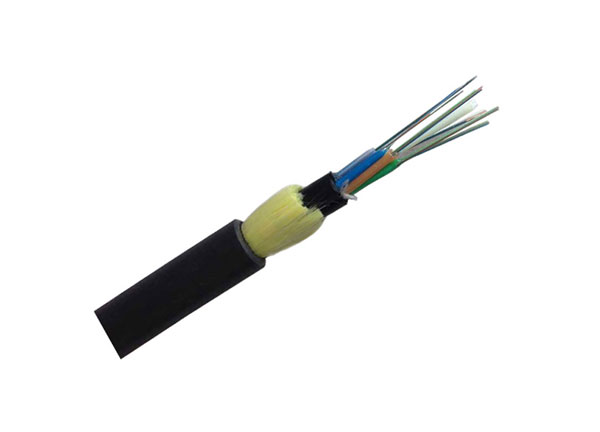

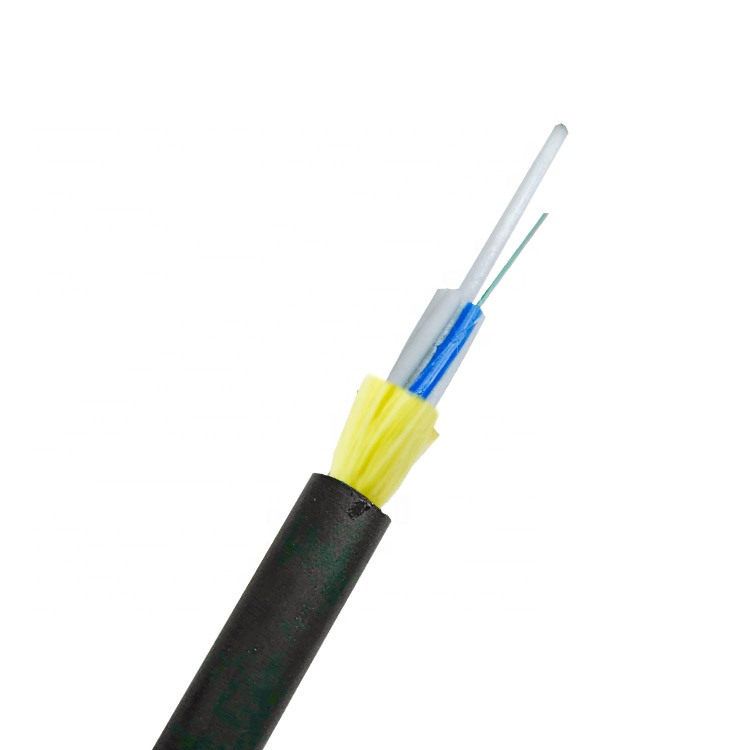

All-dielectric Self-supporting ADSS Optic Cable Single Mode G652D 12~288fibers Single Jacket 100 Span PE

The all-dielectric self-supporting cable ADSS is packaged with a loose tube stranded structure. It strands the optical fiber bundle on the central FRP reinforcement, and the tube is filled with water blocking compound. Extruded polyethylene inner sheath outside the cable core, and then add insulation, waterproof, reinforcement, sheath and other protective measures to make a combined ADSS fiber optic cable.



Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of All-dielectric Self-supporting ADSS Optic Cable Single Mode G652D 12~288fibers Single

Optical Cable for Sale

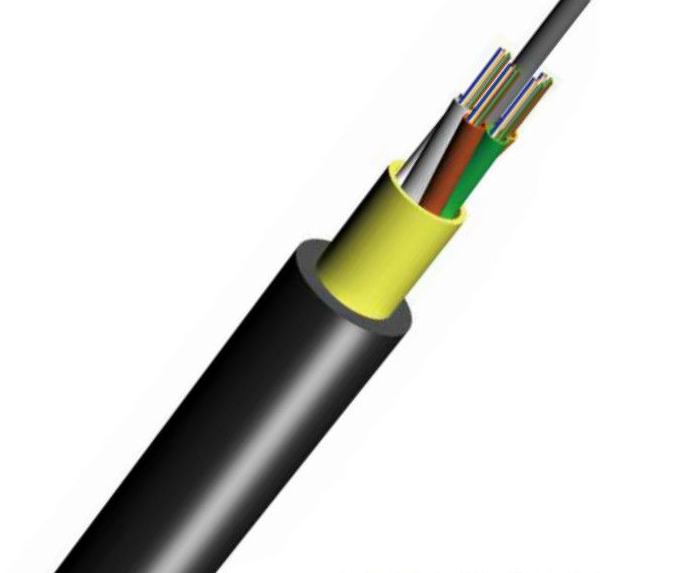

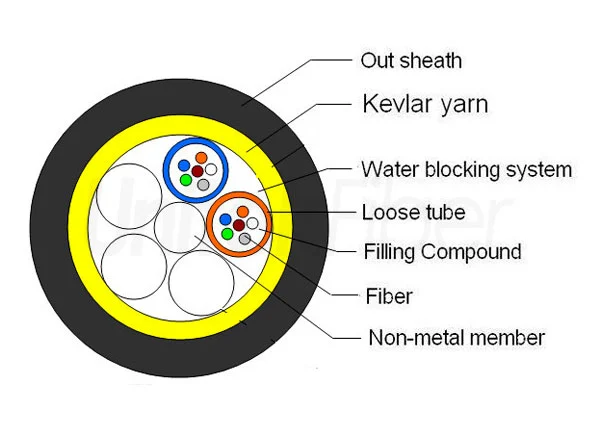

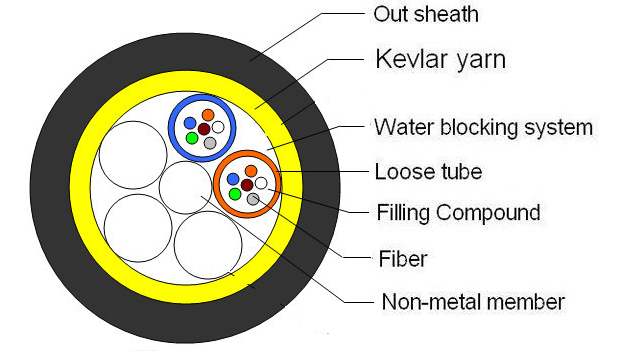

The inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement (usually FRP). The structure of ADSS fiber cable can be in a stranded structure design, the rest parts are basically similar to the central tube structure. This type is able to obtain longer fiber lengths. The outer sheath outside the aramid yarn is extruded with a special tracking-resistant sheath material, ADSS cables with this structure are better to be deployed for large span applications.


Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores


Features of ADSS Fiber optic Cable


Optical Cable Wire

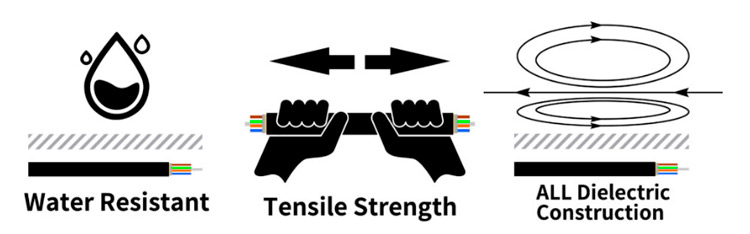

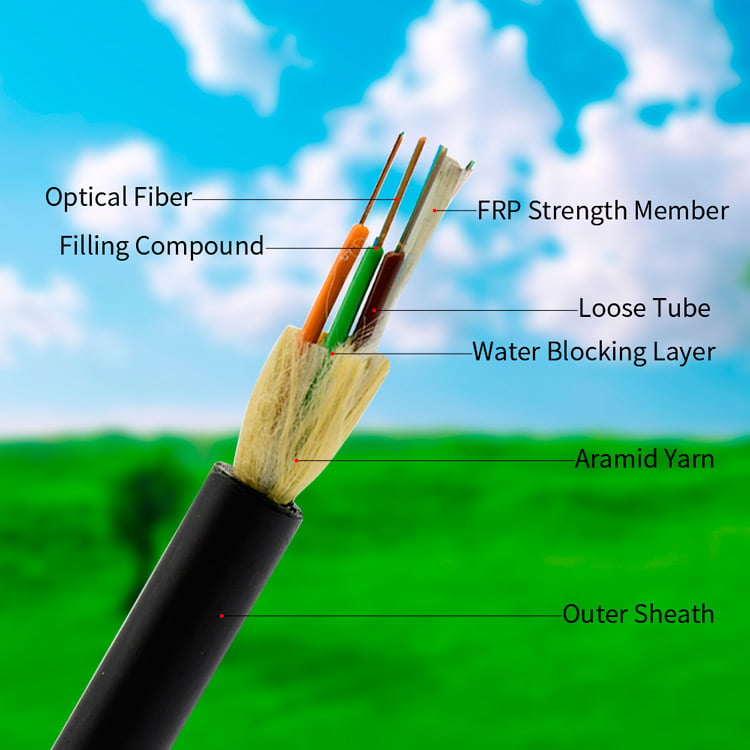

ADSS Fiber optic cable is an All-dielectric self -supporting wire, the outer sheath adopts AT tracking-resistant sheath to reduce the tracking corrosion of the surface of the optical cable caused by strong electricity. High voltage resistance and good galvanic corrosion resistance. The ADSS fiber cable has a wide temperature range(-40℃ ~+80℃) and small cable diameter, it is more convenient to reduces ice and wind loads and maintains stable transmission. The inner structure uses a water-blocking layer for better waterproofing. Aramid Yarn is a important part of fiber optical cable for tensile resistance.


Applications of ADSS Fiber optic Cable


Optical Fibre Price

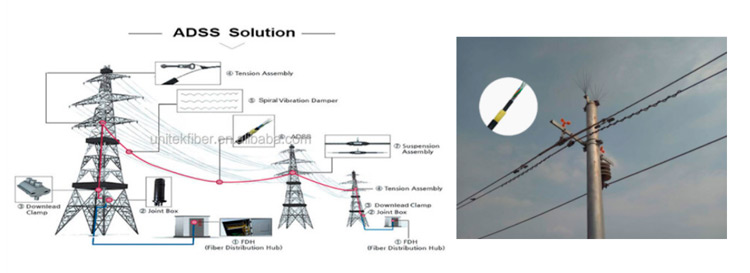

As a kind of self-supporting aerial fiber optic cable, ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications. This comprehensive solution introduction will cover the definition, structure, advantages, and applications of ADSS cables.


Professional Assistant For ADSS Fiber Optic Cabling System


OFC Cable Price


Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

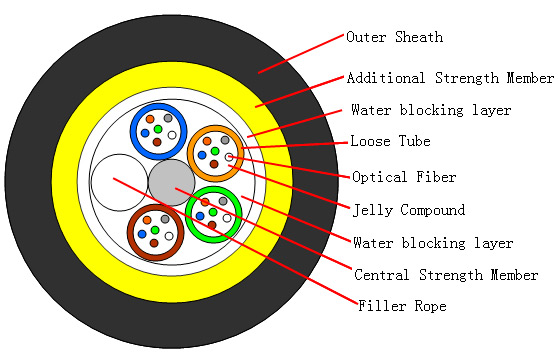

Parameter of All-dielectric Self-supporting ADSS Optic Cable Single Mode G652D 12~288fibers Single J

No. of cable8122436487296
Fiber ModelG.652D
Design(Strength Member + Tube & Filler)1+61+8
Central Strength MemberMaterialFRP
Diameter(±0.05)mm2.63.0
Additional


Sheath

MaterialPE
Diameter(±0.05)mm4.4
Loose TubeMaterialPBT
Diameter(±0.06)mm2.55
Thickness(±0.03)mm0.4
Strength Member(Material)Aramid Yarn
Outer SheathMaterialHDPE
Thickness(±0.1)mm1.7
Cable Diameter(±0.2)mm11.813.6
Cable Weight (±10) kg/km112146
Allowable Tensile Strength(N)2700
Min. bending radiusWithout Tension10.0×Cable-φ
Under Maximum Tension20.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport &Storage-40~+70
Operation-40~+70


Fibre & Loose Tube Colors

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua


What is ADSS fiber optic cable?

All-dielectric self-supporting (ADSS) cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements.

How about the pole span for ADSS fiber optic cable?

UnitekFiber can supply ADSS fiber optic cable with 100-800 meter pole span.

Why does fiber optic cable need all-dielectric material?

Dielectric means it has non-conducting properties of a non-metallic, insulating material that resists the passage of electric current.

Can ADSS be installed underground?

ADSS cables should be placed in Aerial and duct, but can not be direct-buried.

Reviews

Bartley
Jul 13, 2022

Economical, arrived fast, tested out with good numbers after installation. Stripping and polishing was normal.
