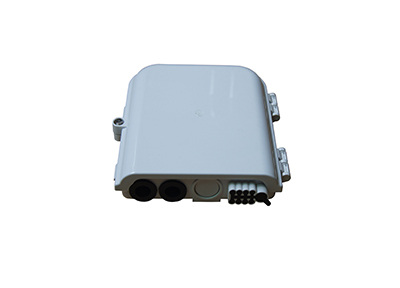

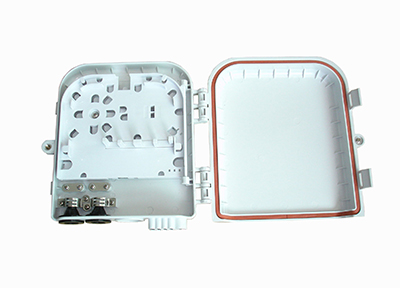

Indoor|Outdoor Water-proof FTTH Terminal Box 8 Ports

UnitekFiber’s indoor/outdoor FTTH terminal box is available for the distribution and terminal connection for various kinds of optical fiber system with water-proof function. It is also applied for mini-network terminal distribution, in which the optical cables, patch cores or pigtails are connected.

Fiber Optic
Details
Parameter

Details of Indoor|Outdoor Water-proof FTTH Terminal Box 8 Ports

Application:


  • Widely used in FTTH access network

  • Telecommunication networks

  • CATV networks

  • Data communication networks

  • Local area Networks


Features:


  • Industry Standard User Interface, be made of ABS plastic.

  • Can accommodate 1x4,1x8, 2x4, 2x8 PLC splitter.

  • Indoor or outdoor using, waterproof, IP65

  • Up to 8 FTTH drops cables.

  • Wall mounting and pole mounting application.

  • Different cable ports for option: 1 oval or 2 round cable entry ports; 8 or 9pcs cable exit ports.


Packaging & Shipping


Indoor|Outdoor Water-proof FTTH Terminal Box 8 Ports


Production


Indoor|Outdoor Water-proof FTTH Terminal Box 8 Ports


Parameter of Indoor|Outdoor Water-proof FTTH Terminal Box 8 Ports

Specifications

Item

Parameters

Scope of application

3*2mm drop cable or indoor cable

Fiber cladding diameter

125um(G652 & G657)

Fiber diameter

250um & 900um

Fiber type

SM & MM

Operating temperature

-40 ~ +85℃

Connect adapter

LC & SC

Splitter Connection

1x4,1x8, 2x4, 2x8 PLC splitter


Configuration

Material

Size

Max Capacity

Mounting Way

Weight

Color

ABS

206.8x230.3x52.7mm

8 fibers

Wall Mounting

pole mounting

0.87kg

White
