Hot Sales Outdoor ADSS Fiber Optic Cable 48F SM G652D 150m Span Single Jacket PE

ADSS fiber optic cable is a kind of all-dielectric self-supporting cable that is independently hung on the inside of the power conductor along the transmission line frame (the position of the suspension is mainly determined by factors such as the electric field strength of the suspension, the distance from the ground,

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Hot Sales Outdoor ADSS Fiber Optic Cable 48F SM G652D 150m Span Single Jacket PE

Optical Cable for Sale

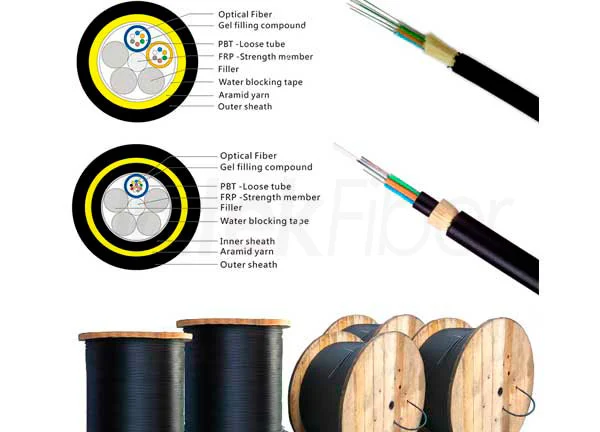

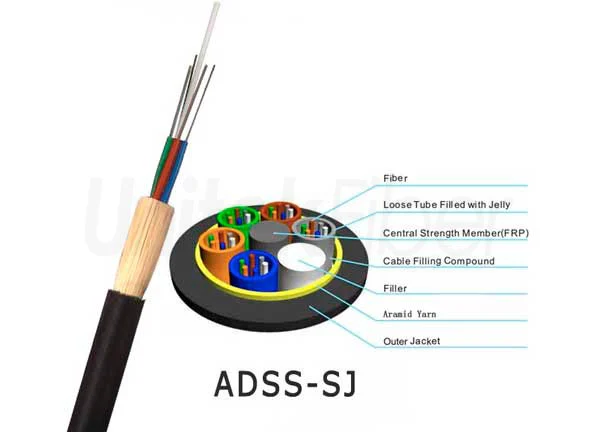

ADSS optical cable has a different structure from overhead conductors, and its tensile strength is endured by aramid ropes. The structure of ADSS fiber cable can be in a stranded structure design, the inner optical fibers and water-blocking grease are added into the fiber loose tube, and different loose tubes are wound around the central reinforcement. The rest parts are basically similar to the central tube structure.


Optical Cable Price


The Fiber Cores of ADSS Fiber Cable is 2-288Cores


Features of ADSS Fiber optic Cable


Optical Cable Wire

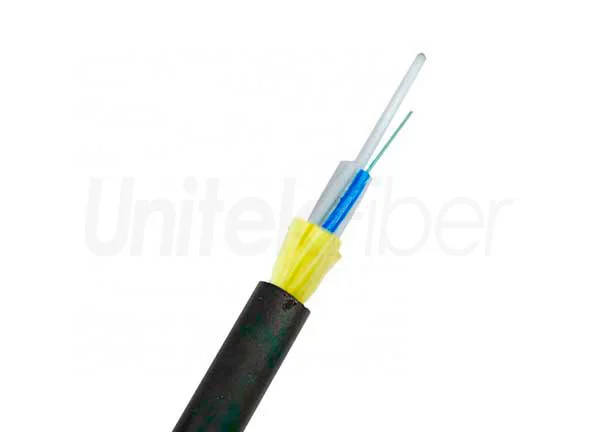

ADSS Fiber optic cable is All-dielectric self supporting wire, without any metal for avoid lightning strike. It is very convenient line installation and maintenance. The ADSS fiber cable has small cable diameter, it is more convenient to reduces ice and wind loads and maintains stable transmission. The elastic modulus of aramid rope is more than half smaller than that of steel, which determines that the sag of ADSS cable is more sensitive to external load changes.


Applications of ADSS Fiber optic Cable


Optical Fibre Price


This comprehensive solution introduction will cover the definition, structure, advantages, and applications of ADSS cables. As a kind of self-supporting aerial fiber optic cable, ADSS (All-dielectric Self-supporting) cable is designed for aerial installation and deployment, which is suitable for various outdoor applications.


Professional Assistant For ADSS Fiber Optic Cabling System


OFC Cable Price

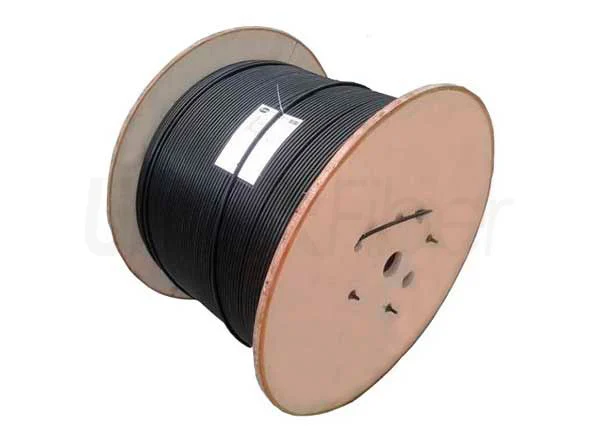

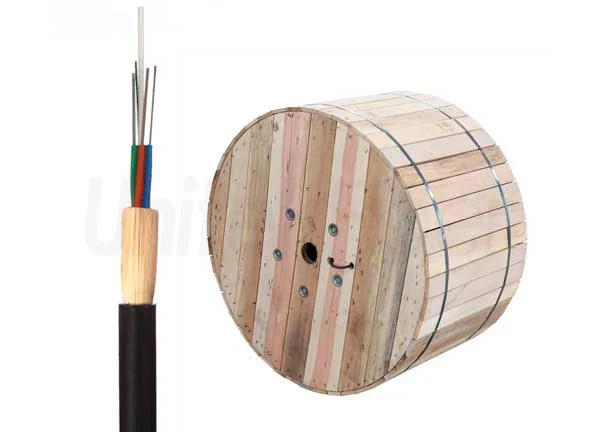

Packaging & Shipping


Air Blown Fiber Optic Cable


Production


Blown Fibre

Parameter of Hot Sales Outdoor ADSS Fiber Optic Cable 48F SM G652D 150m Span Single Jacket PE

No. of cable

/

24~30

32~60

62~72

96

Design

(StrengthMember+Tube&Filler)

/

1+5

1+5

1+6

1+8

Fiber type

/

G.652D

Central Strength Member

Material

mm

FRP

Diameter

(±0.05mm)

1.5

1.5

2.1

2.1

Loose Tube

Material

mm

PBT

Diameter

(±0.05mm)

1.8

2.1

2.1

2.1

Thickness

(±0.03mm)

0.32

0.35

0.35

0.35

MAX.NO./per

6

12

12

12

Water Blocking Layer

Material

/

Flooding Compound

Inner Sheath

Material

mm

MDPE

Thickness

0.9(nominal)

colour

black.

Additional Strength Member

Material

/

Aramid Yarn

Outer Sheath

Material

mm

MDPE

Thickness

1.8(nominal)

colour

black.

Cable Diameter(±0.2mm)

mm

11.1

11.7

12.3

14.1

Cable Wetght(±10.0kg/km)

kg/km

100

111

122

135

Attenuation coefficient

1310nm

dB/km

≤0.35

1550nm

≤0.21

Cable breaking strength(RTS)

kn

≥12.0

Working Tension (MAT)

Kn

≥5.0

Wind velocity

m/s

30

Icing

mm

5

Span

M

200

Crush Resistance

Short Term

N/100mm

≥2200

Long Term

≥1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70


Fibre & Loose Tube Colors

 Fibre & Loose Tube Colors
