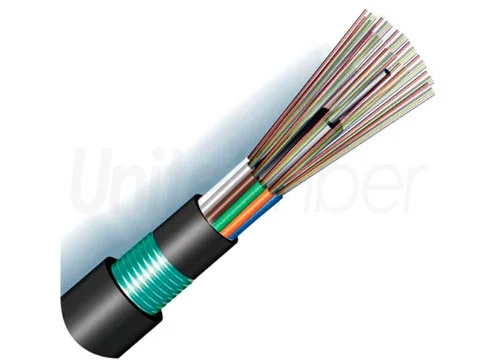

Buried Fiber Cable|GYFTY53 Fiber Optic Cable Non-metallic Strength Member Double Jacket Armored

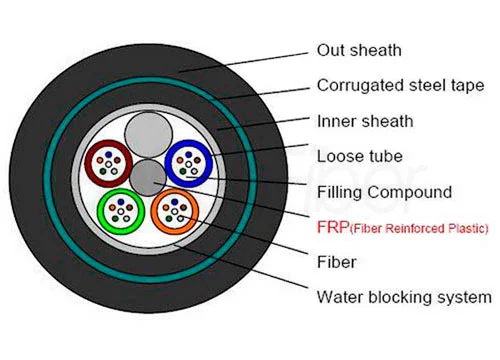

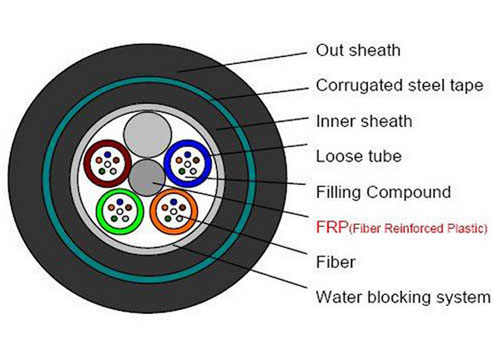

GYFTY53 is an Double Sheath Outdoor Fiber Optic Cable of non-metallic strength member, loose tube layer stranded filling type, with Polyethylene inner sheath, non-metallic fiber reinforcement, and LSZH outer sheath.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

Description of Buried Fiber Cable|GYFTY53 Fiber Optic Cable Non-metallic Strength Member Double Jack

Features:


  • Full cross-section water-blocking structure to ensure good water blocking and moisture resistance.

  • Loose tube is filled with special ointment for key protection of fiber.

  • Glass yarn to ensure the the cable has good tensile properties, and rat-bite prevention.

  • Non-metallic strength member is applicable for multi-thunder area.

  • Product life is 30 years.


Application:


  • Core Network, Metropolitan Area Network, and Access Network Outdoor Optical Cable

  • Laying method: overhead, pipeline

  • Working temperature: -40℃~+60℃

  • Bend radius: Static 12.5 times the cable diameter

  • Dynamic 25 times optical cable diameter


Packaging & Shipping


Buried Fiber Cable|GYFTY53 Fiber Optic Cable Non-metallic Strength Member Double Jack


Production


Buried Fiber Cable|GYFTY53 Fiber Optic Cable Non-metallic Strength Member Double Jack


Parameter of Buried Fiber Cable|GYFTY53 Fiber Optic Cable Non-metallic Strength Member Double Jacket

No. of cable

/

4~30

32~60

62~72

72~96


Design

(StrengthMember+Tube&Filler)

/

1+5

1+5

1+6

1+8


Fiber type

/

G.657A1

Central Strength Member

Material

mm

FRP

Diameter

(±0.05mm)

1.5

1.5

2.1

2.1


Loose Tube

Material

mm

PBT

Diameter

(±0.05mm)

1.8

2.1

2.1

2.1


Thickness

(±0.03mm)

0.32

0.35

0.35

0.35


MAX.NO./per

6

12

12

12


Water Blocking Layer

Material

/

Flooding Compound

Inner Sheath

Material

mm

MDPE

Thickness

0.9(nominal)

colour

black.

Additional Strength Member

Material

/

Glass Yarn

Outer Sheath

Material

mm

LSZH

Thickness

1.8(nominal)

colour

black.

Cable Diameter(±0.2mm)

mm

11.0

11.6

12.2

13.5


Cable Wetght(±10.0kg/km)

kg/km

102

115

130

150


Attenuation coefficient

1310nm

dB/km

≤0.35

1550nm

≤0.21

Cable breaking strength(RTS)

kn

≥3

Crush Resistance

Short Term

N/100mm

≥2200

Long Term

≥1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

(℃)

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

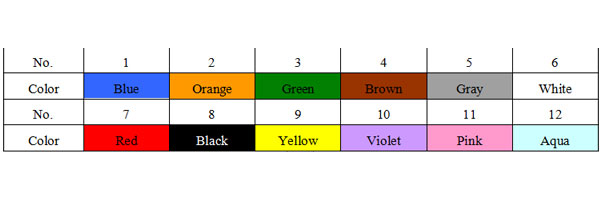

Fibre & Loose Tube Colors

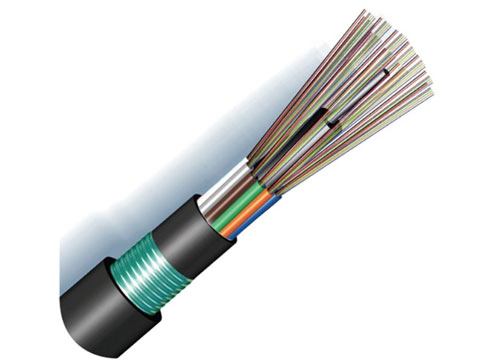

Non-metallic Strength Member Double Jacket Armored Fiber Cable(GYFTY53)

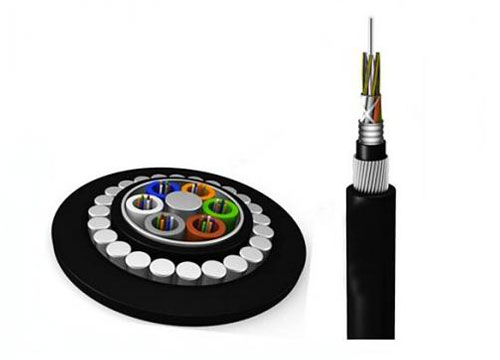

What is Fiber Optic Direct-Burial Cable?

Fiber optic direct-burial cable is a cable that has passed insulation water absorption and crush-resistance tests.

Are these definitely for direct burial? Is this an armored cable?

Armored, you can directly bury just keep the ends clean.

Why can the direct buried optical cable be directly buried in the ground for installation?

Because direct bury fiber optic cable has steel tape or steel wire armored on the outside to protect the fiber optic cable.

Can I get this in 96core direct bury fiber optic cable?

Yes, you can. Please contact us with your request.

What is your delivery time?

Lead time is 15-20 days, according to order quantities.

How will you deliver my goods to me?

Usually deliver by courier, like DHL, UPS, FedEx; also bulk cargo by air & sea.
