Customized Outdoor FTTH Drop Fiber Optic Cable GJYXFCH Aerial 8 12 24 Cores SM G652D G657A1 G657A2 LSZH Black

GJYXFCH outdoor FTTH drop fiber optic cable is a center tube design which is up to 24 cores. Compared with common self-supporting drop optical cable, the FRP or steel wire strength member is more stronger.

Cores
1
2
4
8
12
Series
Fiber Optic
Description
Parameter
FAQ
Download
Video
Reviews

Description of Customized Outdoor FTTH Drop Fiber Optic Cable GJYXFCH Aerial 8 12 24 Cores SM G652D

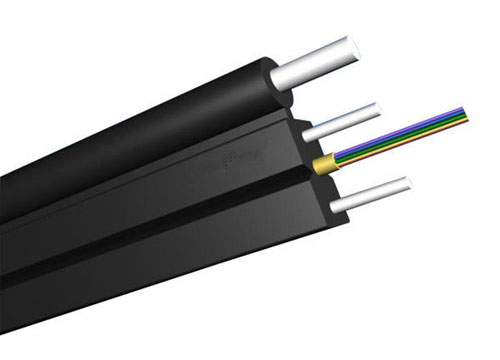

Customized Outdoor FTTH Drop Fiber Optic Cable GJYXFCH Aerial 8 12 24 Cores SM G652D G657A1 G657A2 LSZH Black


Fiber Optic Cable

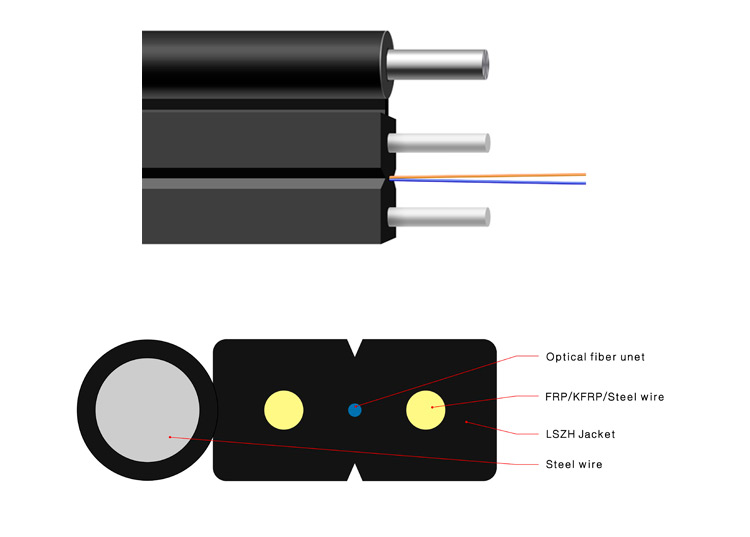

FTTH (Fiber to the home) drop cable, the outer skin is generally black and white, the diameter is relatively small, and the flexibility is good; the cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape. The fiber inside the cable is mostly G.657A2 small bending radius fiber, which can be laid at a bending radius of 20mm.


FTTH Drop Cable Price


The Fiber Cores of FTTH drop cable is from 2 cores to 6 cores


Features of FTTH drop cable

Fiber FTTH

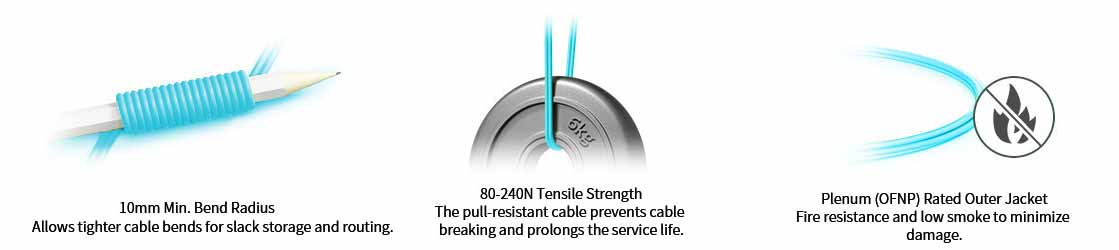

FTTH drop cable is use special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber. Simple structure, light weight and high practicability. Novel flute design, easily strip and splice, simplify the installation and maintenance. Low smoke, zero halogen and flame retardant sheath.


Applications of FTTH drop cable

FTTH Fiber Optic


FTTH outdoor drop cable is a new type of fiber-optic cable. It is a butterfly-shaped cable. Because it is small in size and light in weight, it is suitable for the application of Fiber to the Home. It can be cut according to the distance of the site, increased the efficiency of construction. The unique 8-shaped structure of the drop cable can realize the field end in the shortest time.


Professional Assistant For FTTH Outdoor Drop Cabling System

FTTH Fiber to the Home

Parameter of Customized Outdoor FTTH Drop Fiber Optic Cable GJYXFCH Aerial 8 12 24 Cores SM G652D G6

No. of cable12-24
Fiber ModelG.657A1
Steel wireDiameter(±0.03)mm1.0
NO.1
FRPDiameter(±0.03)mm0.5
NO.2
Loose tubeMaterialPBT
ColorNatural
Diameter(±0.06)mm2.0
Thickness(±0.03)mm0.35
The Max.Core NO./Tube24
Outer SheathMaterialLSZH
ColourBlack
Cable Diameter(±0.2)mm4.0×8.5
Cable Weight(±2)kg/km45
Attenuation1310nmdB/km0.4
1550nm0.3
Allowable Tensile StrengthShort TermN600
Long Term300
Allowable Crush ResistanceShort TermN/100mm2200
Long Term1000
Min. bending radiusWithout Tension15.0×Cable-φ
Under Maximum Tension30.0×Cable-φ
Temperature range


(℃)

Installation-20~+60
Transport&Storage-40~+70
Operation-40~+70
Fiber Colors
Fiber Colors

How to terminate the FTTH Drop cable?

This cable can work with single mode or multimode LC/SC fast connectors and also can be pre-terminated by LC/SC/ST/FC connectors.

Does FTTH Drop Cable work with singlemode upc 9/125 micro fiber?

Yes, the optical fiber usually is single mode (9/125) G657. It is also can be G652D. You can use cold splicing tool to add fast connectors LC/SC/ST/FC(UPC/APC) to it.

Do any LC fast connectors work with FTTH drop cable?

Yes, UnitekFiber can provide LC fast connectors to terminate FTTH drop cable.

What is the main application for FTTH drop cable?

The main application for FTTH drop cable is Fiber to The Home project.

Is FTTH drop cable suitable for outdoor runs?

Yes, it is suitable for outdoor application with 70meters pole span.

What is the strength members for FTTH drop cable?

The strength member for FTTH drop cable can be FRP or steel wire.

What is the function of FRP?

FRP is a Fiberglass-Reinforced Plastic material that has the strength of steel at the fraction of the weight, the FRP makes cable strong tension and anti-bend advantages.

Video

Reviews

Allen
Jul 13, 2022

Very good service and quality.

The fiber cable was very easy to pull both indoor & outdoor.
It's not stiff, went thru conduits nicely.

Verified Purchase
