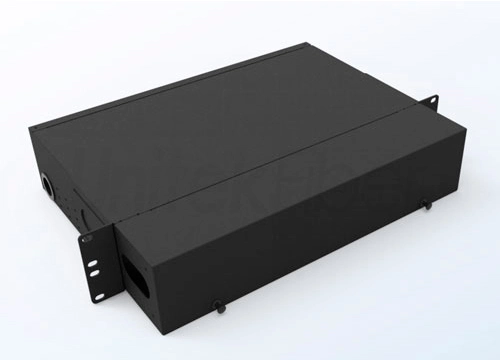

High Density Fiber Optic Patch Panel UF-FR-CLD-2U Fixed Type Optical Termination Box

The front cover and rear cover of the UF-FR-CLD-2U fiber optical box are 1.2mm aluminum plates, the bottom case is 1.5mm cold rolled plates, and the box holder is 2.0 cold rolled plates. The fiber optical box is a fixed type.

Fiber Optic
Details
Parameter

Details of High Density Fiber Optic Patch Panel UF-FR-CLD-2U Fixed Type Optical Termination Box

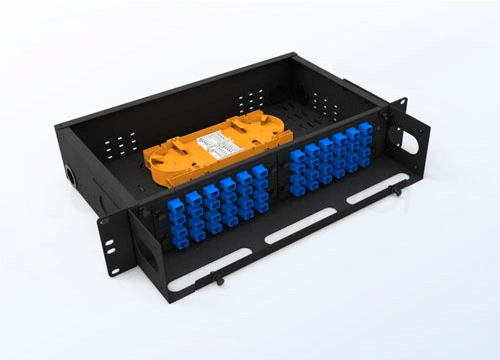

The splice tray is loaded in the middle of the box for fiber cable splicing. There is enough space at the front box for fiber cable storage and management. The capacity for UF-FR-CLD-2U fixed fiber terminal box is 96 cores LC adapters. It is suitable for LC, SC, ST and FC adapters.


Features:


  • Rack mounting 19” standard size, light weight

  • Suitable for ribbon and single fiber

  • Various panel plate to fit different adapter interface

  • 24C, 36C, 48C, 96C optional, with or without fiber optic pigtails and adapters

  • Easy for management and operation

  • Sprayed surface treatment process

  • Customizble color and LOGO


Applications:


  • Telecommunications subscriber loop

  • Fiber to the home (FTTH)

  • LAN/WAN

  • CATV


Packaging and Shipping


High Density Fiber Optic Patch Panel UF-FR-CLD-2U Fixed Type Optical Termination Box

Production


High Density Fiber Optic Patch Panel UF-FR-CLD-2U Fixed Type Optical Termination Box


Parameter of High Density Fiber Optic Patch Panel UF-FR-CLD-2U Fixed Type Optical Termination Box

Packing Information

Type

Max capacity

Per carton/Qty

Inner carton diameter(cm)

Outer carton diameter(cm)

Weight(kg)

UF-FR-CLD-1U

48/LC

5

49*37*5

51*29*39

16

UF-FR-CLD-2U

96/LC

3

49*37*9.5

51*29*39

13.88
