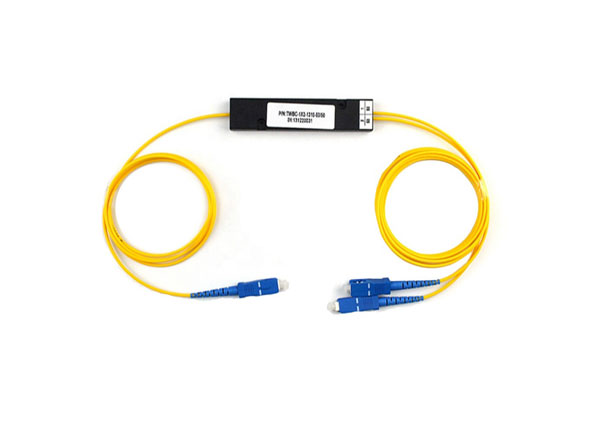

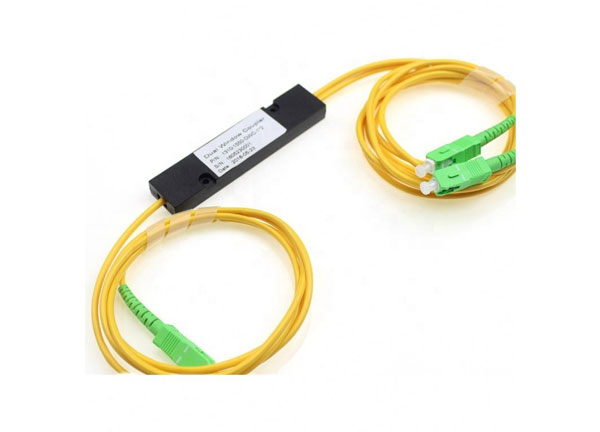

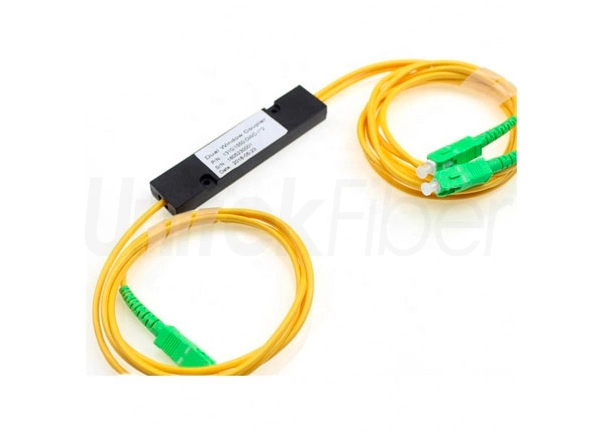

High Quality 1x2 ABS Cassette PLC Splitter with SC Termination

UnitekFiber supplies High Quality ABS cassette PLC Splitters assembly. The chip part is packed by a black ABS cassette and uses a 2.0mm or 3.0mm loose tube fiber cables for optical delivery.The SC, LC, ST and FC connectors are connected at the end of the fiber cable.


Fiber Optic
Description
Parameter
FAQ
Download
Reviews
Video

High Quality 1x2 ABS Cassette PLC Splitter with SC Termination

Features:


lLow Insertion loss

lLow PDL

lCompact Design

lGood channel-to-channel uniformity

lWide Operating Wavelength:

lFrom 1260nm to 1650nm

lWide Operating Temperature

lHigh Reliability and Stability


Applications:


lFTTX Systems

lPON Networks

lCATV Links

lOptical Signal Distribution


Compliance:


lTelcordia GR-1209-CORE

lTelcordia GR-1221-CORE


LGX Box PLC Spltter


Packaging and Shipping:


High Quality 1x2 ABS Cassette PLC Splitter with SC Termination


Production:



High Quality 1x2 ABS Cassette PLC Splitter with SC Termination

High Quality 1x2 ABS Cassette PLC Splitter with SC Termination

Table 1 – 1×N PLC Splitter

Parameters

1×2

1×4

1×6

1×8

1×12

1×16

1×32

1×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.8/4.0

7.2/7.4

9.5/9.8

10.5/10.7

12.1/12.6

13.5/13.7

16.5/16.9

20.5/21.0

Loss Uniformity (dB)

0.6

0.6

1.0

0.8

1.1

1.2

1.5

2.5

Return Loss (dB)

55

55

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.3

0.3

0.3

0.3

0.3

0.4

Directivity (dB)

55

55

55

55

55

55

55

55

Operating Temperature(℃)

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

40×4×4

40×4×4

40×4×4

40×4×4

60×7×4

60×7×4

60×7×4

60×12×6

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

60×7×4

60×7×4

60×12×4

80×20×6

100×40×6


Table 2 – 2×N PLC Splitter

Parameters

2×2

2×4

2×8

2×16

2×32

2×64

Operating Wavelength (nm)

1260~1650

Fiber Type

G657A or customer specified

Insertion Loss (dB)(Min/Max)

3.9/4.2

7.5/7.8

11.2/11.5

14.2/14.5

17.2/17.7

21.0/21.5

Loss Uniformity (dB)

0.8

1.5

1.5

1.8

2.0

2.5

Return Loss (dB)

55

55

55

55

55

55

Polarization Dependent Loss(dB)

0.2

0.2

0.4

0.4

0.4

0.4

Directivity (dB)

55

55

55

55

55

55

Operating Temperature(℃))

-40~+85

Storage Temperature(℃))

-40~+85

Operating Humidity

5% ~ 85% RH

Storage Humidity

5% ~ 85% RH

Device Dimension (mm)   (L×W×H)

50×4×4

50×4×4

50×4×4

60×7×4

60×7×4

N/A

Module Dimension (mm)   (L×W×H)

100×80×10

100×80×10

100×80×10

120×80×18

120×80×18

140×115×18

Mini-Module Dimension (mm)   (L×W×H)

60×7×4

60×7×4

60×7×4

80×12×4

80×20×6

N/A
